Plan 20083GA
RV Garage with Apartment Above and an Observation Deck - 1548 Sq Ft
Heated S.F.
1,548
Beds
2 - 3
Baths
3
Stories
2
Cars
3
Floor Plan

Plan 20083GA

Main Level
slide image 0
2nd Floor
slide image 1

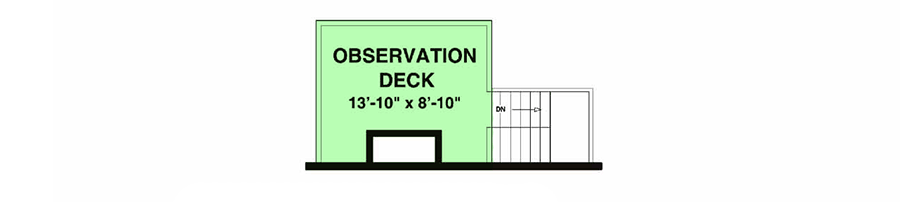

3rd Floor
slide image 2

Plan 20083GA

1-800-854-7852

1-262-521-4596

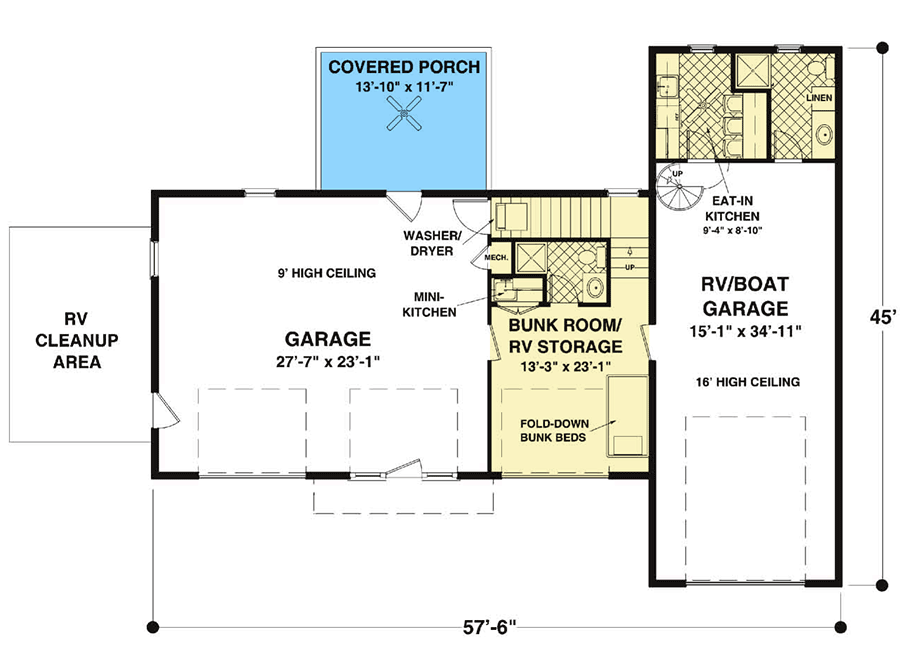

Main Level
floor plan image Main Level

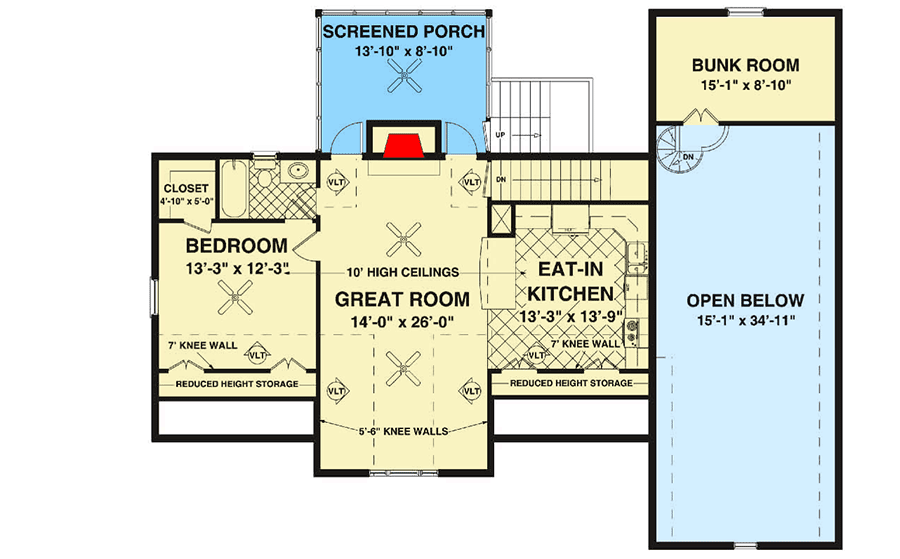

2nd Floor
floor plan image 2nd Floor
3rd Floor
floor plan image 3rd Floor
Plan Details
  • This RV garage has 16' clearance so you can easily get your rig under cover in style. There is also room for two cars on the garage level.
  • The garage level also has a bunk room with small kitchen plus a second bunk room loft in the RV section with its own eat-in kitchen. A covered porch and laundry closet complete this level
  • On the main level, you'll enjoy 10' ceilings. The spacious great room is open to the kitchen. On the back side of the fireplace there is a screened porch.
  • Stairs lead up to an observation deck giving you one more reason to enjoy this special RV home plan.
What's Included
  • Digital exterior rendering cover page
  • Exterior elevation page
  • Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  • Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  • Cross sections and interior elevation page
  • Roof framing plan with 3-D roof framing schematic
  • IRC code specifications and methodologies
  • General construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,548 sq. ft.

1st Floor

490 sq. ft.

2nd Floor

1,058 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

57' 6"

Depth

45' 0"

Garage

Type

Detached, RV Garage

Area

1249 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

10'

Roof Details

Framing Type

Stick

Architectural Style

Carriage

Traditional

Special Features

Laundry - Main Level

Loft

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

1,548 sq. ft.

1st Floor

490 sq. ft.

2nd Floor

1,058 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

57' 6"

Depth

45' 0"

Garage

Type

Detached, RV Garage

Area

1249 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

10'

Roof Details

Framing Type

Stick

Architectural Style

Carriage

Traditional

Special Features

Laundry - Main Level

Loft

Master Suite - 2nd Floor
