Plan 68647VR
RV Garage with Extra-deep Bays
Heated S.F.
0
Beds
Baths
0
Stories
1
Cars
3
Floor Plan

Plan 68647VR

Main Level
slide image 0

Plan 68647VR

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

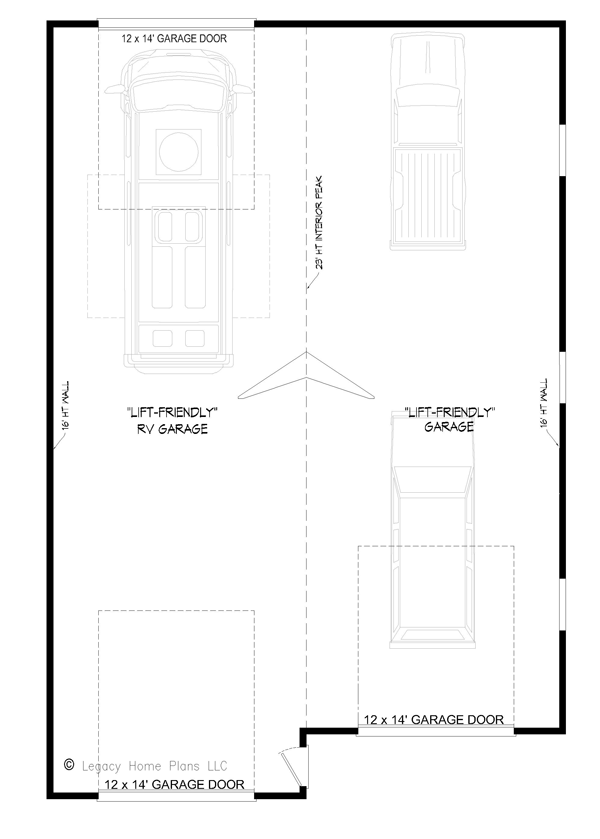

  • The 19' by 59' bay will nicely accommodate your RV and there's a second bay almost as large that can hold two cars parked in tandem fashion.
  • Related Plans: Get alternate RV garages with plans 68423VR, 68564VR, 68506VR and 68599VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

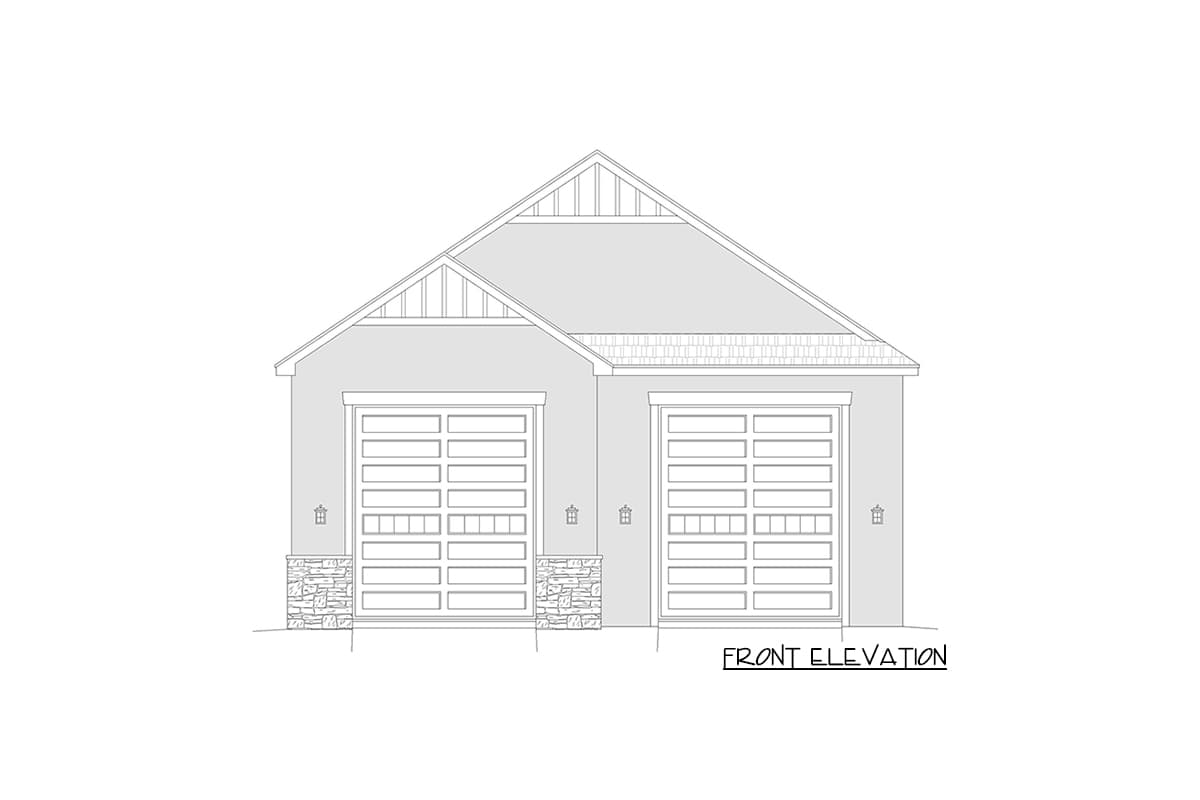

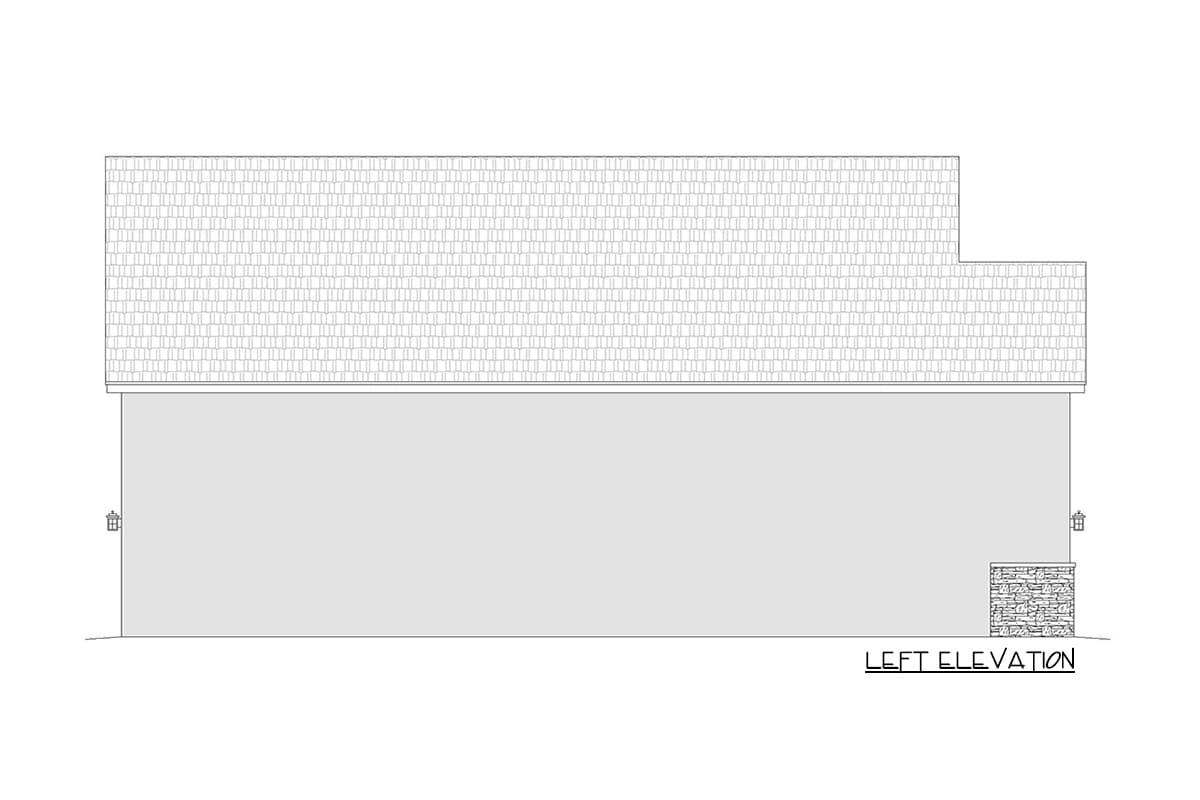

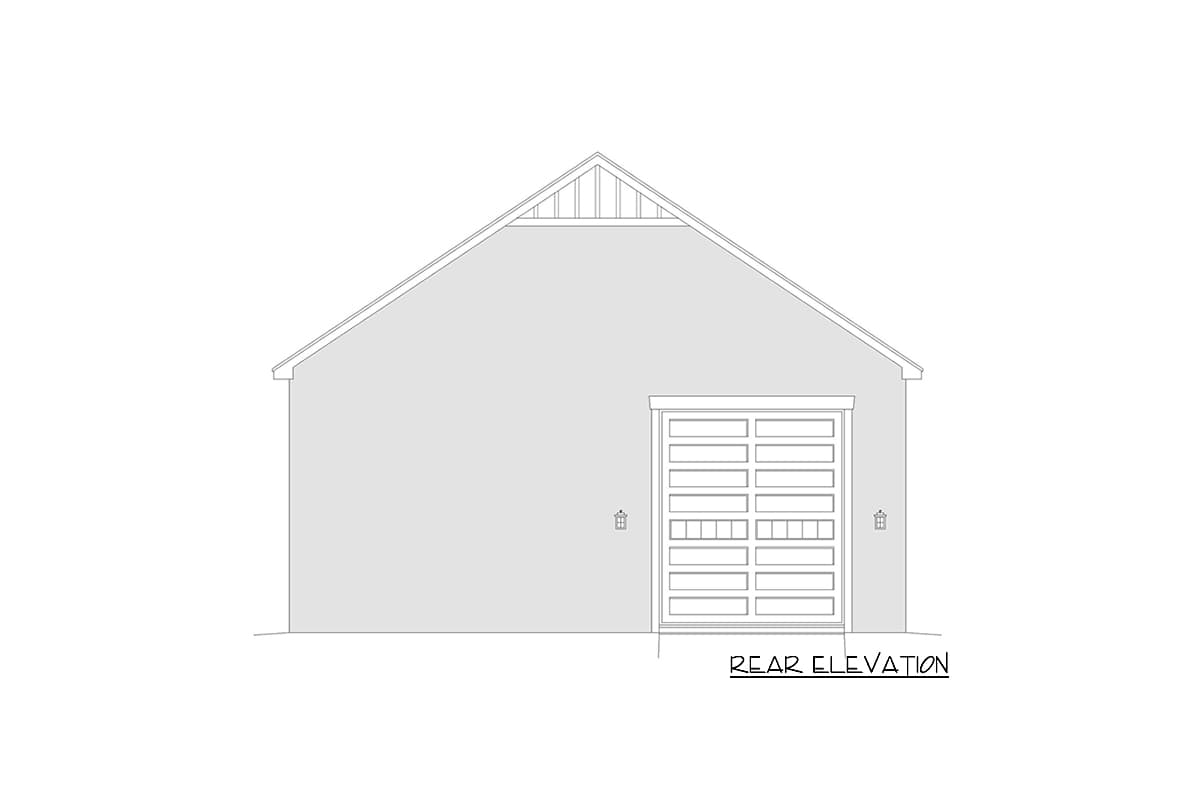

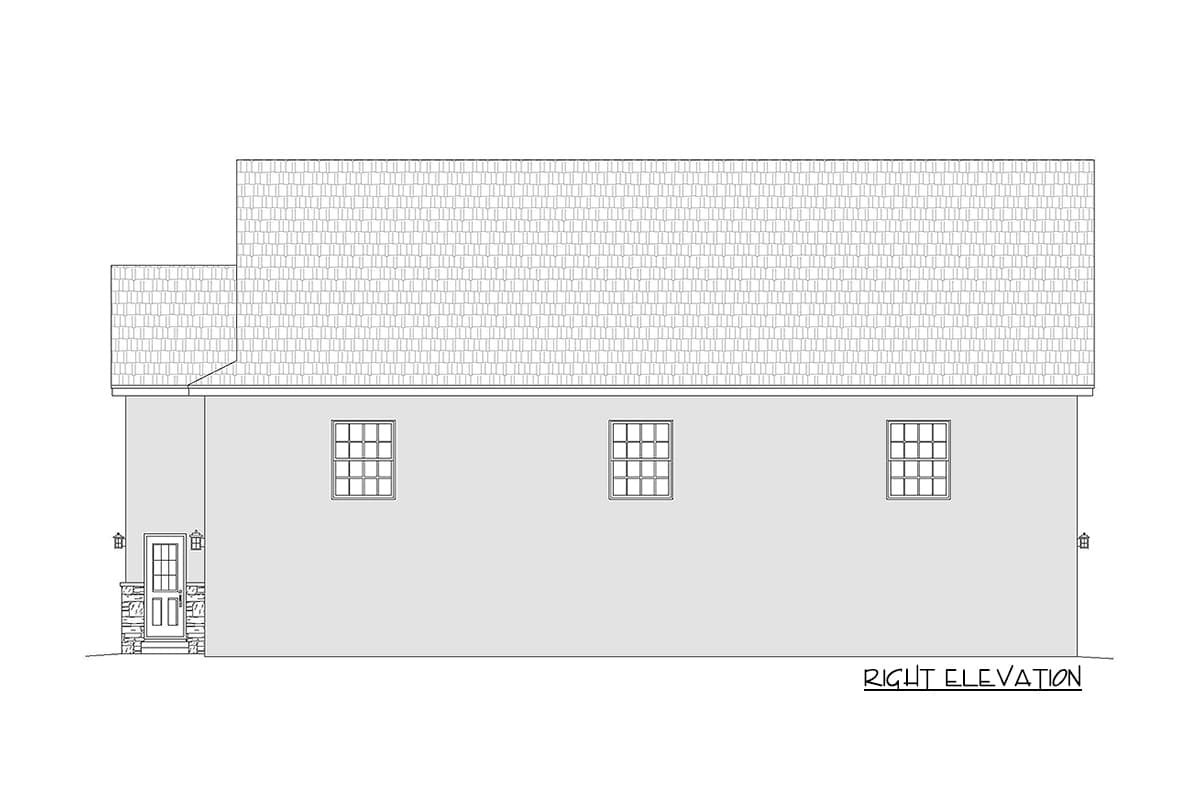

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
