Plan 2237SL
RV Garage with Loft - 1570 Sq Ft
Heated S.F.
0
Beds
Baths
0
Stories
1-2
Cars
3
Floor Plan

Plan 2237SL

Main Level
slide image 0
2nd Floor
slide image 1

Plan 2237SL

1-800-854-7852

1-262-521-4596

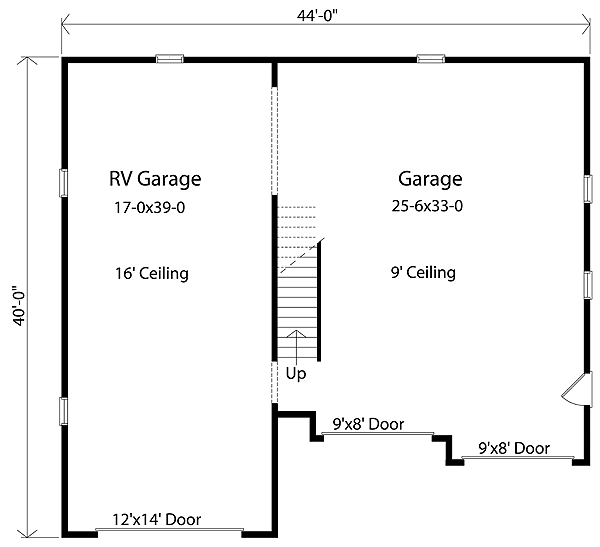

Main Level
floor plan image Main Level

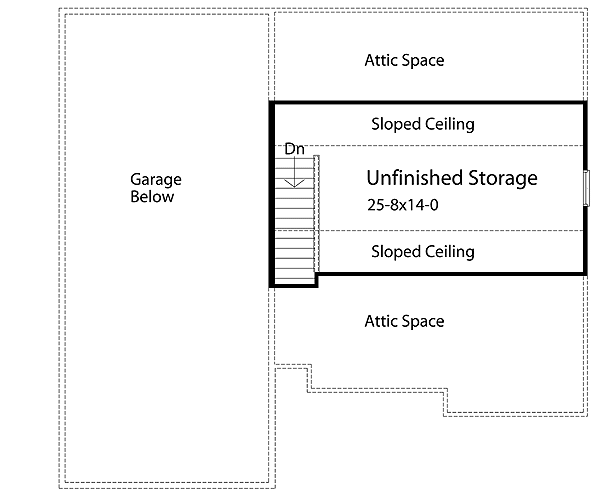

2nd Floor
floor plan image 2nd Floor
Plan Details

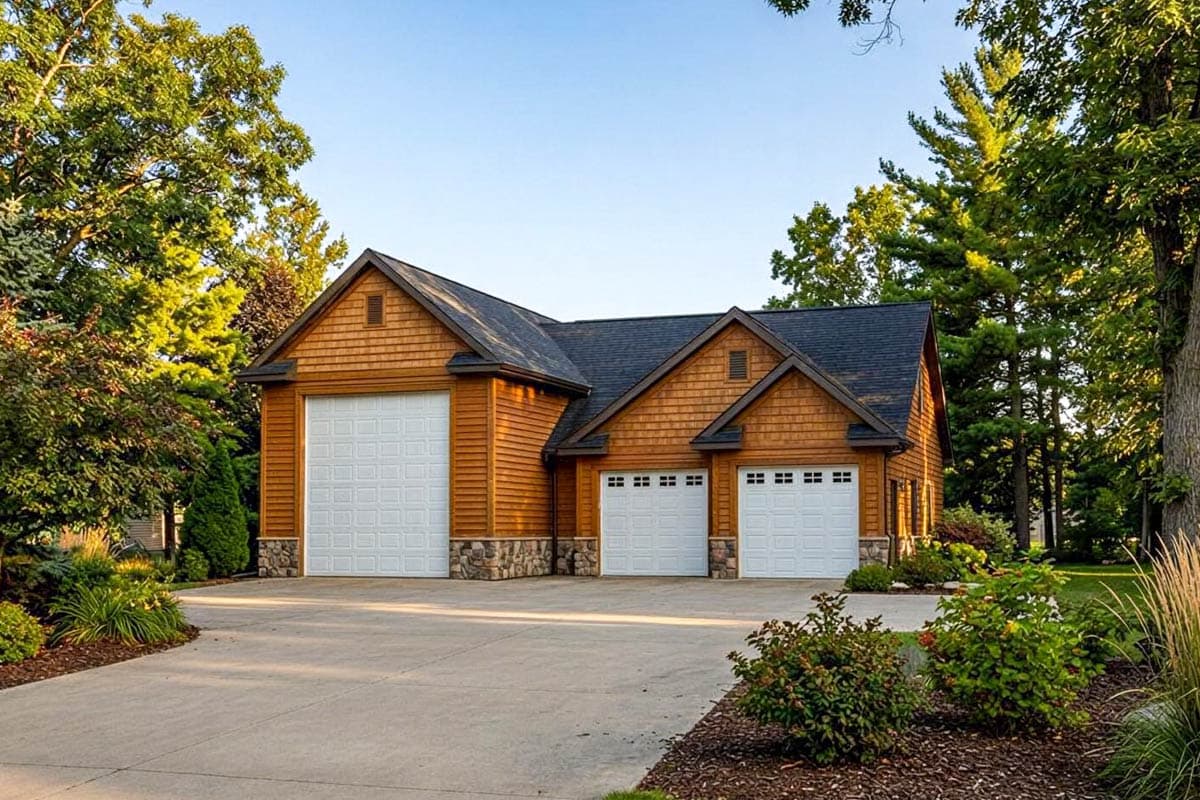

  • A stylish exterior adds curb appeal to this classy RV garage with attached two-car garage.
  • A 12'x14' door and a 16' ceiling accommodates an RV or motor home, while the two-car garage features two 9'x8' overhead doors and a 9' ceiling.
  • Interior stairs lead to the second level loft, perfect for storage and flexible to suit your needs.
  • Related RV Plans: Gain a shop with RV plan 22099SL. Also see these RV garage plans - 2238SL, 2263SL and 22101SL.
What's Included
  • Foundation plan
  • Fully dimensioned floor plans

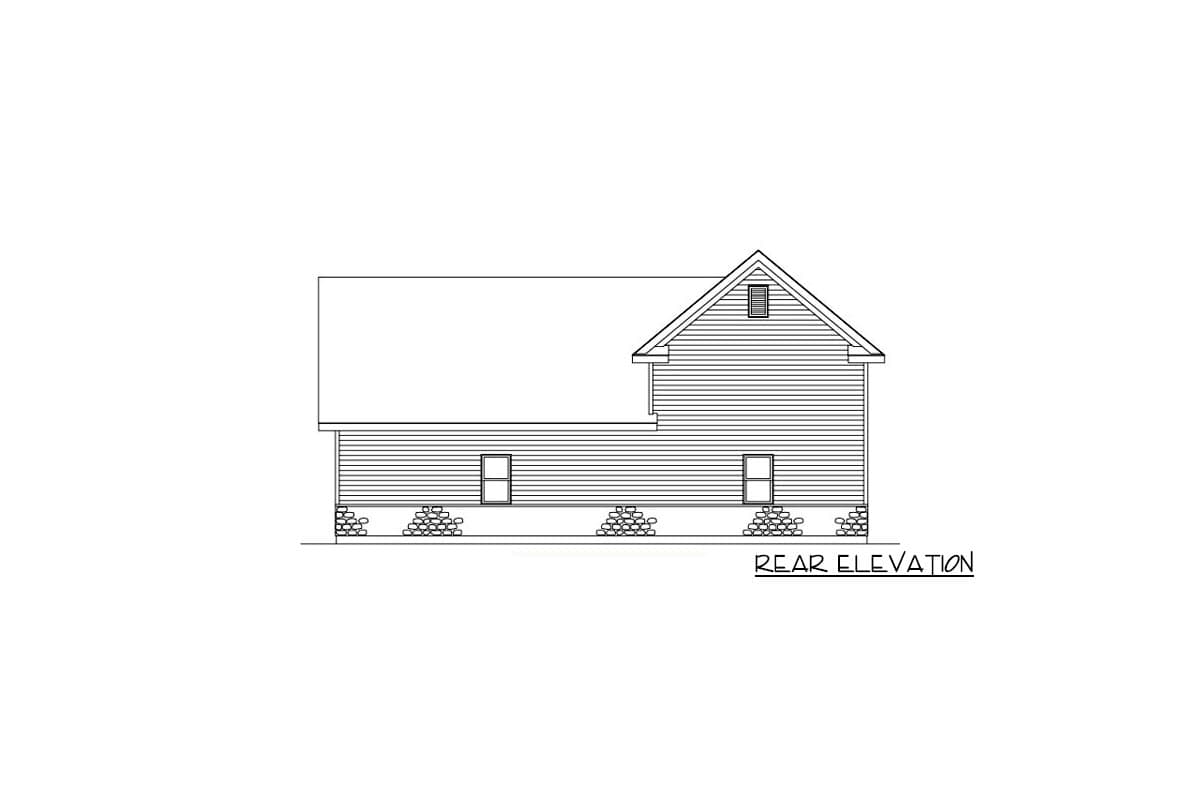

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Storage

391 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

40' 0"

Max Ridge Height

25' 0"

Garage

Type

Detached, RV Garage

Area

1570 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Traditional

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Storage

391 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

40' 0"

Max Ridge Height

25' 0"

Garage

Type

Detached, RV Garage

Area

1570 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Traditional
