Plan 680170VR
RV Garage with Main Level Workshop and Upper Level Great Room & Office
Heated S.F.
584
Beds
Baths
1
Stories
2
Cars
1- 2
Floor Plan

Plan 680170VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680170VR

1-800-854-7852

1-262-521-4596

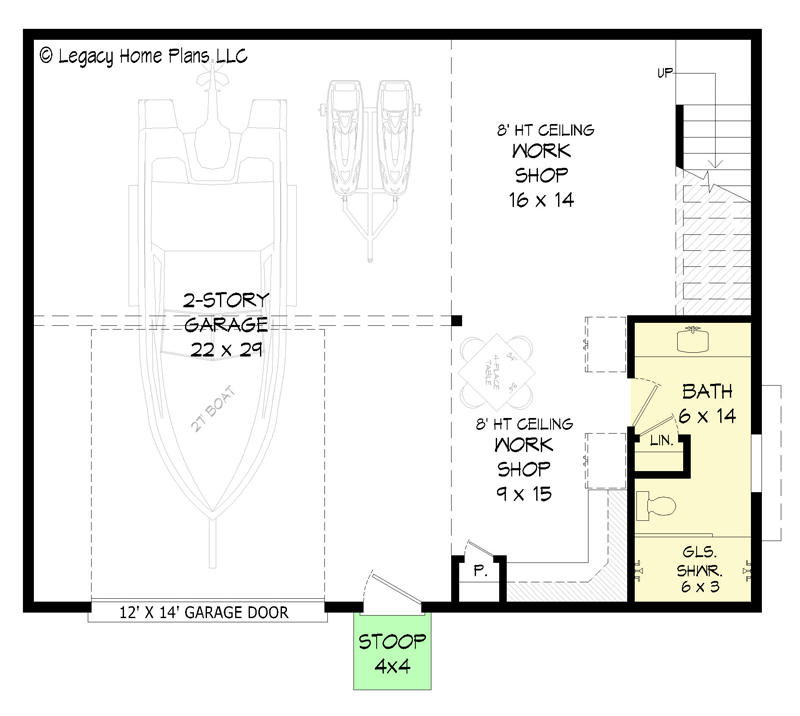

Main Level
floor plan image Main Level

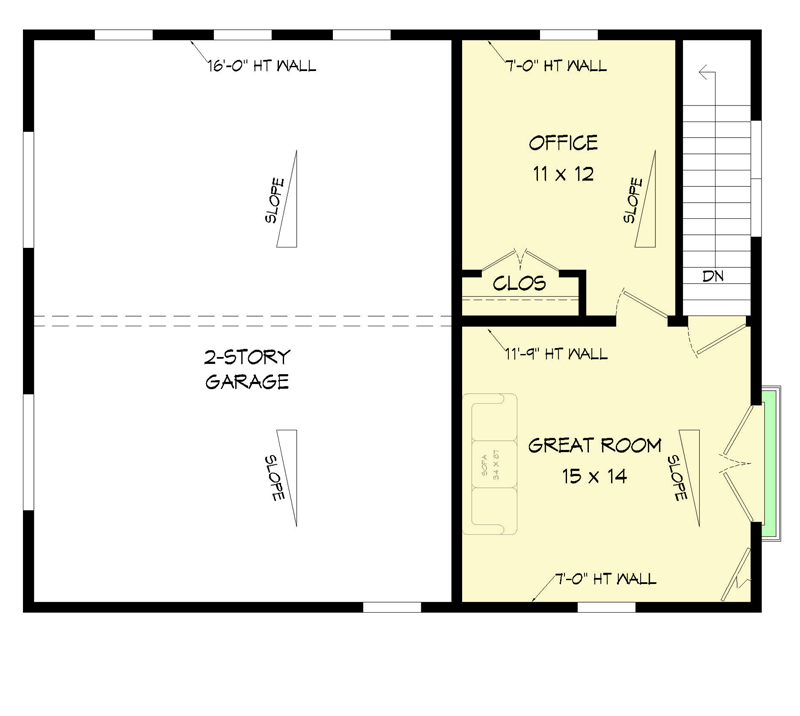

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This detached garage plan with RV storage gives you 1,035 square feet of parking and 585 square feet of heated living space. The garage is accessible through a 12' by 14' overhead door and can accommodate larger vehicles and boats.
  • There's shop space and a finished bath to clean up in after working on your projects.
  • Upstairs, a great room with Juliet balcony has a vaulted ceiling and an office has a sloped ceiling as well.
  • Related Plans: Get an alternate version with garage apartment plan 680013VR (680 sq. ft), 680229VR (496 sq. ft.) and 680230VR (499 sq. ft.).
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

584 sq. ft.

1st Floor

105 sq. ft.

2nd Floor

479 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

30' 0"

Max Ridge Height

21' 9"

Garage

Type

Detached, RV Garage

Area

1035 sq. ft.

Count

1 or 2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Craftsman

New American

Southwest

Traditional

Special Features

Home Office

Two Story Great Room

Workshop
