Plan 9826SW
RV Garage with Metal Roof
Heated S.F.
230
Beds
0
Baths
0.5
Stories
1
Cars
3
Floor Plan

Plan 9826SW

Main Level
slide image 0

Plan 9826SW

1-800-854-7852

1-262-521-4596

Main Level

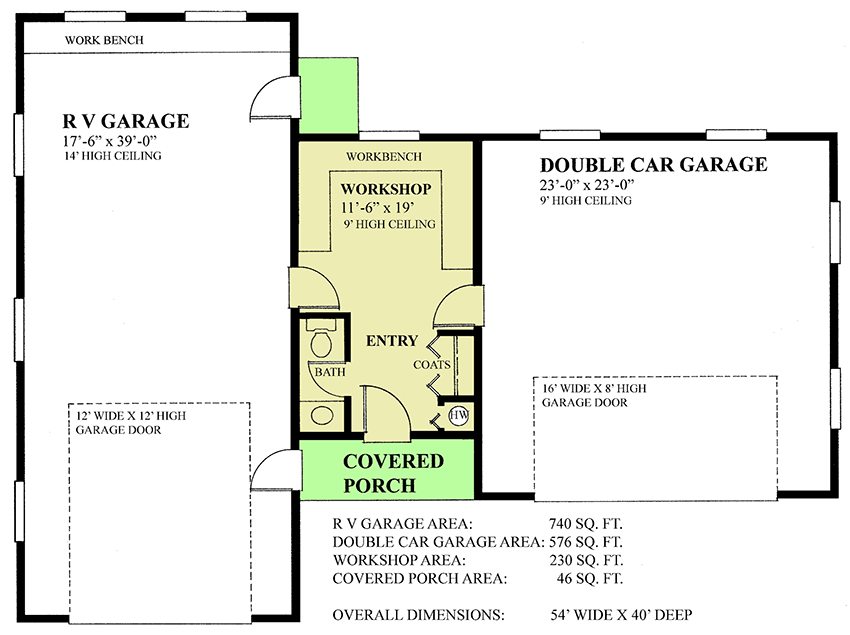

floor plan image Main Level
Plan Details
  • The RV garage portion of this combination garage has a 14'-high ceiling accessed through a 12'-high by 12'-wide overhead door. The double car garage has a 9'-high ceiling with an 8'-high by 16'-wide overhead door.
  • The covered entry opens into the workshop and boasts a half bath and coats closet. Slide the entry door over to allow space for a shower in the bathroom if desirable. The conveniently located workshop provides access to both garage areas while still being its own separate heated area if required.
  • Plans are designed with a concrete slab foundation plan.
  • Related Plan: Gain an upper floor with expansion possibilities with RV Garage Plan 9827SW and 9839SW.
What's Included
  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required
  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

230 sq. ft.

1st Floor

230 sq. ft.

Porch, Front

46 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

40' 0"

Max Ridge Height

21' 0"

Garage

Type

Detached

Area

1316 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Special Features

Workshop

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

230 sq. ft.

1st Floor

230 sq. ft.

Porch, Front

46 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

40' 0"

Max Ridge Height

21' 0"

Garage

Type

Detached

Area

1316 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Special Features

Workshop

Plan Collections

Canadian House Plans
