Plan 72668DA
RV Garage with Rec Room - 1587 Sq Ft
Heated S.F.
693
Beds
1
Baths
1
Stories
1
Cars
6
Floor Plan

Plan 72668DA

Main Level
slide image 0

Plan 72668DA

1-800-854-7852

1-262-521-4596

Main Level

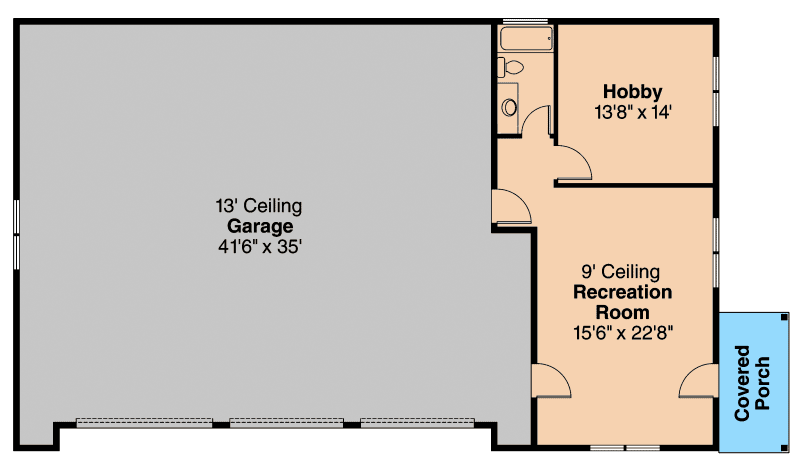

floor plan image Main Level
Plan Details
  • This Craftsman garage plan features three garage doors. Two doors are 10' wide and 10' tall, while the RV door is 12' wide and 12' tall. All combined, the three bays give you access to 1,587 square feet of storage.
  • This garage can house up to 6 cars, or 1 RV and 4 cars.
  • On the right side of the garage is a recreation room. There is also a hobby room and full bathroom. Combined, there is is 693 square feet of heated space.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

693 sq. ft.

1st Floor

693 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 0"

Depth

38' 0"

Max Ridge Height

23' 8"

Garage

Type

Detached, RV Garage

Area

1587 sq. ft.

Count

6 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Carriage

Special Features

Game/Rec Room

Workshop

Square Footage Breakdown

Total Heated Area

693 sq. ft.

1st Floor

693 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 0"

Depth

38' 0"

Max Ridge Height

23' 8"

Garage

Type

Detached, RV Garage

Area

1587 sq. ft.

Count

6 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Carriage

Special Features

Game/Rec Room

Workshop
