Plan 72769DA
RV Garage With Rec Room
Heated S.F.
993
Beds
1
Baths
1
Stories
2
Cars
3
Floor Plan

Plan 72769DA

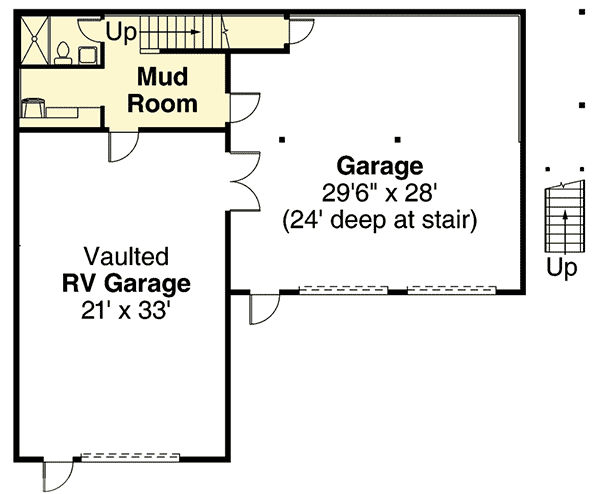

Main Level
slide image 0

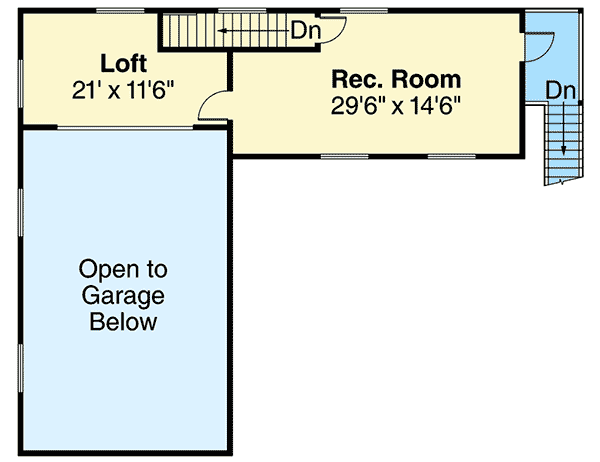

2nd Floor
slide image 1

Plan 72769DA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Designed for a lot that slopes uphill this garage plan has room for your RV plus 2 cars.
  • The vaulted RV garage is separate from the main garage but can be accessed by either the double doors in the main garage, or a standard man door in the mud room.
  • The RV garage door is 10' wide and 10' tall, and the two other garage doors are both 9' wide and 8' tall.
  • The back of the RV garage has a mud room with a stacking washer/dryer unit, a full bathroom and stairs leading to the loft and recreation room.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

993 sq. ft.

1st Floor

302 sq. ft.

2nd Floor

691 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 0"

Depth

46' 0"

Max Ridge Height

20' 0"

Garage

Type

Detached, RV Garage

Area

1580 sq. ft.

Count

3 Cars

Entry Location

Front

Special Features

Game/Rec Room

Loft

Mudroom

Square Footage Breakdown

Total Heated Area

993 sq. ft.

1st Floor

302 sq. ft.

2nd Floor

691 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 0"

Depth

46' 0"

Max Ridge Height

20' 0"

Garage

Type

Detached, RV Garage

Area

1580 sq. ft.

Count

3 Cars

Entry Location

Front

Special Features

Game/Rec Room

Loft

Mudroom
