Plan 48405FM

Secluded Master Suite

Heated S.F.

1,946

Beds

3

Baths

2.5

Stories

1

Cars

3

Floor Plan

Main Level

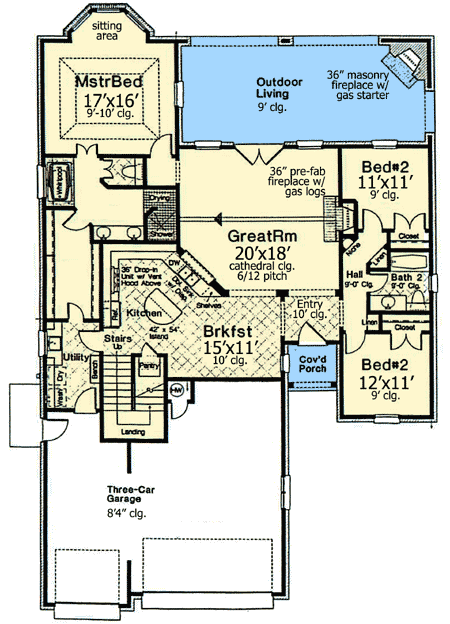

floor plan image Main Level

Bonus

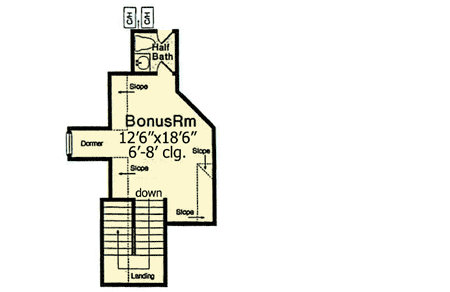

floor plan image Bonus

Plan Details

Decorative wood trim and a steep hip roof give this European home plan an Old World feel.
Live all on one level with a delightful open floor plan that maximizes views from all the main rooms.
Split bedrooms offer privacy for the luxurious master suite with its bayed sitting area and a deluxe tray ceiling.
The outdoor living space encourages you to enjoy the fresh air and bask in the warmth of an outdoor fireplace.
In the extra large kitchen, you have an island and a walk-in pantry closet.
A pass-through counter by the sink allows views of the vaulted great room.
The bonus room on the upper floor has a convenient half bath.
The primary roof pitch is 12:12 and the secondary roof pitch is 16:12.

What's Included

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

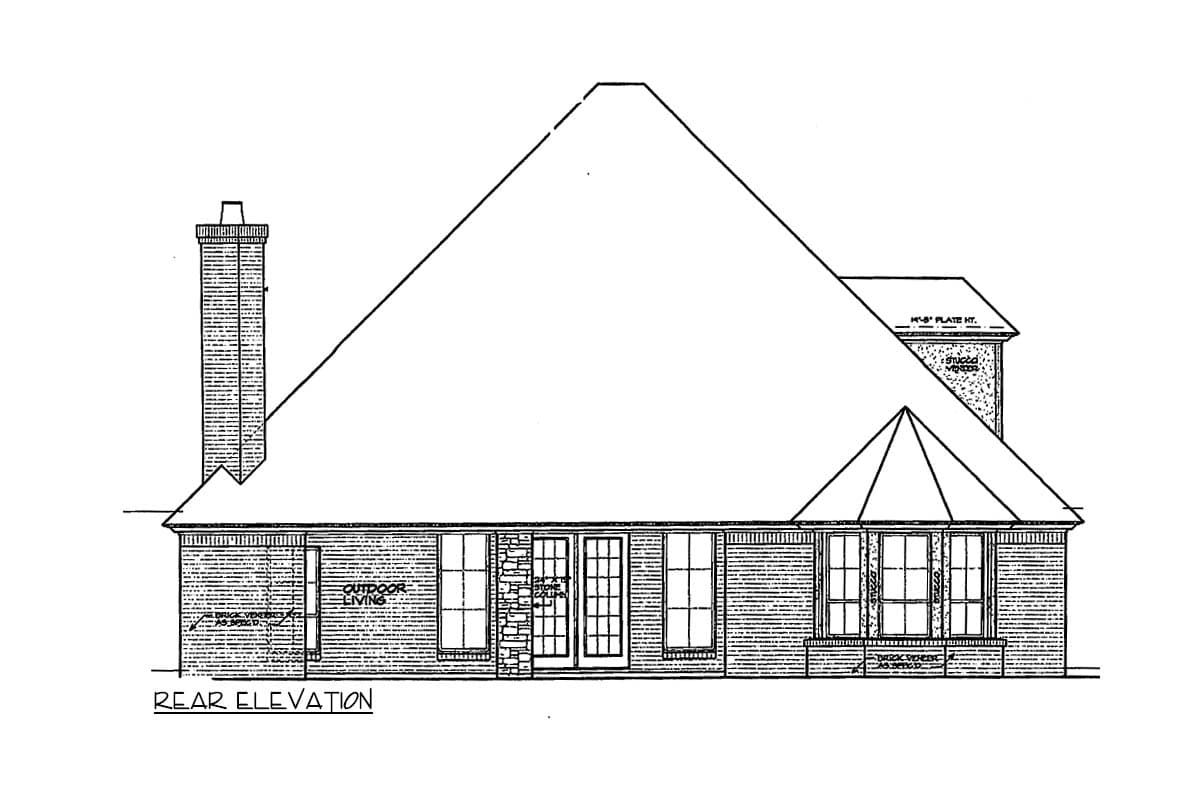

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,946 sq. ft.

1st Floor

1,946 sq. ft.

Bonus

277 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

50' 0"

Depth

77' 6"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

739 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Fireplace

Square Footage Breakdown

Total Heated Area

1,946 sq. ft.

1st Floor

1,946 sq. ft.

Bonus

277 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

50' 0"

Depth

77' 6"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

739 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Fireplace
