Plan 82100KA
Second Floor Bonus Room
Heated S.F.
3,727
Beds
3 - 4
Baths
3
Stories
2
Cars
4
Floor Plan

Plan 82100KA

Main Level
slide image 0
Bonus
slide image 1
Detached Garage
slide image 2

Plan 82100KA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

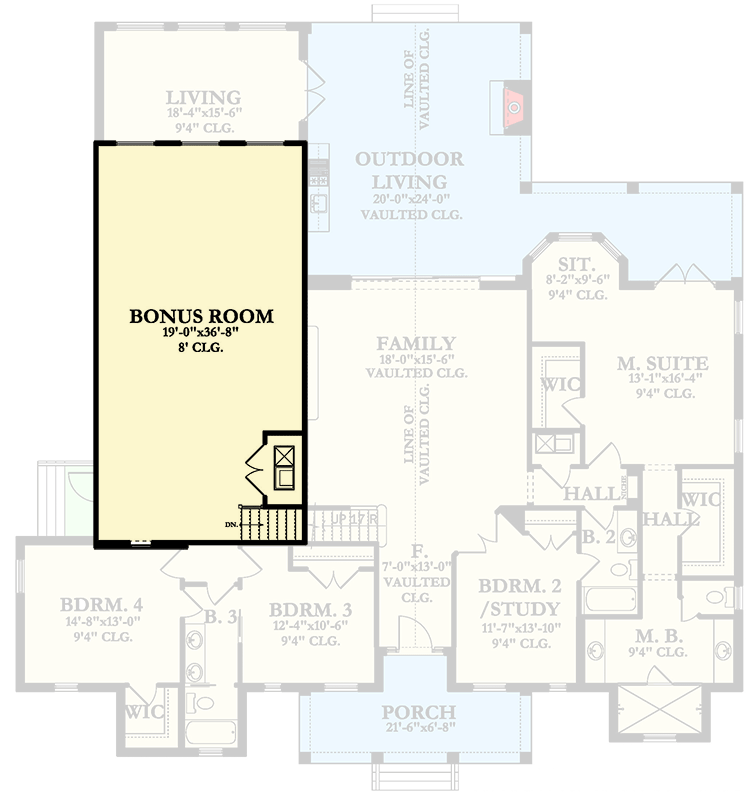

Bonus
floor plan image Bonus

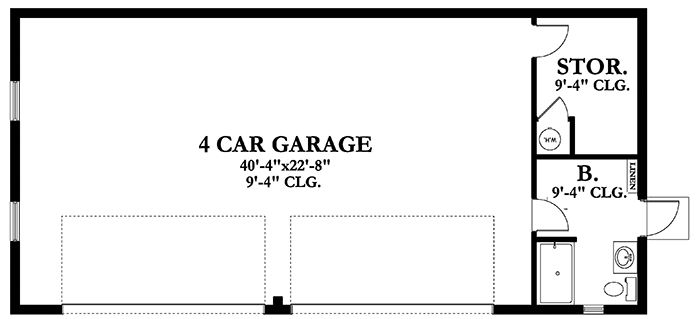

Detached Garage
floor plan image Detached Garage
Plan Details
  • Stunning sightlines greet you right at the foyer where the vaulted ceiling carries through to the family room and the outdoor living room beyond.
  • The well-planned kitchen is nicely placed to take in the views of both the formal and informal living areas of the home.
  • Storage is not a problem since the home gives you a huge walk-in pantry.
  • In the master suite, a giant walk-in shower takes center stage in the bathroom and the sitting room is large enough for a comfortable chaise lounge.
  • Use the study as an extra bedroom since it has a closet and nearby bathroom.
  • Bedrooms 3 and 4 share a connected bathroom.
  • Bonus space on the second floor is included in the total living area of 3,727 square feet.
What's Included
  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,727 sq. ft.

1st Floor

3,000 sq. ft.

2nd Floor

727 sq. ft.

Porch, Front

163 sq. ft.

Porch, Rear

630 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

58' 8"

Depth

72' 4"

Max Ridge Height

19' 4"

Garage

Type

Detached

Area

1200 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Den

Flex Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Square Footage Breakdown

Total Heated Area

3,727 sq. ft.

1st Floor

3,000 sq. ft.

2nd Floor

727 sq. ft.

Porch, Front

163 sq. ft.

Porch, Rear

630 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

58' 8"

Depth

72' 4"

Max Ridge Height

19' 4"

Garage

Type

Detached

Area

1200 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Den

Flex Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Outdoor Fireplace

Outdoor Kitchen
