Plan 65604BS
Sensational Sunroom
Heated S.F.
4,232
Beds
2 - 3
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 65604BS

Main Level
slide image 0
2nd Floor
slide image 1

Plan 65604BS

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This Mediterranean house plan has an eye-popping curb appeal and delivers a flexible master-down floor plan.

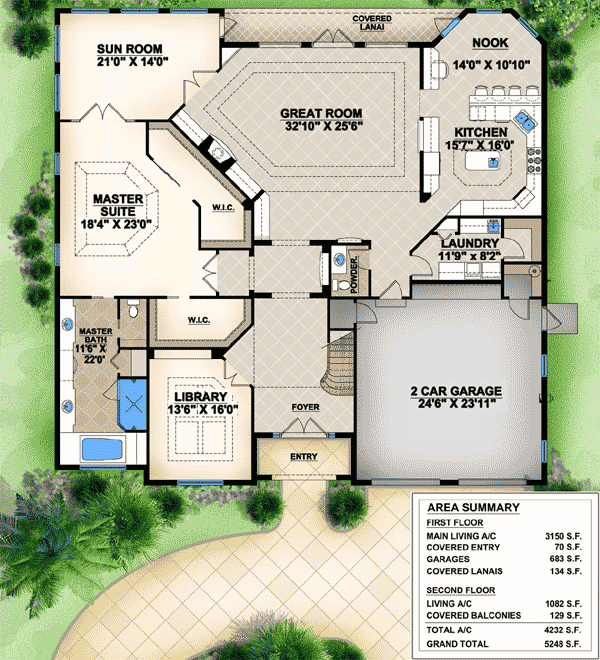

  • The foyer is extra wide and gives you views through to the great room and covered lanai beyond. A sweeping stair rises from the 2-story foyer where an overlook above gives you views below.
  • The great room is large and has an exciting shape. A pass-through helps tie it into the ktichen where therer is a large island, bar seating plus a bright nook with lanai access.
  • Don't miss the sunroom. With windows making up most of the walls it is a great, sunny oasis.
  • The master suite has tons of closet space and opens to the sunroom. A five-fixture bath completes the suite.

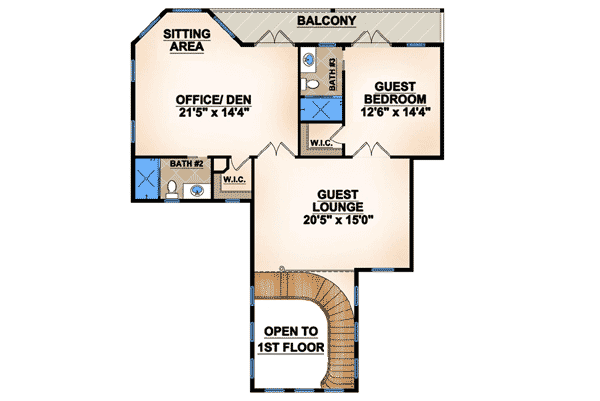

  • You have lots of options upstairs with a possible 2 or 3 bedrooms, or just a single bedroom plus a den/office and a guest lounge or family room.
  • Back downstairs a library with coffered ceiling, large laundry room and garage with storage complete this beautiful house plan.
  • The standard ceiling height is 10' except where noted in the ceiling section.
  • The rear first floor lanai measures 4'6" by 27'4" and the upper floor balcony is 4'6" by 26'5".
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.
What's Included
Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:
  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:
  • Miscellaneous General Notes
  • Stairway Details (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,232 sq. ft.

1st Floor

3,150 sq. ft.

2nd Floor

1,082 sq. ft.

Entry

70 sq. ft.

Balcony / Veranda

129 sq. ft.

Lanai

134 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

64' 10"

Depth

62' 10"

Max Ridge Height

29' 8"

Garage

Type

Attached

Area

1366 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

None

11' 0''

None

10' 0''

None

11' 0''

None

9' 1''

None

14' 0''

None

11' 0''

None

14' 0''

None

10' 1''

None

11' 0''

None

11' 0''

None

10' 1''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Southern

Special Features

Breakfast Nook

Butler Walk-in Pantry

Den

Home Office

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Master Suite - Sitting Area

Sunroom

Plan Collections

Luxury

Photo Gallery

Premium Collection

Square Footage Breakdown

Total Heated Area

4,232 sq. ft.

1st Floor

3,150 sq. ft.

2nd Floor

1,082 sq. ft.

Entry

70 sq. ft.

Balcony / Veranda

129 sq. ft.

Lanai

134 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

64' 10"

Depth

62' 10"

Max Ridge Height

29' 8"

Garage

Type

Attached

Area

1366 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

None

11' 0''

None

10' 0''

None

11' 0''

None

9' 1''

None

14' 0''

None

11' 0''

None

14' 0''

None

10' 1''

None

11' 0''

None

11' 0''

None

10' 1''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Southern

Special Features

Breakfast Nook

Butler Walk-in Pantry

Den

Home Office

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Master Suite - Sitting Area

Sunroom

Plan Collections

Luxury

Photo Gallery

Premium Collection
