Plan 970059VC
Shingle Style Ranch with Split Bedroom Layout - 2467 Sq Ft
Heated S.F.
2,467
Beds
3 - 4
Baths
2.5 - 3.5
Stories
1
Cars
2
Floor Plan

Plan 970059VC

Main Level
slide image 0
Lower Level
slide image 1

Plan 970059VC

1-800-854-7852

1-262-521-4596

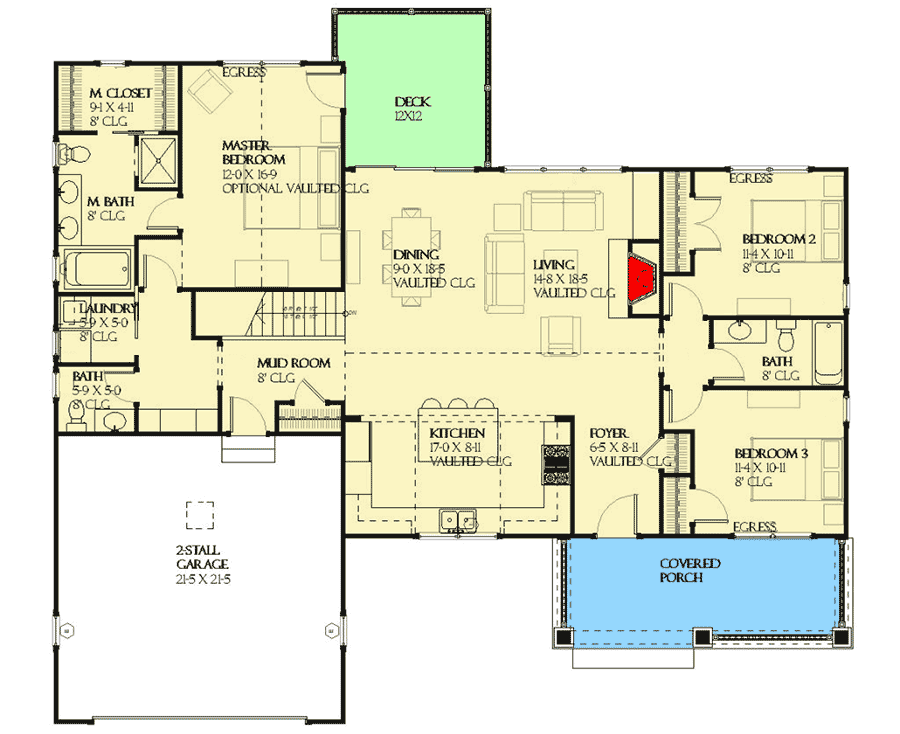

Main Level
floor plan image Main Level
Lower Level
floor plan image Lower Level
Plan Details
  • This 3-bed house plan has a split bedroom layout and a Craftsman-inspired exterior.
  • Upon entering this home you will notice the open living spaces with vaulted ceilings, which open up to your private deck for outdoor living.
  • The two main floor bedrooms which share a bath are nestled off to one side of the home with a private master suite on the other.
  • An ample mudroom and storage/laundry area are accessed from the rear entry off the garage.
  • The lower level offers a family room and additional guest suite.
What's Included
  • Title Sheet. This page includes a color rendering of your home and an index of the complete set.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.
  • Exterior Elevations: front,rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material call outs, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,467 sq. ft.

Lower Level

778 sq. ft.

1st Floor

1,689 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

50' 0"

Garage

Type

Attached

Area

450 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

9'

Architectural Style

Craftsman

Ranch

Shingle

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,467 sq. ft.

Lower Level

778 sq. ft.

1st Floor

1,689 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

50' 0"

Garage

Type

Attached

Area

450 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

9'

Architectural Style

Craftsman

Ranch

Shingle

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Mudroom
