Plan 89880AH
Shingle Style With Angled Garage and Master
Heated S.F.
4,697
Beds
4
Baths
3.5
Stories
1-2
Cars
3
Floor Plan

Plan 89880AH

Main Level
slide image 0
Second Level
slide image 1
Lower Level
slide image 2

Plan 89880AH

1-800-854-7852

1-262-521-4596

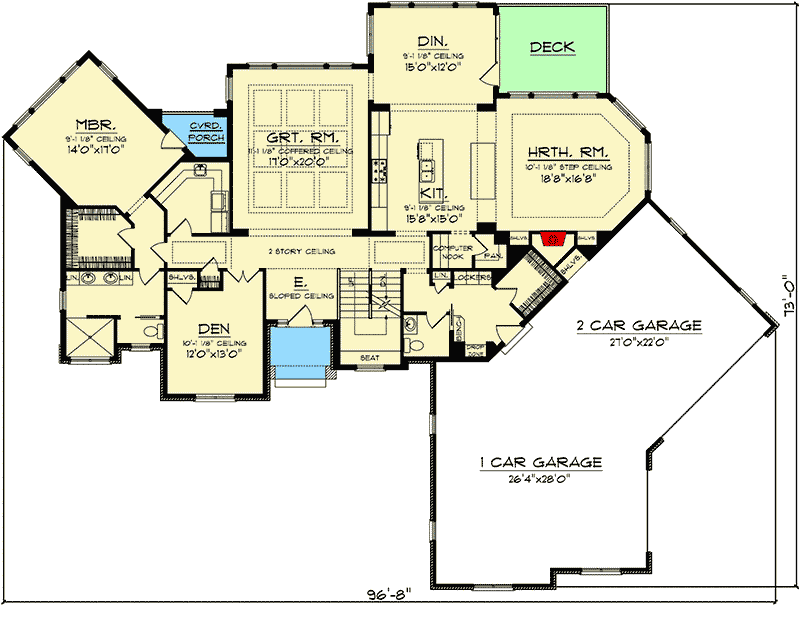

Main Level
floor plan image Main Level

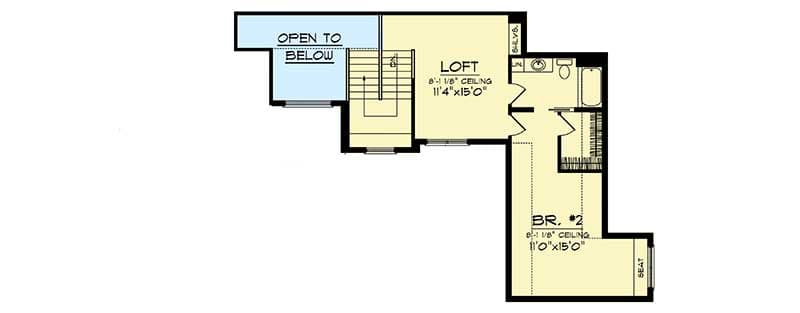

Second Level
floor plan image Second Level

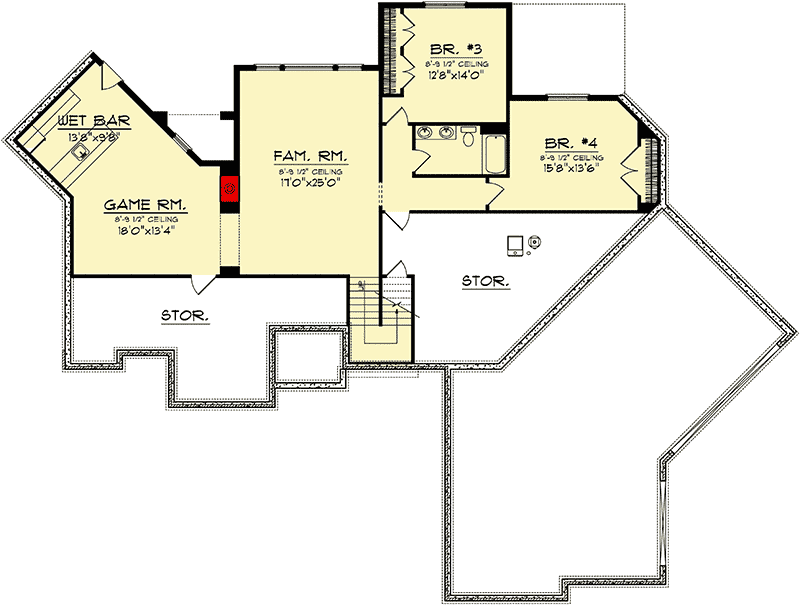

Lower Level
floor plan image Lower Level
Plan Details

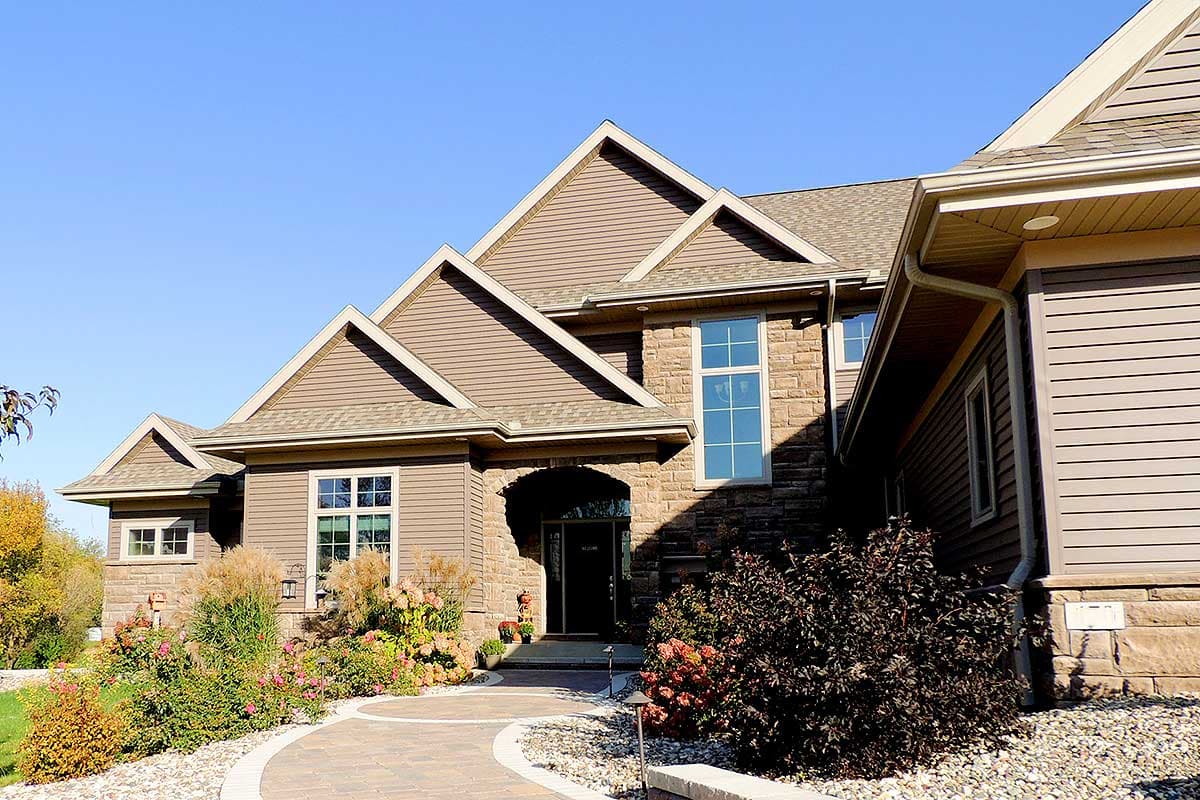

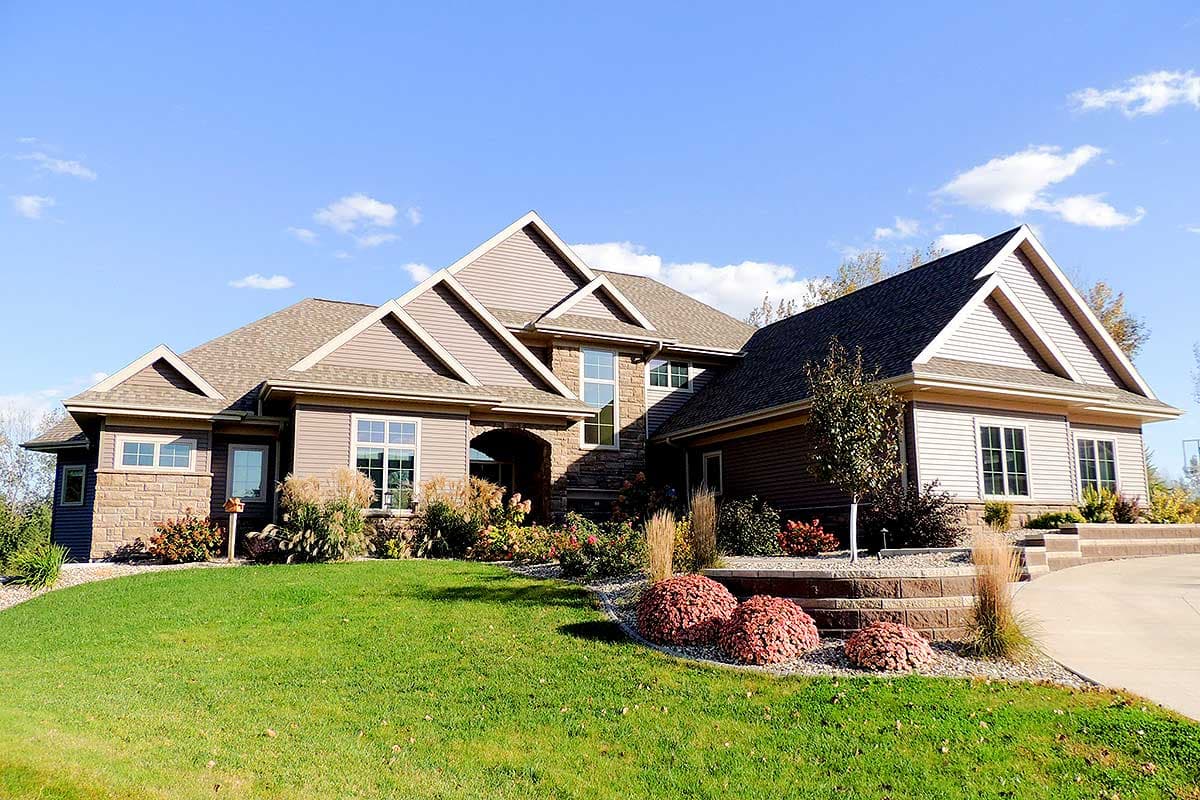

  • This charming shingle style house plan boasts plenty of living space with details that will capture the attention of all of you and your friends.

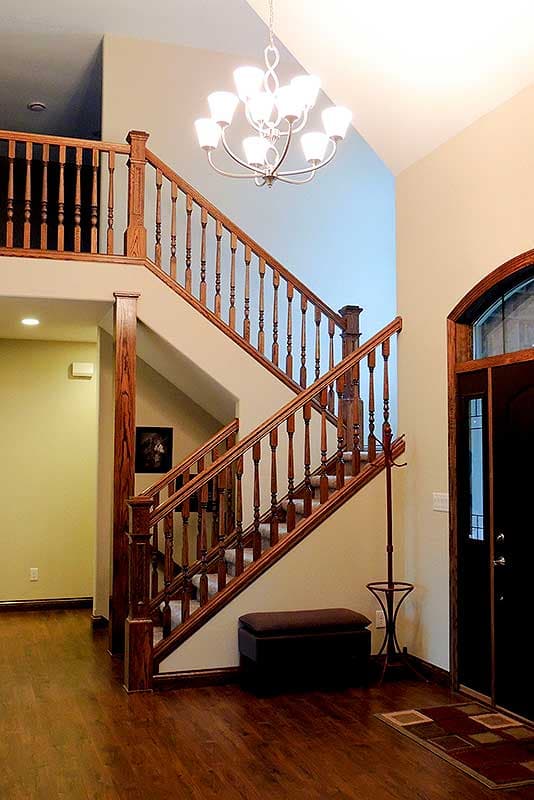

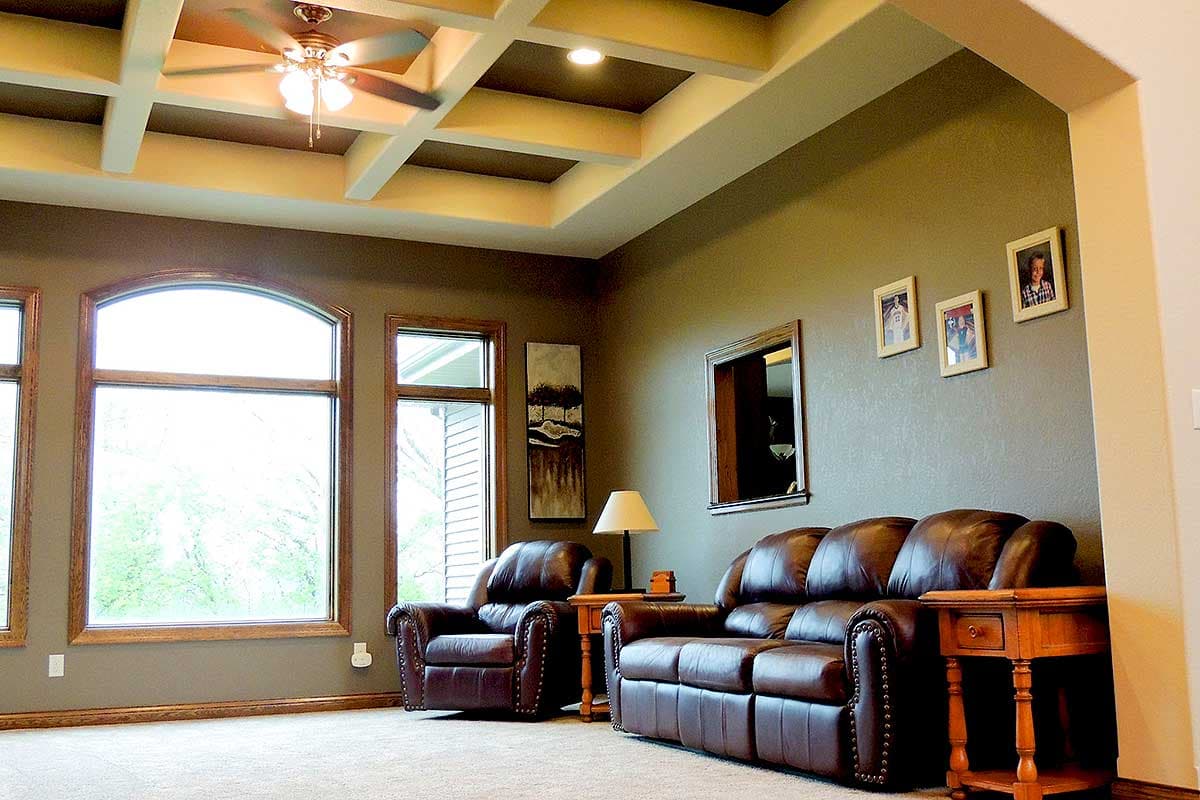

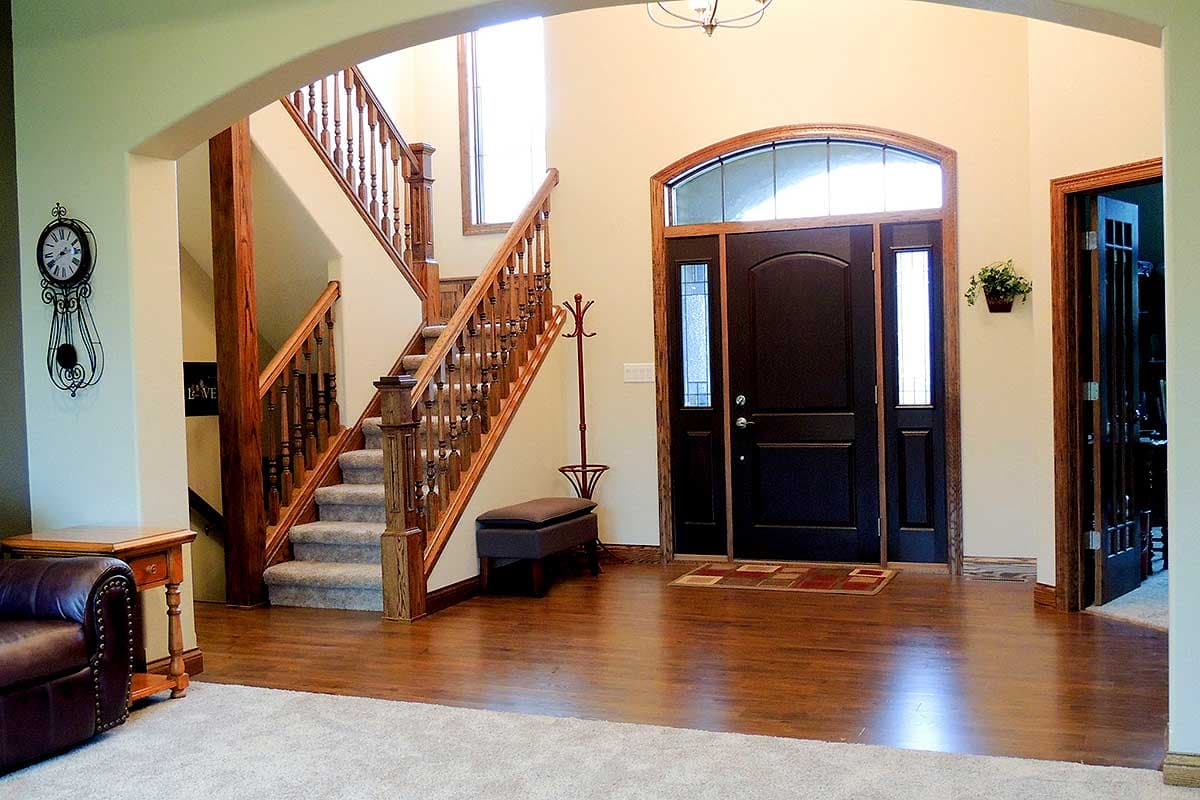

  • A coffered ceiling in the spacious great room is an atractive detail and is visible from the entry. Natural natural light streams through the large wall of windows on the back wall.

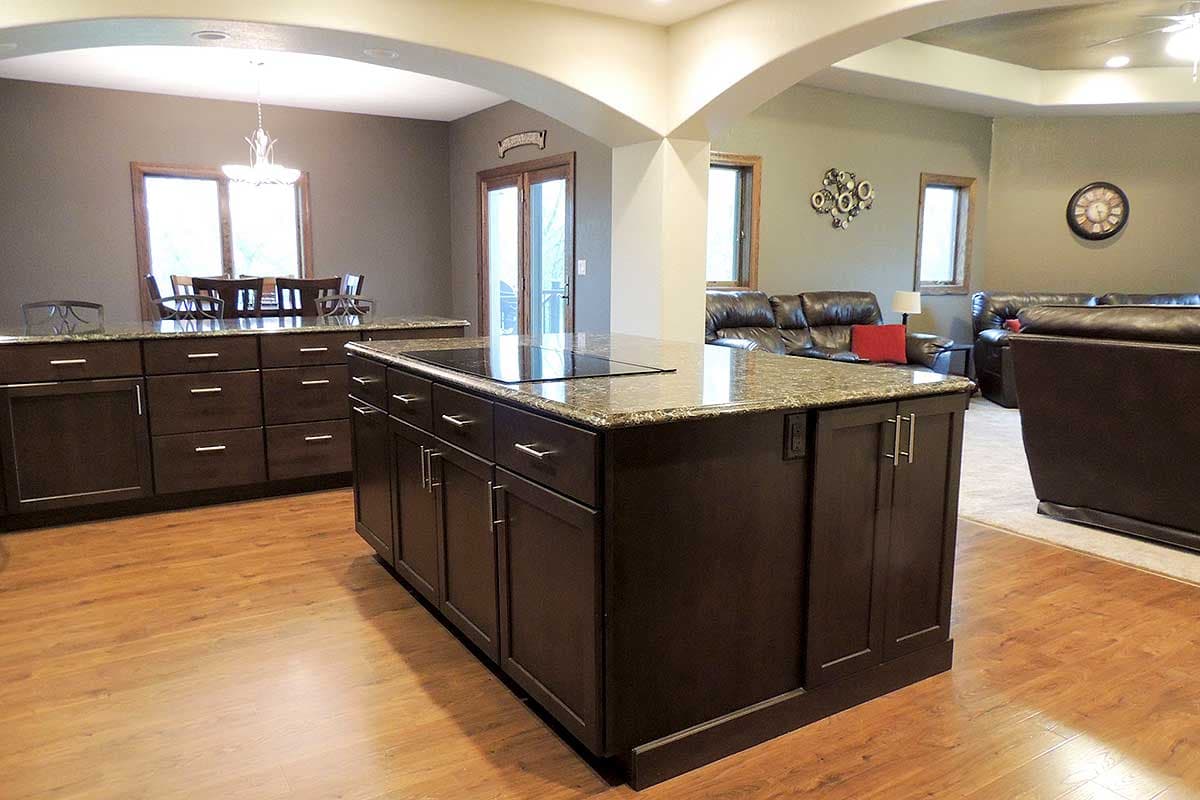

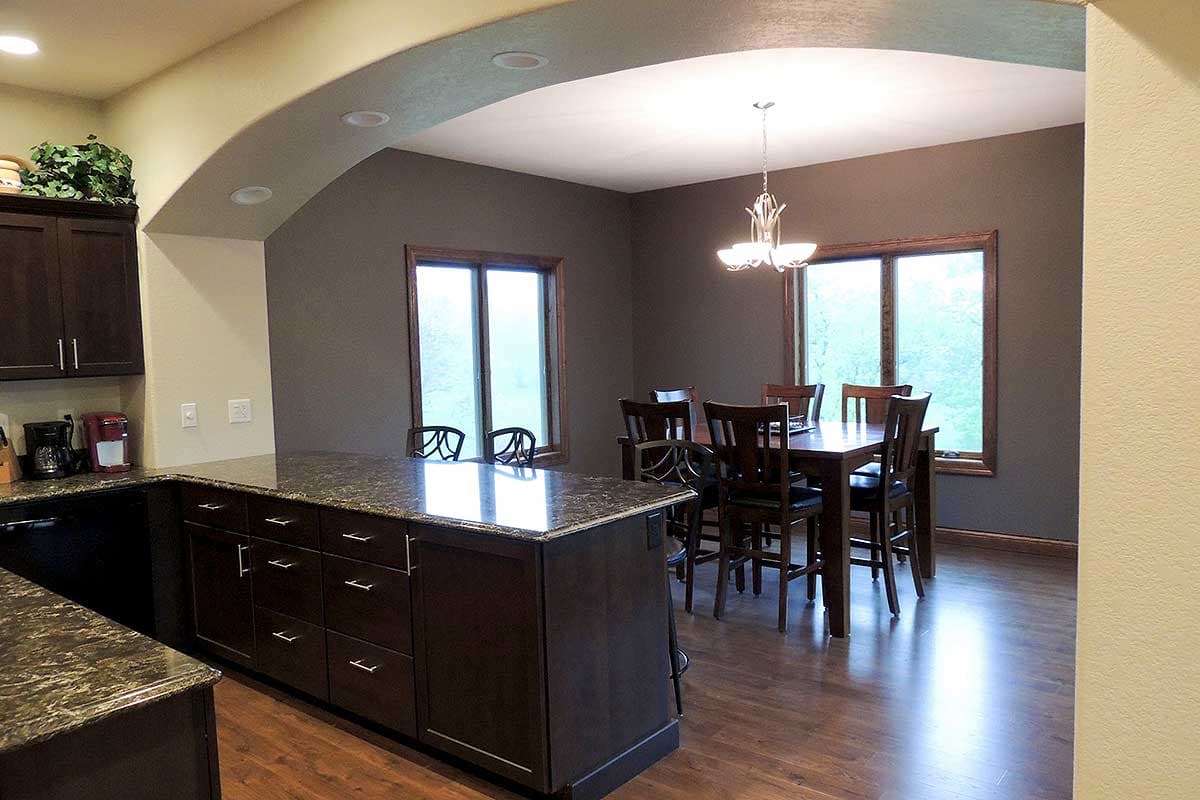

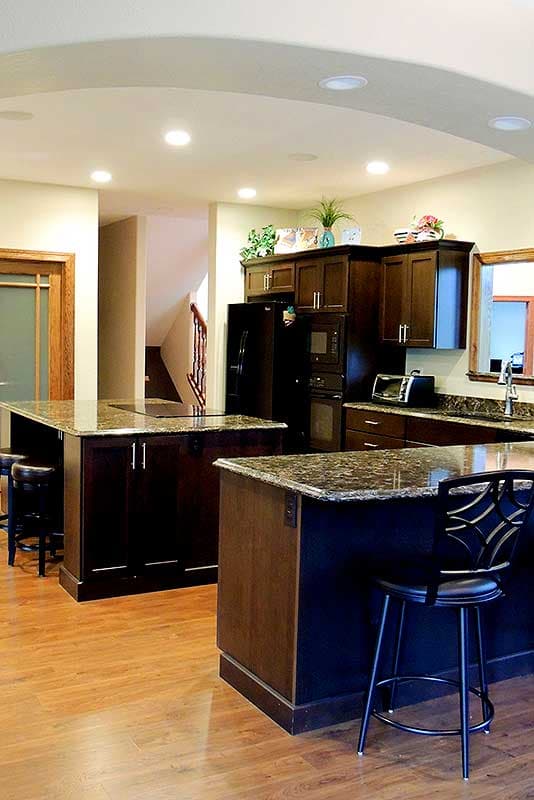

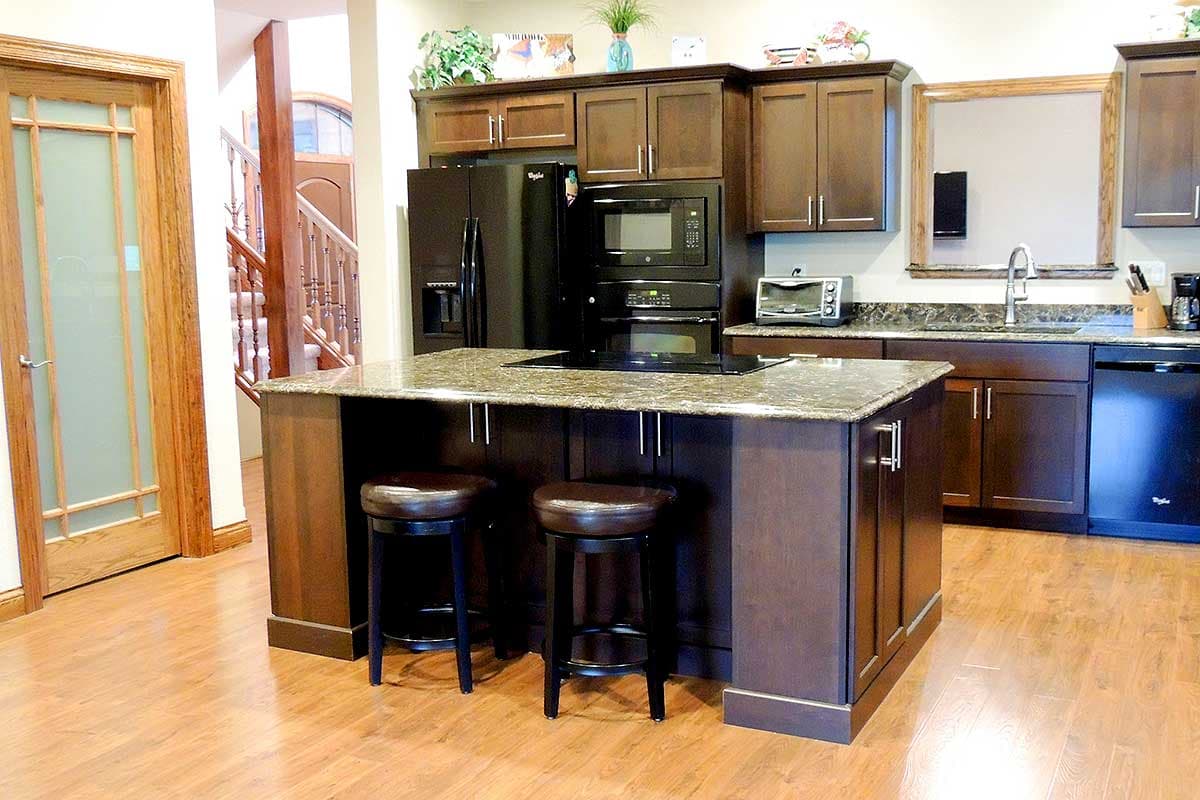

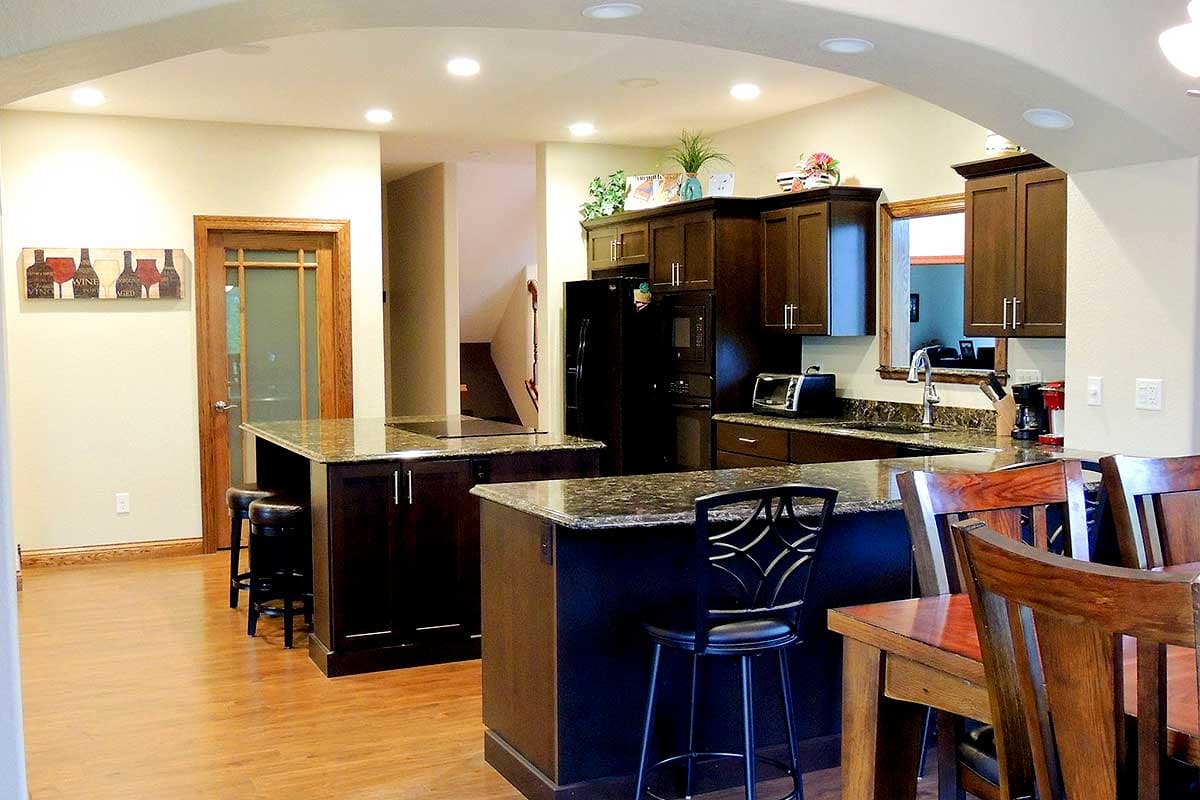

  • The kitchen is a chef's dream and includes an island with eat-in bar and a direct line of site to the adjacent dining and hearth rooms.
  • The master suite lies to the left back of the home and sits at an angle to grab the views of your surroundings from all sides.

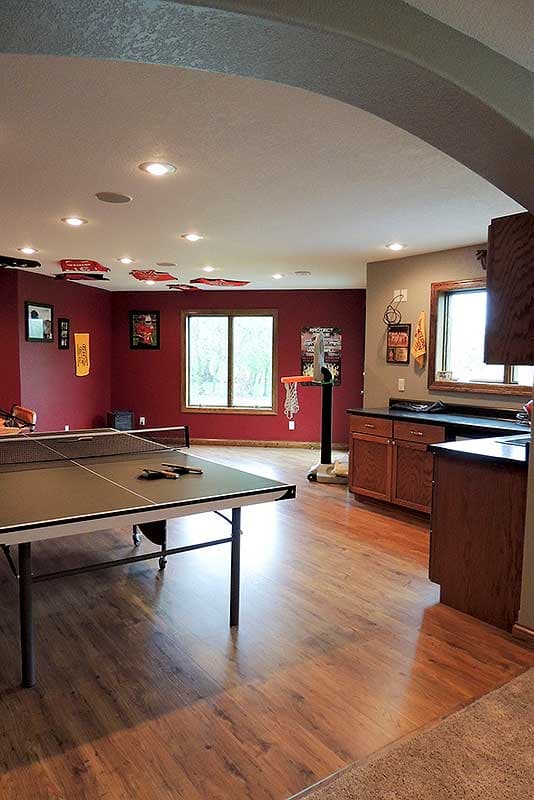

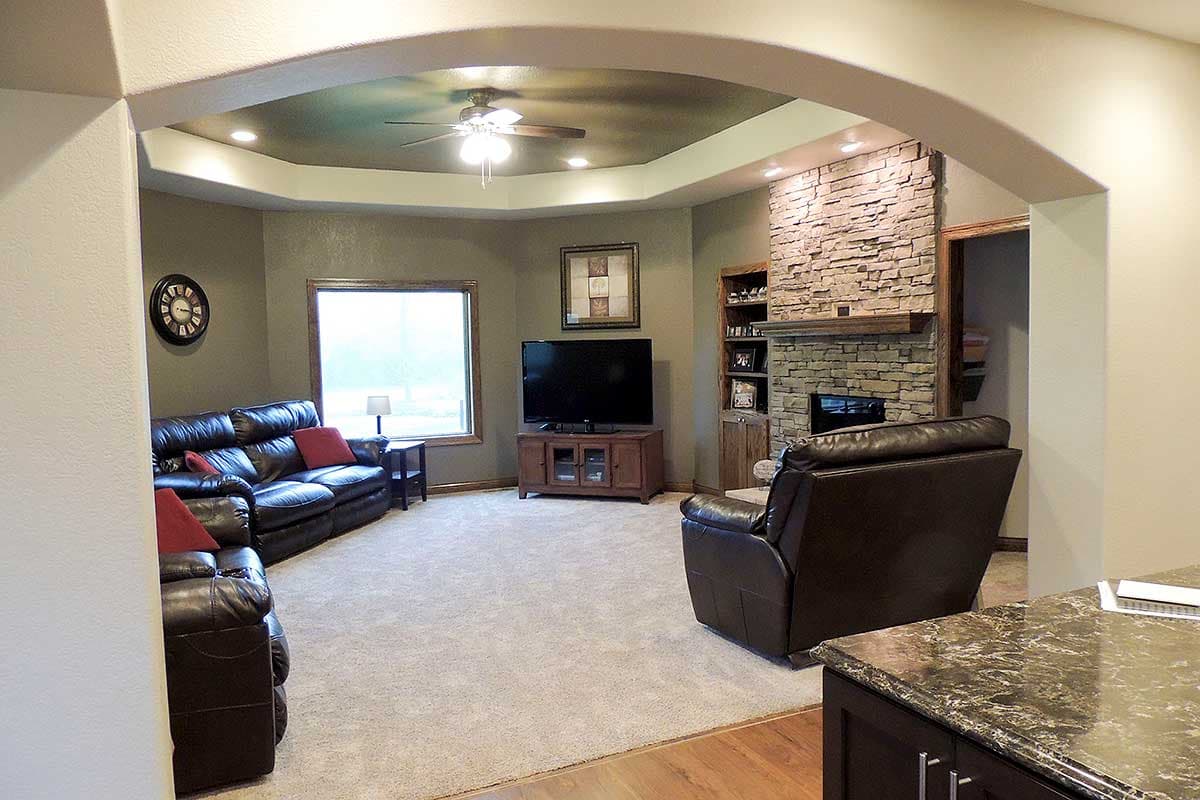

  • A second bedroom and loft are tucked into the roof while the remaining two bedrooms, a family room and a game room are located in the lower level.

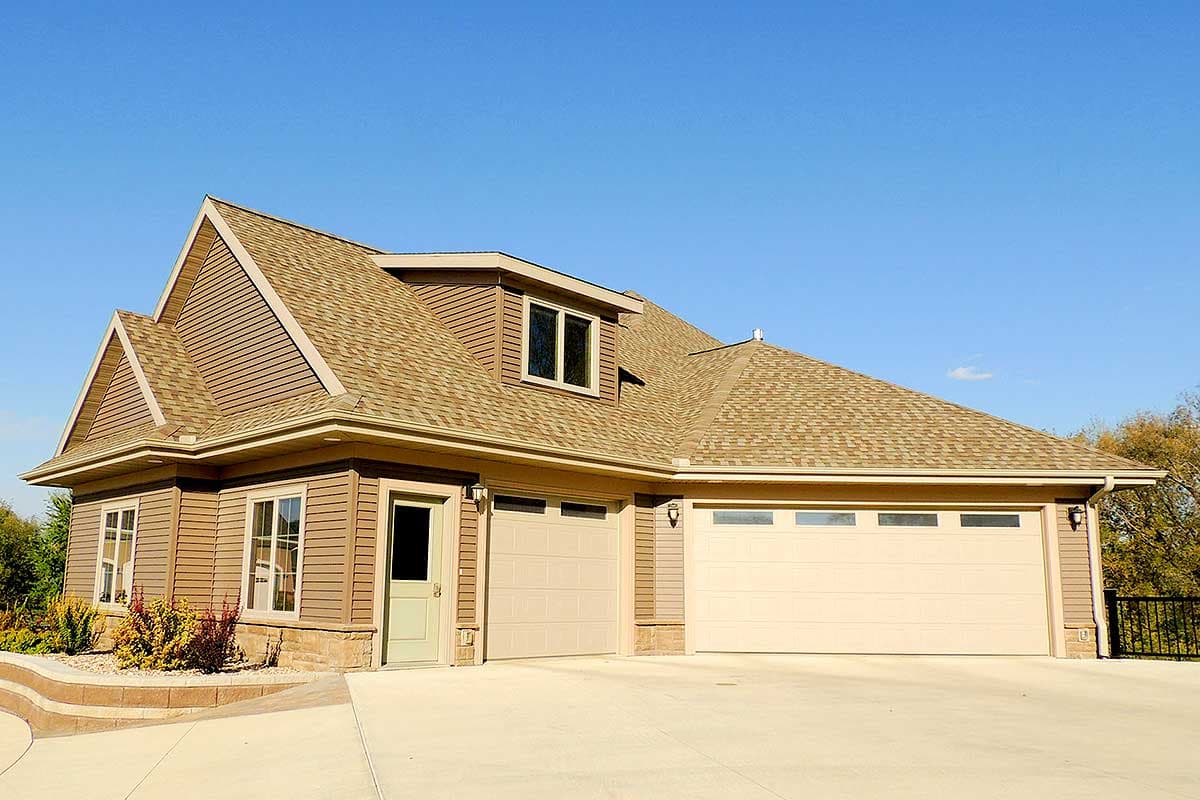

  • A three-stall side-load garage provides plenty of storage space for your vehicles and your toys.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,697 sq. ft.

Lower Level

1,565 sq. ft.

1st Floor

2,516 sq. ft.

2nd Floor

616 sq. ft.

Deck

159 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

96' 8"

Depth

73' 0"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

1193 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Shingle

Special Features

Angled Garage

Bedrooms - Clustered

Butler Walk-in Pantry

Game/Rec Room

Jack & Jill Bath

Loft

Master Suite - 1st Floor

Plan Collections

Sloping Lot
