Plan 1960GT
Shingled-style Cottage with Wraparound Porch and a 2-Car Detached Garage
Heated S.F.
1,442
Beds
3
Baths
2
Stories
2
Cars
2

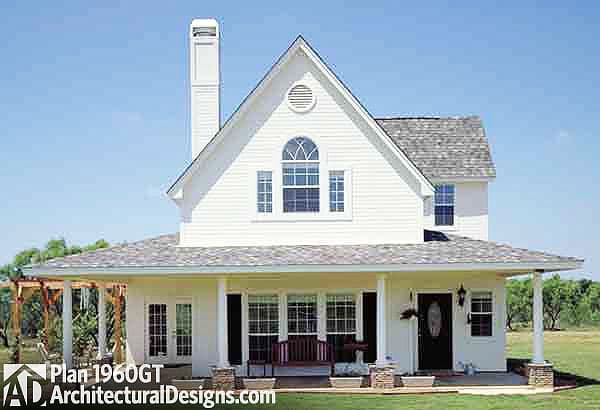

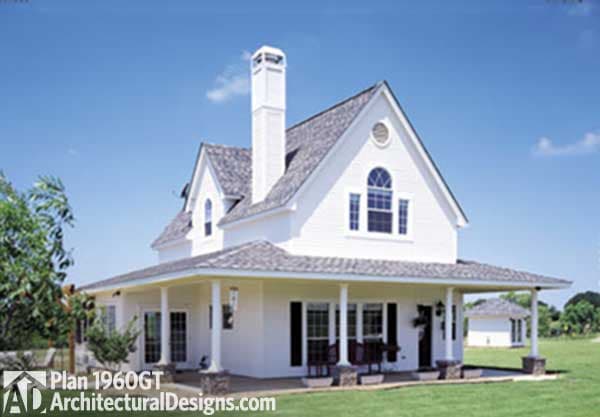

Photos
Floor Plan

Plan 1960GT

Main Level
slide image 0
2nd Floor
slide image 1
Detached Garage
slide image 2

Plan 1960GT

1-800-854-7852

1-262-521-4596

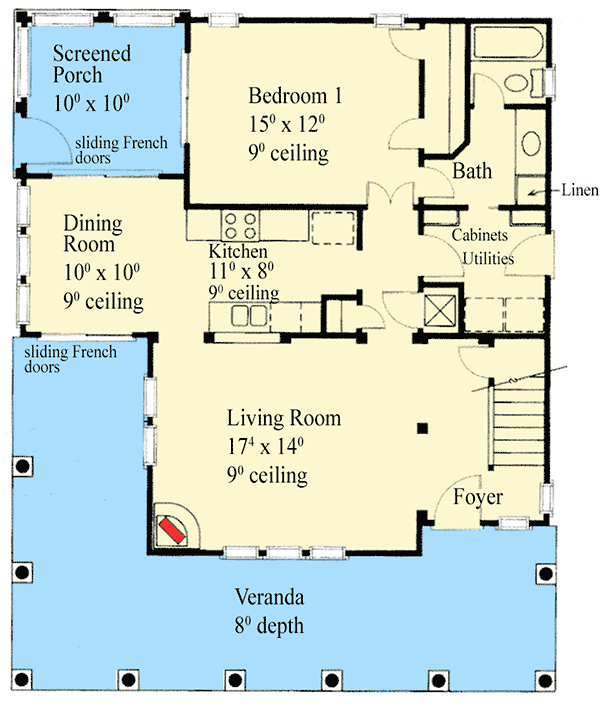

Main Level
floor plan image Main Level

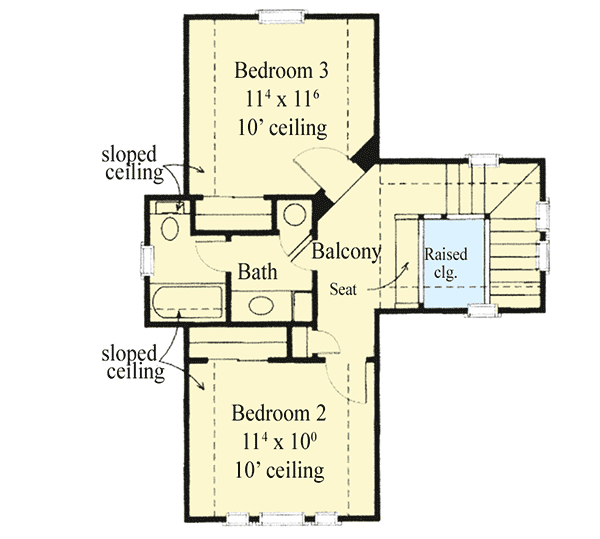

2nd Floor
floor plan image 2nd Floor
Detached Garage
floor plan image Detached Garage
Plan Details
  • Inspired by 19th-century summer cottages along the East Coast, this versatile shingle-style design is suitable as either a year-round residence or a vacation retreat.
  • Serving as outdoor entertainment areas are a wrap-around veranda in front and a screened porch in back. Hardwood floors and nine- and ten-foot ceilings add beauty and volume to the indoor living spaces.
  • The front door opens to a two-story foyer. A wood stove warms the spacious living room. Nearby, the dining room is nestled between two sets of sliding French doors, one to the veranda and the other to the porch. Centrally located, the efficient kitchen features a convenient pass-through to the living room.
  • Double doors open to the first floor master suite with its private bath and access to the porch. The master bath includes a handy pocket door to the utility room. Upstairs, two bedrooms, both with sloped ceilings, share a four-fixture bath. A built-in seat makes the balcony area special.
  • A 2-car detached garage measuring 24' wide and 22' deep with two 8' doors is included with the plans.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 1960GT comes to life in Rhode Island

House Plan 1960GT comes to life in Rhode Island

20

Photos

What's Included
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

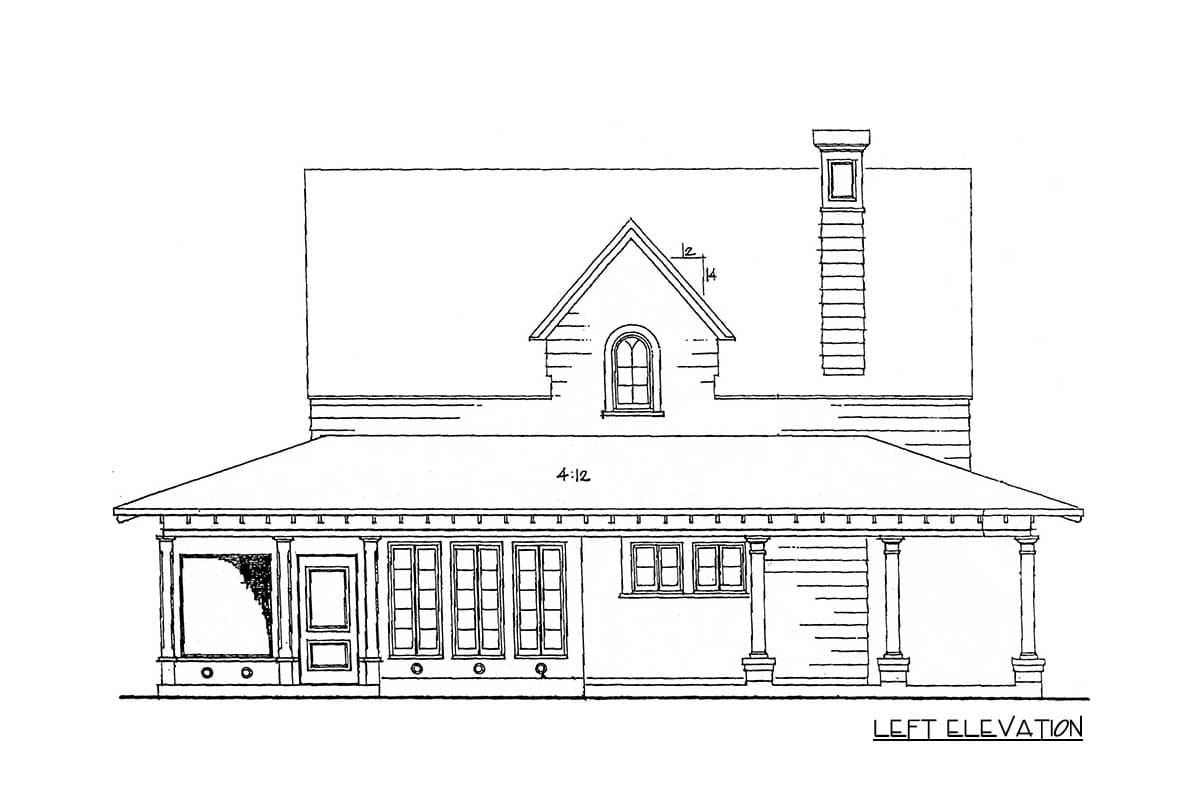

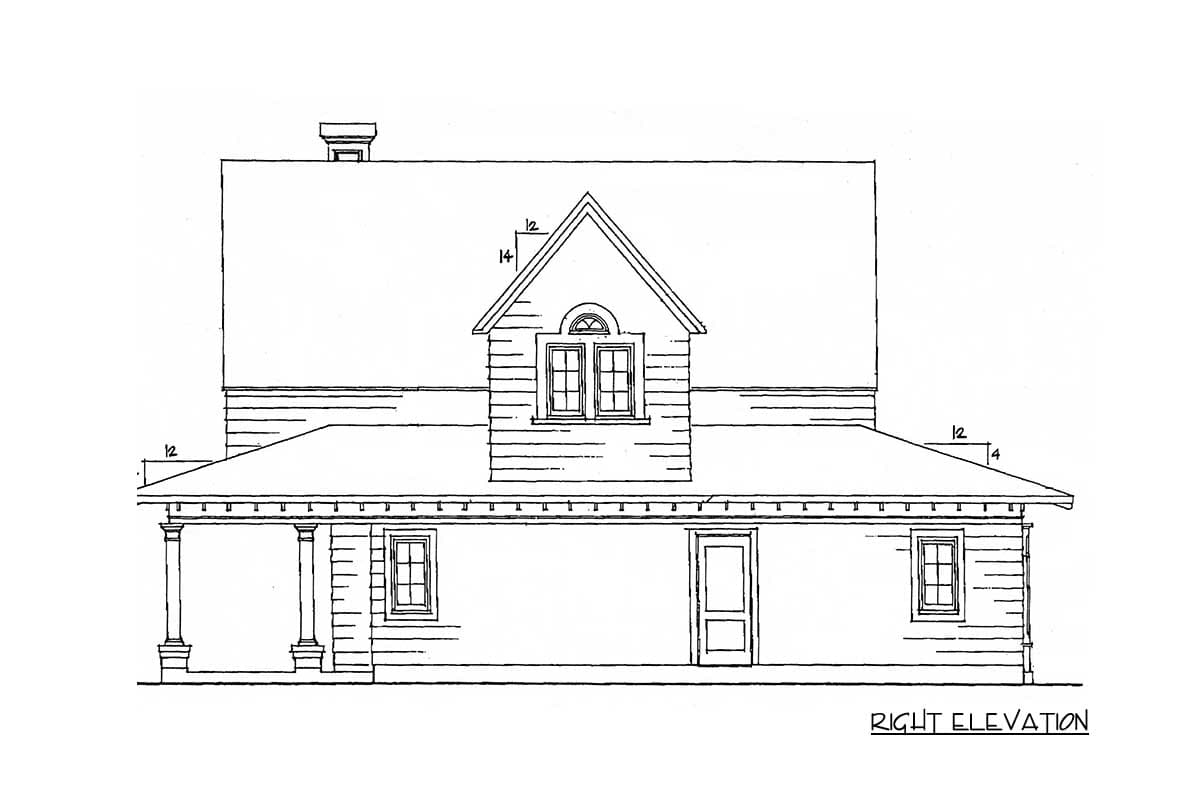

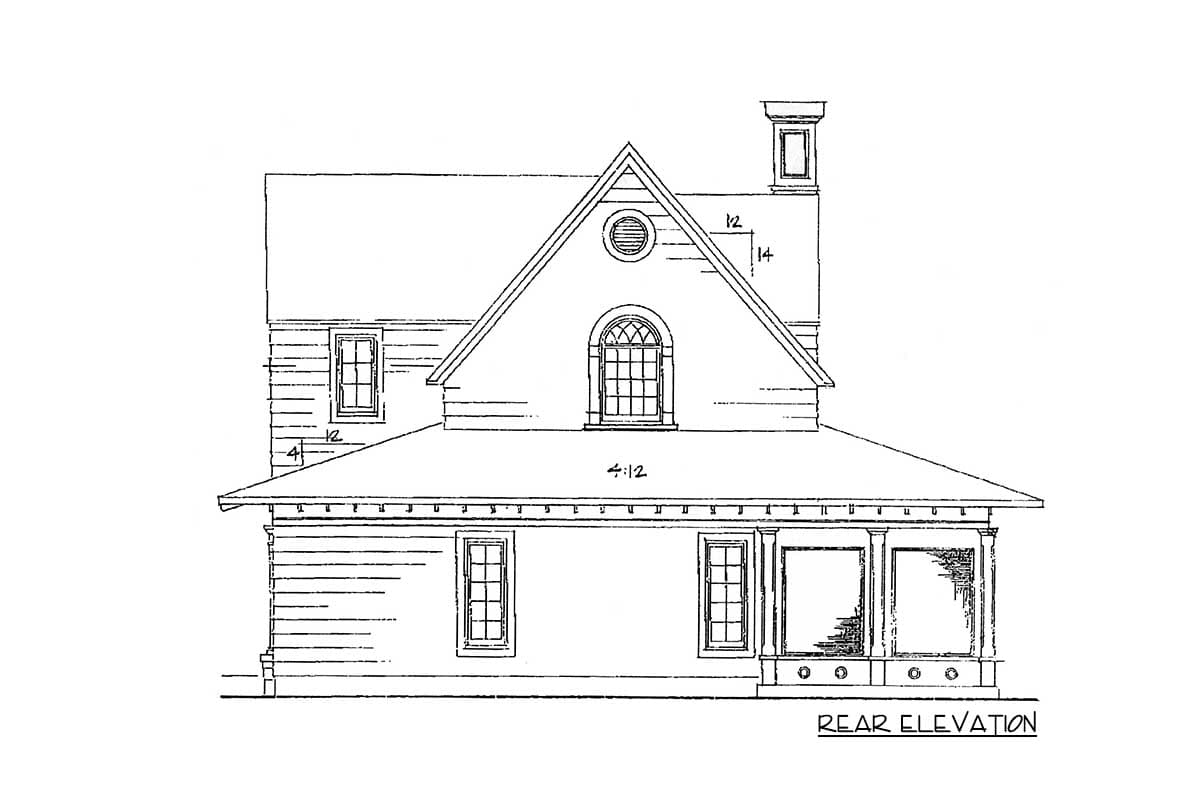

  • Exterior Elevations: A blueprint picture of all four sides showing exterior elevations with roof pitches, elements and measurements drawn to 1/4” scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,442 sq. ft.

1st Floor

978 sq. ft.

2nd Floor

464 sq. ft.

Porch, Front

481 sq. ft.

Screened Porch

100 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

35' 8"

Depth

44' 8"

Max Ridge Height

27' 0"

Garage

Type

Detached

Area

528 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cape Cod

Cottage

Country

Shingle

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch
