Plan 56506SM
Simple and Attractive 3-Bed House Plan with Two Porches and a Carport - 1650 Sq Ft
Heated S.F.
1,650
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 56506SM

Main Level
slide image 0

Plan 56506SM

1-800-854-7852

1-262-521-4596

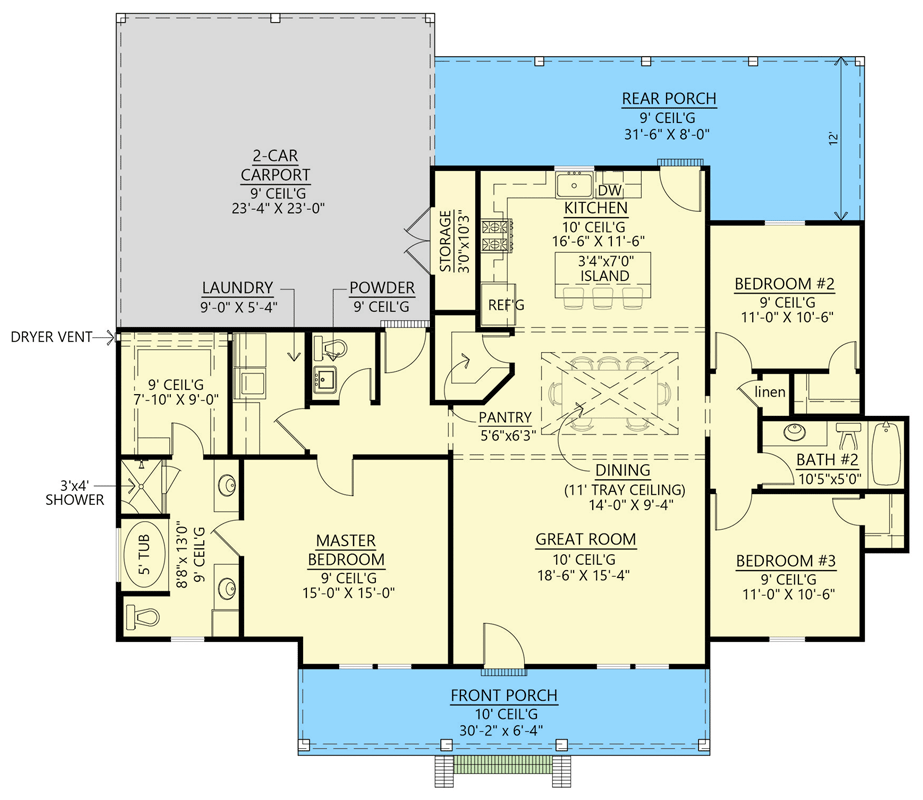

Main Level
floor plan image Main Level
Plan Details
  • Four posts support the front porch on this 3 bed, 2.5 bath, 1,650 square foot country house plan. A second porch is in back, as is a 2-car carport which can be upgraded to a 2-car garage by selecting that from the Options menu.
  • The front door opens to the great room which is open to the dining room and the kitchen beyond. The dining room has an attractive 11' tray ceiling while the kitchen and great room have 10' ceilings.
  • There's a roomy walk-in pantry and an island that comfortably seats 3. A window is located above the sink giving you views across the rear porch which is accessible steps away.
  • The bedrooms are in a split layout maximizing your privacy. The master bedroom has two vanities and a walk-in closet in the five-fixture bathroom. Across the home, two bedrooms are split by bathroom and handy linen closet.
  • Note: With the crawlspace foundation option, the carport storage is raised in line with the main level - a ladder/steps may be necessary for access.
What's Included
  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

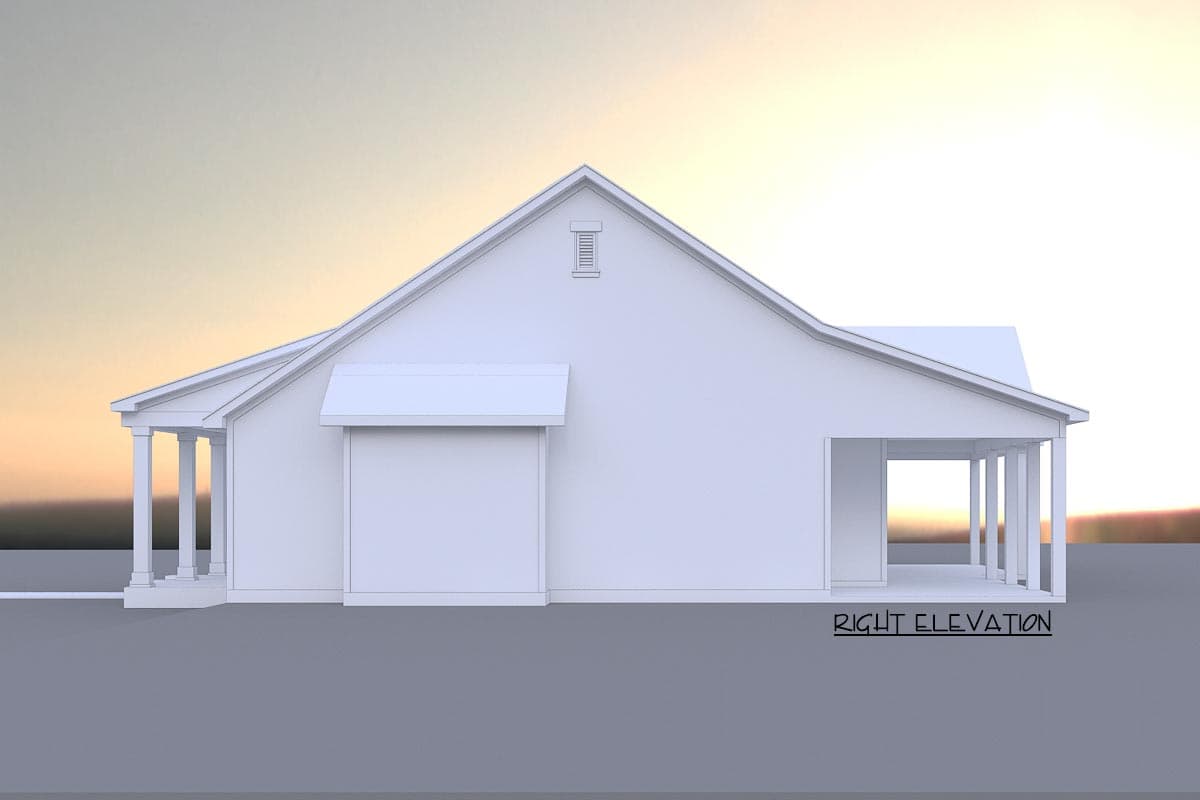

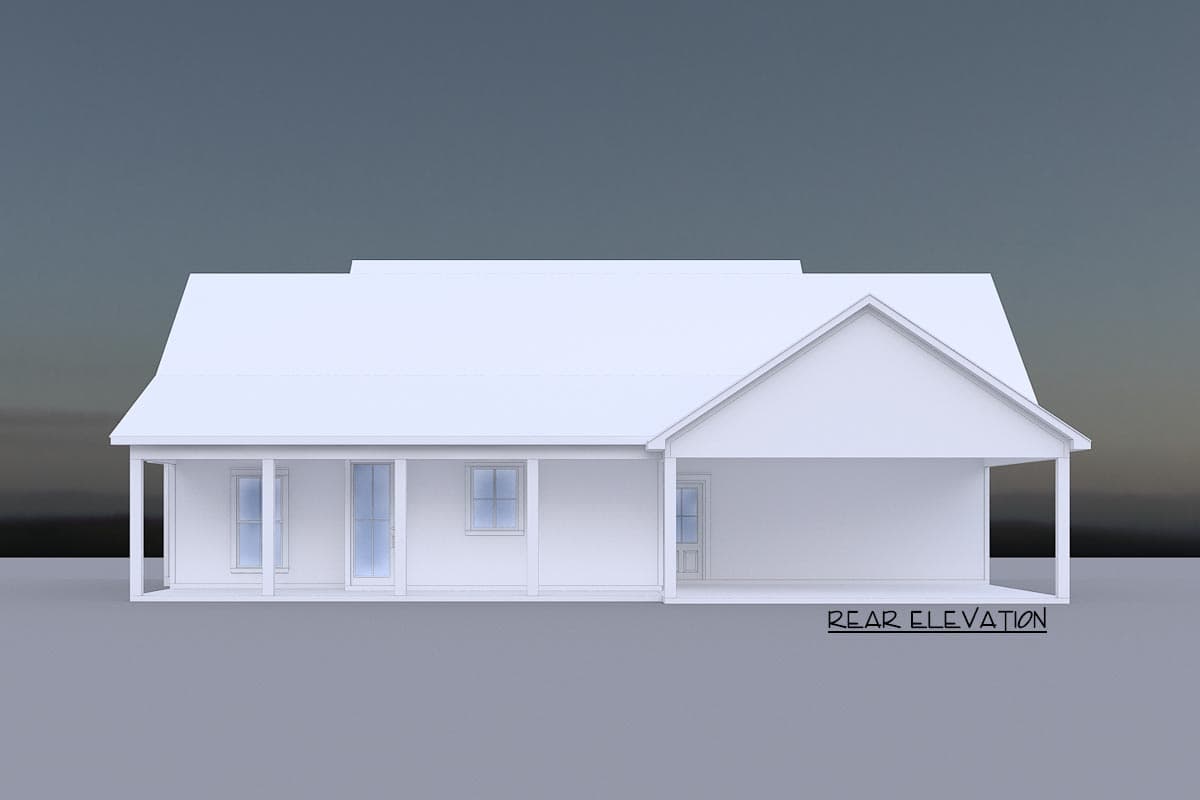

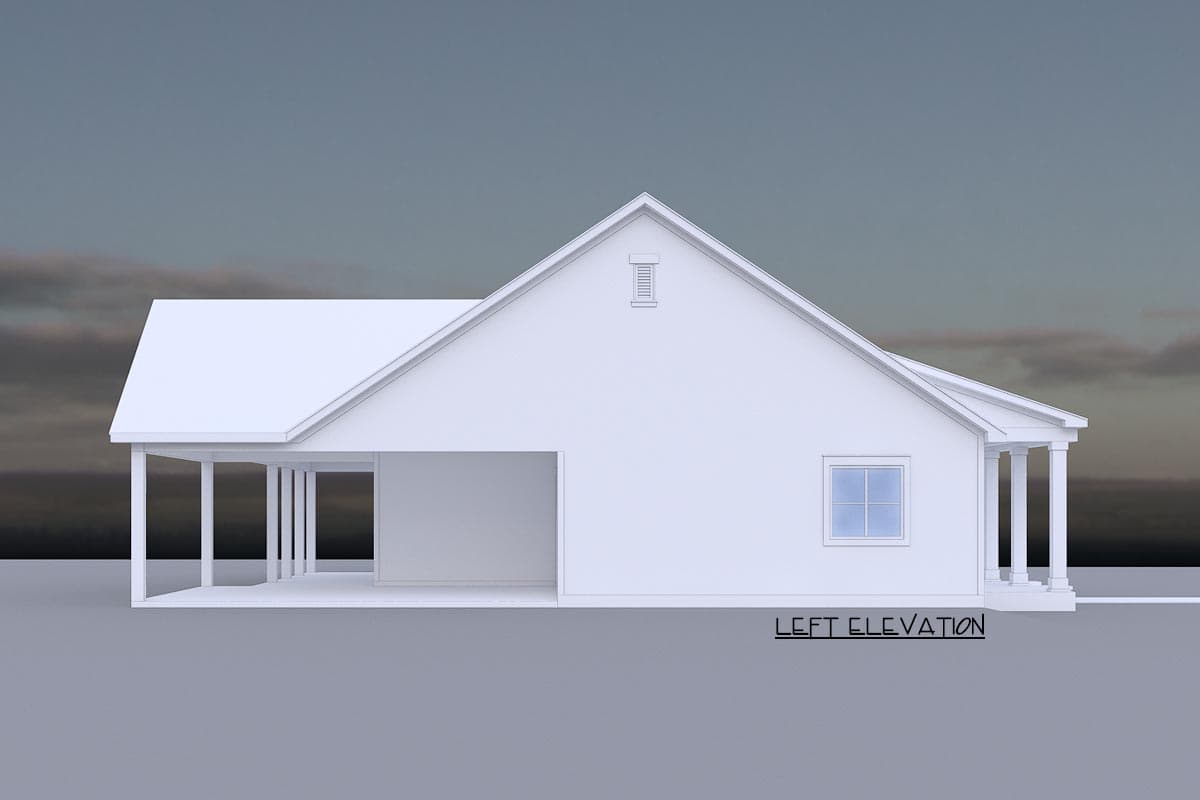

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,650 sq. ft.

1st Floor

1,650 sq. ft.

Carport

533 sq. ft.

Porch, Front

191 sq. ft.

Porch, Rear

297 sq. ft.

Storage

35 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

58' 1"

Depth

54' 4"

Max Ridge Height

22' 9"

Garage

Type

Attached, Carport

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Southern

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,650 sq. ft.

1st Floor

1,650 sq. ft.

Carport

533 sq. ft.

Porch, Front

191 sq. ft.

Porch, Rear

297 sq. ft.

Storage

35 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

58' 1"

Depth

54' 4"

Max Ridge Height

22' 9"

Garage

Type

Attached, Carport

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Southern

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor
