Plan 80168PM
Simple Getaway
Heated S.F.
1,286
Beds
3
Baths
2
Stories
2
Floor Plan

Plan 80168PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80168PM

1-800-854-7852

1-262-521-4596

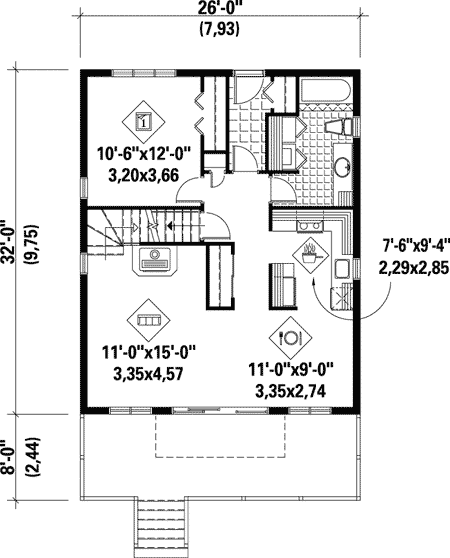

Main Level
floor plan image Main Level

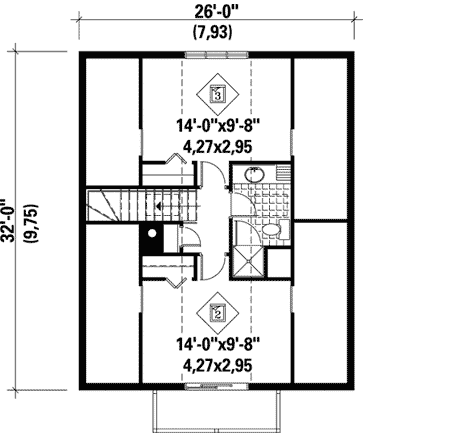

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This simple getaway, shown from the rear, is perfect as a vacation or second home. The deck, plus a small viewing deck off the master suite, help you soak up the views.
  • The open floor plans is broken up by a clutter-reducing closet/pantry. Stairs leads to the basement where you can expand if desired.
  • The master bedroom is on the main floor and two more bedrooms with sloped ceilings share a bath upstairs.
What's Included
Please note this plan is designed to the National Building Code of Canada.

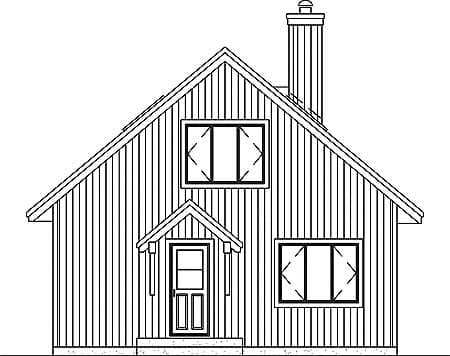

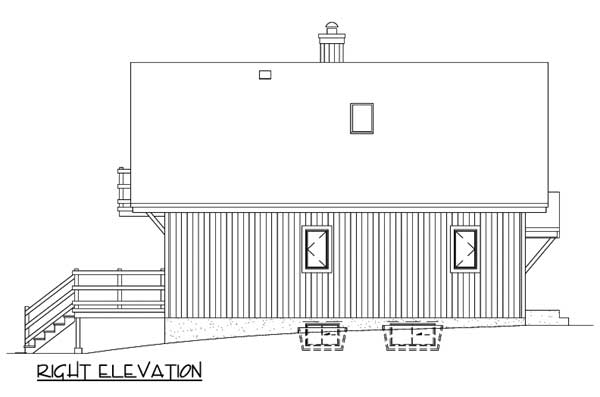

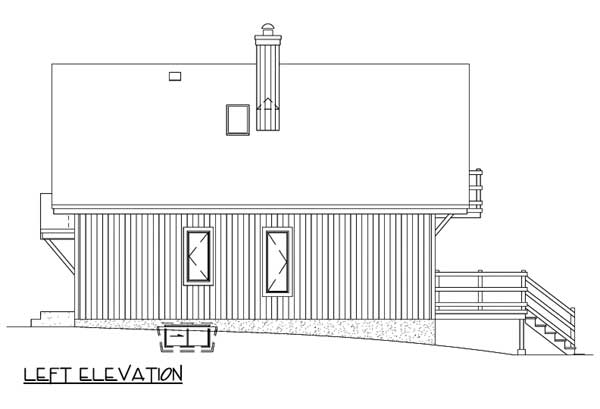

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,286 sq. ft.

1st Floor

832 sq. ft.

2nd Floor

454 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

32' 0"

Max Ridge Height

25' 10"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Cottage

Vacation

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,286 sq. ft.

1st Floor

832 sq. ft.

2nd Floor

454 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

32' 0"

Max Ridge Height

25' 10"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Cottage

Vacation

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric
