Plan 11919LW
Simple Ranch Design
Heated S.F.
1,008
Beds
3
Baths
2
Stories
1
Floor Plan

Plan 11919LW

Main Level
slide image 0

Plan 11919LW

1-800-854-7852

1-262-521-4596

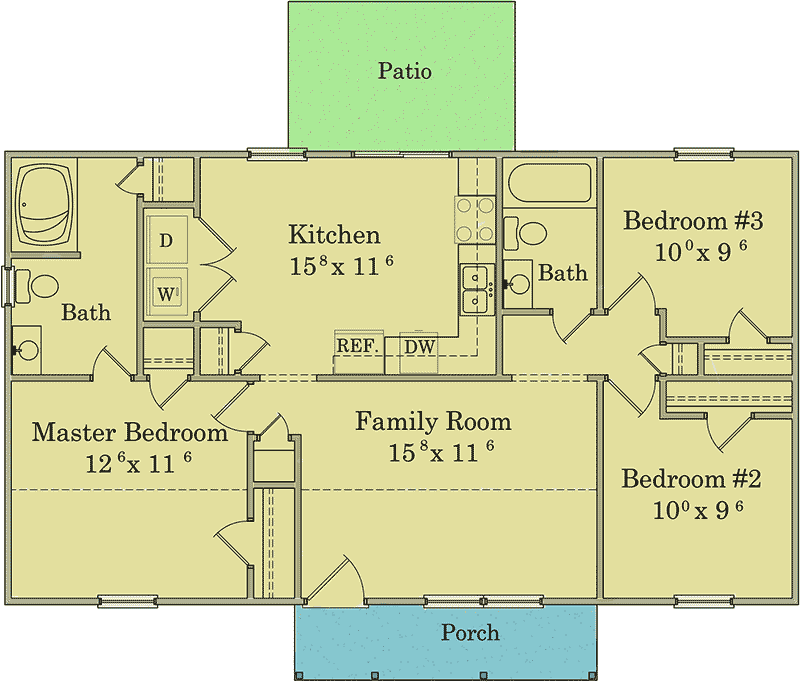

Main Level
floor plan image Main Level
Plan Details
  • Vaulted ceilings run across the master bedroom and family room in this simple split bedroom ranch home plan.
  • A patio off the kitchen gives you a great space for eating al fresco.
What's Included

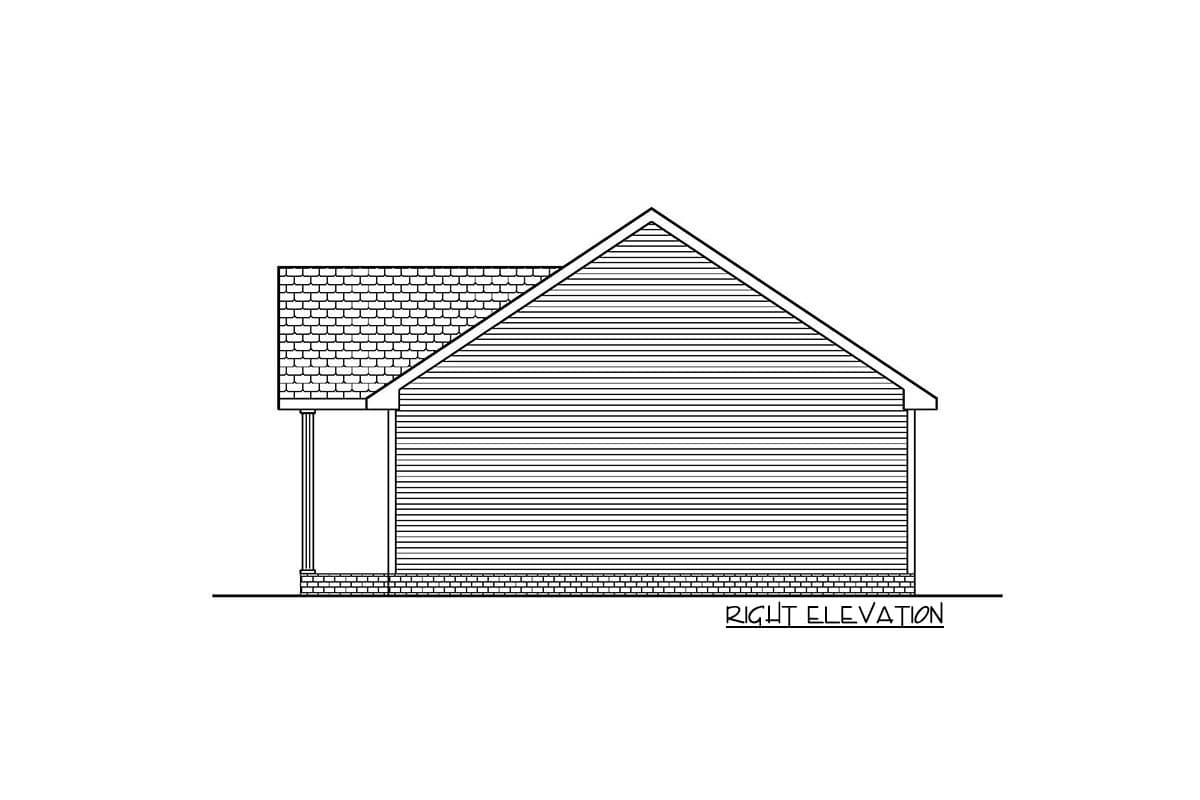

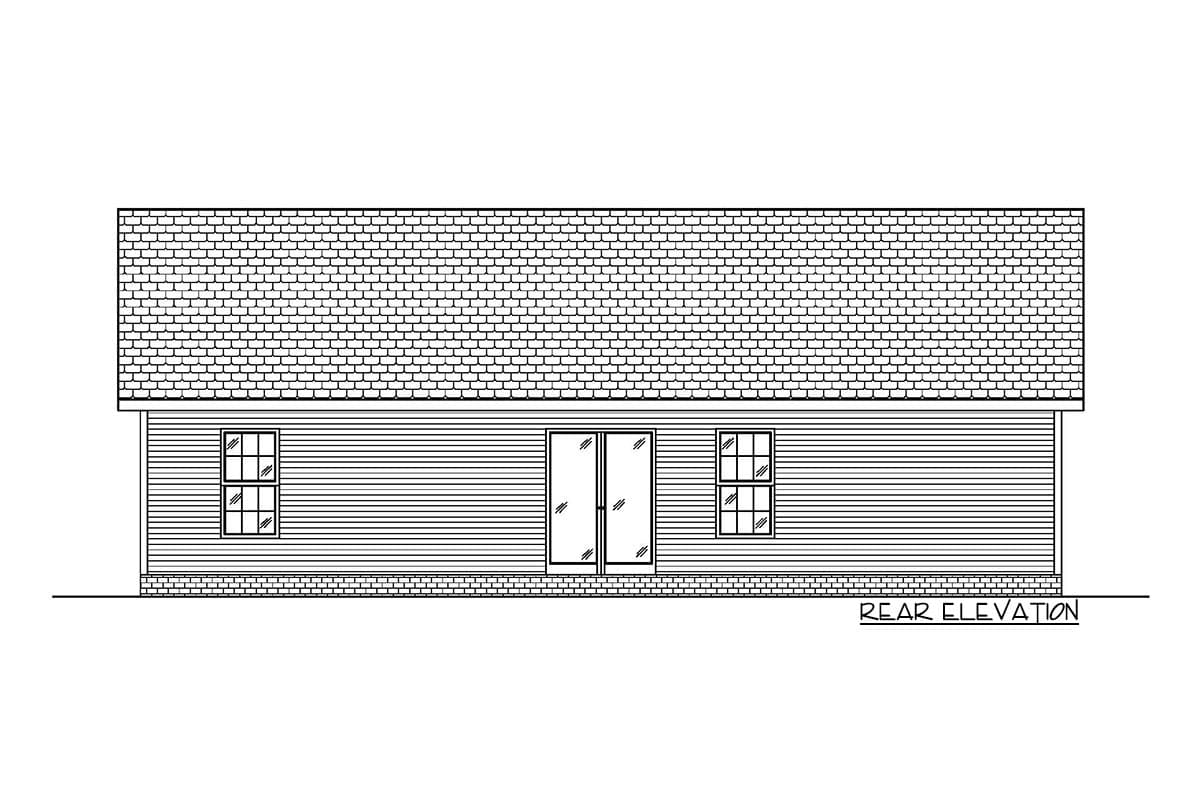

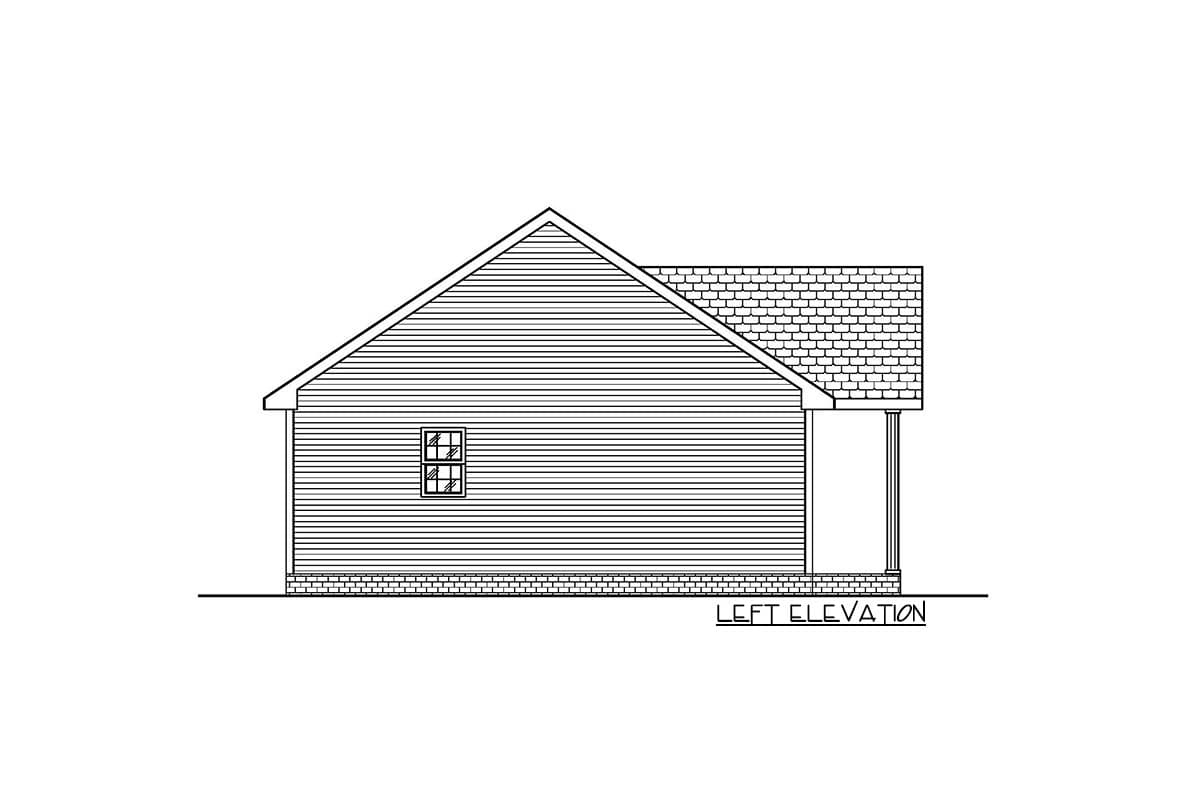

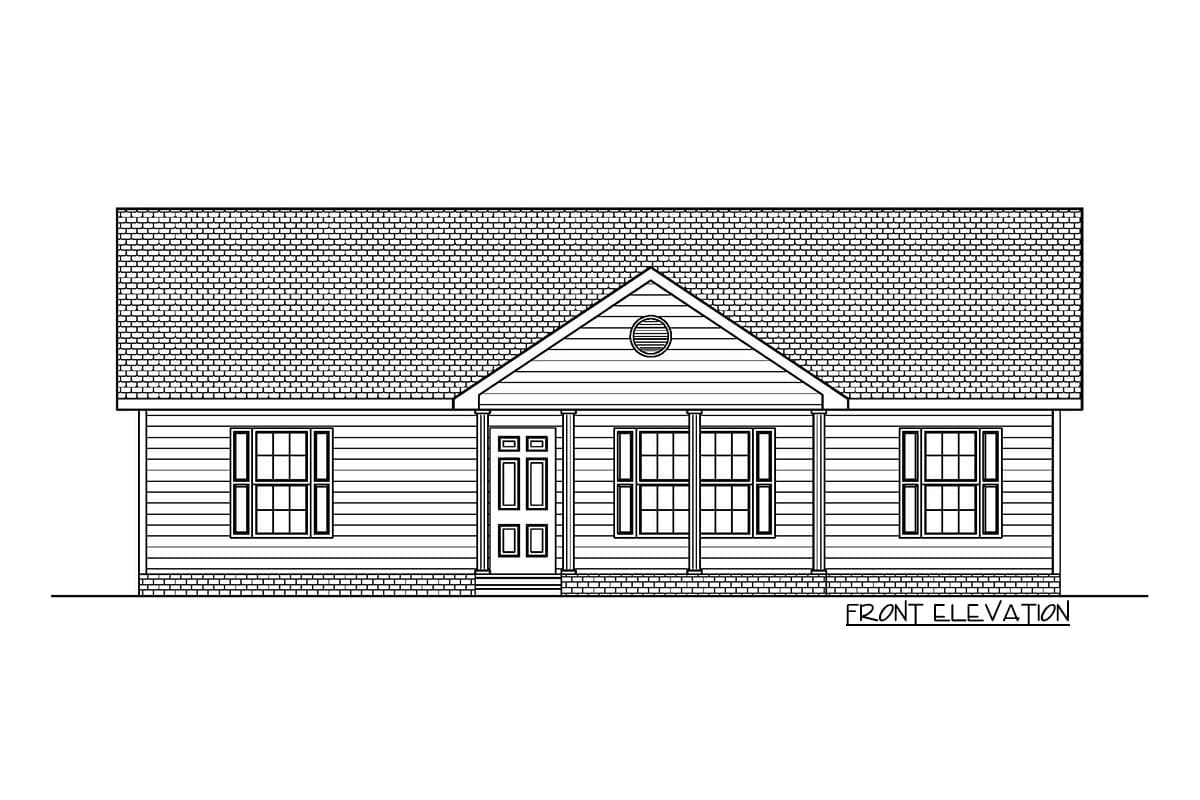

  • Exterior elevations (all four sides)
  • Detailed dimensioned floor plan(s)
  • Suggested electrical layout
  • Dimensioned foundation plan with notes & details
  • Bird's-eye roof plan

What's Not Included
Document
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
  • Materials list - MAY be available as a purchasable option under the "Options" tab
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,008 sq. ft.

1st Floor

1,008 sq. ft.

Deck

120 sq. ft.

Entry

64 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

24' 0"

Max Ridge Height

16' 8"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,008 sq. ft.

1st Floor

1,008 sq. ft.

Deck

120 sq. ft.

Entry

64 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

24' 0"

Max Ridge Height

16' 8"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
