Plan 62492DJ
Simple Single Story Home Plan - 1550 Sq Ft
Heated S.F.
1,550
Beds
3
Baths
2
Stories
1
Cars
2

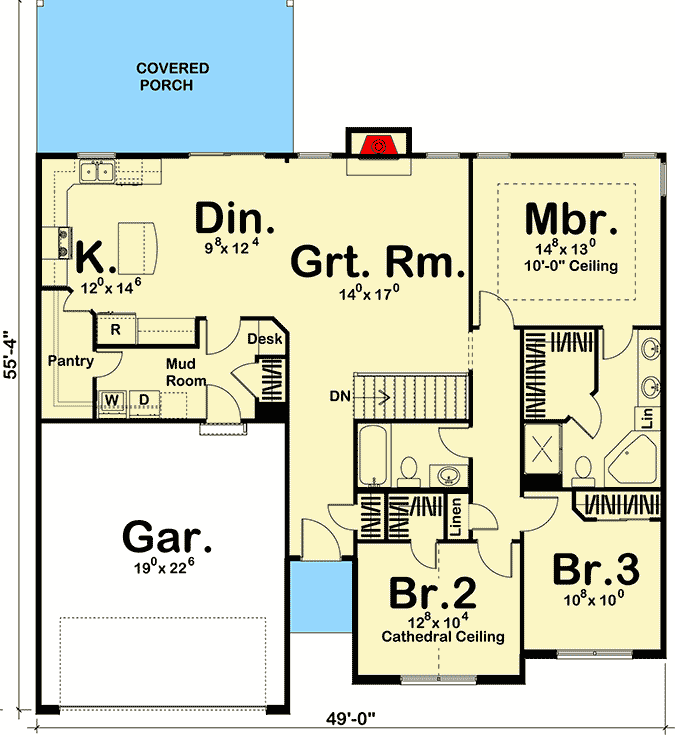

Floor Plan

Plan 62492DJ

Main Level
slide image 0

Plan 62492DJ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • Three bedrooms are arranged to the right leaving the rest of this simple single story home plan for fun with family and friends.
  • The master bedroom has a tray ceiling and Bed 2 vaults, making both spaces more dynamic.
  • The entry has views straight through the home creating a welcome feel as you enter.
  • The great room is open to the dining room and kitchen, combining for unbroken views over 35' across.
  • A large panty is a few steps away from the garage entry making unloading groceries a breeze.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.

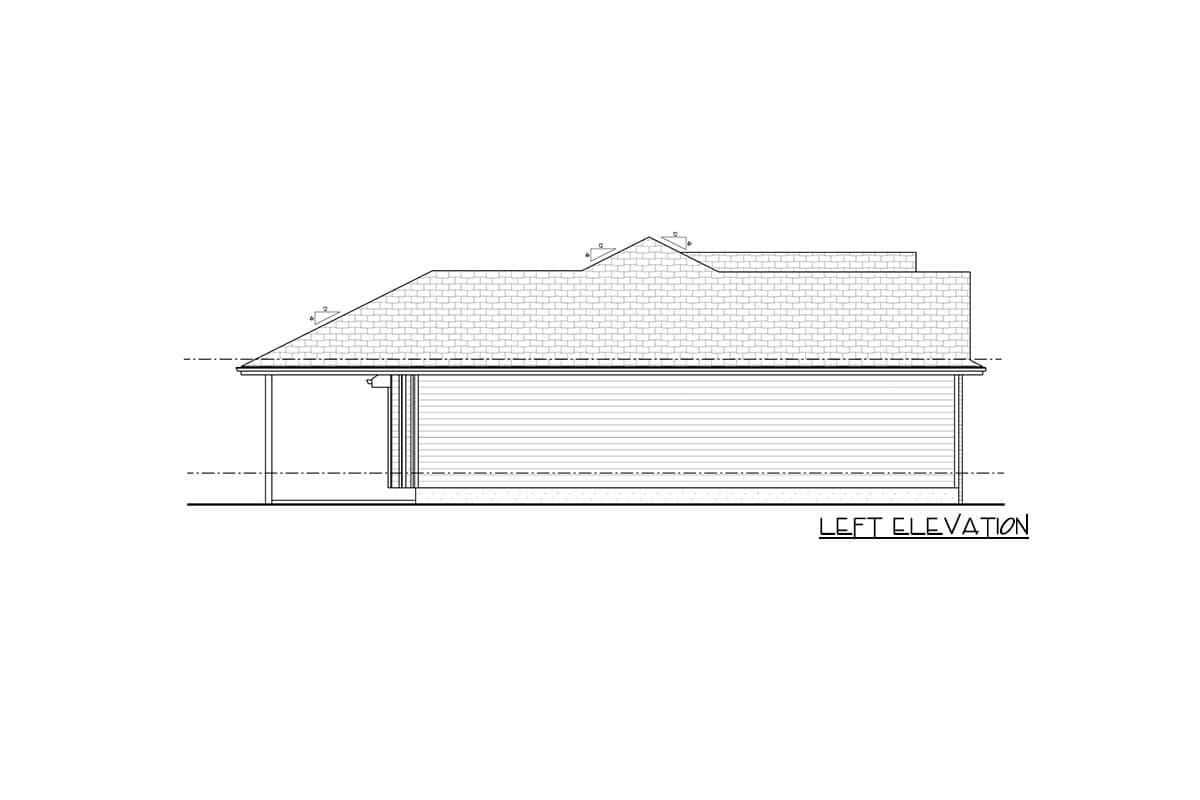

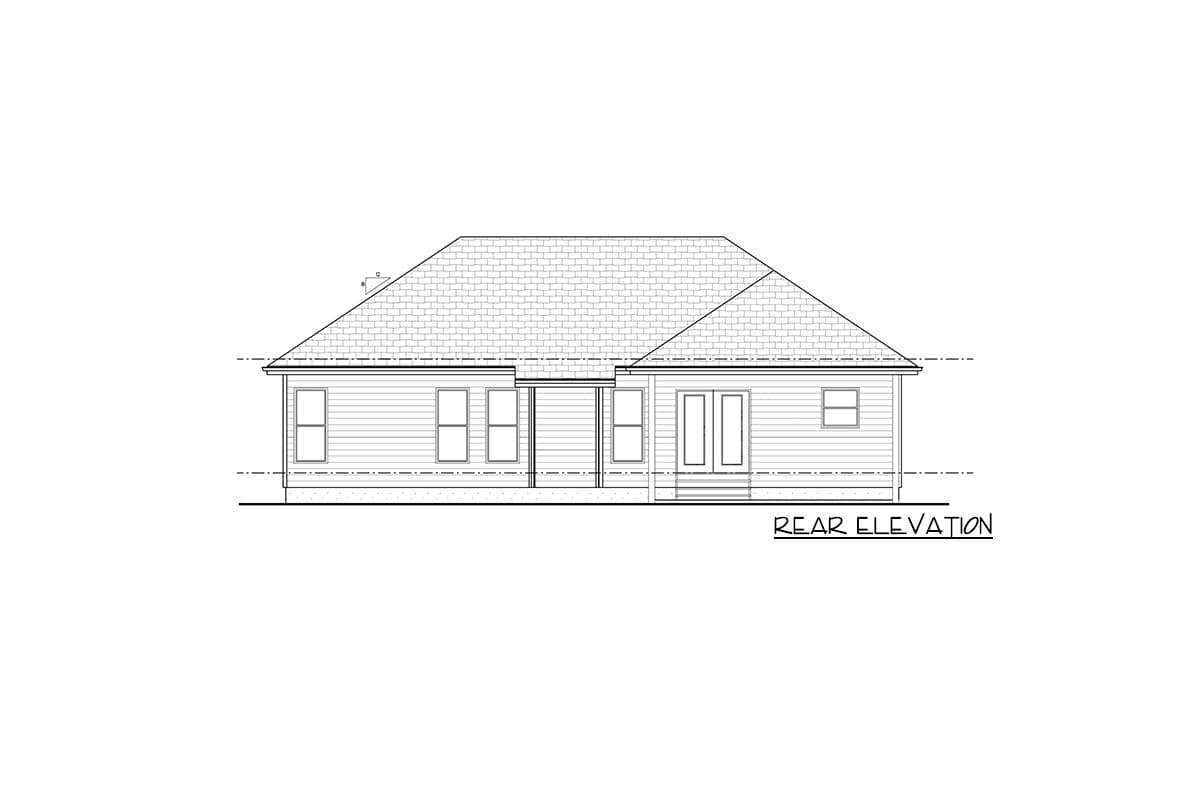

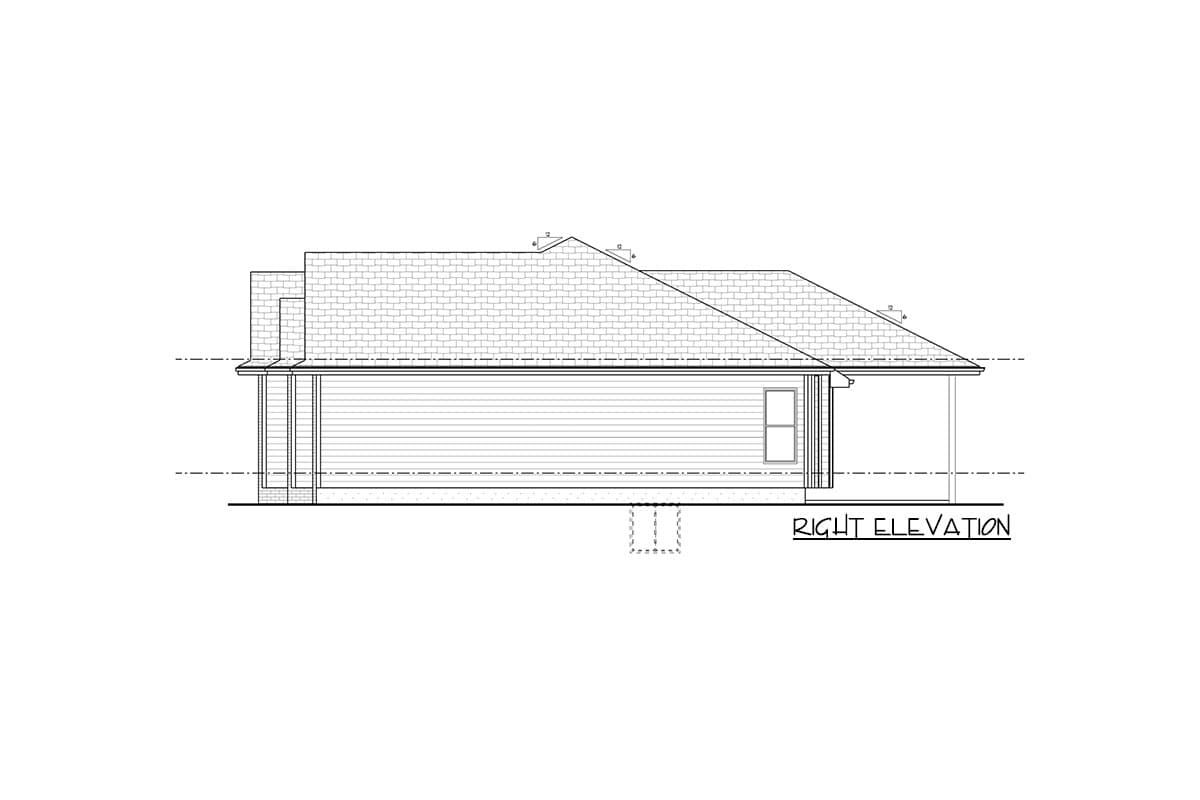

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,550 sq. ft.

1st Floor

1,550 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 0"

Depth

55' 4"

Max Ridge Height

21' 4"

Garage

Type

Attached

Area

448 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,550 sq. ft.

1st Floor

1,550 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 0"

Depth

55' 4"

Max Ridge Height

21' 4"

Garage

Type

Attached

Area

448 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
