Plan 65606BS
Single Floor Simplicity
Heated S.F.
1,253
Beds
3
Baths
2
Stories
1
Cars
1
Floor Plan

Plan 65606BS

Main Level
slide image 0

Plan 65606BS

1-800-854-7852

1-262-521-4596

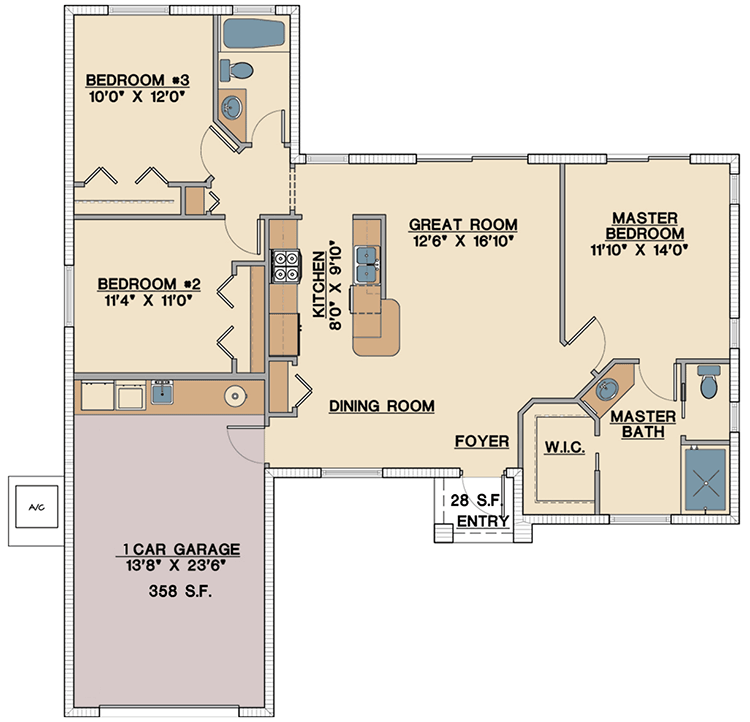

Main Level
floor plan image Main Level
Plan Details
  • This 3 bedroom house plan gives you simple living all on one floor. The foyer introduces guests to the wide open core of the home and has views to the back through sliding doors in the great room.
  • The kitchen has great casual seating at the peninsula which helps tie this space into the great room. And there is room for hanging plenty of cabinets.
  • The master is privately located and has backyard access. Across the home two beds share a bath.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida.
What's Included
Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:
  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:
  • Miscellaneous General Notes
  • Stairway Details (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,253 sq. ft.

1st Floor

1,253 sq. ft.

Entry

28 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

48' 4"

Depth

51' 0"

Max Ridge Height

13' 6"

Garage

Type

Attached

Area

358 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,253 sq. ft.

1st Floor

1,253 sq. ft.

Entry

28 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

48' 4"

Depth

51' 0"

Max Ridge Height

13' 6"

Garage

Type

Attached

Area

358 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
