Name: Plan 444009GDN: Single-level Country Craftsman Plan with Screened Porch and Bonus Room - 2812 Sq Ft
SKU: 444009GDN
Price: 1636.25 USD
Availability: InStock

Plan 444009GDN

Single-level Country Craftsman Plan with Screened Porch and Bonus Room - 2812 Sq Ft

Heated S.F.

2,812

Beds

3 - 4

Baths

Stories

Cars

Floor Plan

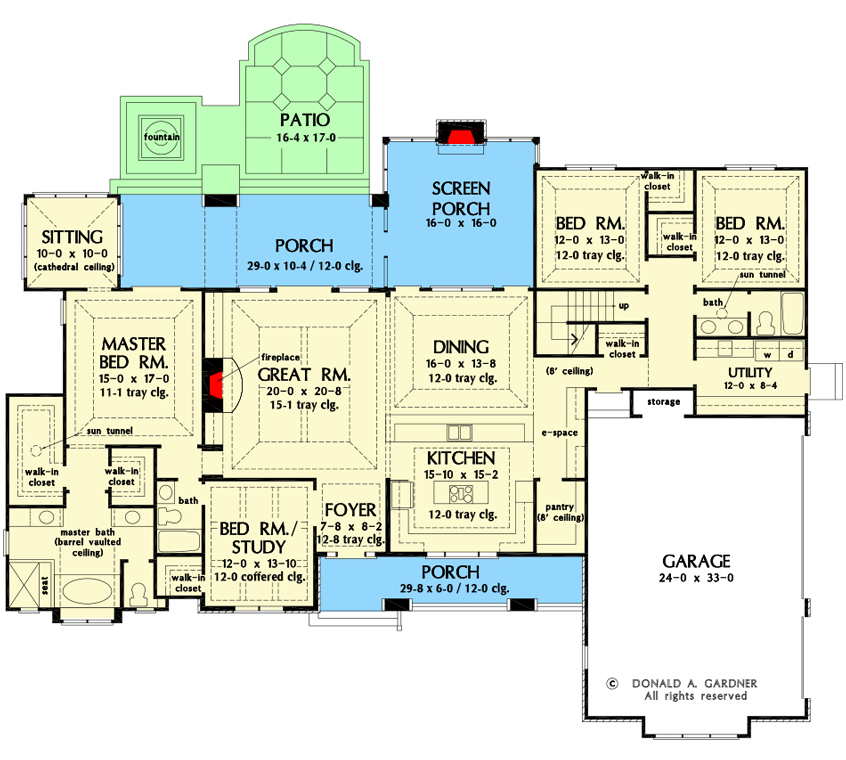

Main Level

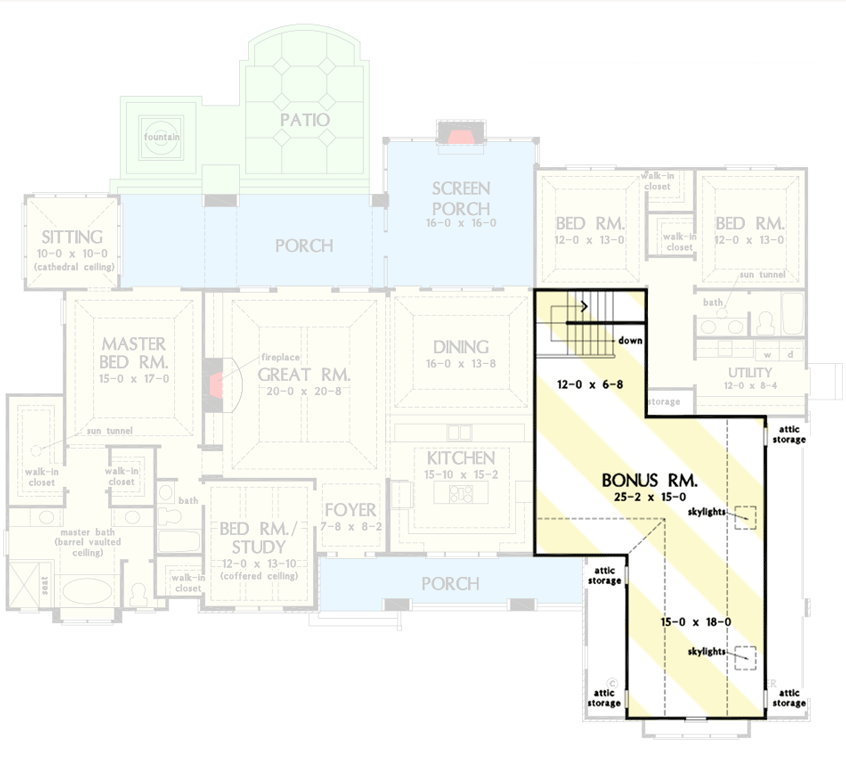

Bonus Room

Plan Details

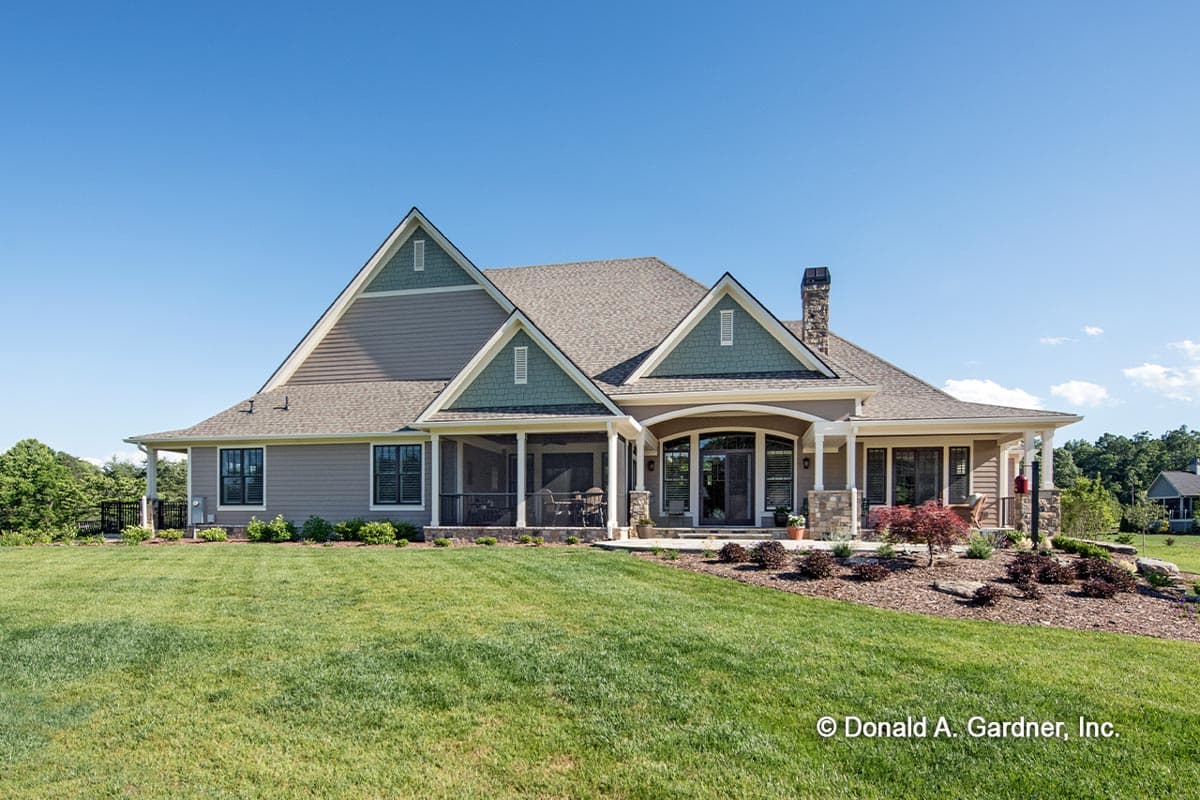

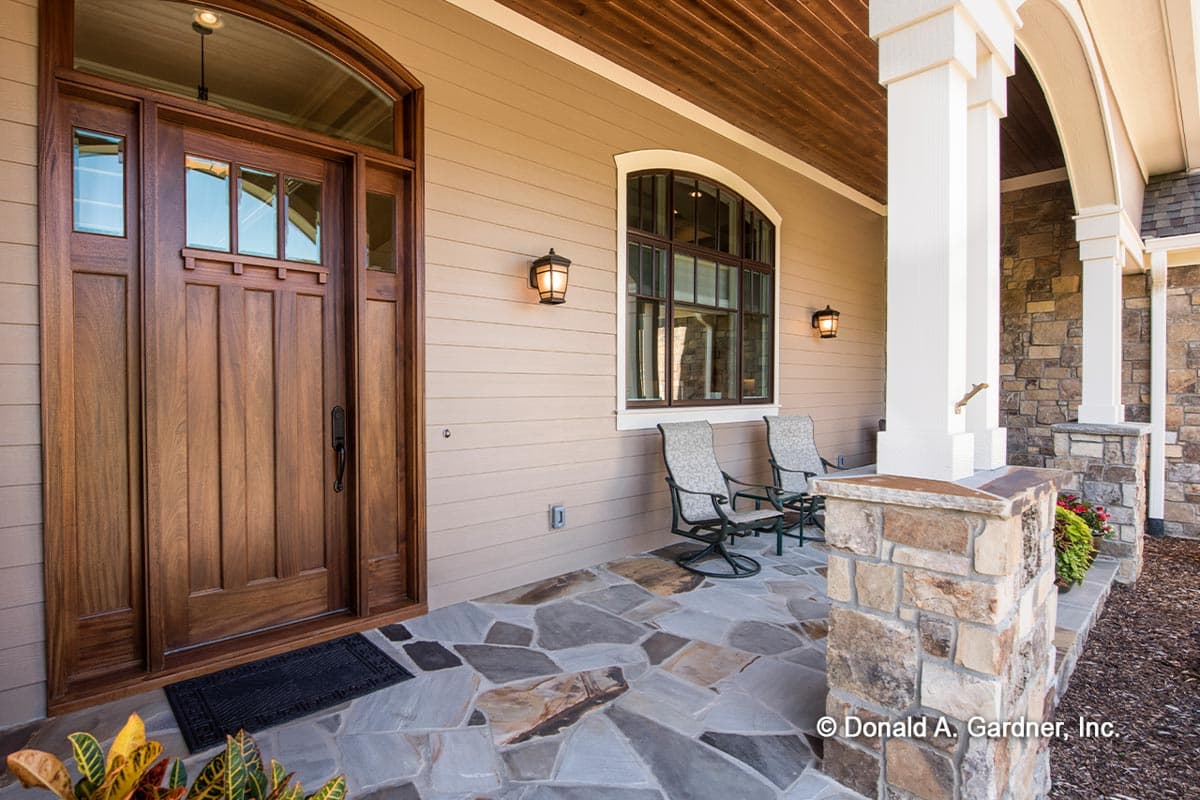

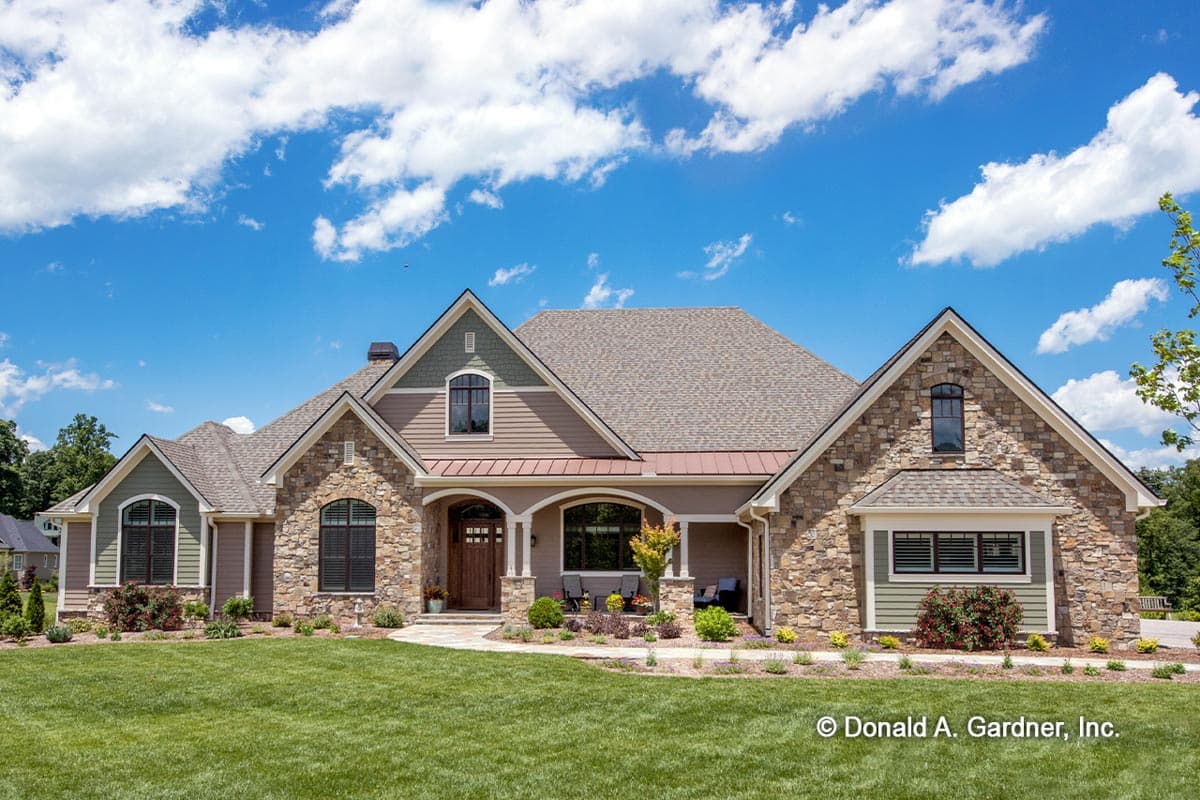

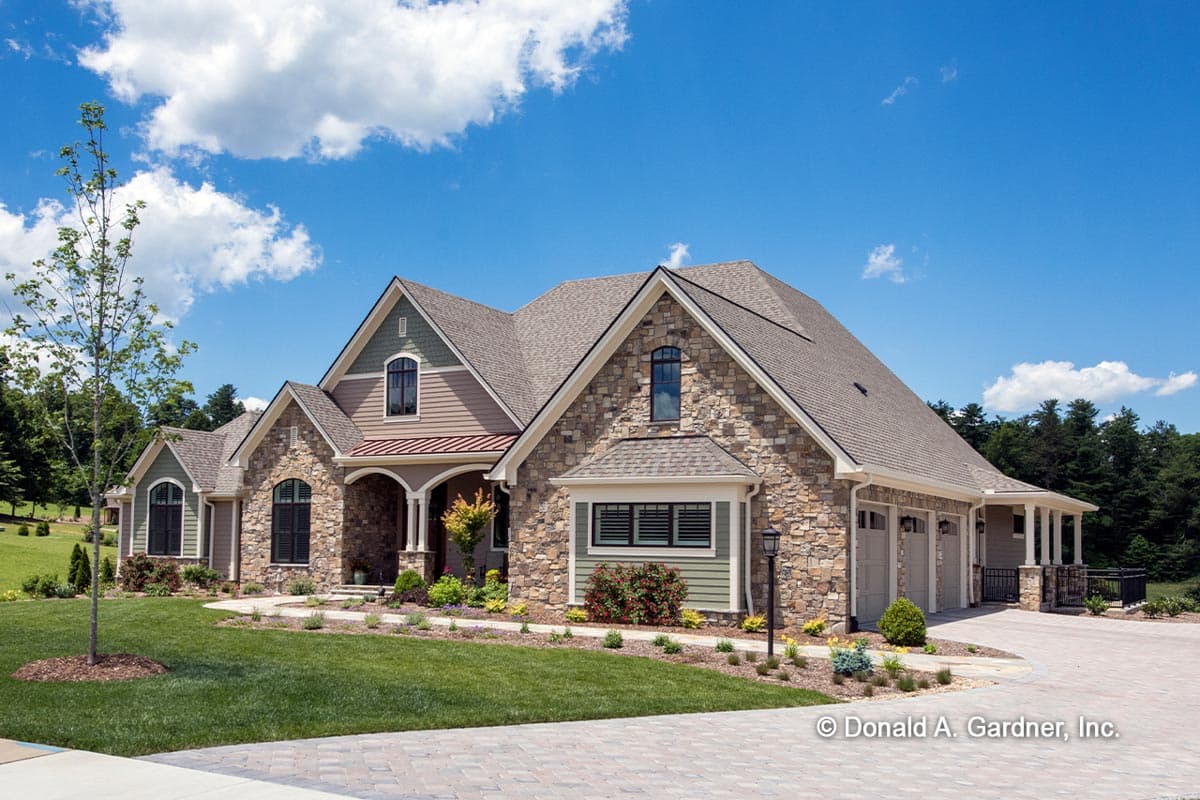

A stone and shingle facade combine with graceful lines to highlight this single-level Country Craftsman home plan.

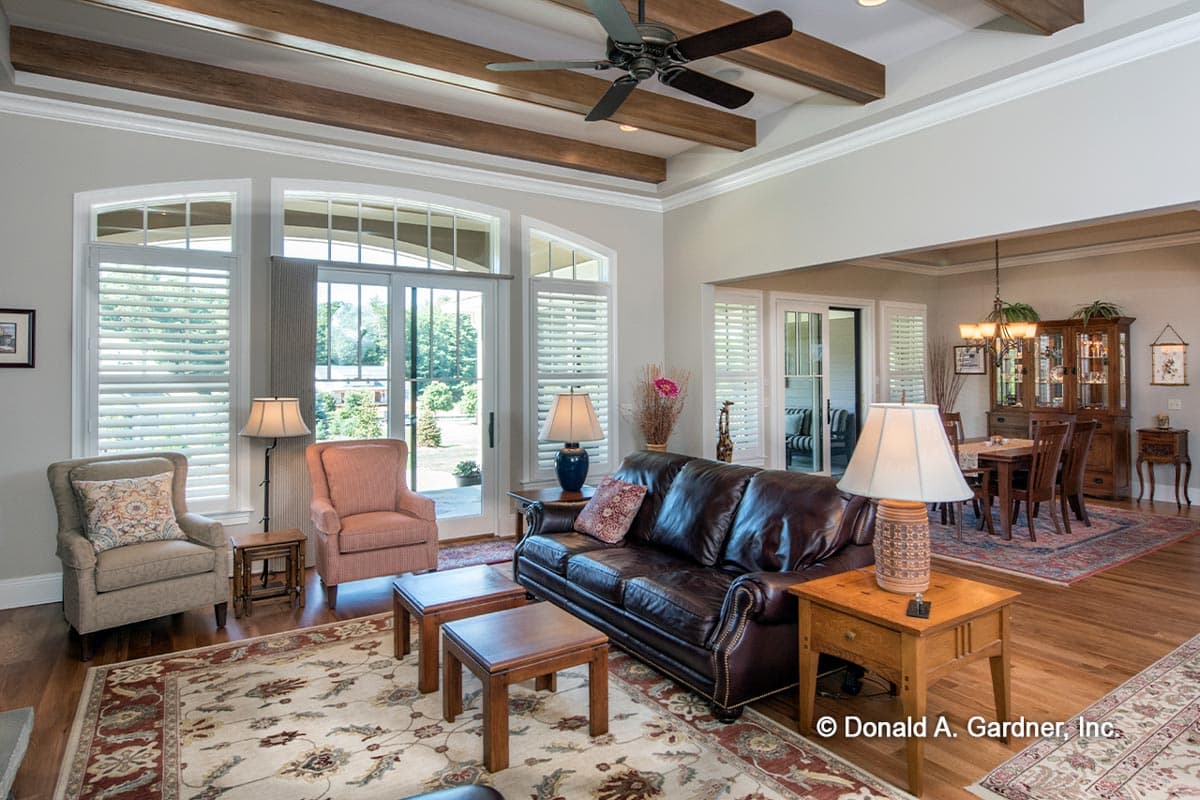

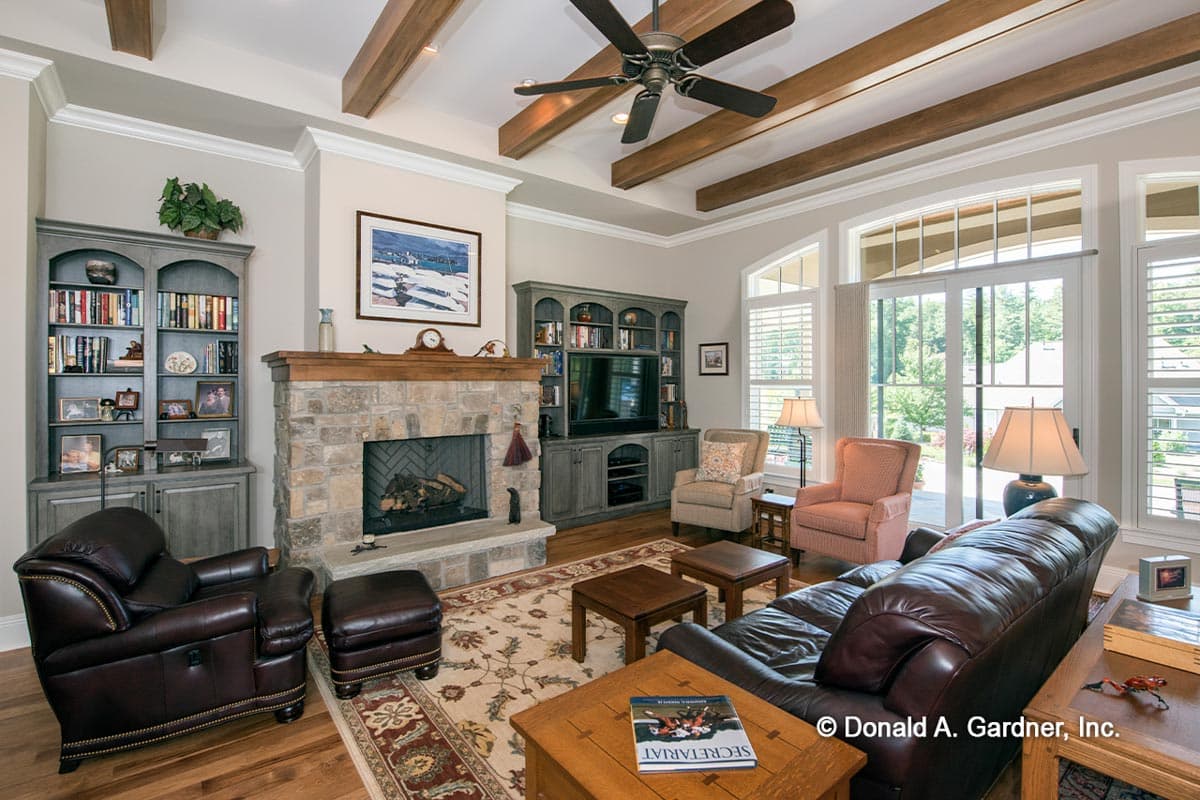

Custom details can be found throughout the plan with elegant ceiling treatments in many rooms and built-in cabinetry flanking the great room fireplace.

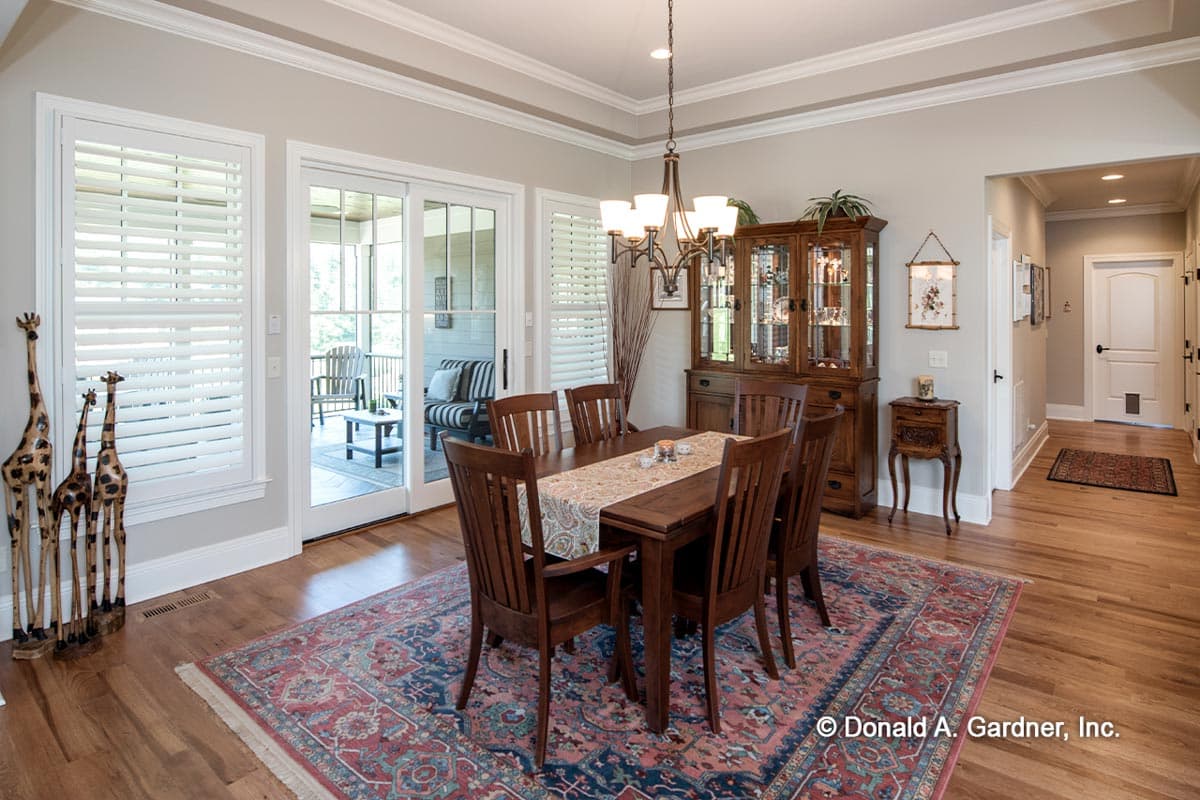

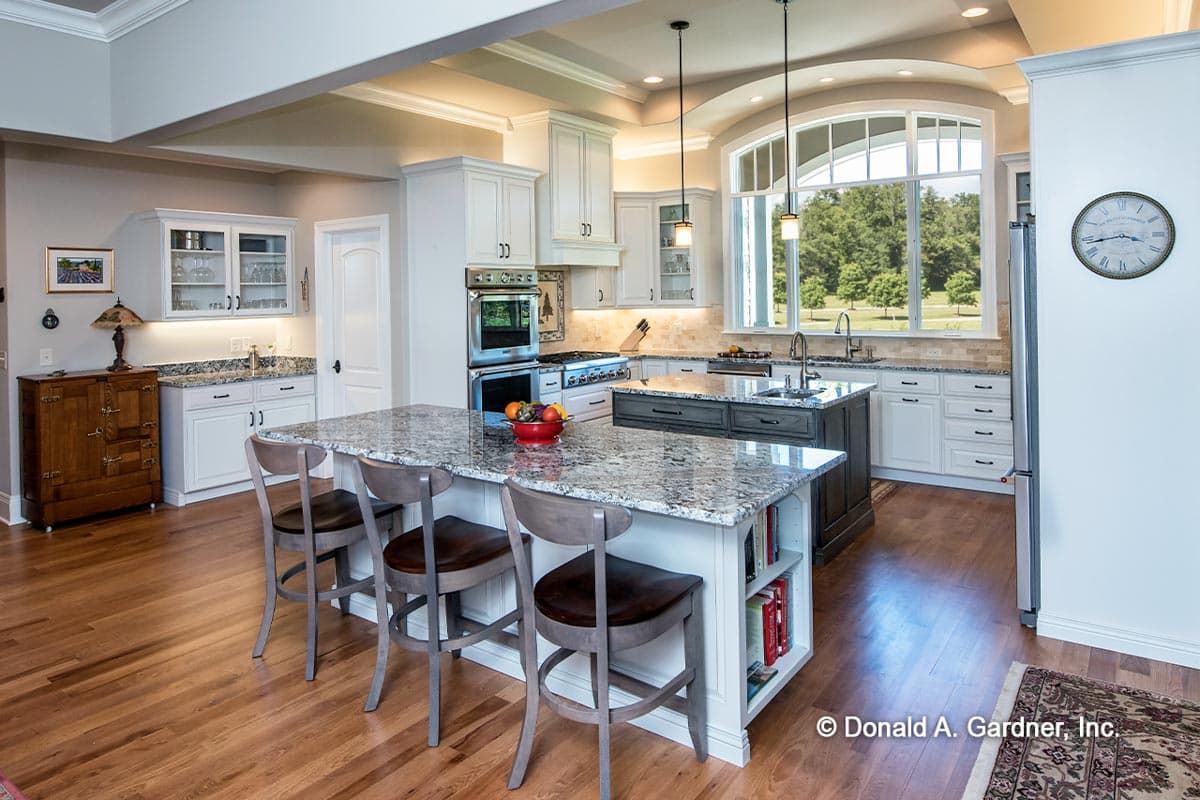

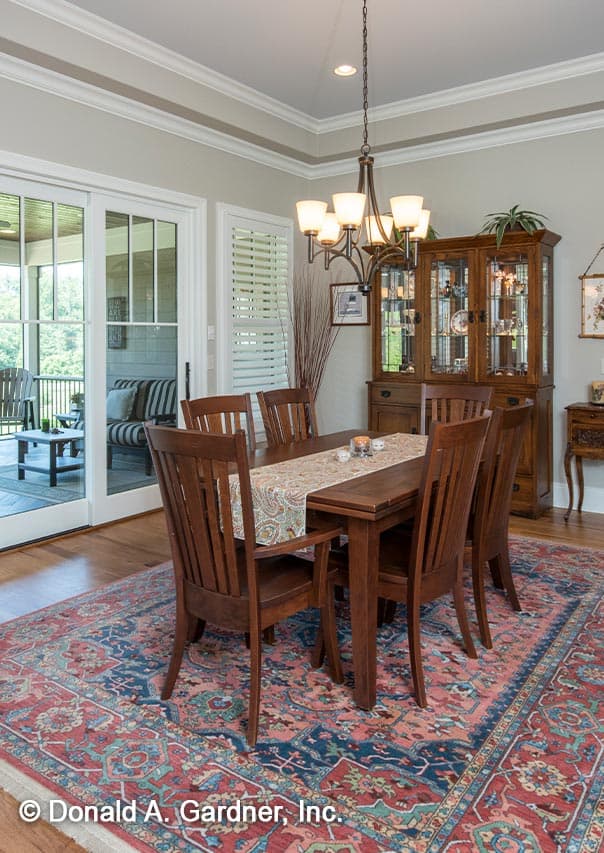

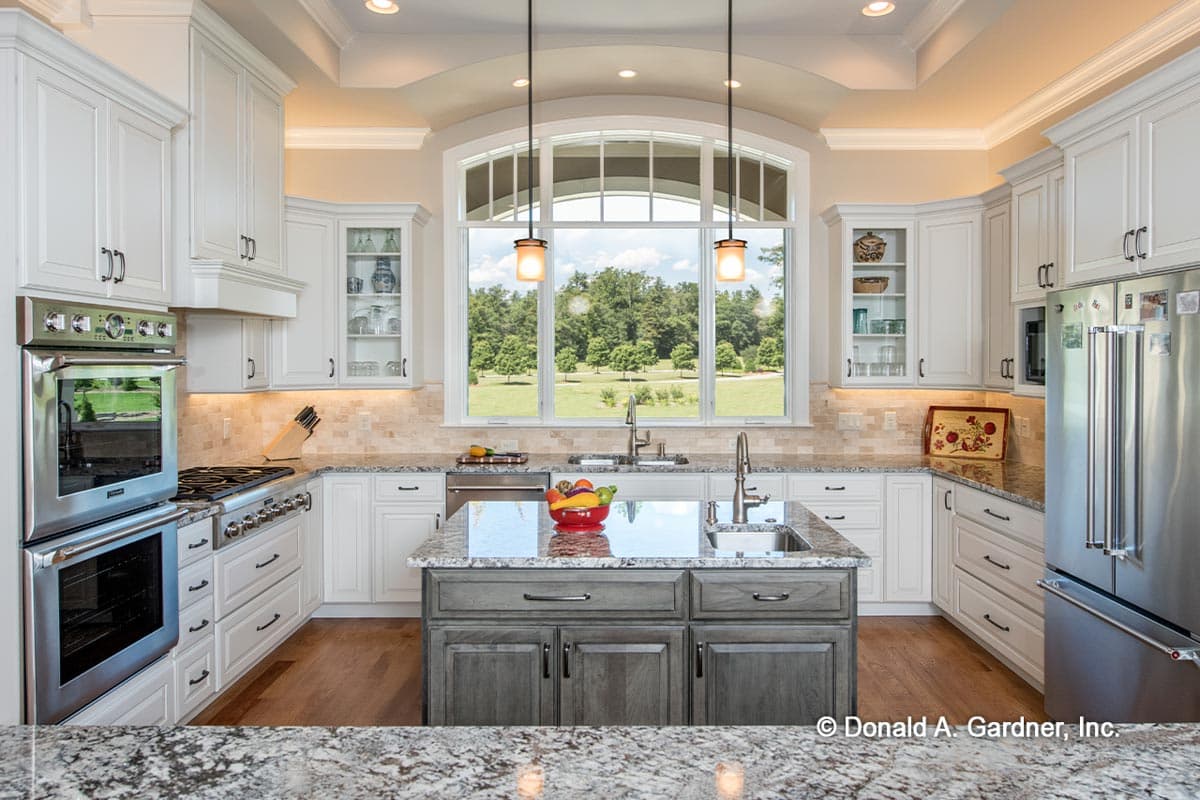

The chef's kitchen opens to the large dining area and great room, providing a focal point for family life and entertaining.

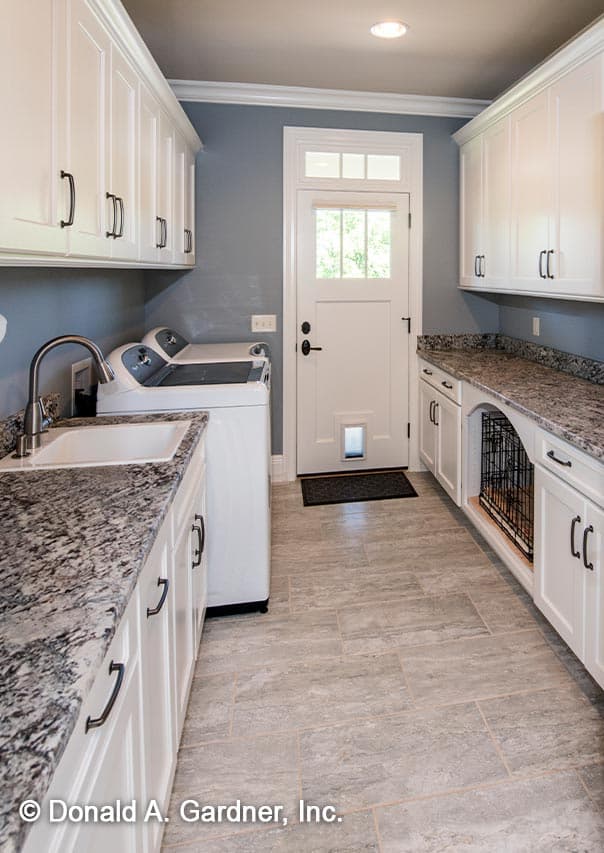

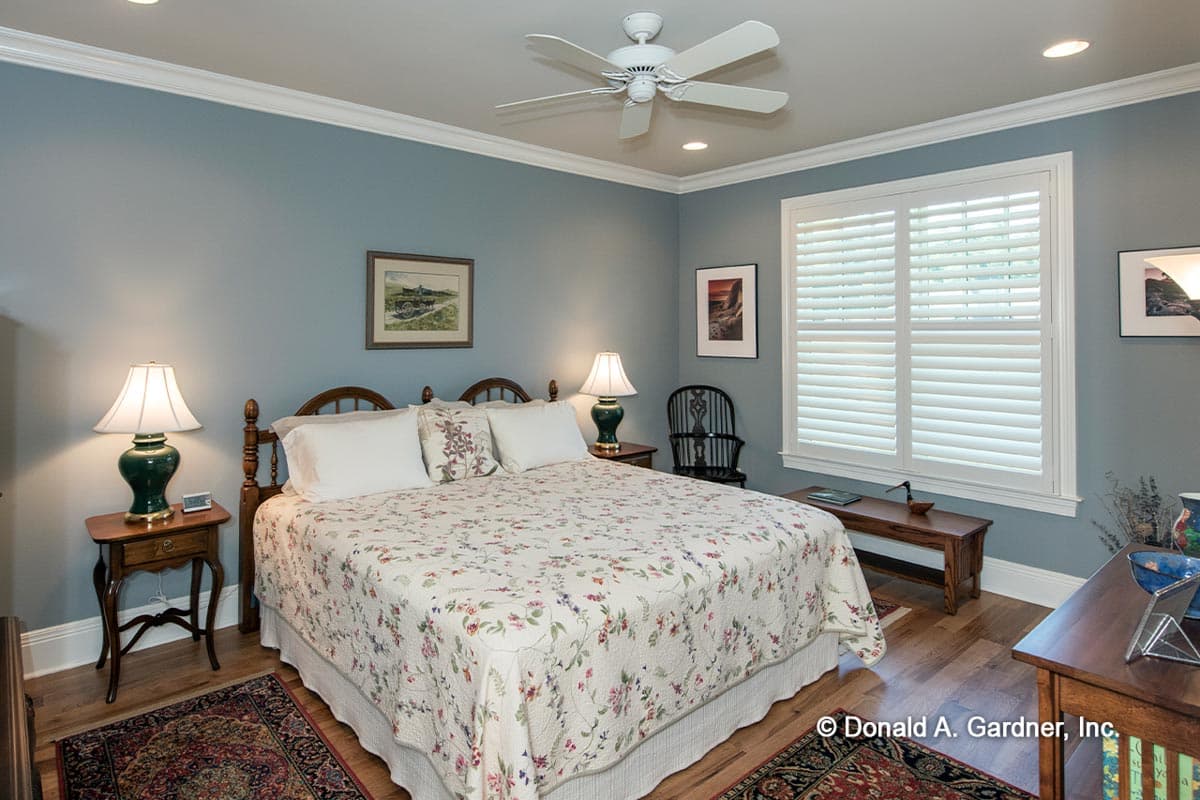

One wing houses secondary bedrooms and utility space, helping to keep clutter out of the formal living areas, while the oversized bonus room provides flexibility and access to plenty of attic storage.

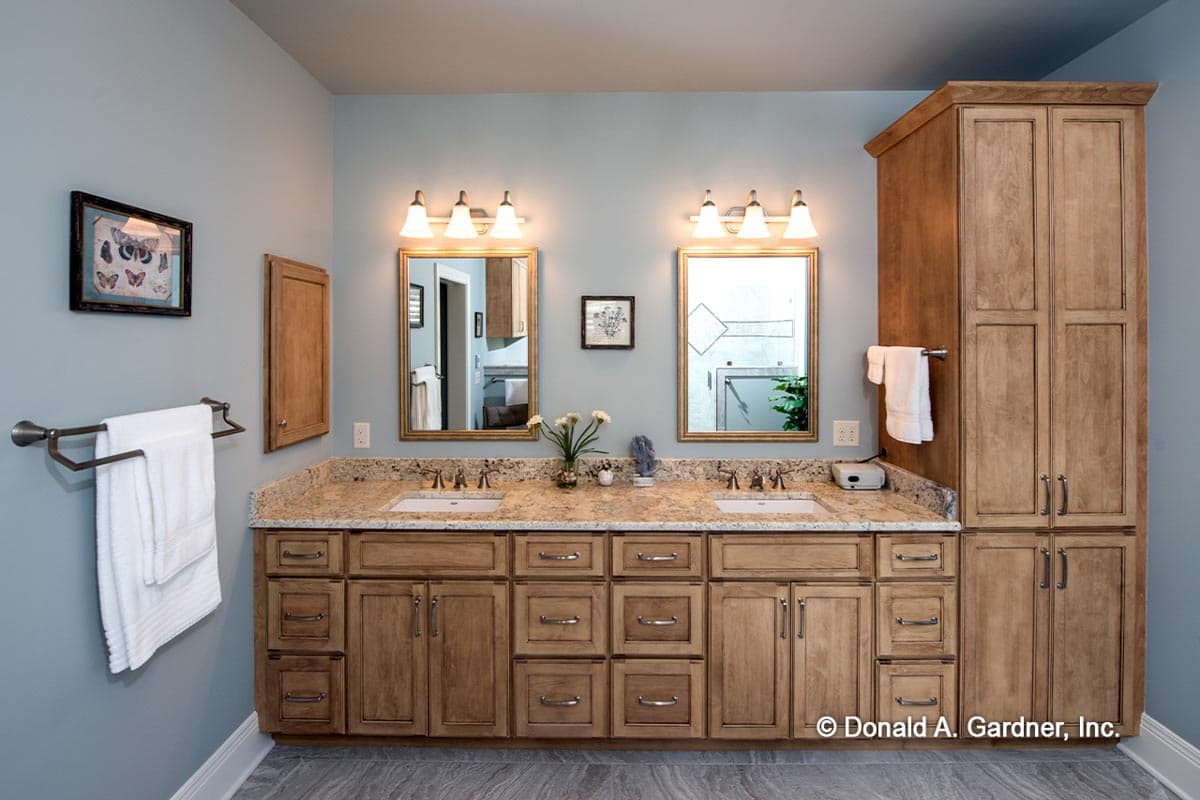

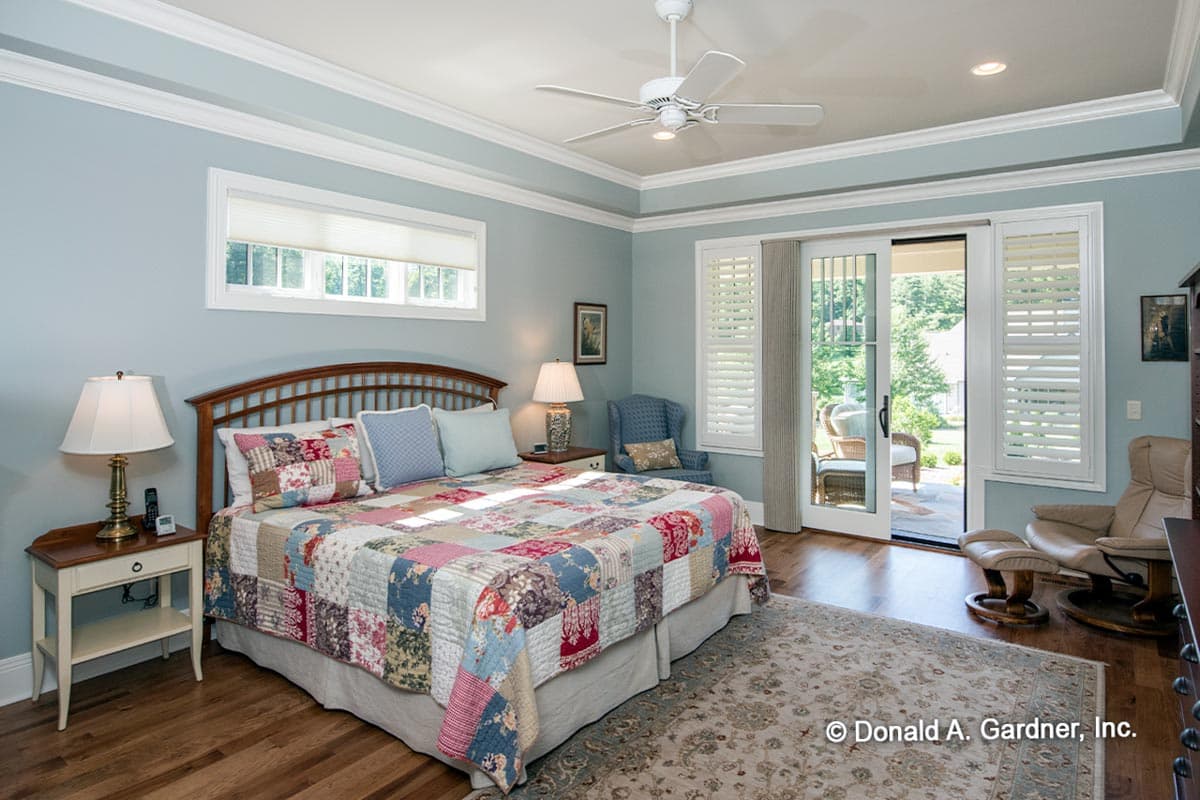

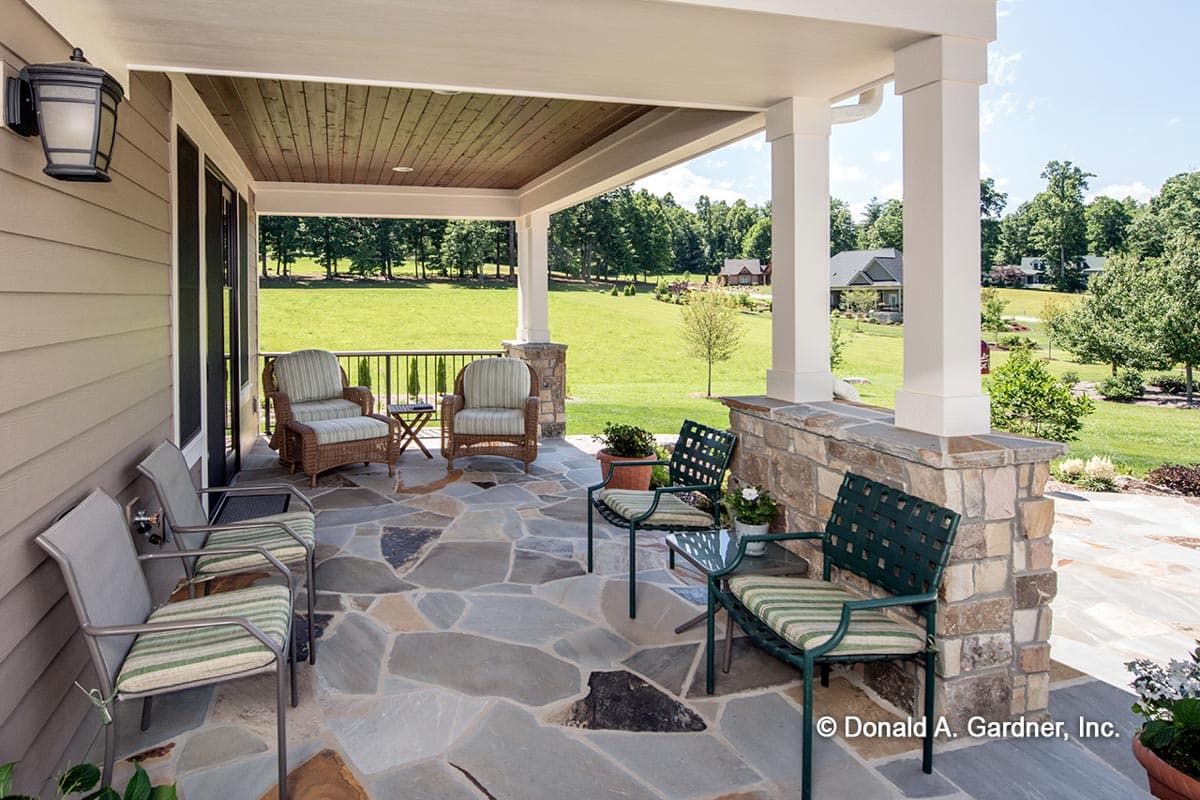

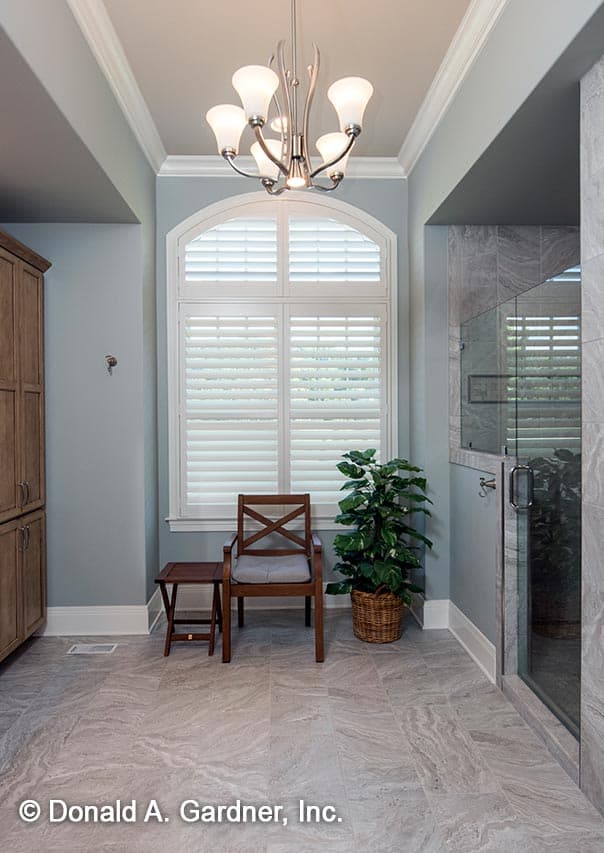

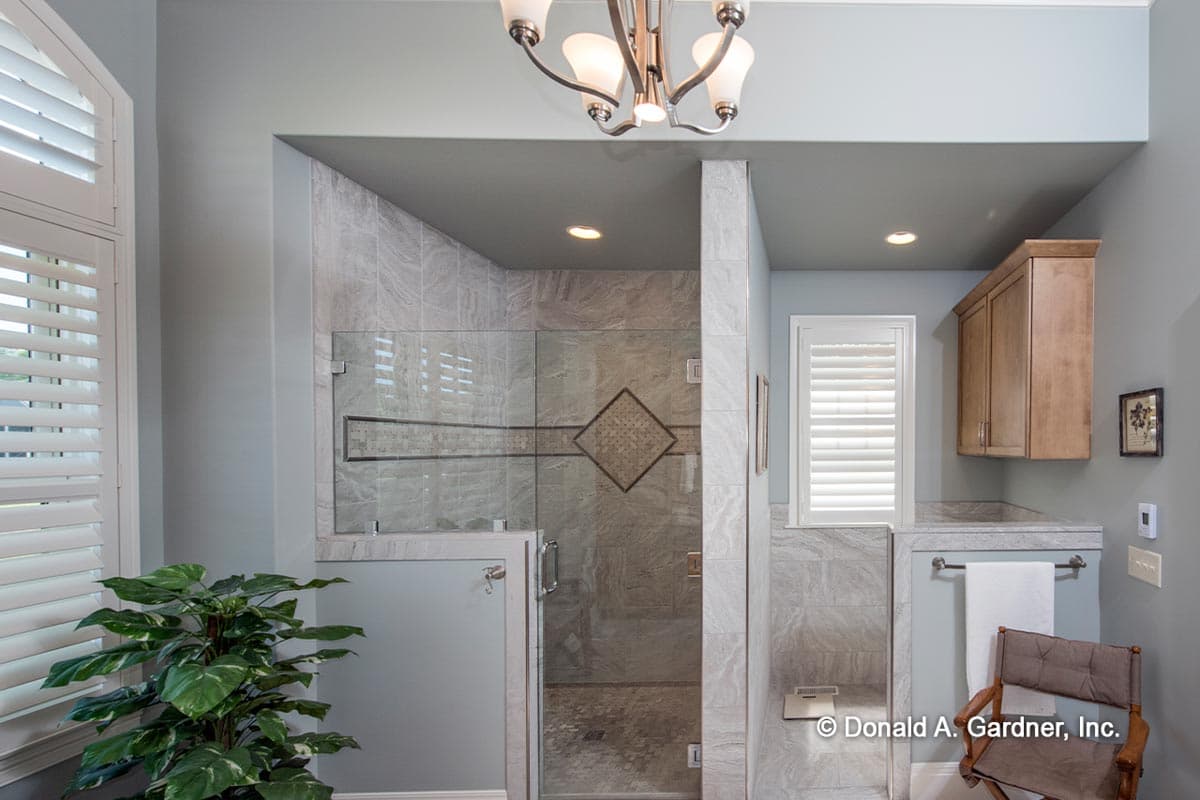

The opposite wing of the home plan is devoted to a roomy master suite with an attached sitting area to the rear, access to the porch, and two large walk-in closets. The highlight is the unique barrel-vaulted ceiling over the garden tub in the master bath.

What's Included

Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
