Plan 833029WAT

Single-Story Contemporary Ranch House Plan with 3-Beds and Attached Casita - 2931 Sq Ft

Heated S.F.

2,931

Beds

3 - 4

Baths

3.5

Stories

1

Cars

2

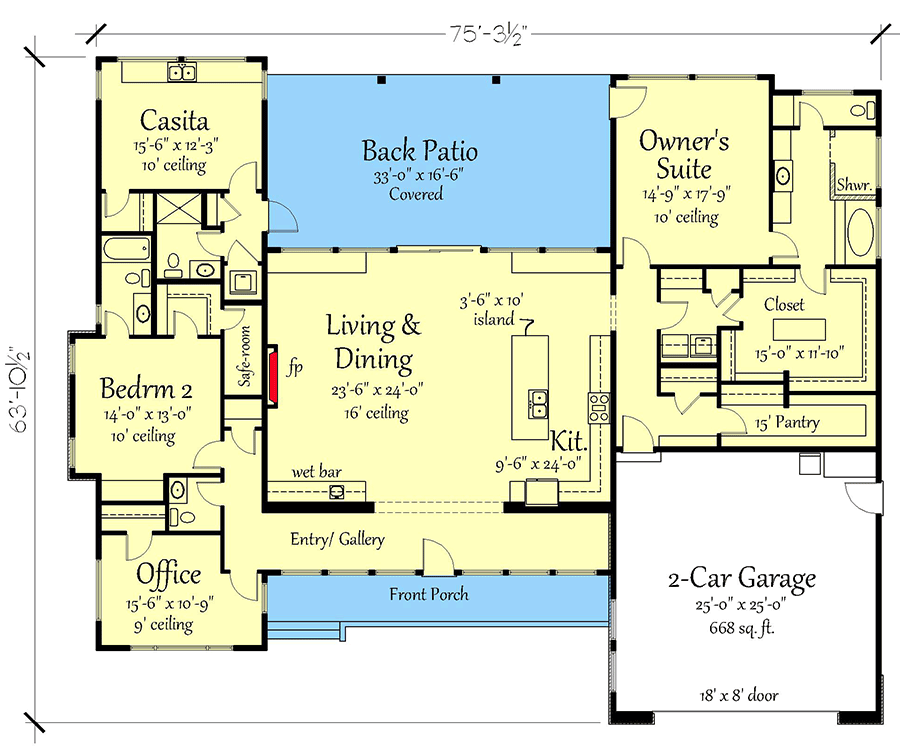

Floor Plan

Main Level

floor plan image Main Level

Plan Details

This 2-3 bedroom, 3.5 bath Contemporary Ranch House Plan gives you 2,931 square feet of heated living space.
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.
Related Plan: Get a 2-car side garage with house plan 833006WAT (2,931 sq ft).

What's Included

Cover Sheet
Floor Plan
Elevations
Roof Plan
Thermal Envelope Plan (General Prescriptive Energy Compliance)
Detail Sheet

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.
