Plan 623493DJ
Single-Story Cottage House Plan with Split-Bedrooms - 1695 Sq Ft
Heated S.F.
1,695
Beds
3
Baths
2
Stories
1
Cars
2
Tour
Floor Plan

Plan 623493DJ

Main Level
slide image 0
Optional Lower Level Layout ($ Paid Option)
slide image 1

Plan 623493DJ

1-800-854-7852

1-262-521-4596

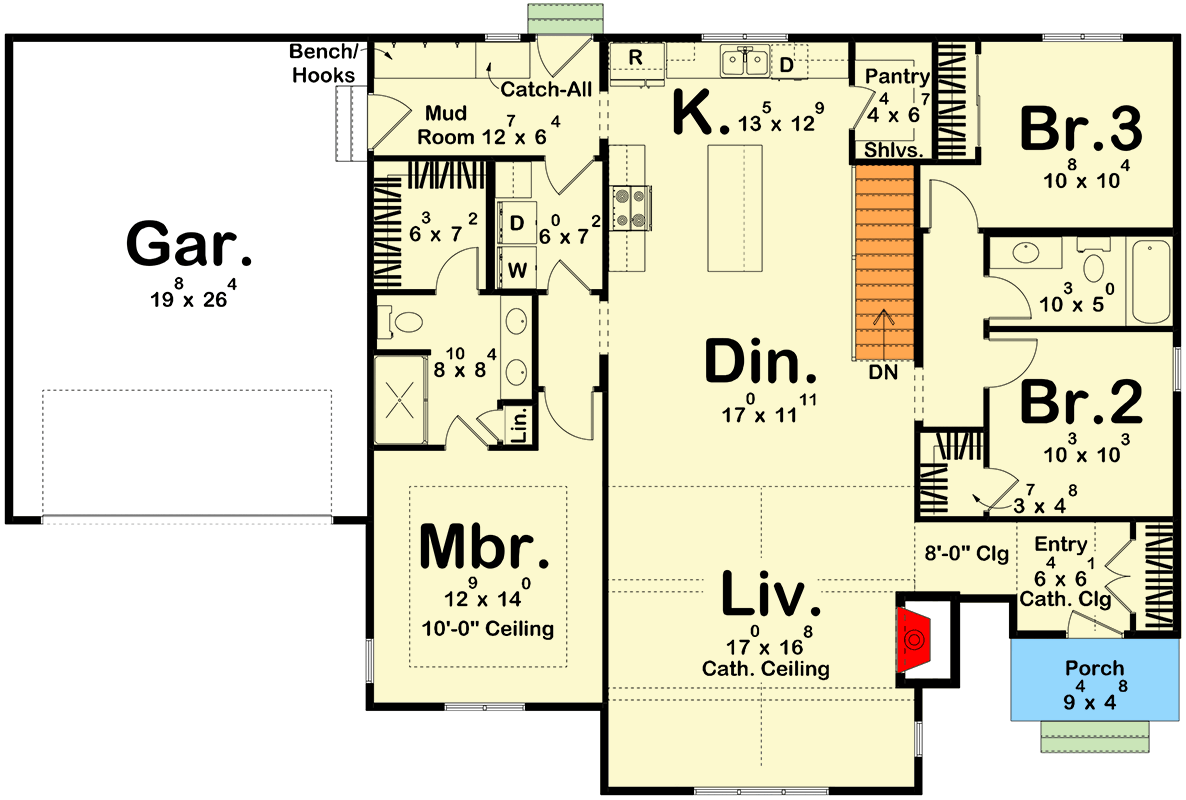

Main Level
floor plan image Main Level

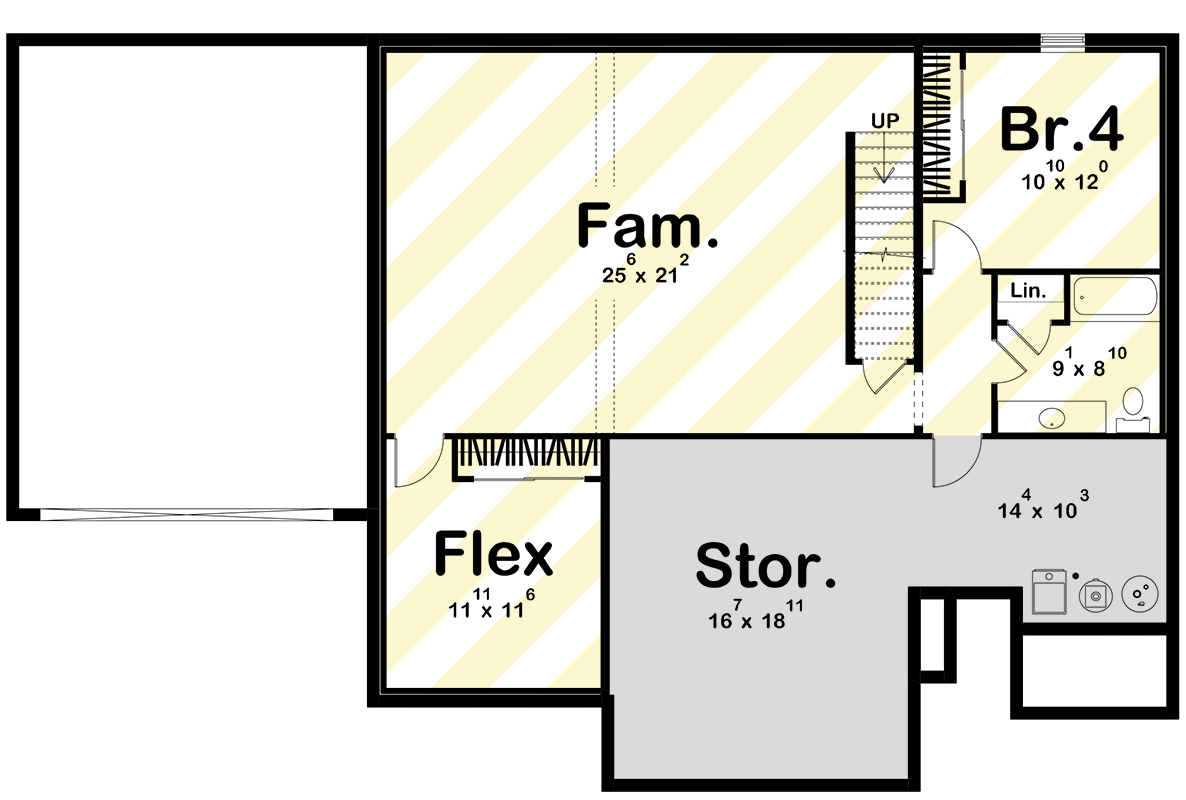

Optional Lower Level Layout ($ Paid Option)
floor plan image Optional Lower Level Layout ($ Paid Option)
Plan Details

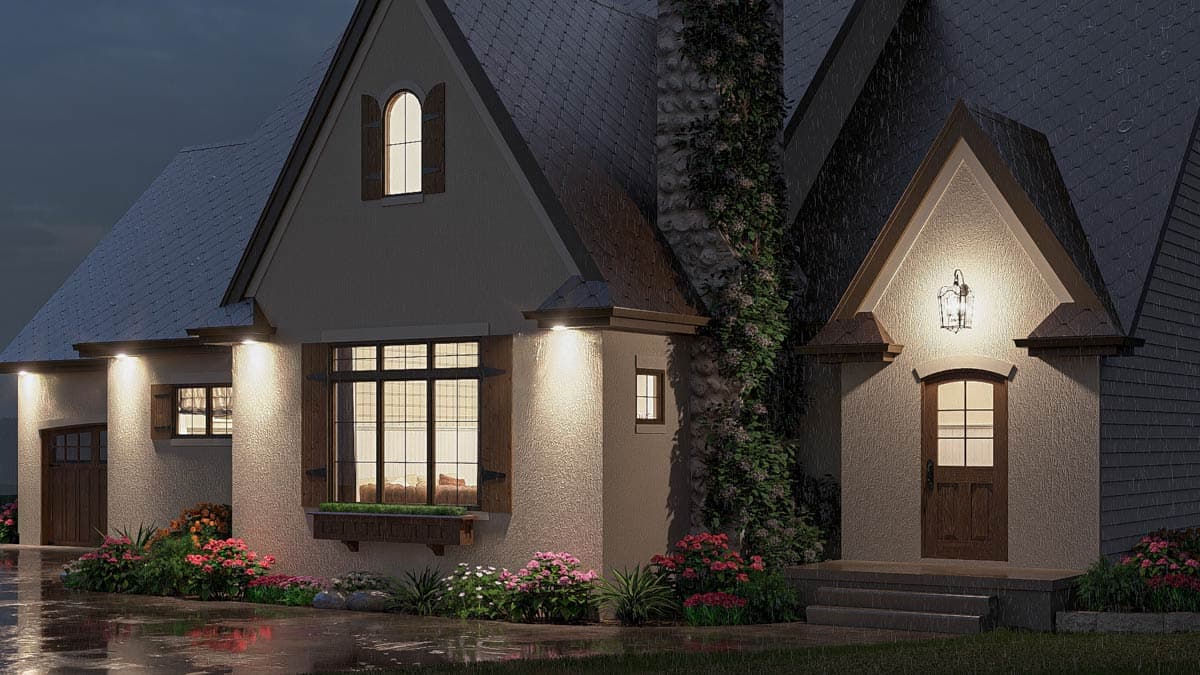

  • This 1,695 sq. ft. cottage-style home that blends classic design with modern function. The exterior features stucco, steep roofs, and a stone chimney.

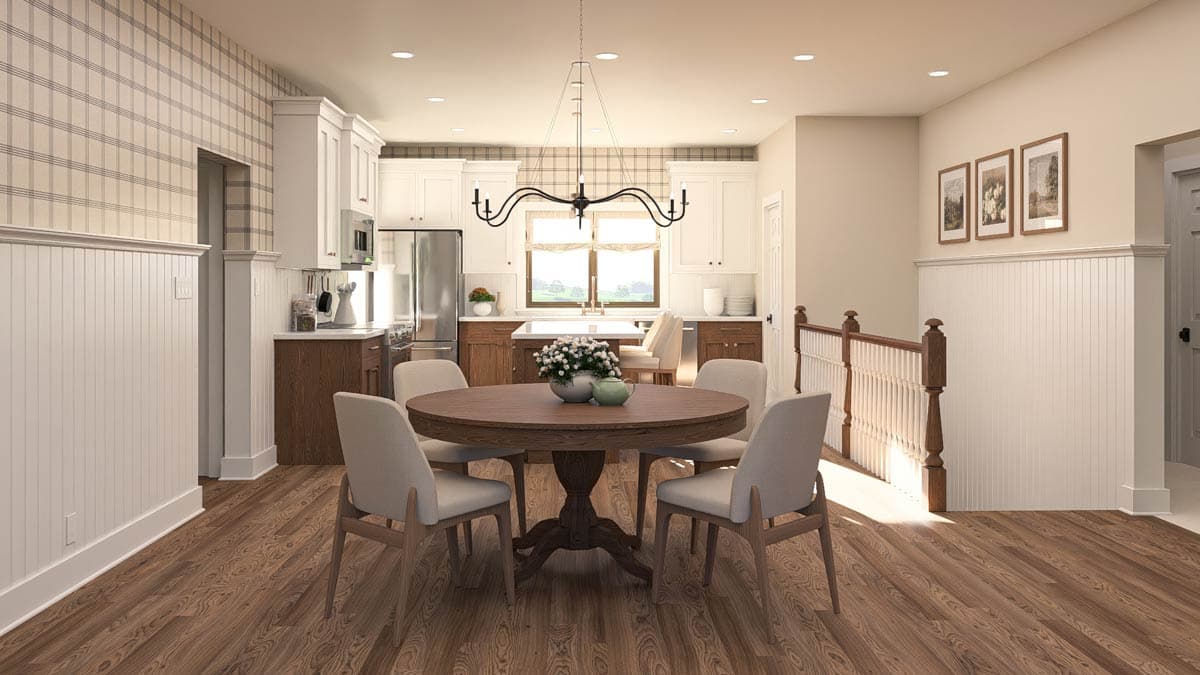

  • Inside, the open-concept living area includes cathedral ceilings with wood beams and a stone fireplace. The main suite offers a private bath and walk-in closet, while two additional bedrooms provide flexibility.
  • An optional 1,081 sq. ft. finished basement adds a large family room, flex space, an extra bedroom, a full bath, and storage. Redick Lane is designed for comfortable living, whether relaxing or hosting guests.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a similar version that has a 1-car garage with 62826DJ (1,695 sq. ft.).
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,695 sq. ft.

1st Floor

1,695 sq. ft.

Optional Lower Level

1,081 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 0"

Depth

42' 0"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

540 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

18 on 12

Framing Type

Stick

Architectural Style

Cottage

European

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
