Plan 52402WM
Single-Story Duplex House Plan with 3-Beds Under 800 Sq Ft Per Unit
Heated S.F.
1,570
Units
2
Width
Depth
Floor Plan

Plan 52402WM

Main Level
slide image 0

Plan 52402WM

1-800-854-7852

1-262-521-4596

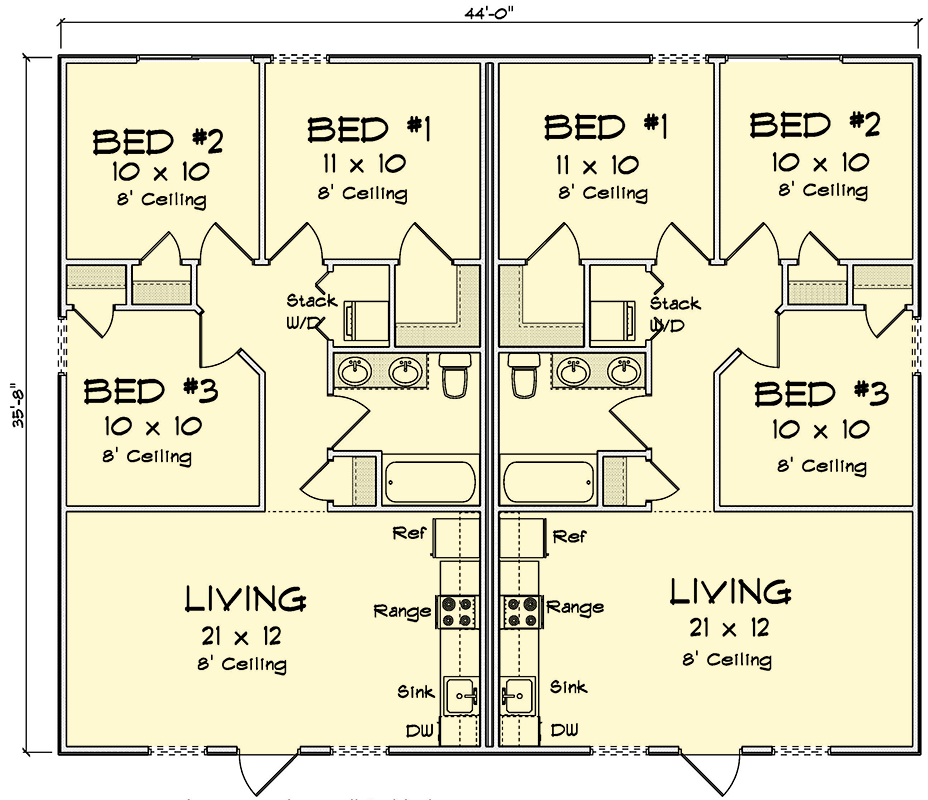

Main Level
floor plan image Main Level
Plan Details
  • This duplex house plan gives you 2 units each with 785 square feet of heated living space, 3 beds and 1 bath.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
785Sq. Ft.
785 Sq. Ft.
1st Floor
3Beds
1Full Bath
22'width
35'depth
Unit B
785Sq. Ft.
785 Sq. Ft.
1st Floor
3Beds
1Full Bath
22'width
35'depth
What's Included
  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,570 sq. ft.

1st Floor

1,570 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

33' 8"

Max Ridge Height

17' 5"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Cottage

Country

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
