Single-Story European House Plan with Angled Garage - 6557 Sq Ft
Heated S.F.
6,557
Beds
4
Baths
3.5+
Stories
1
Cars
3
Floor Plan

Plan 490127NAH

Main Level
slide image 0
Lower Level
slide image 1

Plan 490127NAH

1-800-854-7852

1-262-521-4596

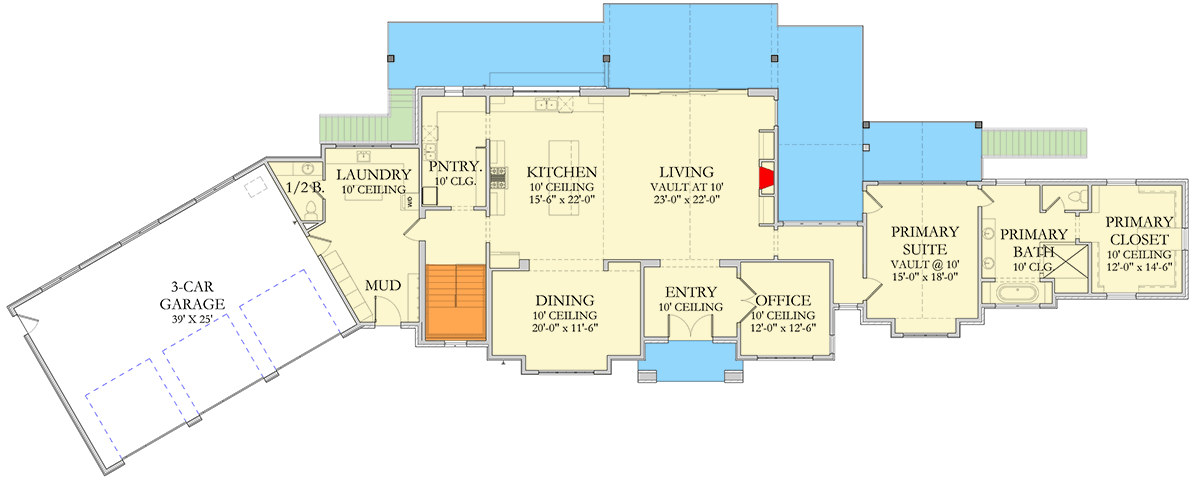

Main Level
floor plan image Main Level

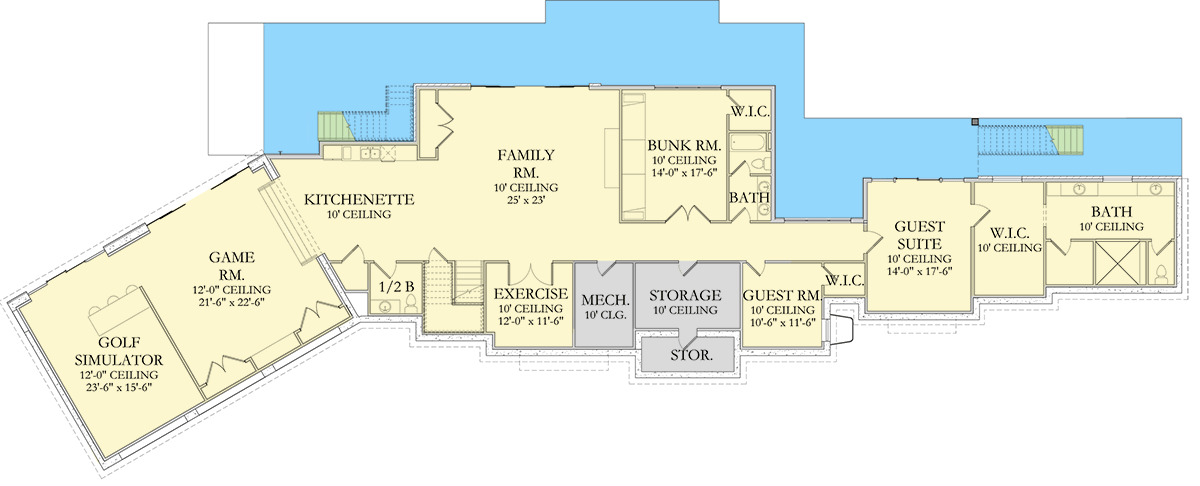

Lower Level
floor plan image Lower Level
Plan Details
  • This European Style plan offers striking curb appeal. The floor plan provides 6557 square feet of living space, 4 bedrooms, 3 full baths, and 2 half baths between the main level and lower level.
  • Inside, the open-concept layout connects the kitchen, dining, and living room for seamless entertaining.
  • The main-level primary suite features a large closet and bathroom.
  • The lower level offers a family room, golf simulator, exercise room, kitchenette, bunk room, game room, two guest bedrooms, and lots of additional storage space.
  • This home has a large 3 car garage with the mudroom and laundry room right inside.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

6,557 sq. ft.

Lower Level

3,517 sq. ft.

1st Floor

3,040 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

140' 0"

Depth

50' 0"

Garage

Type

Attached

Area

1027 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Architectural Style

European

Traditional

Transitional

Special Features

Angled Garage

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Formal Dining

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Two Master Suites

Two Story Great Room

Wet Bar

Wine Room

Square Footage Breakdown

Total Heated Area

6,557 sq. ft.

Lower Level

3,517 sq. ft.

1st Floor

3,040 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

140' 0"

Depth

50' 0"

Garage

Type

Attached

Area

1027 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Architectural Style

European

Traditional

Transitional

Special Features

Angled Garage

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Formal Dining

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Two Master Suites

Two Story Great Room

Wet Bar

Wine Room
