Plan 470308REY
Single-Story Modern Ranch House Plan with Den - 1996 Sq Ft
Heated S.F.
1,996
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 470308REY

Main Level
slide image 0

Plan 470308REY

1-800-854-7852

1-262-521-4596

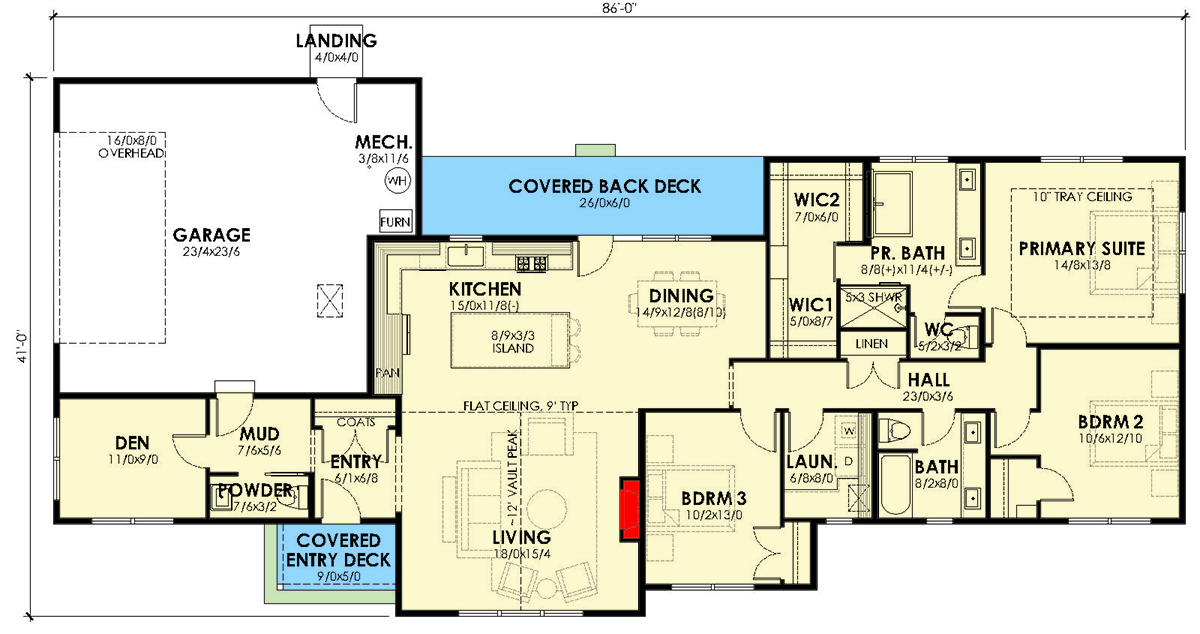

Main Level
floor plan image Main Level
Plan Details

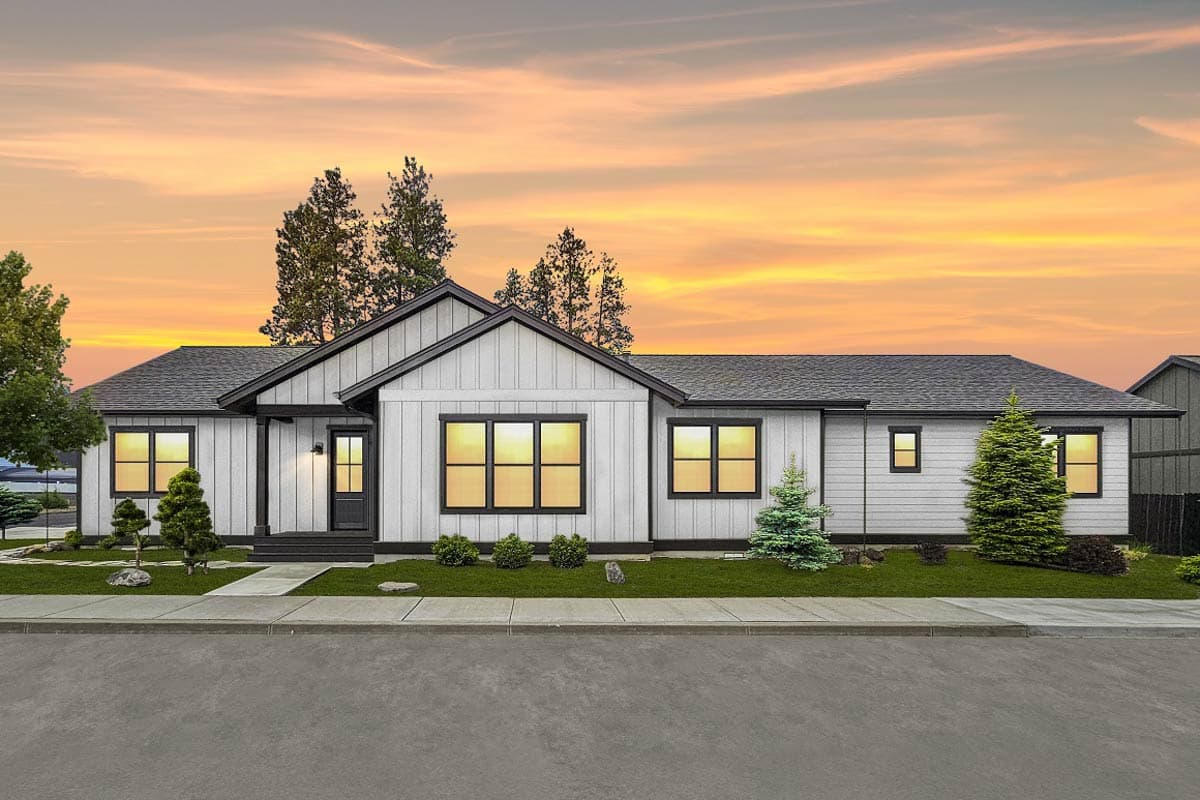

  • This modern ranch features three bedrooms (including a spacious primary suite), 2.5 baths, a mudroom, foyer, and a dedicated den/office.

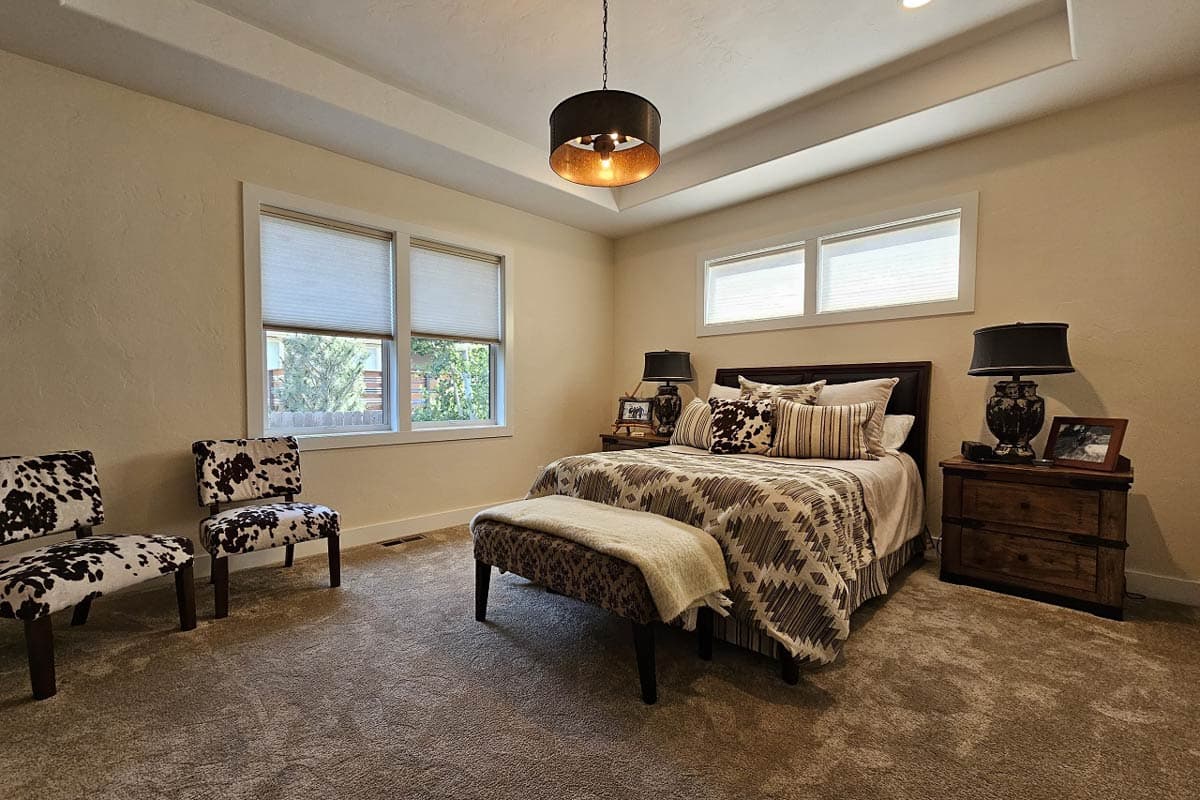

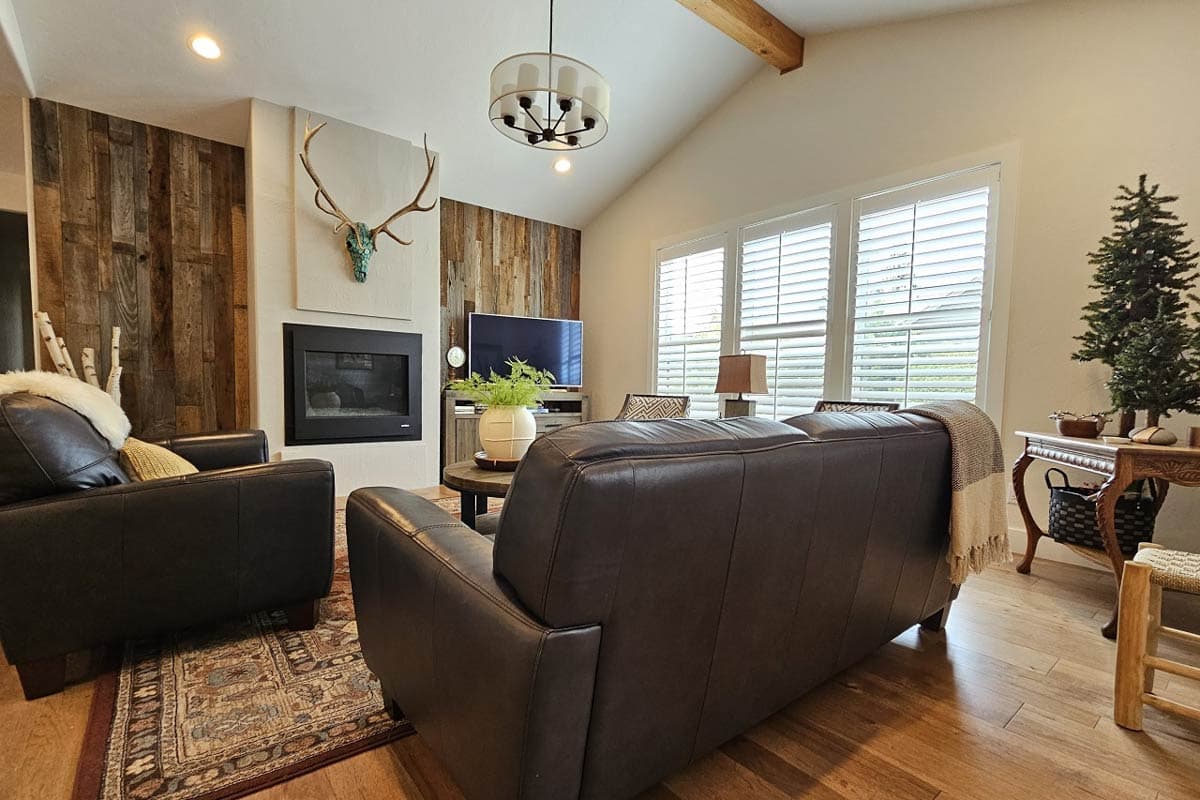

  • A cathedral-vaulted living room and raised tray ceiling in the master bedroom create an open feel, while a covered front entry and broad back deck offer seamless indoor-outdoor living.
  • The garage provides additional storage and space for mechanical equipment.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Cover Sheet: Includes front elevation or perspective, plan description, general notes, building footprint, building area breakdowns, drawing sheet index, etc. These elements are not to scale.
  • Floor Plan: Includes layout of each floor with locations and dimensions of walls, doors, and windows. Overhead beams and vaults are indicated. Shows locations of cabinetry, appliances, plumbing fixtures, closets and shelf packs.

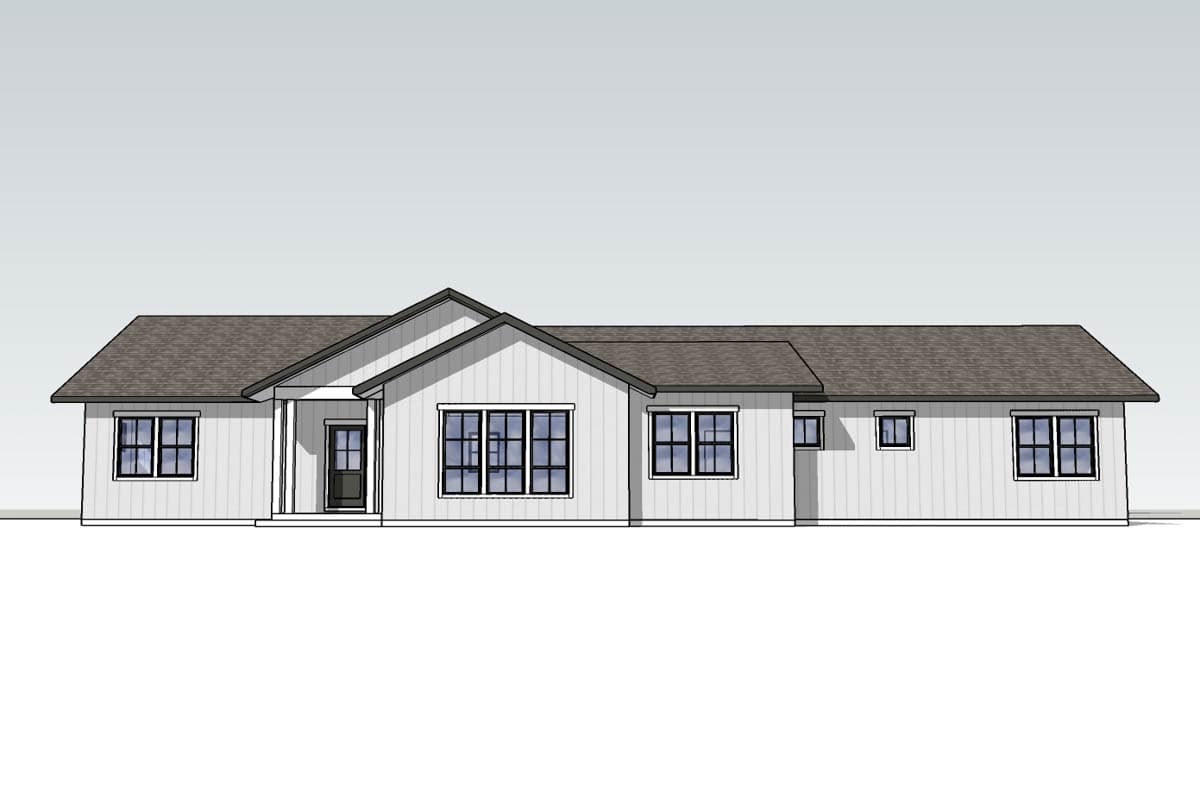

  • Exterior Elevations: Shows front, sides and back building elevations along with roof pitches, and exterior siding and trim materials.
  • Typical Section: Usually drawn to ½”=1’-0”. Shows a cross-section of the building with typical elements such as ceiling and header heights, roof style, insulation locations (thermal envelope), and foundation style. Specific details may be shown in an additional Typical Wall Section, if included.
  • Electrical Plan: Includes a general suggested layout of light fixtures, switches, and electrical outlets.
  • Foundation Plan: Shows locations of foundation walls, strip footings and pier pads.
  • Floor Framing Plan: First floor framing may be combined with Foundation Plan. Shows floor framing type, spacing and direction along with supporting element locations.
  • Roof Framing Plan: Shows truss/rafter spacing and direction, typical overhangs, roof outline, supporting member locations, and over framing locations (if any).
  • Typical Details: Scales may vary, typically at to ½”=1’-0” or to 1”=1’-0”, some not to scale. Shows the suggested typical details such as transitions from foundation to walls, walls to ceiling/roof, general flashing strategies, and other connection points. Other specific architectural finish details may be included at designer’s discretion.
  • Interior Elevations of Cabinetry may be included, but are not always part of a standard drawing set.
This is a general description of the content of each main drawing set element. Elements may be grouped on single sheets for smaller plans or over multiple sheets for larger plans. Additional information may be included. All information provided, and particularly any structural information, simply reflects the conditions of the original build location and may not be appropriate for the plan purchaser’s build location and are included for reference only. Therefore, all drawing information is to be verified by a person qualified to ensure compliance with the actual build location conditions and regulations as needed. Unless otherwise noted, elements are typically drawn to a scale of ¼”=1’-0”.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,996 sq. ft.

1st Floor

1,996 sq. ft.

Porch, Front

45 sq. ft.

Porch, Rear

156 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

86' 0"

Depth

41' 0"

Max Ridge Height

20' 6"

Garage

Type

Attached

Area

622 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Cathedral

9' 0''

Primary Bedroom

Tray

9' 0''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Modern

New American

Ranch

Special Features

Bedrooms - Clustered

Den

Flex Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Plan Collections
