Plan 95277RW

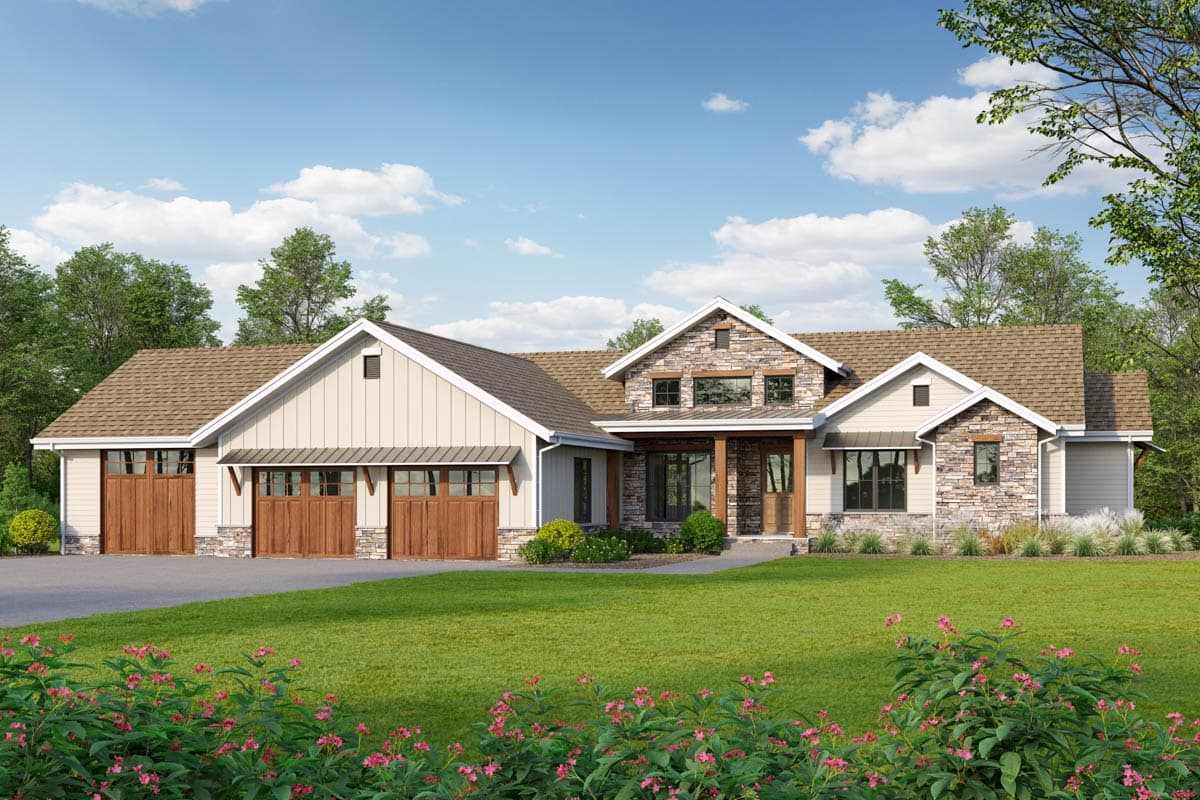

Single-Story Mountain House Plan with Formal Dining Room and Den - 2976 Sq Ft
Heated S.F.
2,976
Beds
2 - 5
Baths
2.5 - 4.5
Stories
1
Cars
3
Floor Plan

Plan 95277RW

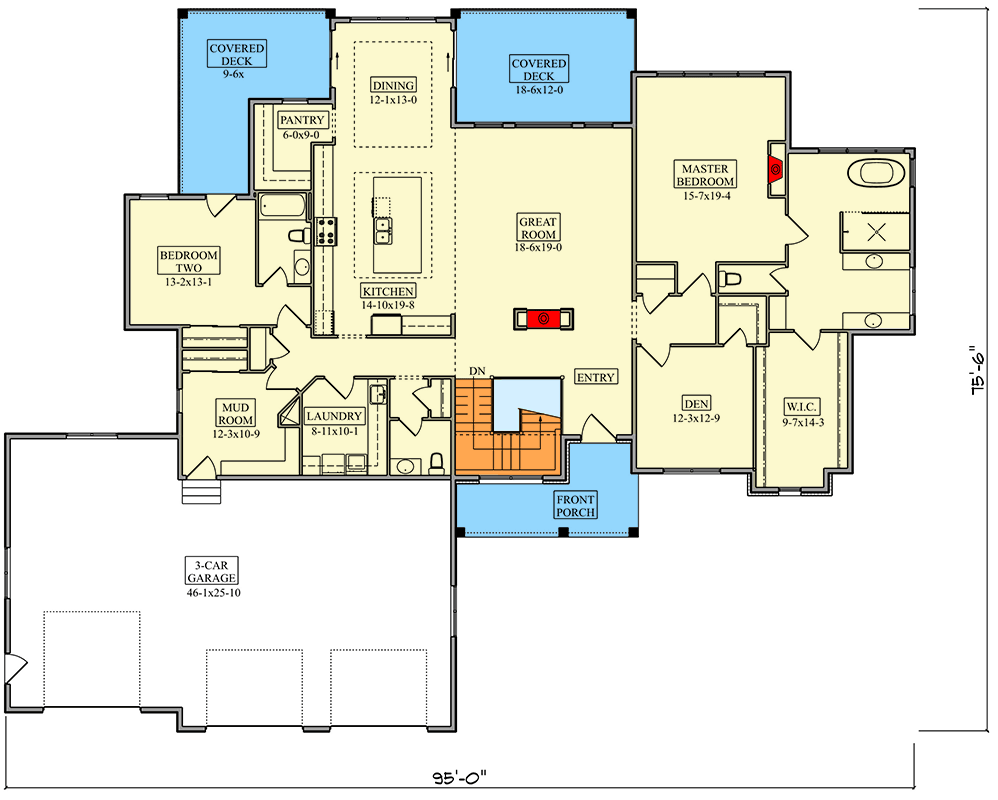

Main Level
slide image 0

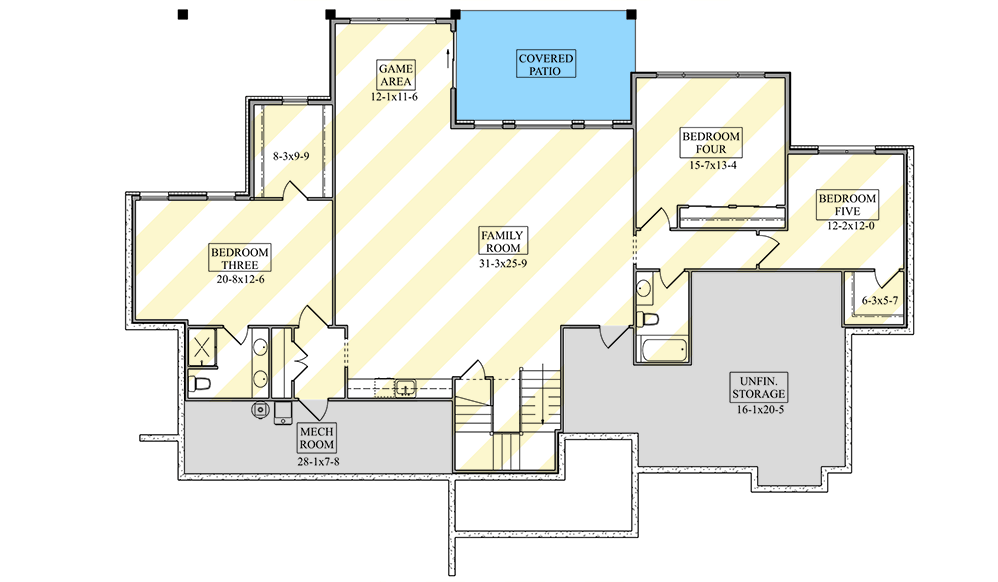

Optional Lower Level
slide image 1

Plan 95277RW

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This mountain house plan offers you 2,976 square feet of heated living space with 2 beds, 2.5 baths and a 1,283 square foot 3-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Cover Page
  • 4 Elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,976 sq. ft.

1st Floor

2,976 sq. ft.

Basement Unfinished

875 sq. ft.

Optional Lower Level

2,101 sq. ft.

Porch, Combined

579 sq. ft.

Beds/Baths

Bedrooms

2, 3, 4, or 5

Full bathrooms

2, 3, or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

95' 0"

Depth

75' 6"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

1283 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

7 on 12

Architectural Style

Mountain

New American

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Den

Flex Room

Formal Dining

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wrap Around Porch
