Plan 25837GE
Single-Story New American Craftsman with Angled Garage - 6387 Sq Ft
Heated S.F.
6,387
Beds
3 - 4
Baths
4.5+
Stories
1
Cars
3
Tour
Floor Plan

Plan 25837GE

Main Level
slide image 0
Lower Level
slide image 1

Plan 25837GE

1-800-854-7852

1-262-521-4596

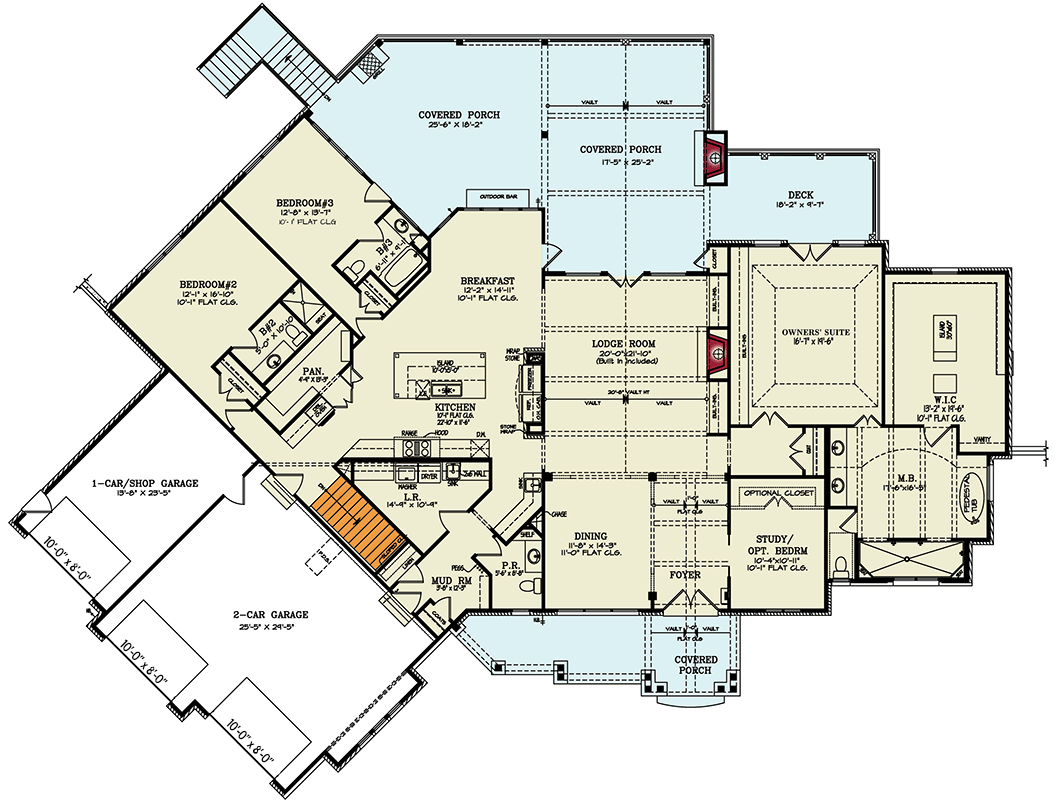

Main Level
floor plan image Main Level

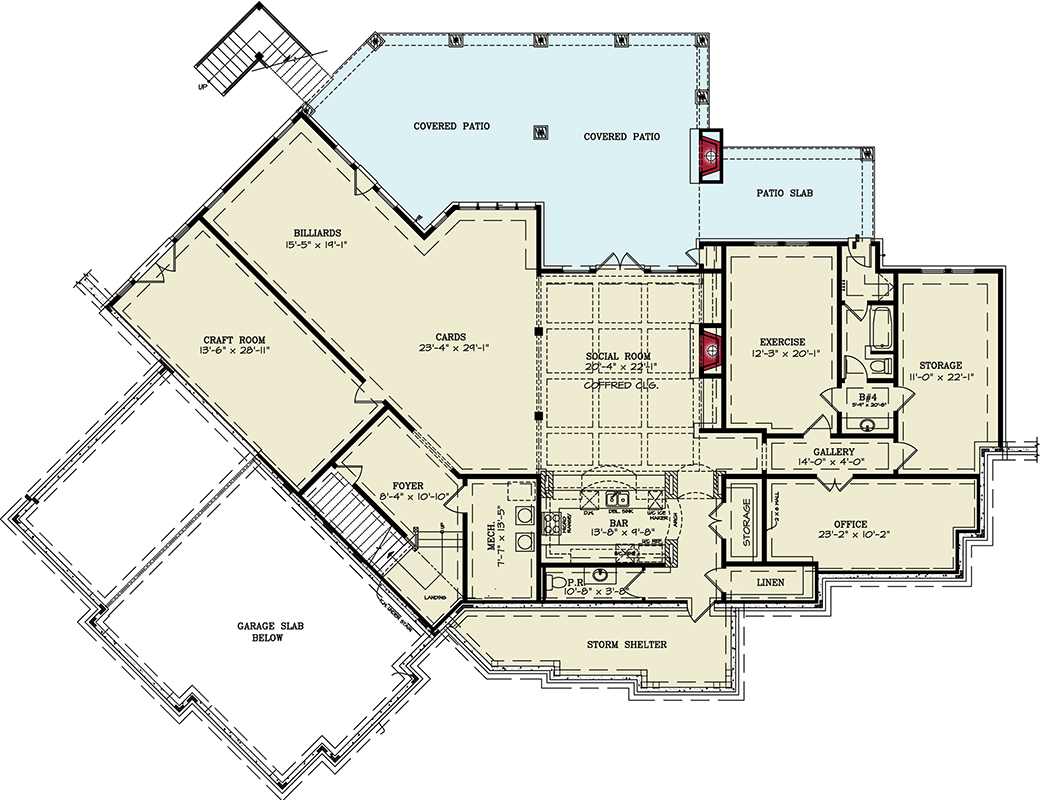

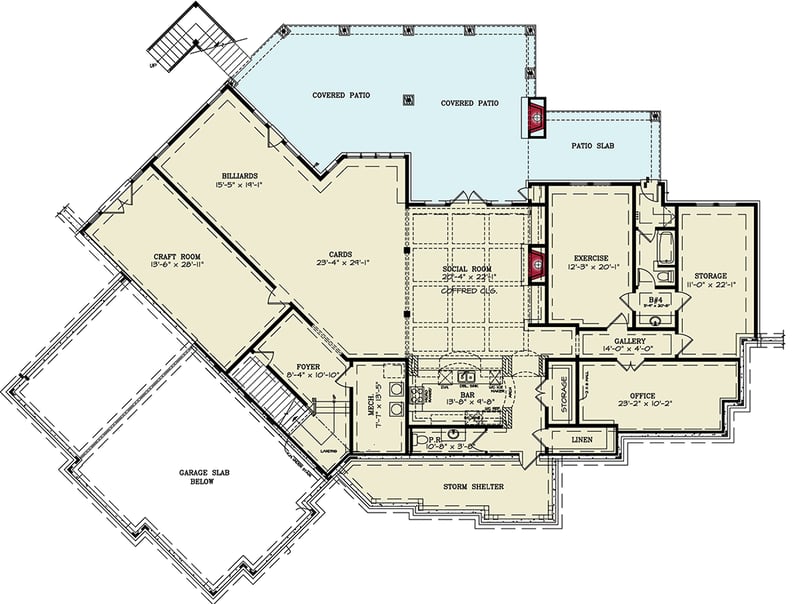

Lower Level
floor plan image Lower Level
Plan Details
  • This New American craftsman house plan gives you 4 beds, 4.5+ baths with 6,387 square feet of heated living space and a 1,050 square foot 3-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

6,387 sq. ft.

Lower Level

2,930 sq. ft.

1st Floor

3,457 sq. ft.

Porch, Front

209 sq. ft.

Porch, Rear

851 sq. ft.

Deck

163 sq. ft.

Storage

252 sq. ft.

Mech

111 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

108' 10"

Depth

83' 1"

Max Ridge Height

29' 11"

Garage

Type

Attached

Area

1050 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Craftsman

Mountain

New American

Ranch

Special Features

Angled Garage

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Flex Room

Formal Dining

Game/Rec Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Safe Room

Two Story Great Room

Wet Bar

Workshop

Plan Collections

Closed Floor Plans

Square Footage Breakdown

Total Heated Area

6,387 sq. ft.

Lower Level

2,930 sq. ft.

1st Floor

3,457 sq. ft.

Porch, Front

209 sq. ft.

Porch, Rear

851 sq. ft.

Deck

163 sq. ft.

Storage

252 sq. ft.

Mech

111 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

108' 10"

Depth

83' 1"

Max Ridge Height

29' 11"

Garage

Type

Attached

Area

1050 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Craftsman

Mountain

New American

Ranch

Special Features

Angled Garage

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Flex Room

Formal Dining

Game/Rec Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Safe Room

Two Story Great Room

Wet Bar

Workshop

Plan Collections

Closed Floor Plans
