Plan 100339GHR

Exclusive

Single-Story New American House Plan with Split-Bedrooms - 1356 Sq Ft
Heated S.F.
1,356
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 100339GHR

Main Level
slide image 0

Plan 100339GHR

1-800-854-7852

1-262-521-4596

Main Level

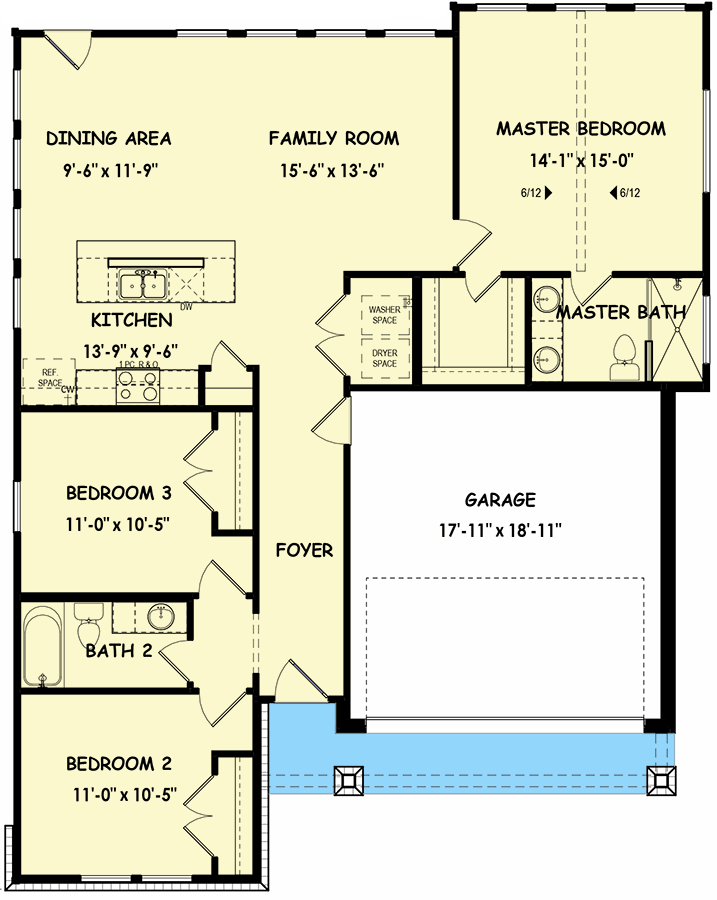

floor plan image Main Level
Plan Details
  • This New American house plan offers you 1,356 square feet of heated living space with 3 beds, 2 baths and a 373 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details
  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,356 sq. ft.

1st Floor

1,356 sq. ft.

Porch, Front

90 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

51' 0"

Max Ridge Height

20' 6"

Garage

Type

Attached

Area

373 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10' 1"

Roof Details

Primary Pitch

12 on 6

Secondary Pitch

12 on 10

Framing Type

Stick

Architectural Style

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

1,356 sq. ft.

1st Floor

1,356 sq. ft.

Porch, Front

90 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

51' 0"

Max Ridge Height

20' 6"

Garage

Type

Attached

Area

373 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10' 1"

Roof Details

Primary Pitch

12 on 6

Secondary Pitch

12 on 10

Framing Type

Stick

Architectural Style

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive
