Name: Plan 72959DA: Single-Story Ranch Home Plan with a Vaulted Bedroom - 1610 Sq Ft
SKU: 72959DA
Price: 2275.0 USD
Availability: InStock

Plan 72959DA

Single-Story Ranch Home Plan with a Vaulted Bedroom - 1610 Sq Ft

Heated S.F.

1,610

Beds

2 - 3

Baths

Stories

Cars

Floor Plan

Main Level

Plan Details

This single-story Ranch home plan makes an ideal first home or income property design. The exterior's covered porch and subtle, charming details make it a welcome addition to any neighborhood.
Through the front door, the entry hall extends straight into the open style living area. Left of the entry is a pair of elegant double doors that lead into a den which could function as a third bedroom if needed. To the right of the entry are a full bath and vaulted bedroom.
The open living area flows seamlessly from the living room, kitchen, and dining room, and there is a fireplace which is enjoyable from all angles. The kitchen features a large island and wall pantry. Near the kitchen is a pass-through utility room to the garage to make unloading groceries a breeze.
At the back of the house sits the owners' suite, the location gives great privacy and features a private bath, patio, and walk-in closet.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

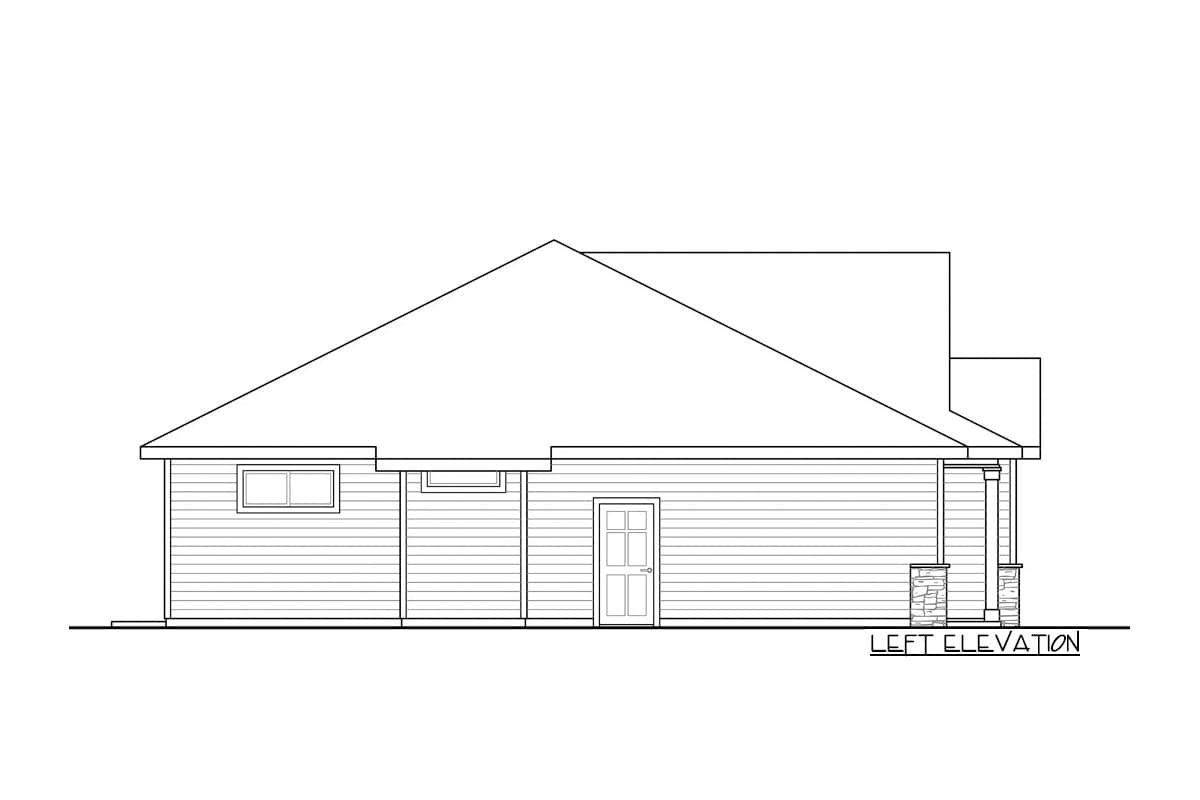

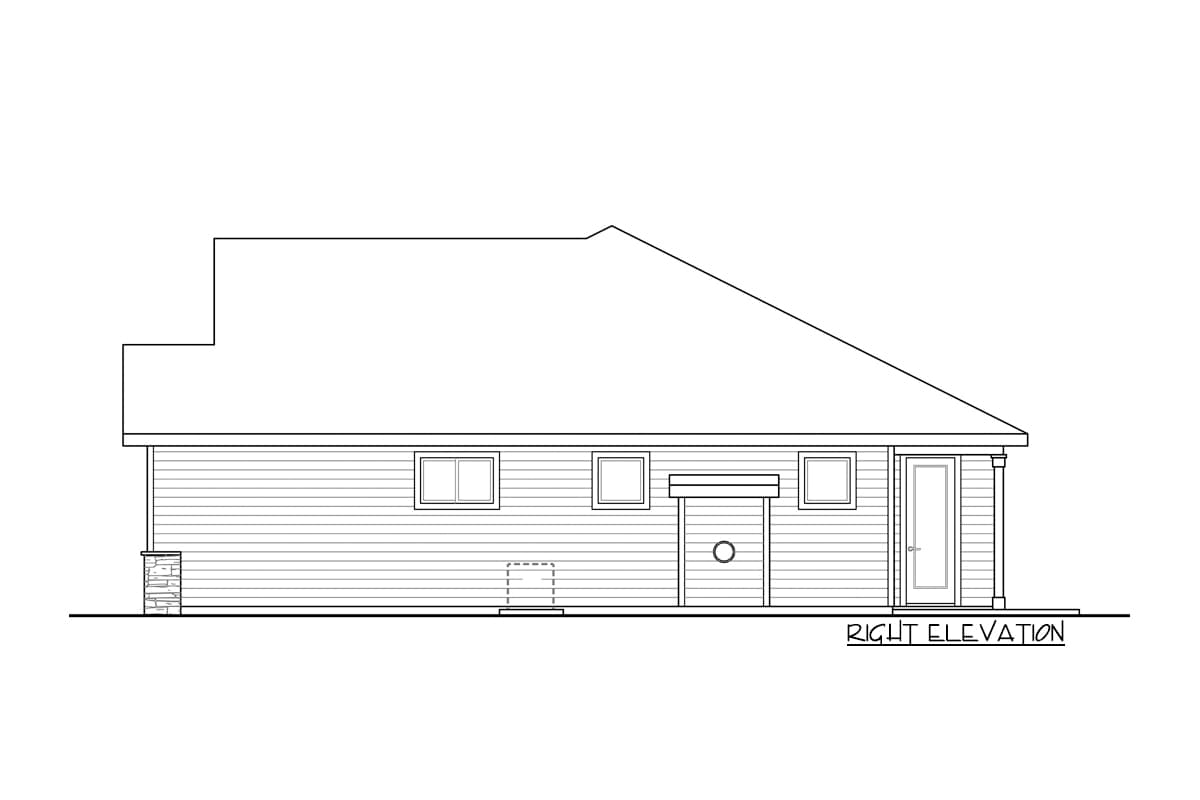

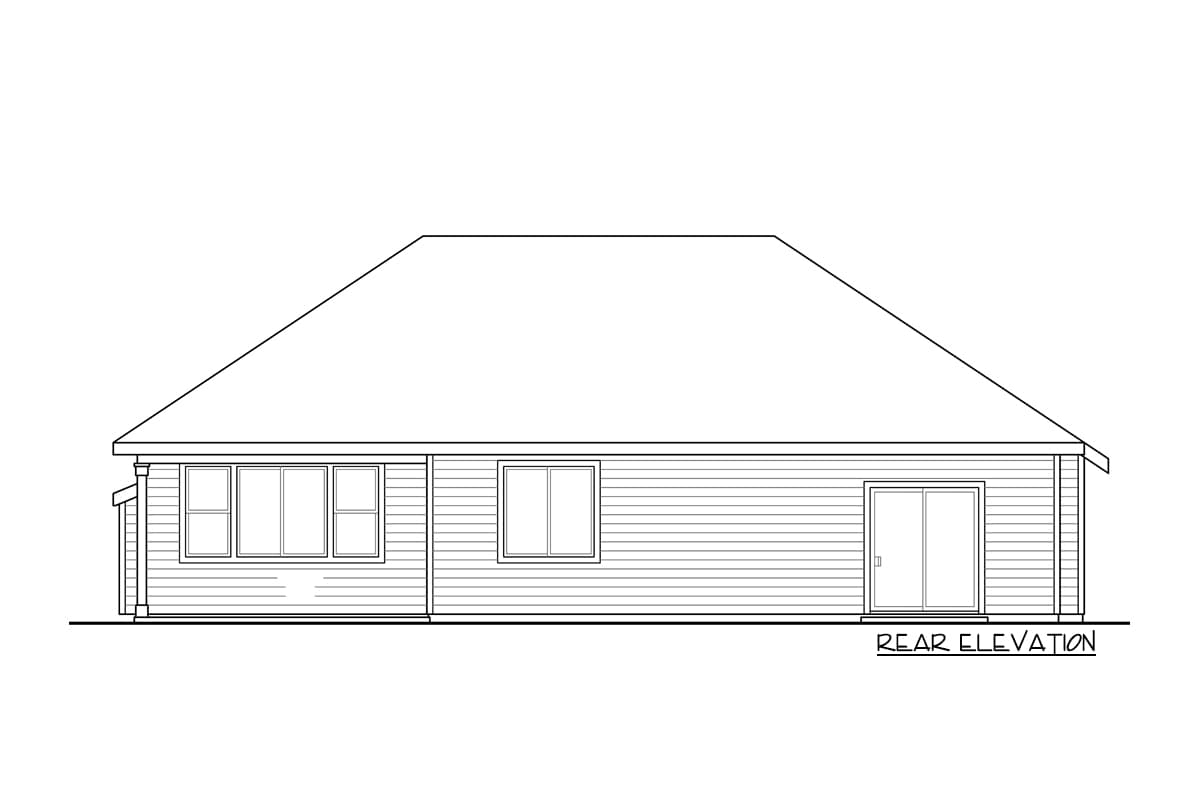

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

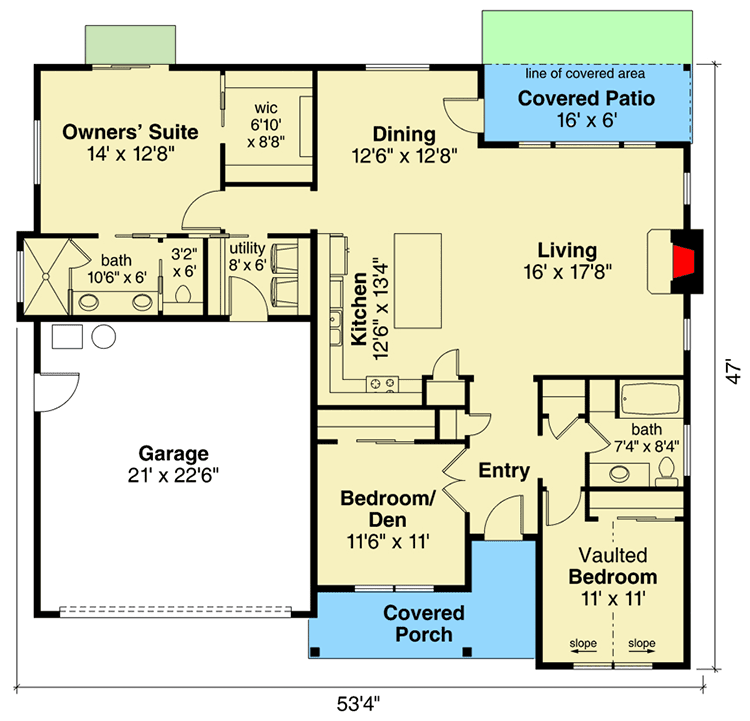

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
