Plan 83670CRW
Single-Story Traditional Cottage House Plan with Split-Bedrooms - 2015 Sq Ft
Heated S.F.
2,015
Beds
3
Baths
2
Stories
1
Cars
2
Tour
Floor Plan

Plan 83670CRW

Main Level
slide image 0
Unfinished Basement
slide image 1
Optional 2-Car Front Garage (+$350)
slide image 2
Optional 2-Car Side Garage (+$350)
slide image 3

Plan 83670CRW

1-800-854-7852

1-262-521-4596

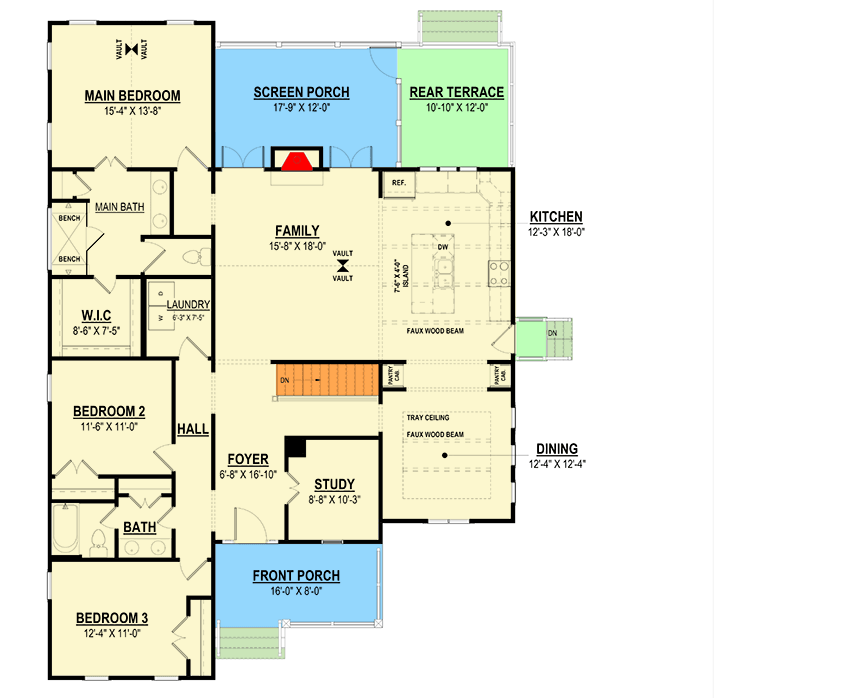

Main Level
floor plan image Main Level

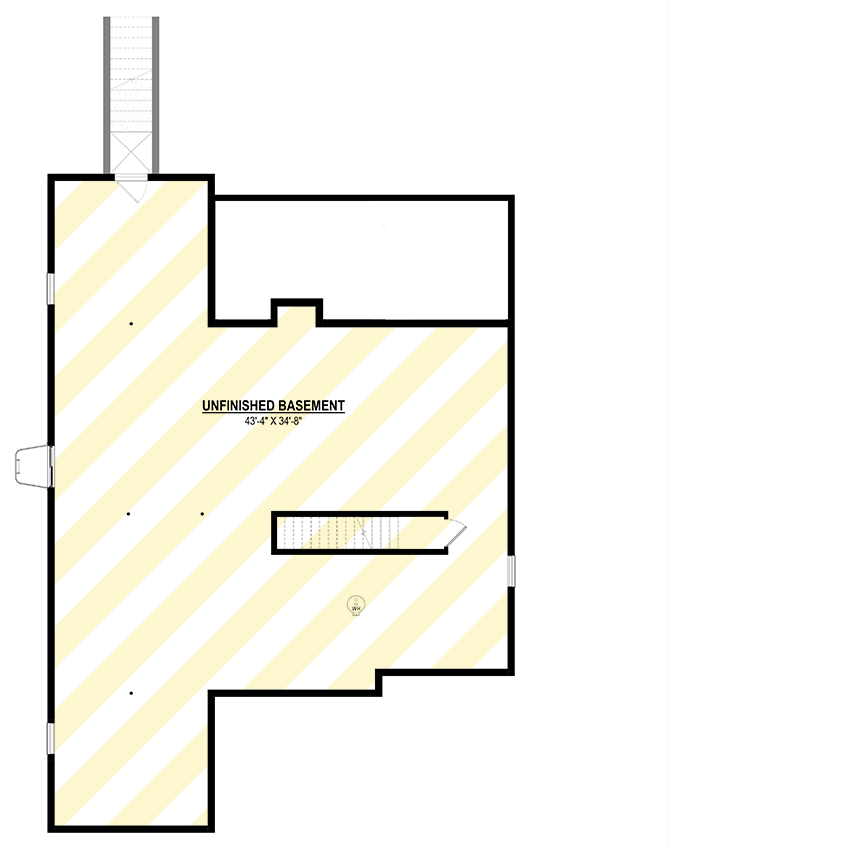

Unfinished Basement
floor plan image Unfinished Basement

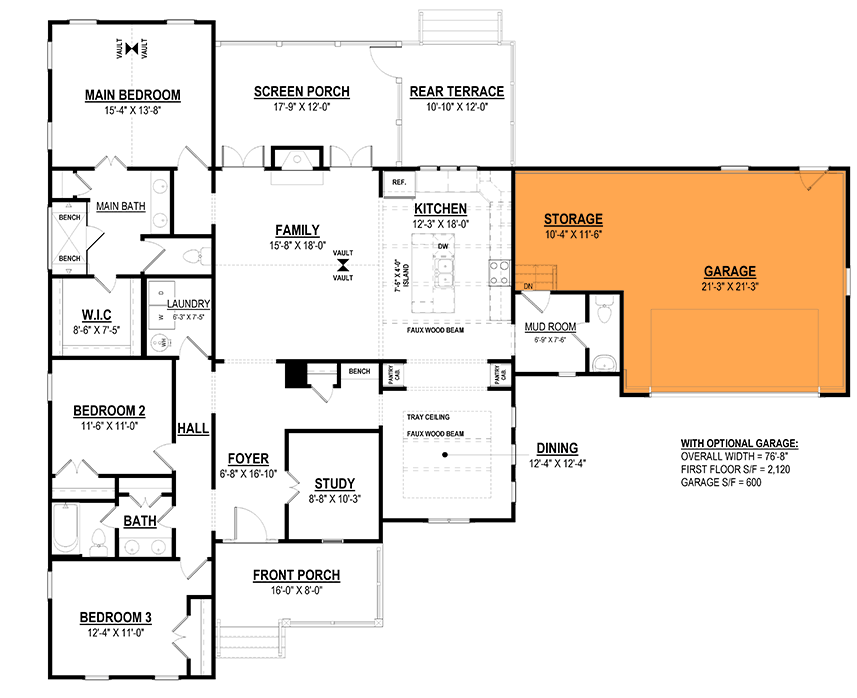

Optional 2-Car Front Garage (+$350)
floor plan image Optional 2-Car Front Garage (+$350)

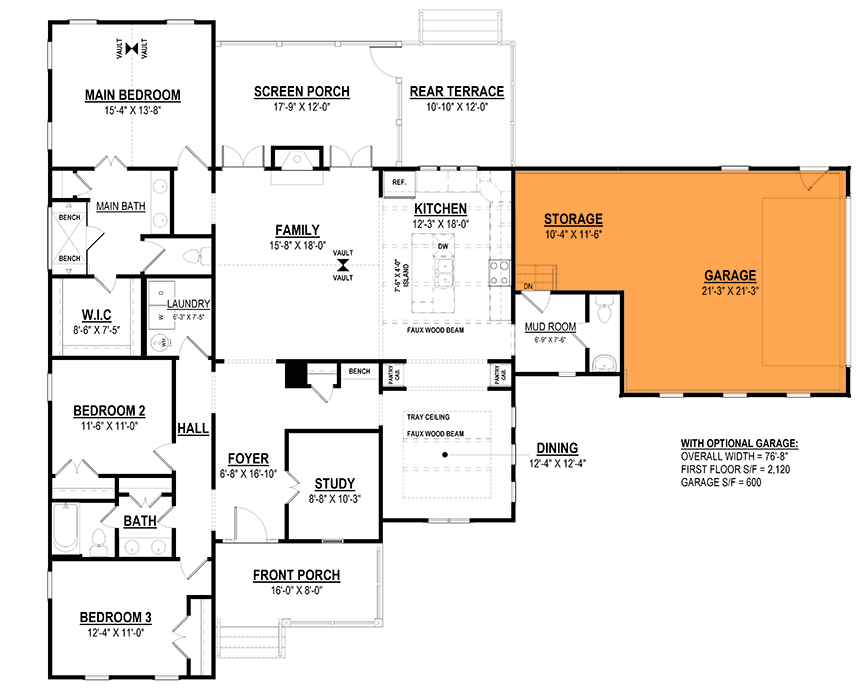

Optional 2-Car Side Garage (+$350)
floor plan image Optional 2-Car Side Garage (+$350)
Plan Details
  • This traditional cottage house plan offers you 2,015 square feet of heated living space with 3 beds, 2 baths and an optional front or side 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover sheet with rendering
  • Foundation plan with details
  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)
  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,015 sq. ft.

1st Floor

2,015 sq. ft.

Basement Unfinished

1,954 sq. ft.

Porch, Front

128 sq. ft.

Screened Porch

214 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

44' 8"

Depth

63' 0"

Max Ridge Height

24' 7"

Garage

Type

Attached, None

Area

600 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Traditional

Special Features

Den

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,015 sq. ft.

1st Floor

2,015 sq. ft.

Basement Unfinished

1,954 sq. ft.

Porch, Front

128 sq. ft.

Screened Porch

214 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

44' 8"

Depth

63' 0"

Max Ridge Height

24' 7"

Garage

Type

Attached, None

Area

600 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Traditional

Special Features

Den

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
