Plan 3048D
Sitting Pretty On a Porch
Heated S.F.
2,137
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 3048D

Main Level
slide image 0

Plan 3048D

1-800-854-7852

1-262-521-4596

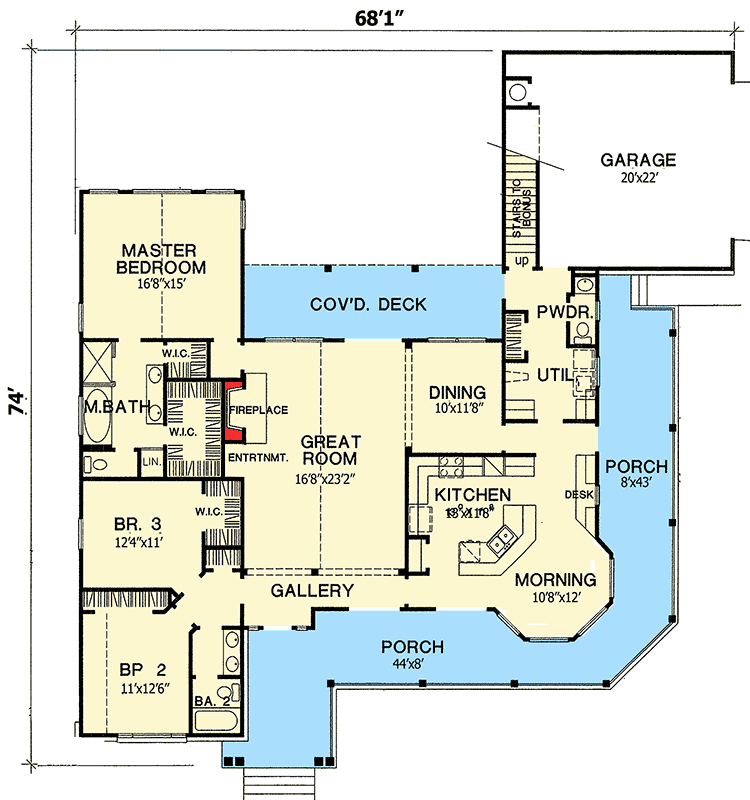

Main Level
floor plan image Main Level
Plan Details

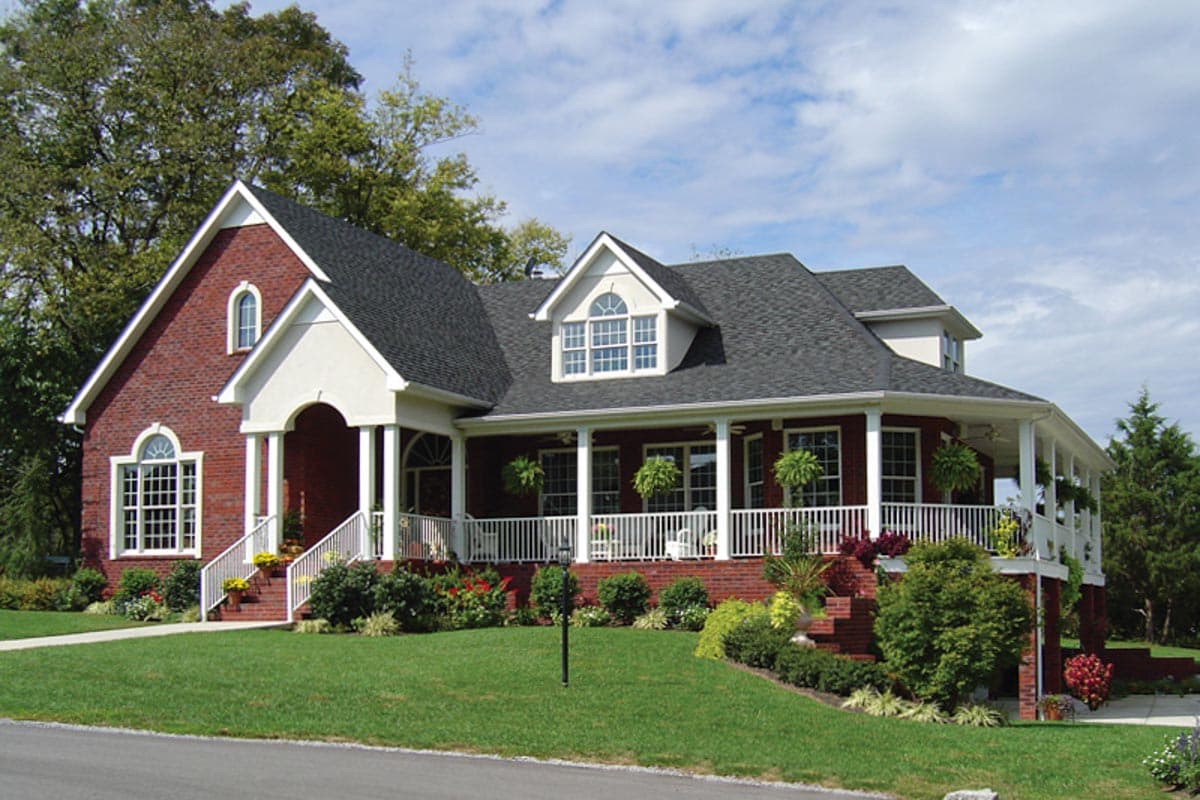

  • This country-style house plan features two wonderful outdoor living spaces: a wrap-around porch on the front and side, and a covered deck in back.
  • Inside, you cross the gallery and enter the fireplaced great room with its cathedral ceiling and warming fireplace. Forming an L shape with the great room is the formal dining room. Nearby, the kitchen includes a planning desk and is separated from the bayed morning room by an angled counter with twin sinks and an eating bar.
  • In the privately located bedroom wing, the master suite is brightened by lots of windows.
  • The luxury master bath contains a linen closet, two large walk-in closets, one small and one large, twin sinks, a garden tub and a separate shower.
  • The second full bath is close to the family bedrooms.
  • Basement stairs run along the wall opposite the utility room and powder room with a door access in the hall by the kitchen.
  • The stairs by the garage lead to a bonus room measuring 23'4"x13'4".
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
What's Included

  • Foundation plan
  • Fully dimensioned floor plan

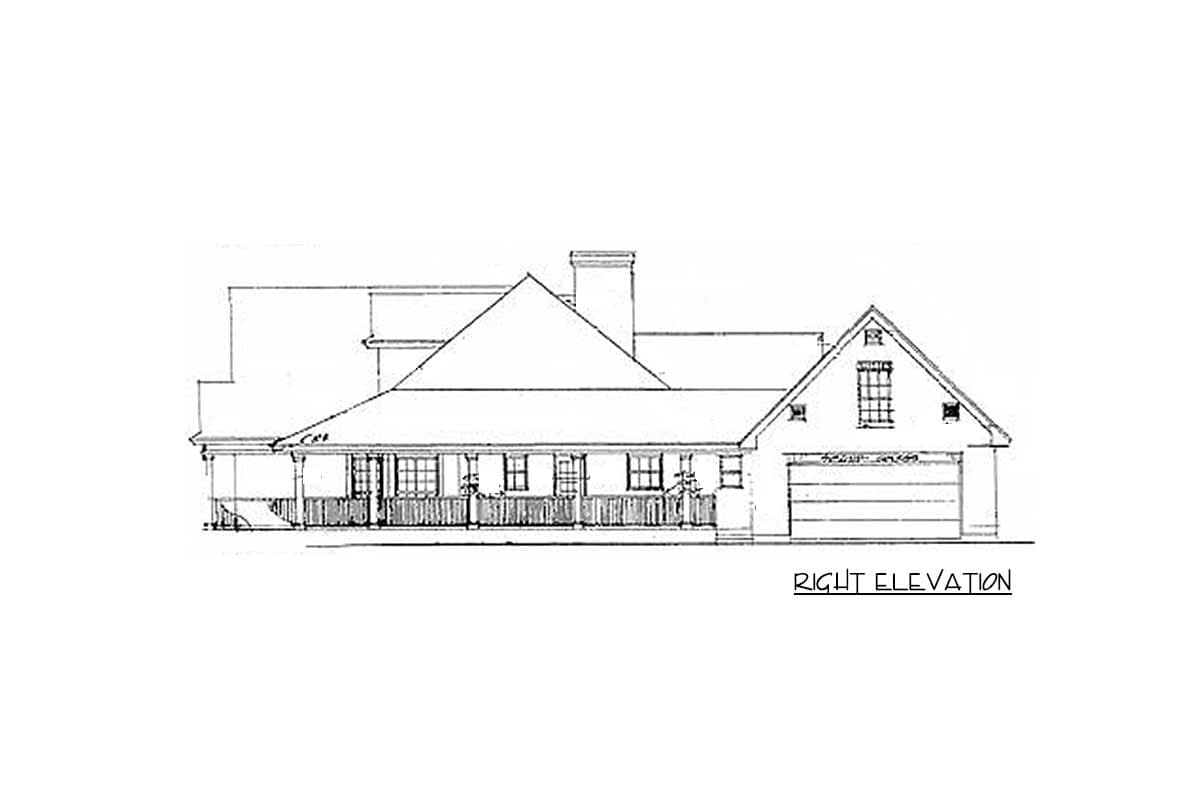

  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,137 sq. ft.

1st Floor

2,137 sq. ft.

Porch, Front

431 sq. ft.

Deck

205 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

68' 1"

Depth

74' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

544 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Southern

Special Features

Bedrooms - Clustered

Bonus Room

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch
