Plan 18264BE

Exclusive

Small and Flexible Mountain Cottage Plan

Heated S.F.

1,487

Beds

1 - 2

Baths

2

Stories

1

Cars

2

Floor Plan

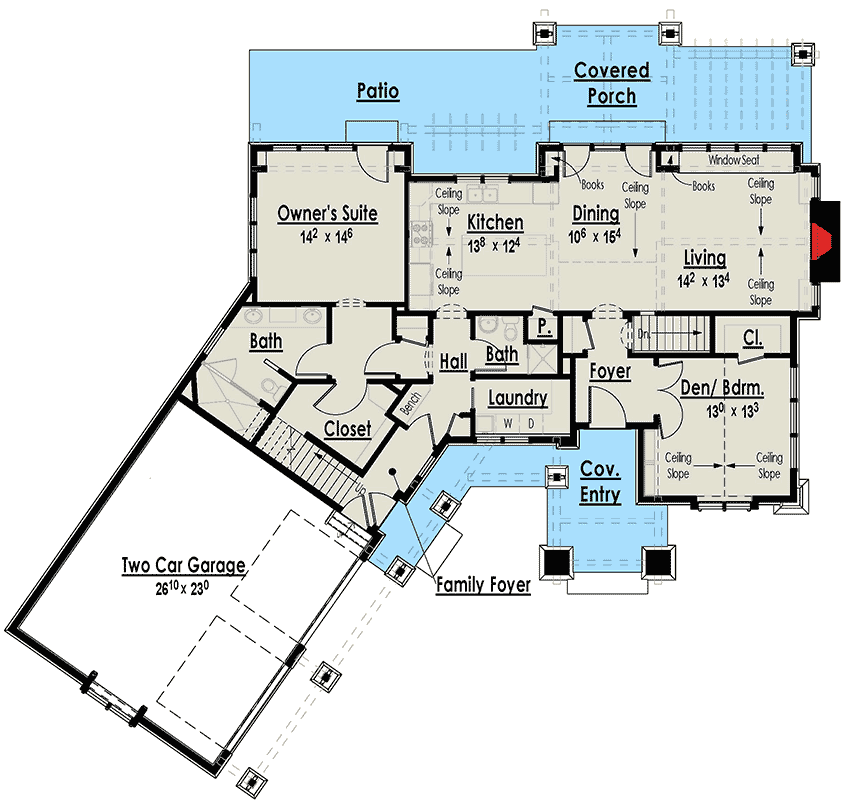

Main Level

floor plan image Main Level

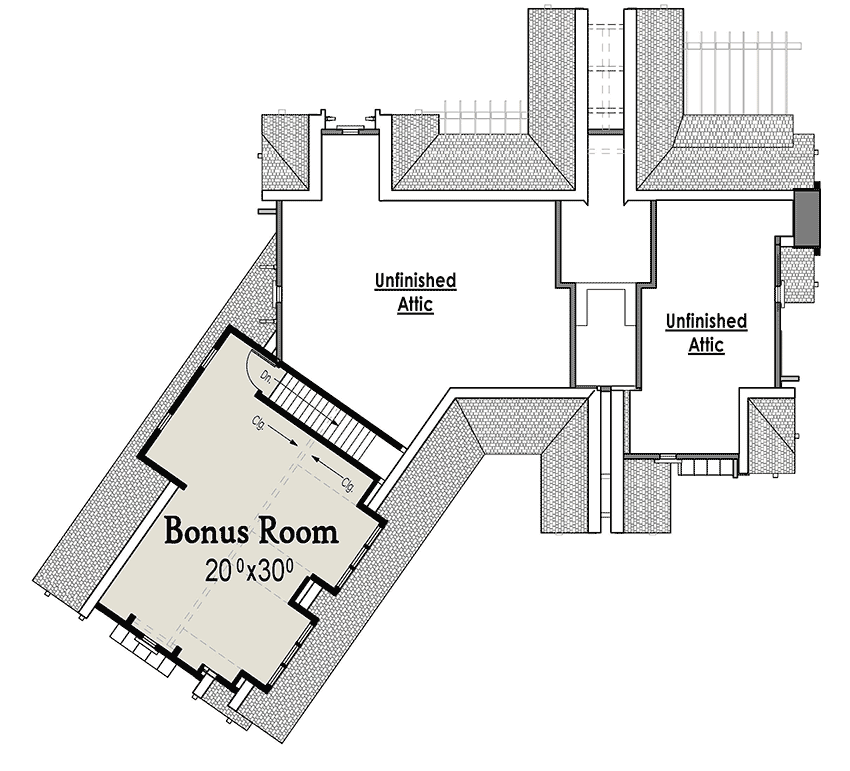

Bonus

floor plan image Bonus

Plan Details

The vaulted spaces - living room, dining room, and bedroom 3 - add comfortable volume to nicely proportioned room sizes.
Abundant windows maximize views and natural light.
The kitchen is designed for both efficiency and aesthetics.
In the owners' suite, windows on two sides bring in extra light.
The handsome master bath has an extra spacious shower.
The roof has a 10 on 12 main pitch and 3 on 12 secondary pitch.
Related Plans: Get a guest suite on the main floor with house plan 18248BE (2,221 sq. ft.). Get a side-entry garage with house plan 18263BE (2,318 sq. ft.). Get a more traditional exterior with house plan 18222BE (1,634 sq. ft.).
BUILD RESTRICTION: These plans cannot be sold or built in NY state.

What's Included

General Notes and Design Criteria

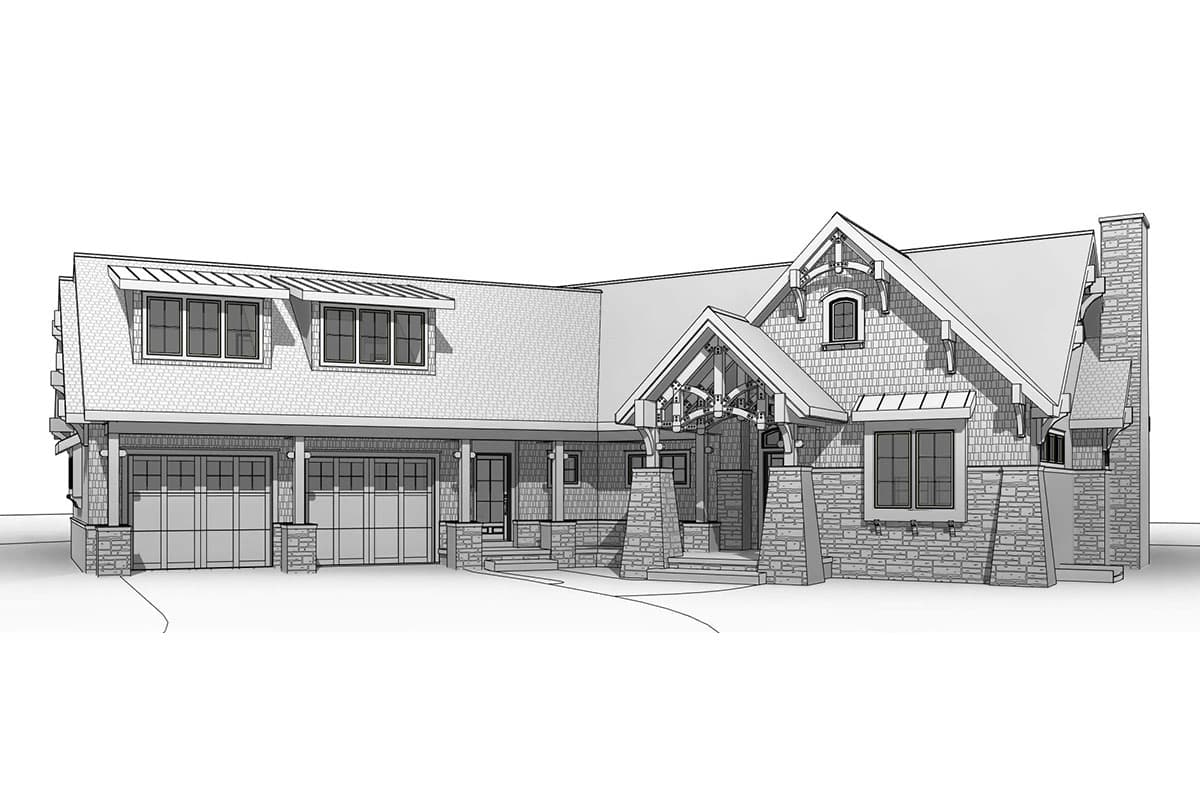

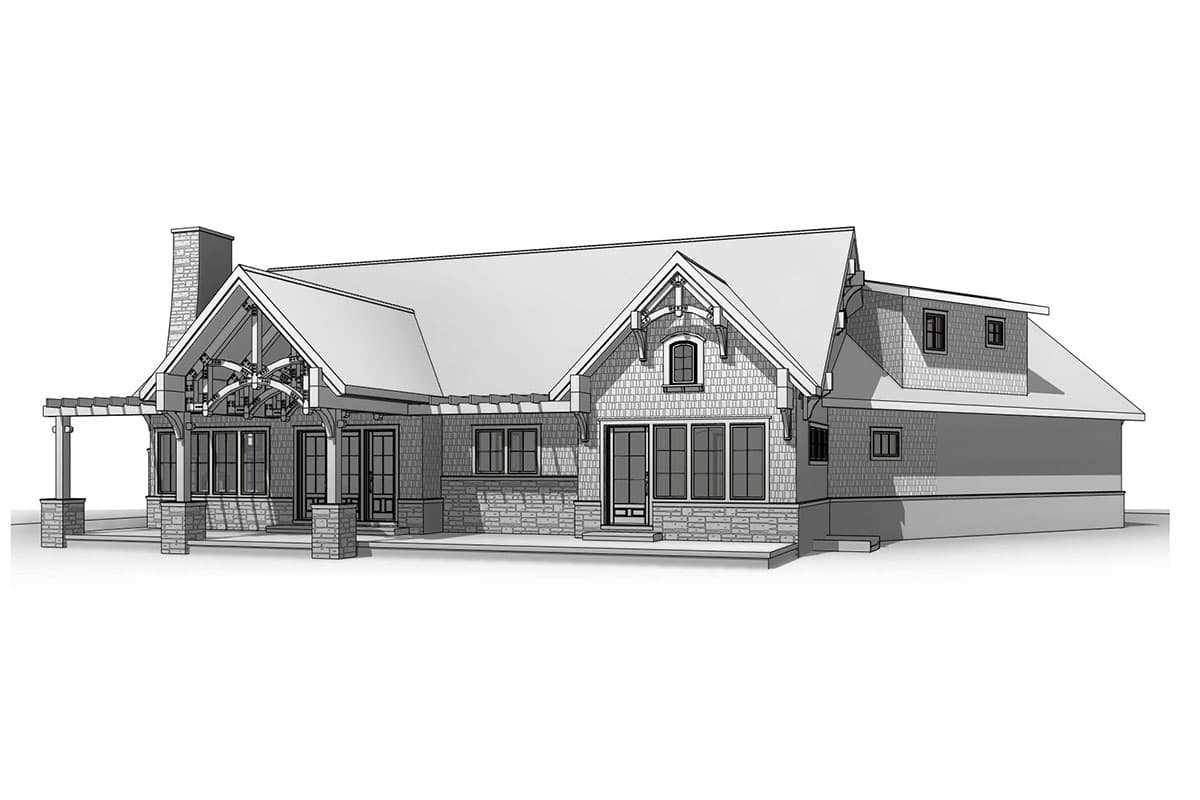

Perspective Views
Foundation Plan
Floor Plans

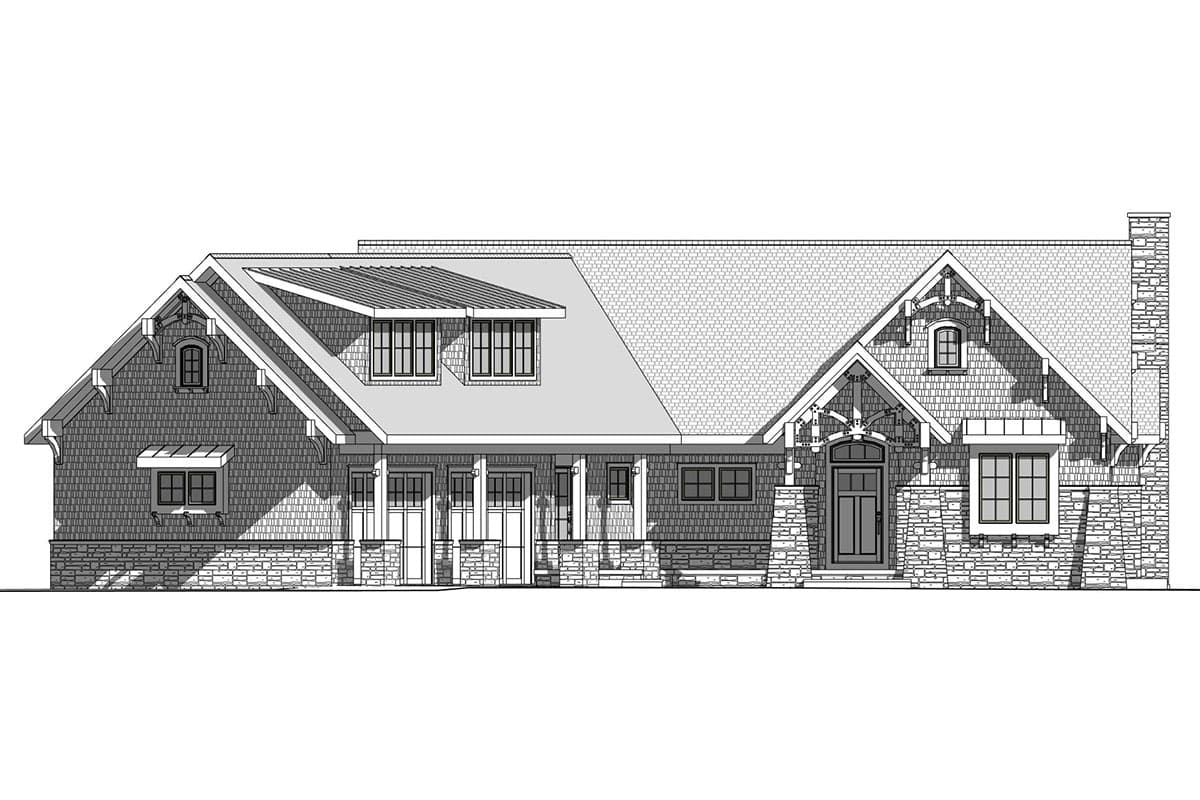

Elevations
Cross Sections
Door and Window Schedules
Roof Plan and Room Finish Schedule
Electrical Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,487 sq. ft.

1st Floor

1,487 sq. ft.

Basement Unfinished

1,687 sq. ft.

Bonus

630 sq. ft.

Porch, Front

227 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

79' 3"

Depth

71' 6"

Max Ridge Height

24' 8"

Garage

Type

Attached

Area

656 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick and Truss

Architectural Style

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
