Plan 560005TCD
Small House Plan with Open Layout
Heated S.F.
551
Beds
1
Baths
1
Stories
1
Floor Plan

Plan 560005TCD

Main Level
slide image 0
First Floor - Birdseye View
slide image 1

Plan 560005TCD

1-800-854-7852

1-262-521-4596

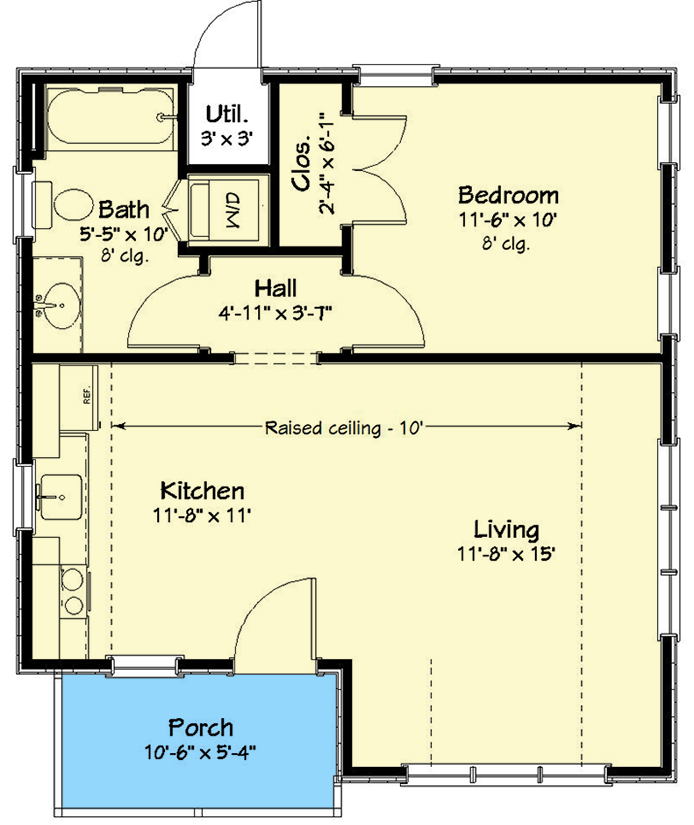

Main Level
floor plan image Main Level

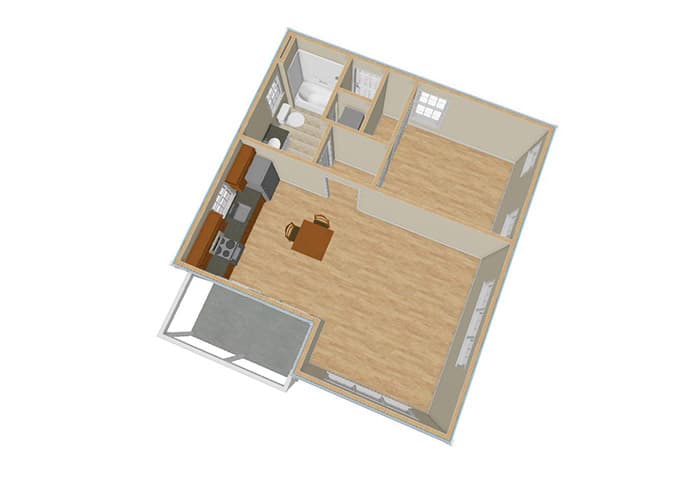

First Floor - Birdseye View
floor plan image First Floor - Birdseye View
Plan Details
  • Step into this one-bedroom house plan - just 551 square feet - from the front porch and its open layout reveals itself.
  • The living room and kitchen ceilings are raised to 10', giving you a great sense of volume. Windows on the side let in natural light.
  • The bedroom and bathroom line the back of the home. A stackable washer/dryer is tucked out of the way in a closet.
What's Included
  • Cover Sheet - Artistic rendering of cottage, 3D perspective views showing all exterior sides, an interior view, an interior dollhouse view. Also, design criteria, misc. notes and specifications and some individual plan data.
  • Foundation Plan - Foundation plan in ¼" scale, 3D view, construction details and notes.
  • Floor Plan(s) - Floor plan in ¼" scale, wall framing plan, top down roof view showing roof pitches. Window and door schedules.
  • Ceiling & Roof Framing - 2D and 3D views of framing.
  • Framing Details - Generic wall, ceiling and roof framing details. Lumber and framing notes.
  • Elevations - Front, rear, right and left side elevations. Notes on windows and doors. Miscellaneous notes.
  • Cross Sections - Cross section views with framing details.
  • Kitchen Plan - Kitchen and bath plans, elevations and schedule.
  • Electrical Plan - Electric layout plan, schedule and notes.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

551 sq. ft.

1st Floor

551 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

24' 0"

Depth

27' 6"

Max Ridge Height

16' 10"

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Kitchen

10' 0''

Living Room

10' 0''

Roof Details

Primary Pitch

8 on 12

Architectural Style

Cottage

Country

Traditional

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

551 sq. ft.

1st Floor

551 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

24' 0"

Depth

27' 6"

Max Ridge Height

16' 10"

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Kitchen

10' 0''

Living Room

10' 0''

Roof Details

Primary Pitch

8 on 12

Architectural Style

Cottage

Country

Traditional

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
