Plan 56357SM
Southern Acadian House Plan with Secluded Master Suite
Heated S.F.
2,790
Beds
4
Baths
3
Stories
1
Cars
4
Floor Plan

Plan 56357SM

Main Level
slide image 0

Plan 56357SM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

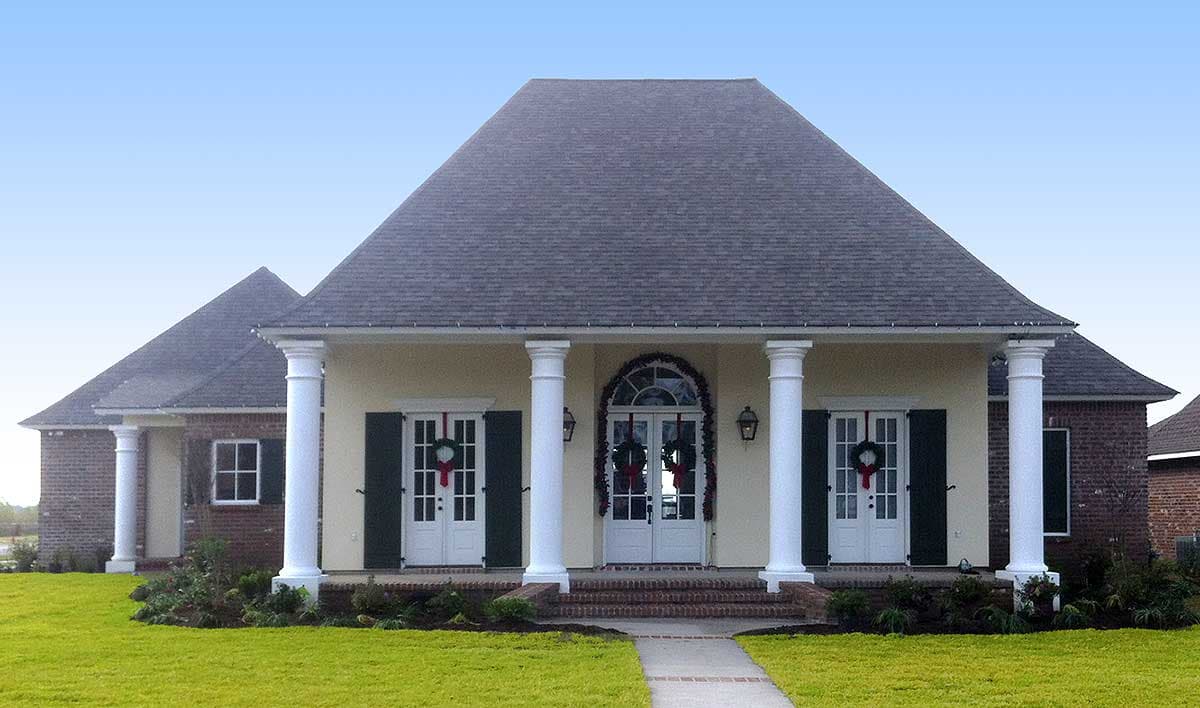

  • Four big columns support the covered front porch of this Southern home plan and a rear porch offers even more outdoor space.
  • The open floor plan permits views from the dining room to the family room to the keeping room.
  • A brick arch adds interesting detail to the entrance of the keeping room .
  • A pine beam delineates the space between the kitchen and the keeping room.
  • Grab a snack at the island snack bar or just sit and chat while dinner is cooking.
  • The master suite is sited in the rear of the home and has a large bathroom with soaking tub and double sinks.
  • This plan has a two car garage and a wide boat garage with two entrances.
  • NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.
What's Included
  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,790 sq. ft.

1st Floor

2,790 sq. ft.

Porch, Front

275 sq. ft.

Porch, Rear

275 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

73' 8"

Depth

102' 4"

Max Ridge Height

30' 11"

Garage

Type

Carport

Area

1227 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Architectural Style

Acadian

Louisiana

Southern

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor
