Plan 860064MCD

Southern Acadian House Plan with Split Bedroom Layout - 1689 Sq Ft

Heated S.F.

1,689

Beds

4

Baths

2

Stories

1

Cars

2

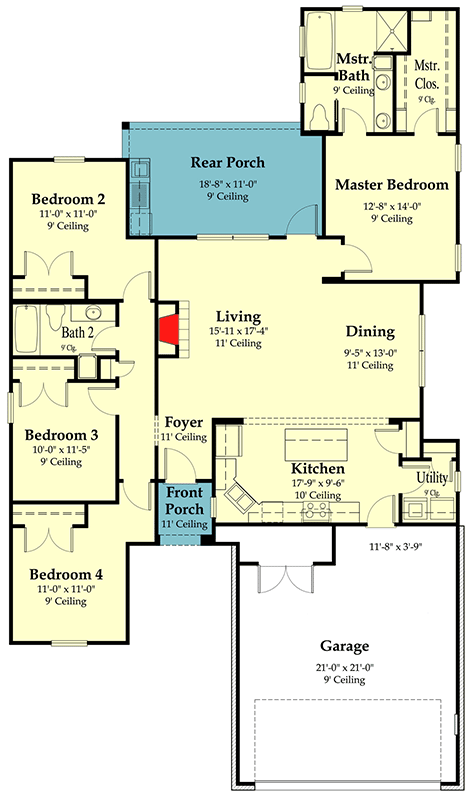

Floor Plan

Main Level

floor plan image Main Level

Plan Details

This southern Acadian house plan has a classic stucco and painted brick exterior. The front door is sheltered by a covered porch with 11' ceiling.
Inside, three beds are split on the left and the master bedroom is isolated on the right, maximizing your privacy.
A large island in the kitchen gives you prep space and casual seating. Storage is located just inside the garage.
The living room and dining room are open to each other, facilitating entertaining. Extend your social time outdoors on the 11'-deep rear porch which has an outdoor kitchen.

What's Included

Exterior elevations
Roof Plan
Floor plan(s)
Window, door and finish schedules
Slab foundation plan
Footing details
Building section
Wall Sections
Electrical plan
General notes

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,689 sq. ft.

1st Floor

1,689 sq. ft.

Porch, Combined

237 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

44' 0"

Depth

75' 8"

Max Ridge Height

26' 9"

Garage

Type

Attached

Area

578 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Kitchen

Square Footage Breakdown

Total Heated Area

1,689 sq. ft.

1st Floor

1,689 sq. ft.

Porch, Combined

237 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

44' 0"

Depth

75' 8"

Max Ridge Height

26' 9"

Garage

Type

Attached

Area

578 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Kitchen
