Plan 510031WDY
Southern Belle with Courtyard Garage and Vaulted Living Room
Heated S.F.
3,413
Beds
5
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 510031WDY

Main Level
slide image 0
2nd Floor
slide image 1

Plan 510031WDY

1-800-854-7852

1-262-521-4596

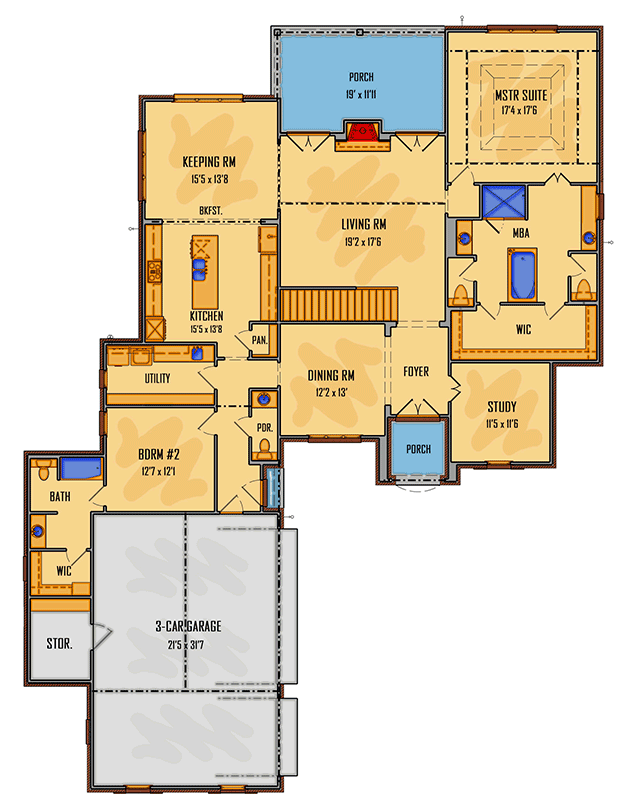

Main Level
floor plan image Main Level

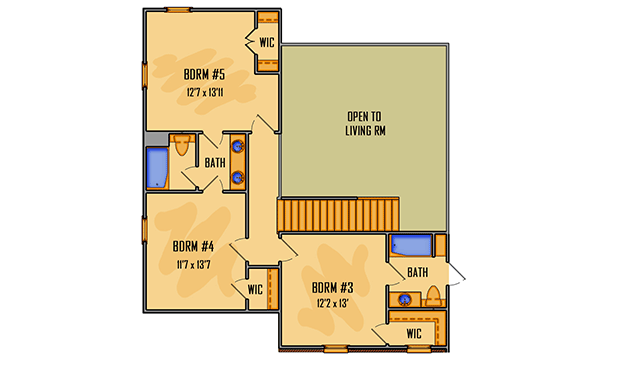

2nd Floor
floor plan image 2nd Floor
Plan Details

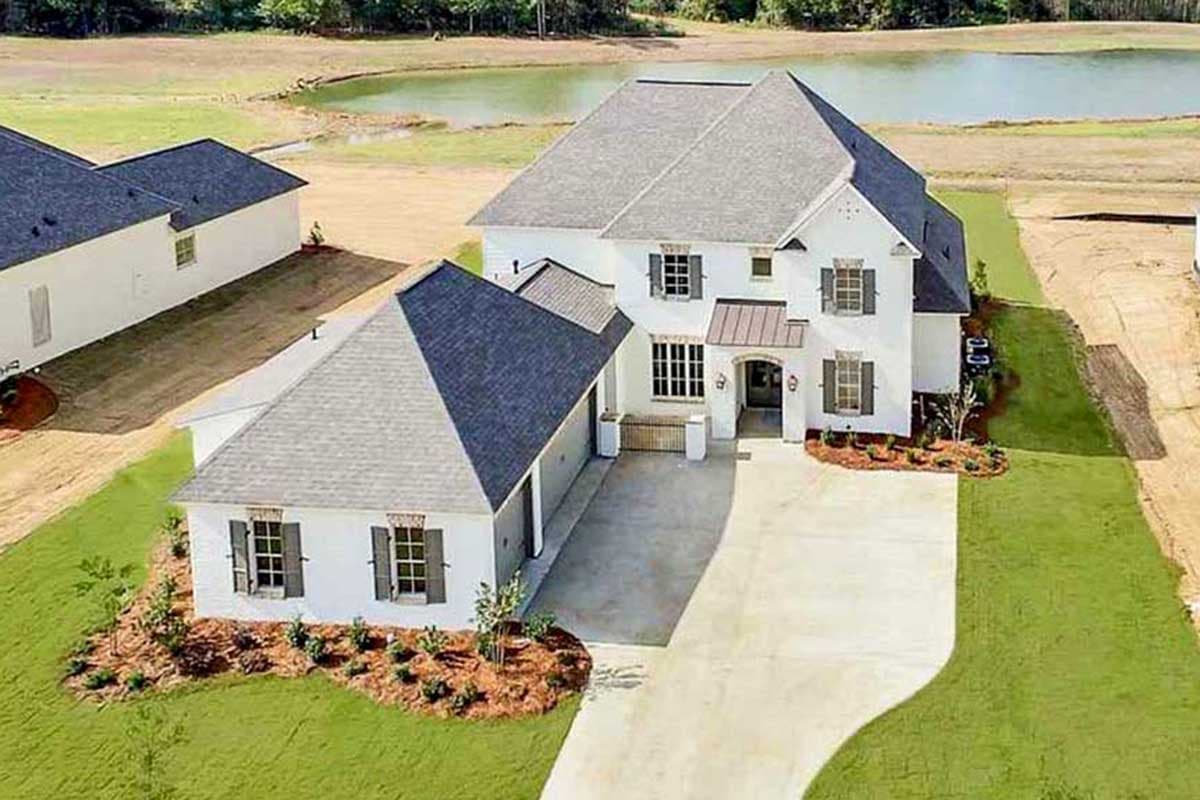

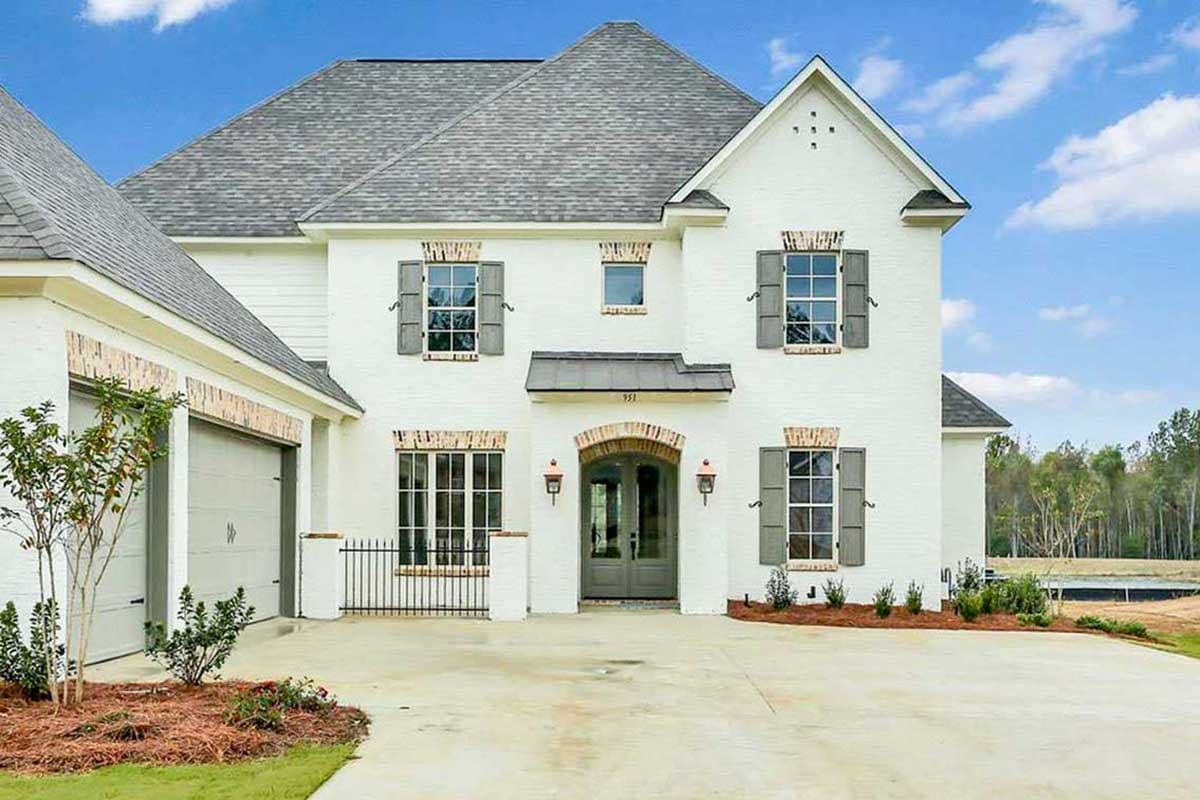

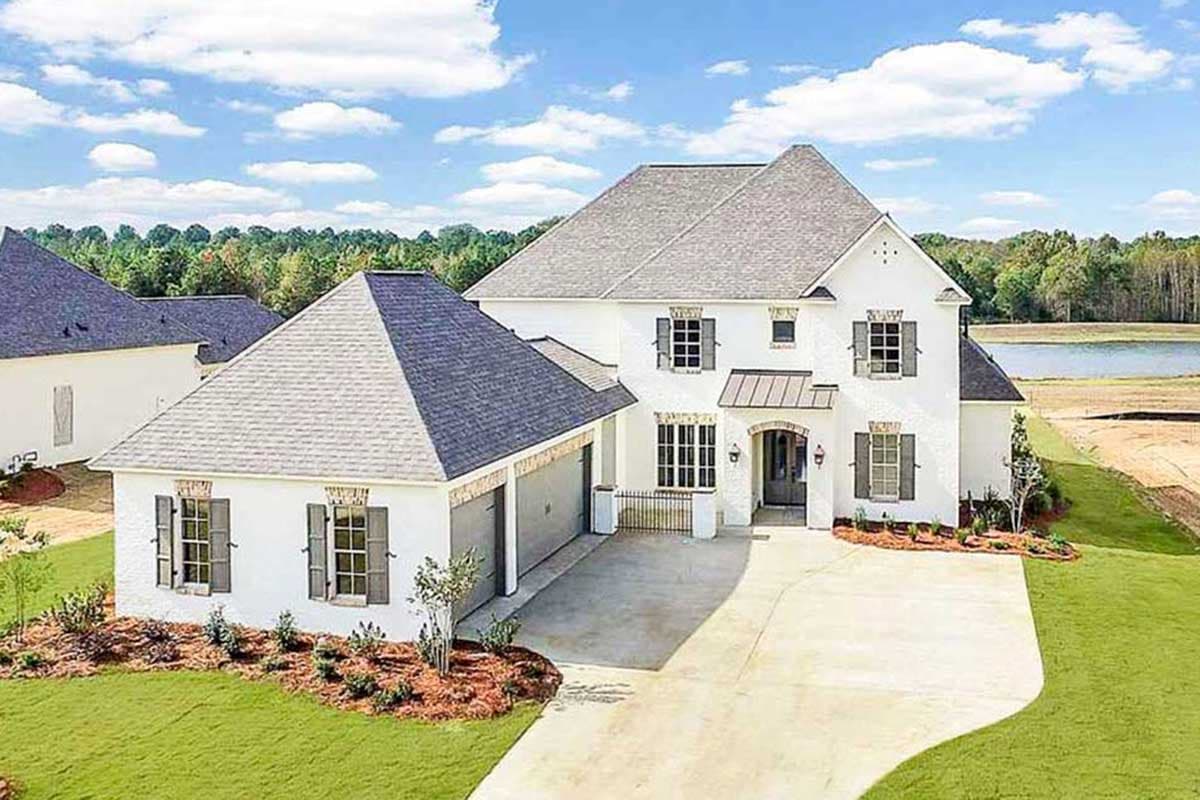

  • A 3-car courtyard entry garage and a beautiful covered entry welcome you to this 5-bed southern house plan.

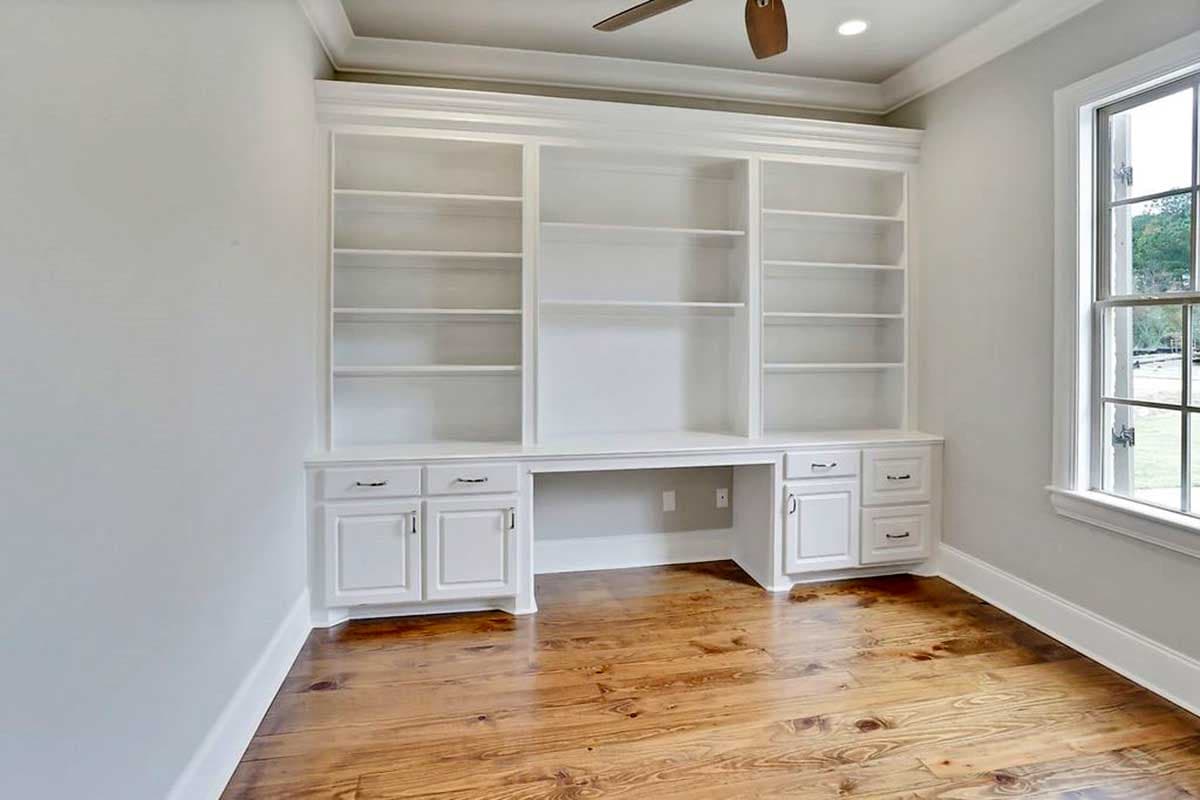

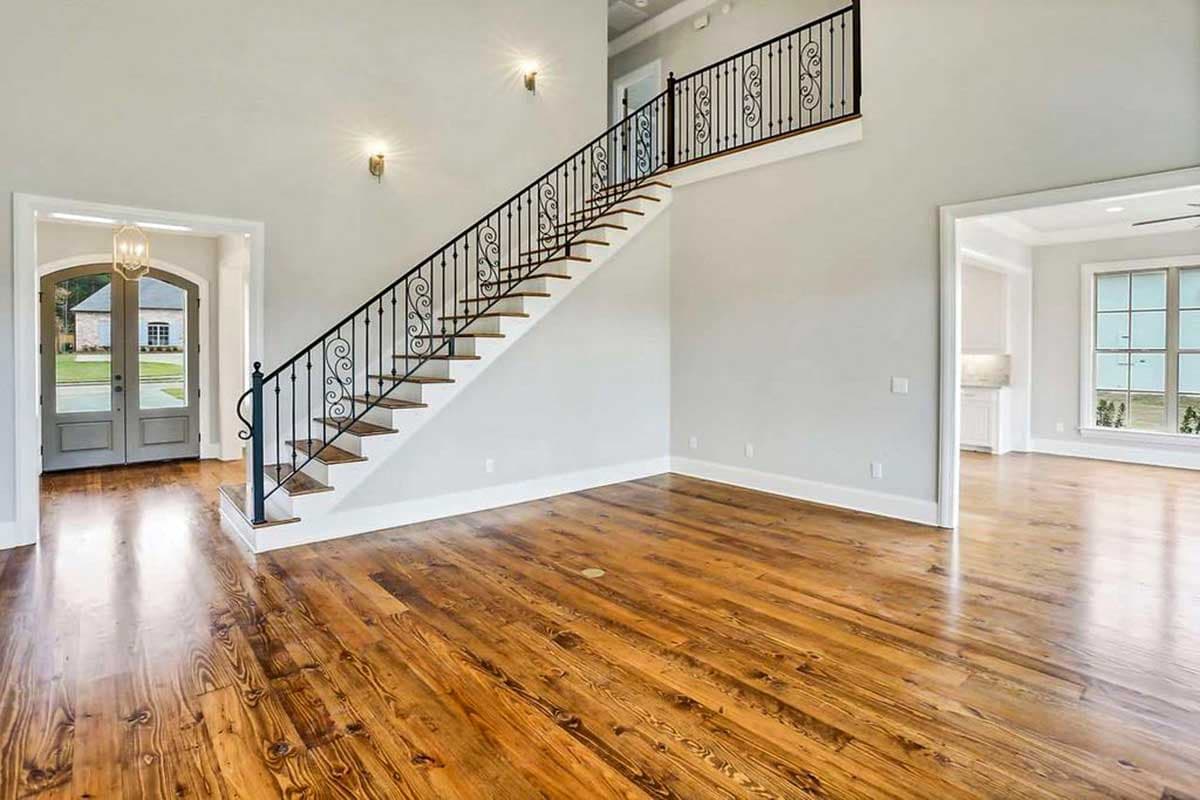

  • The study is located off the foyer behind French doors giving you a quite place to work.

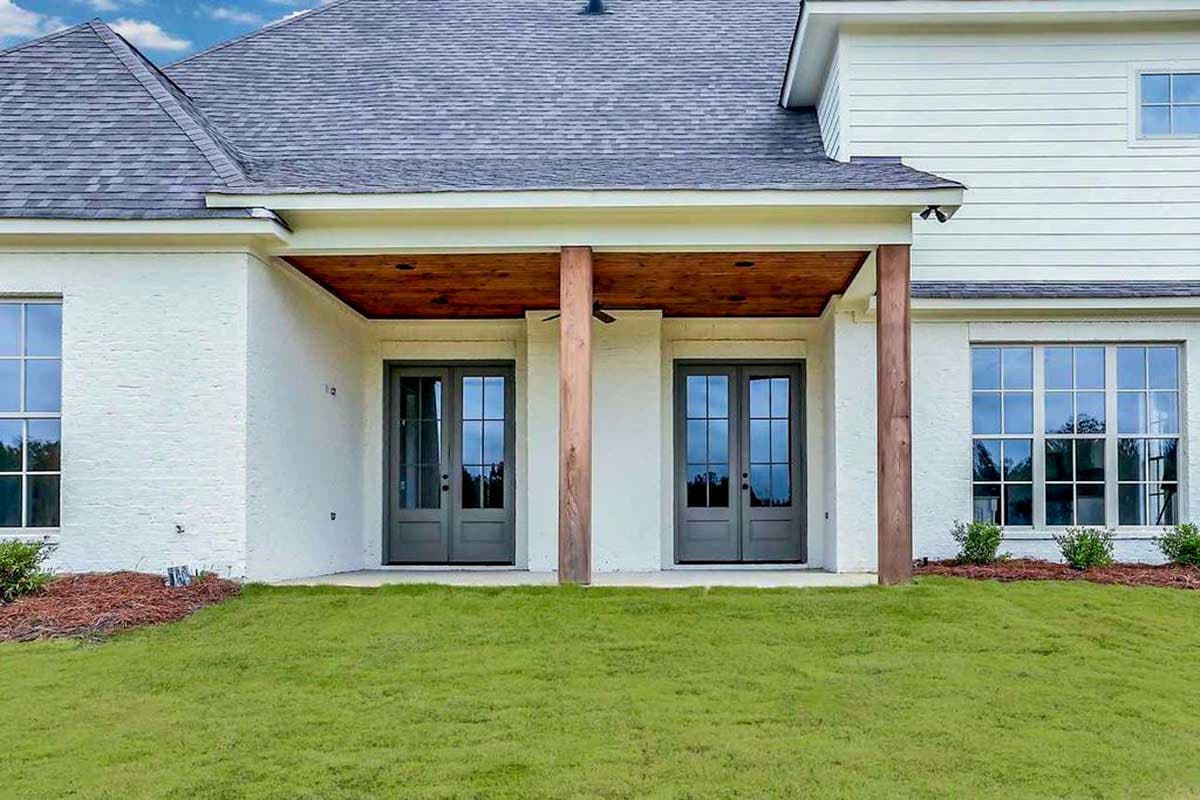

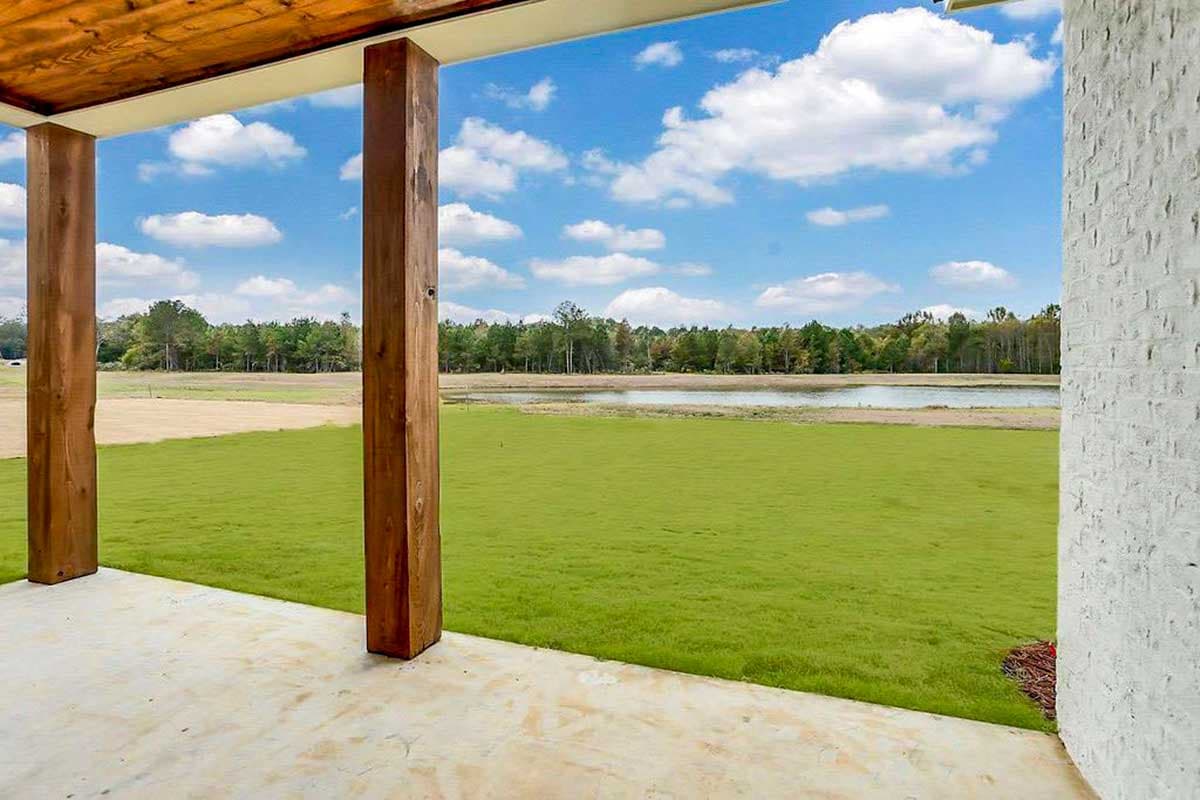

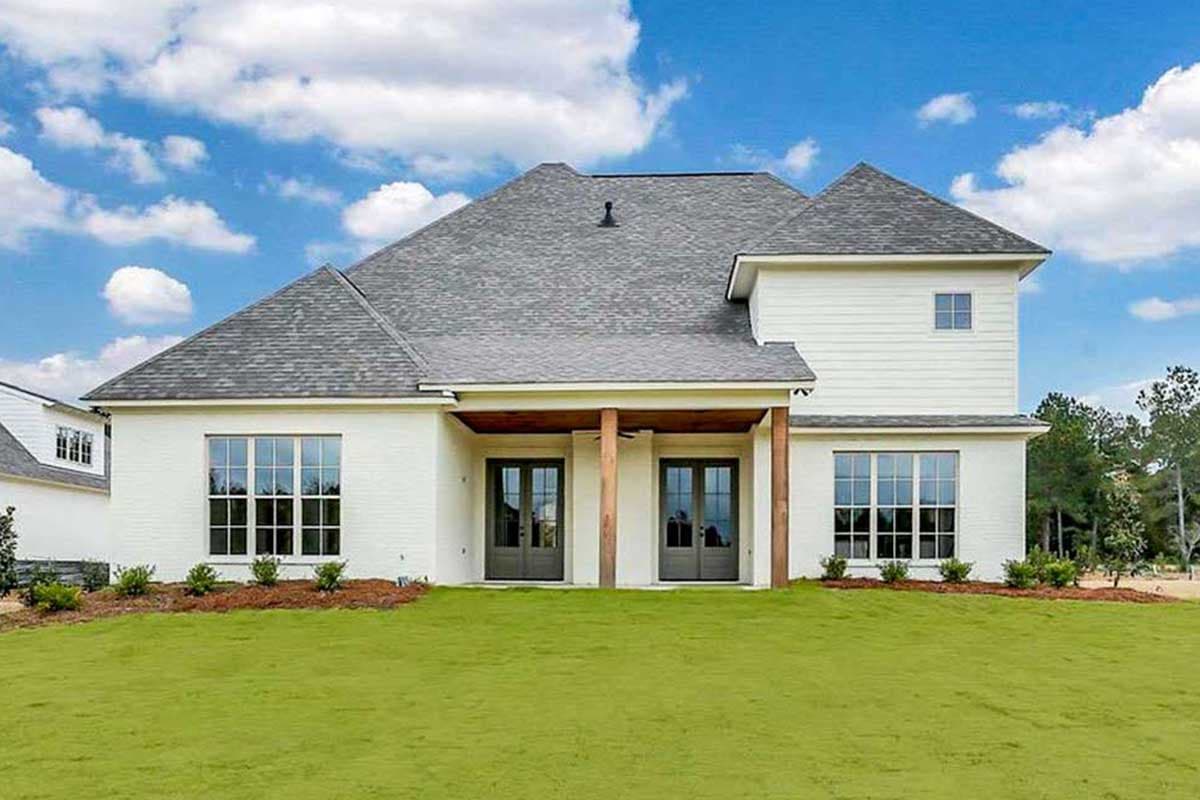

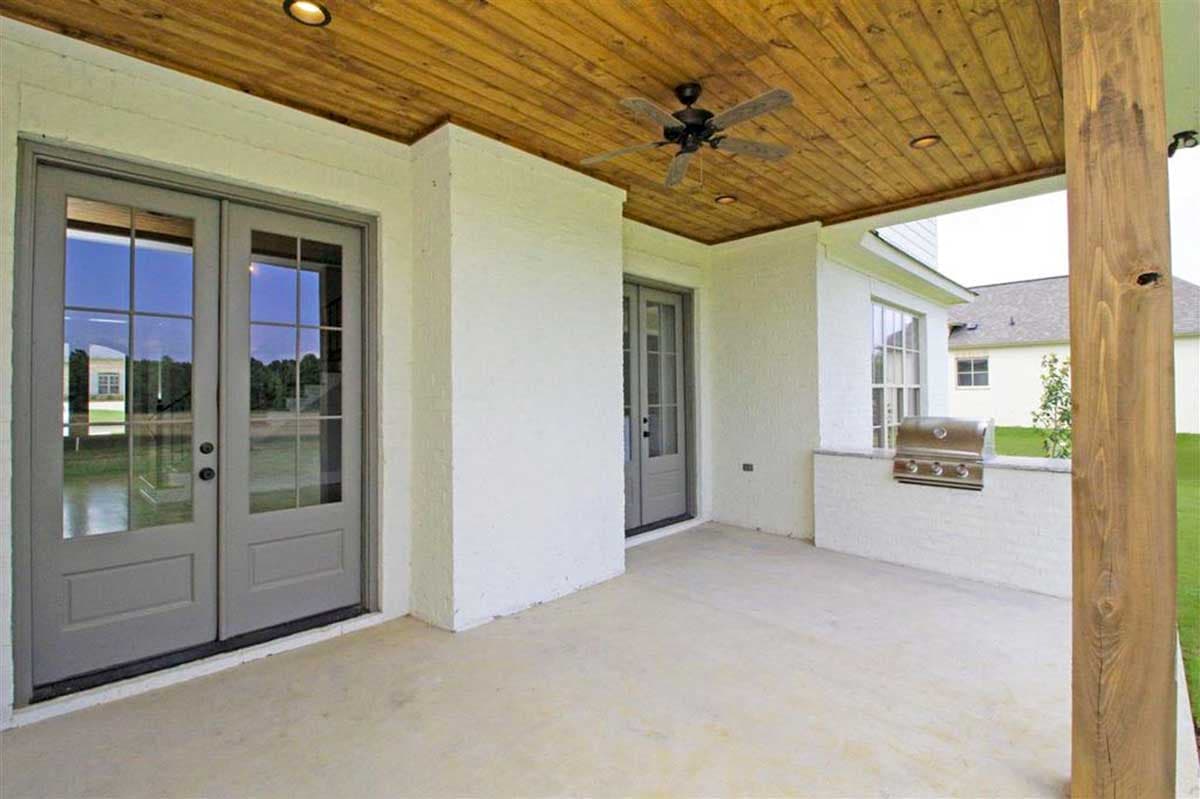

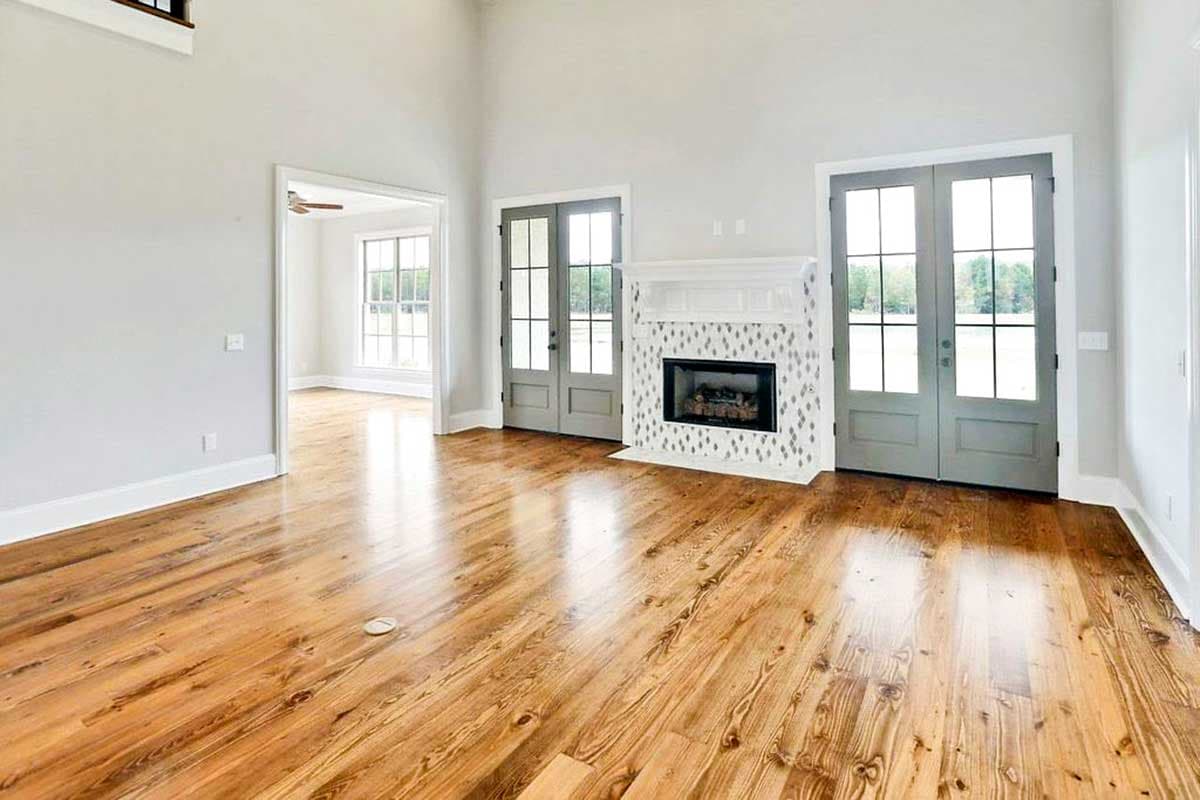

  • The living room has a vaulted ceiling open to above and has two sets of French doors flanking the fireplace that take you to the rear covered porch.

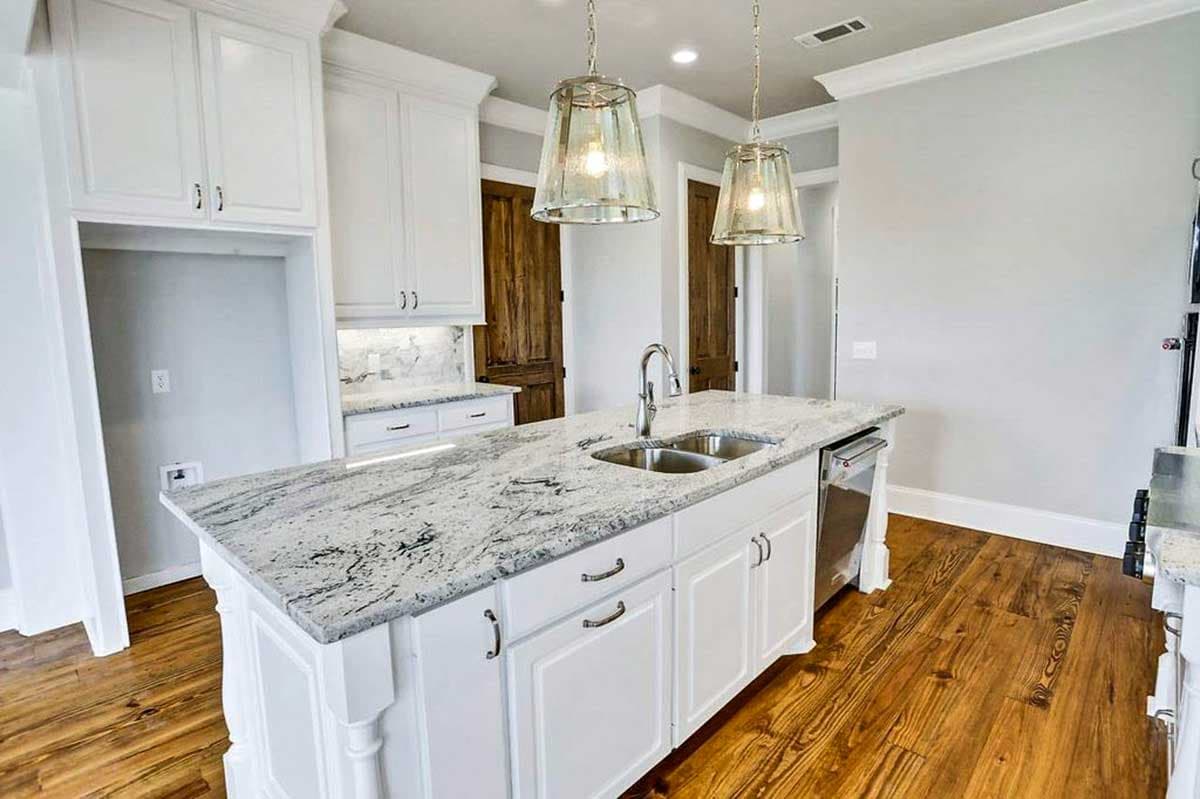

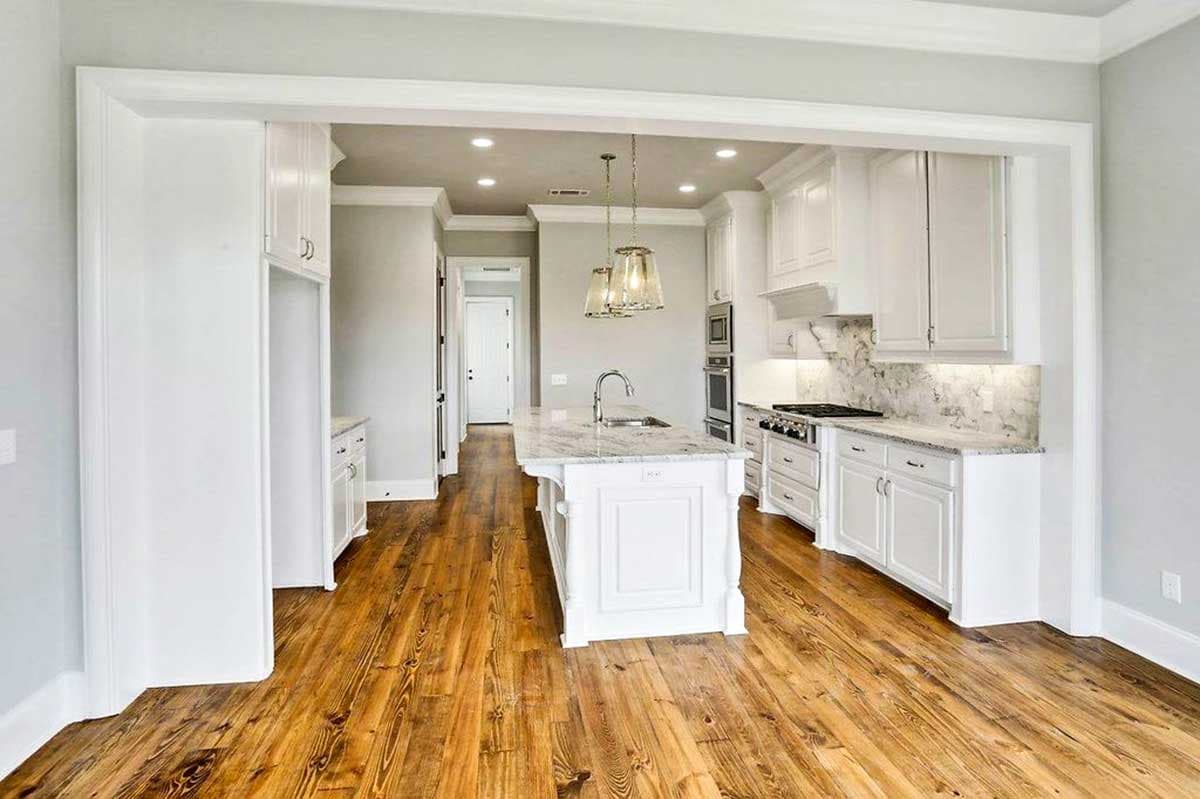

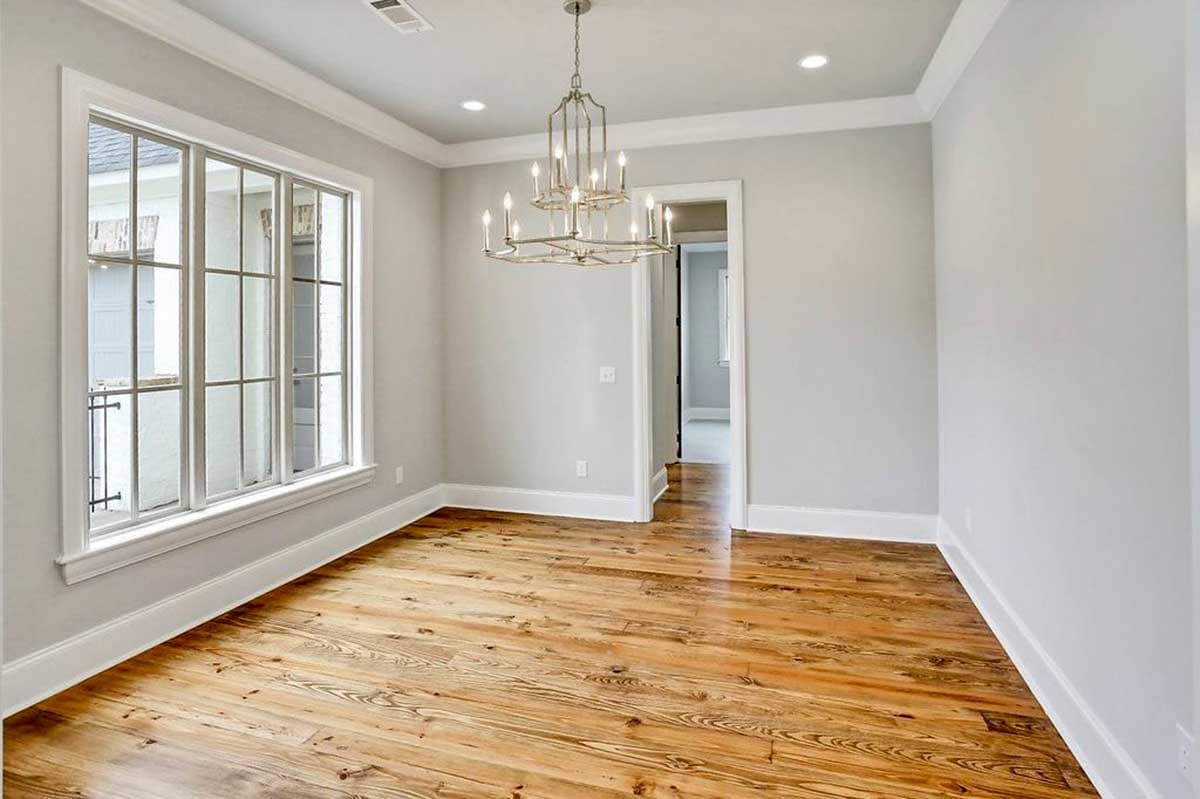

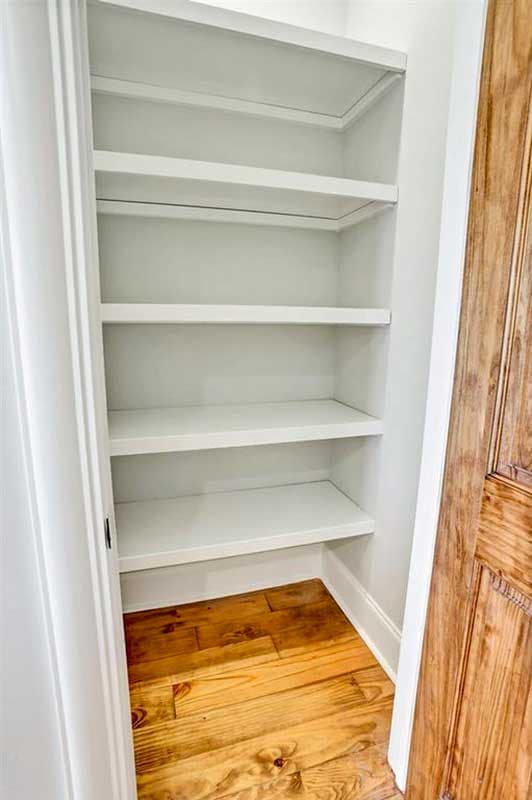

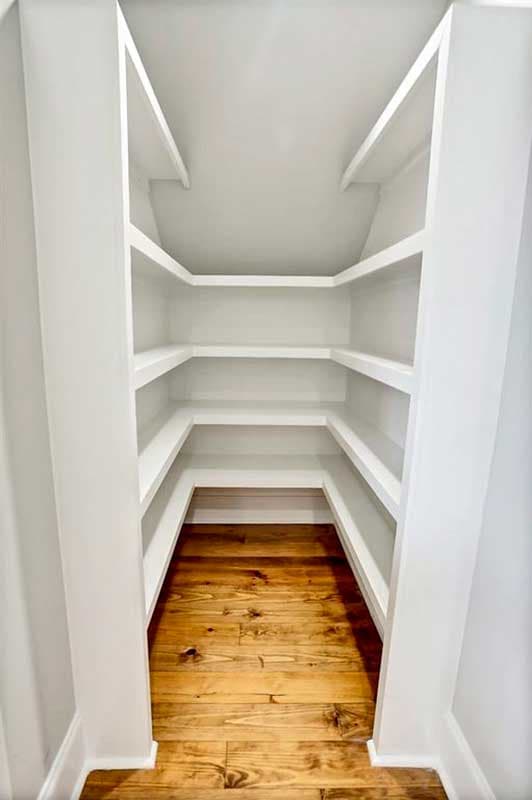

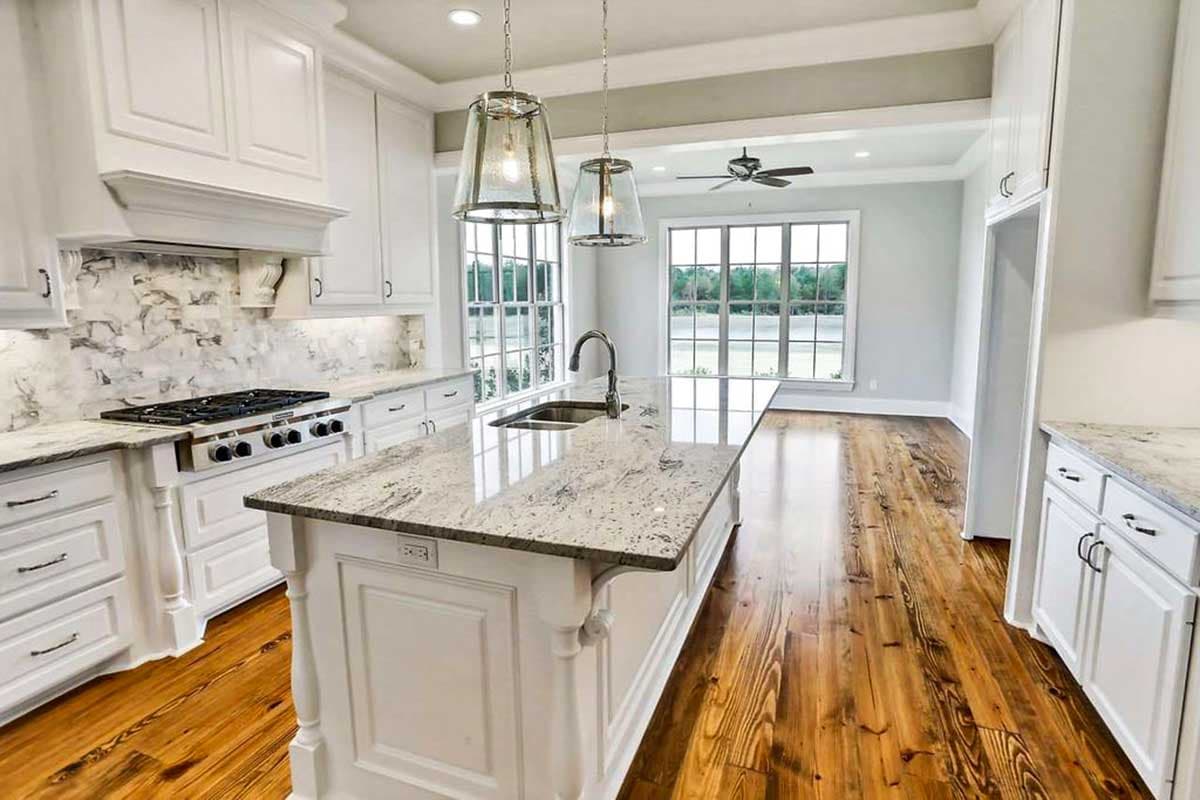

  • The kitchen has a large island and opens to the keeping room. Walk past your pantry and you can serve guests in your dining room.

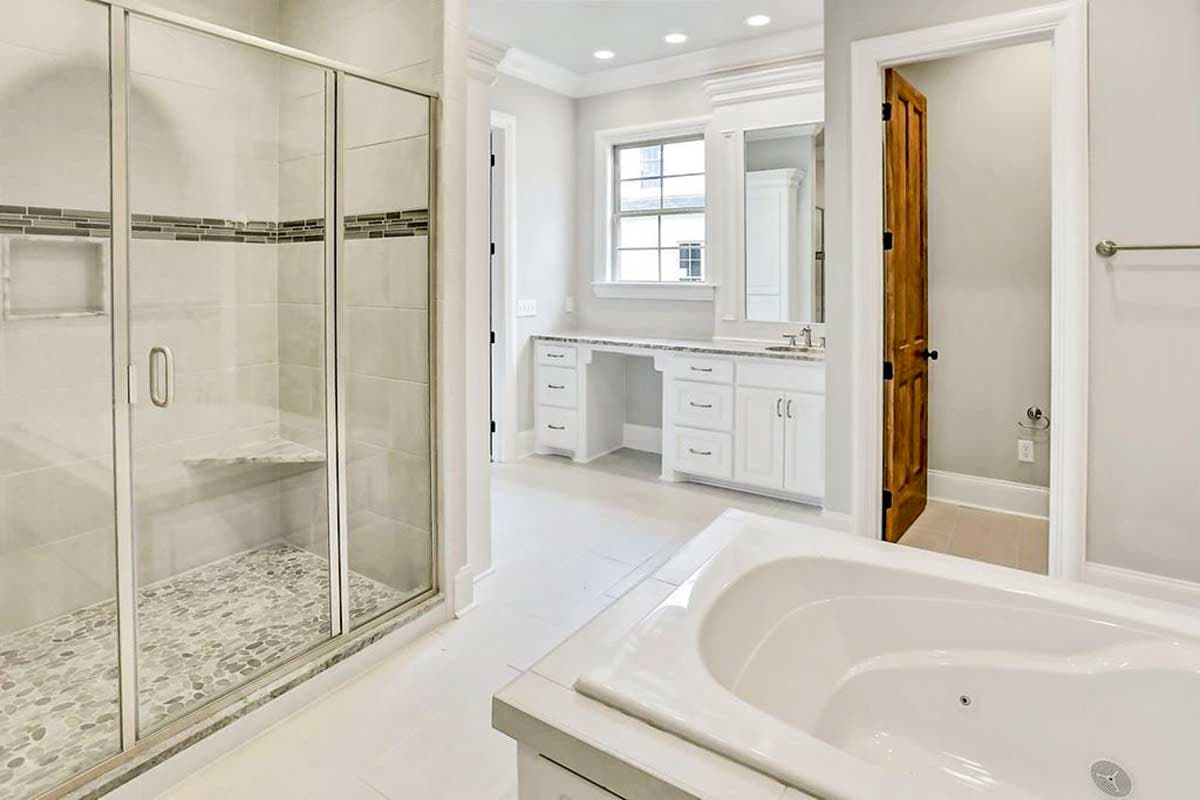

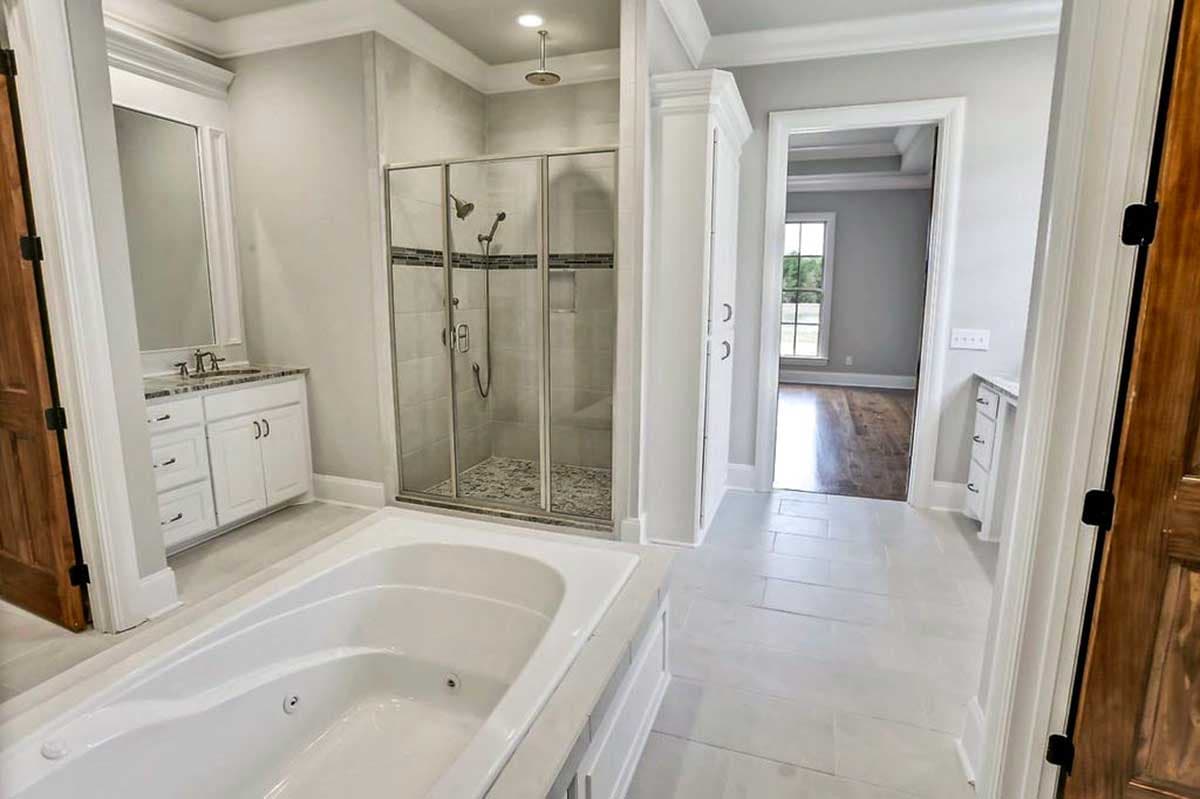

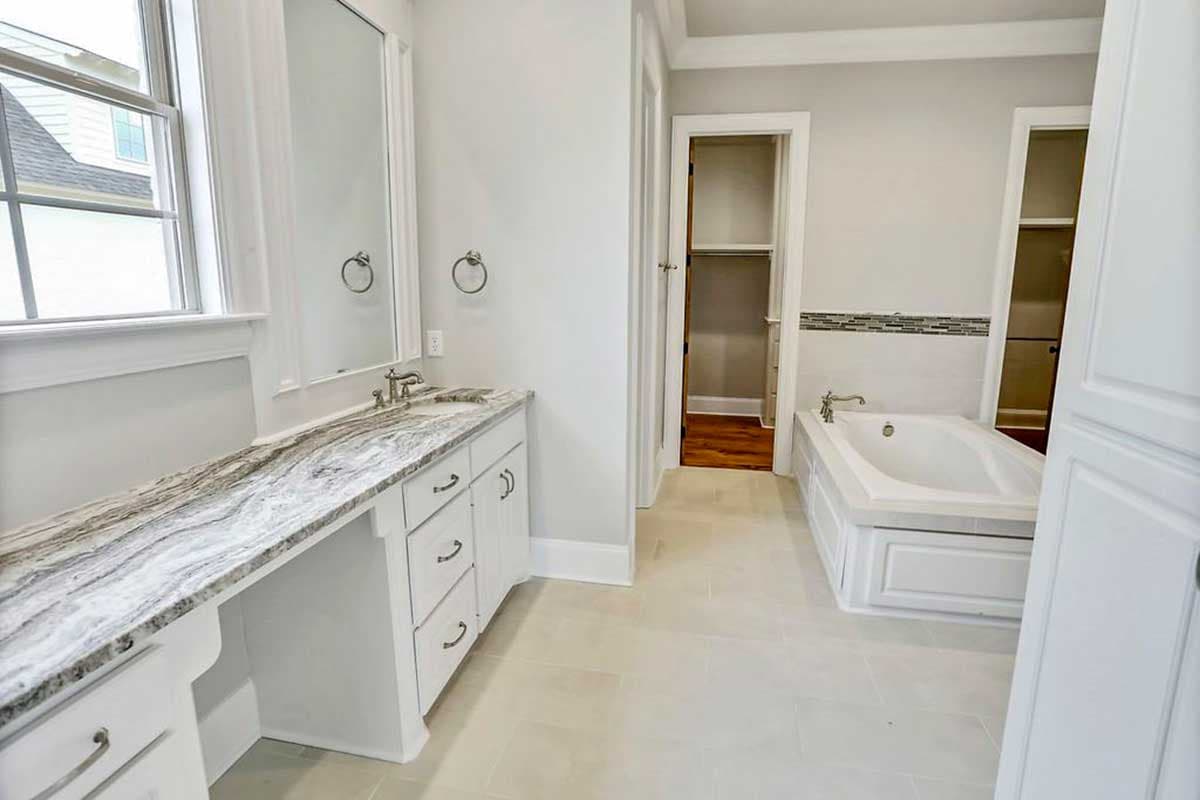

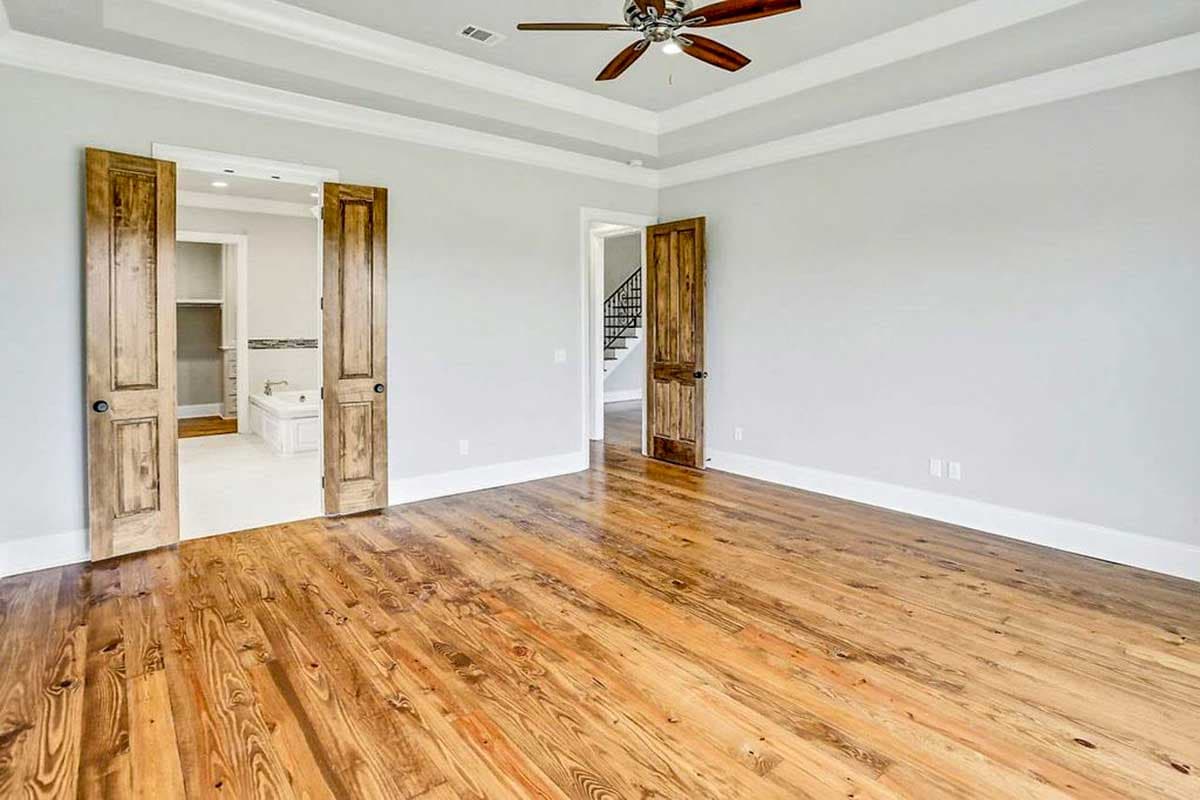

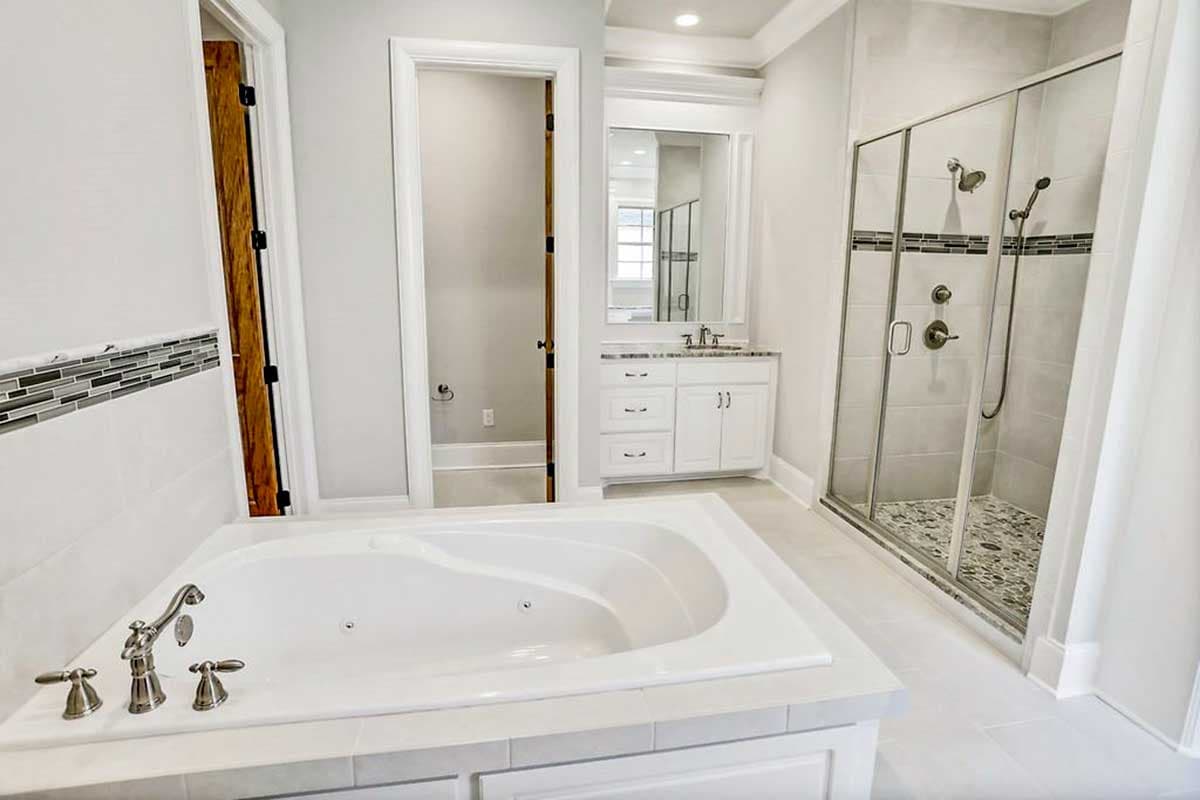

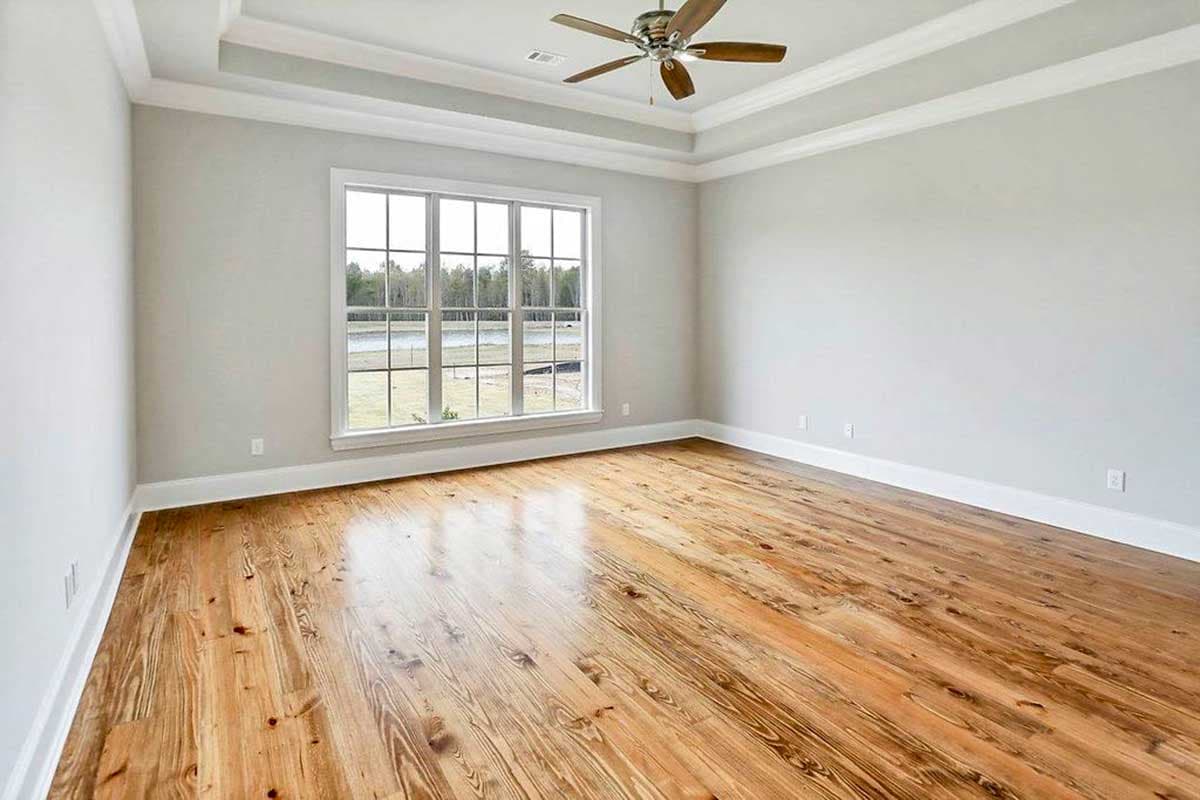

  • The master suite has a tray vaulted ceiling and enjoys great privacy.

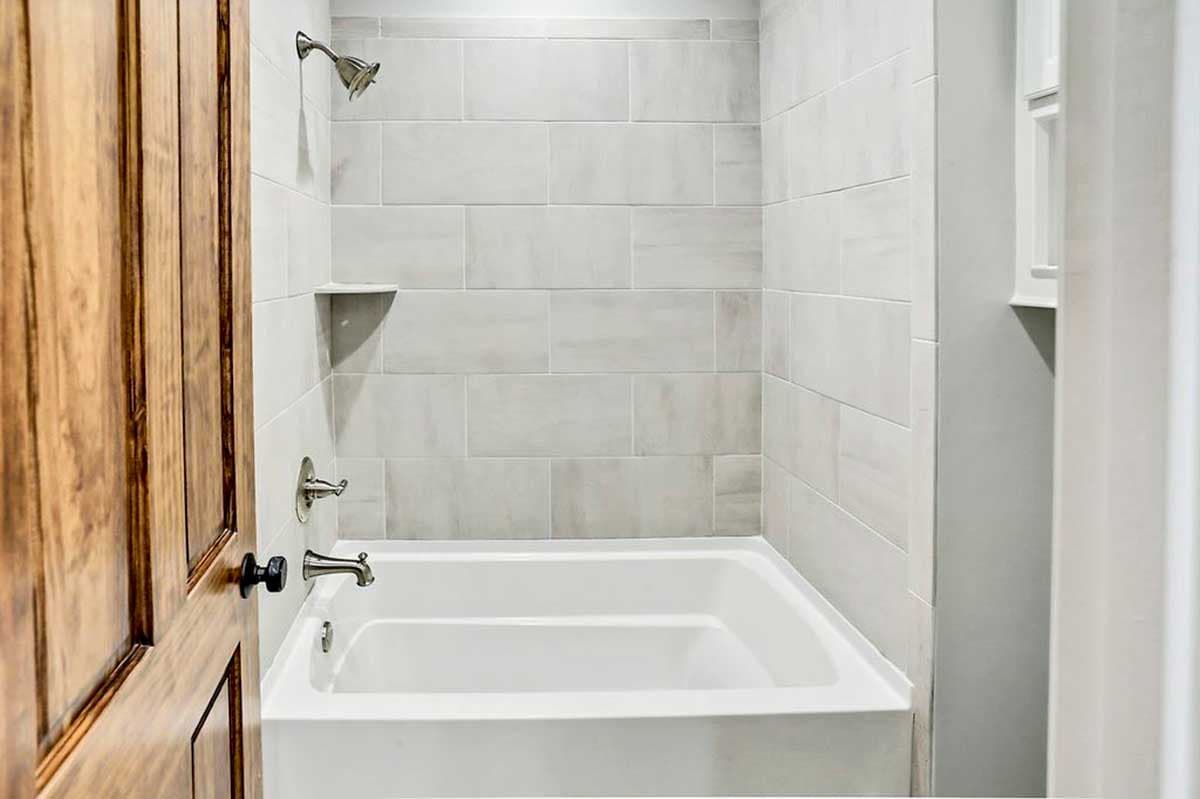

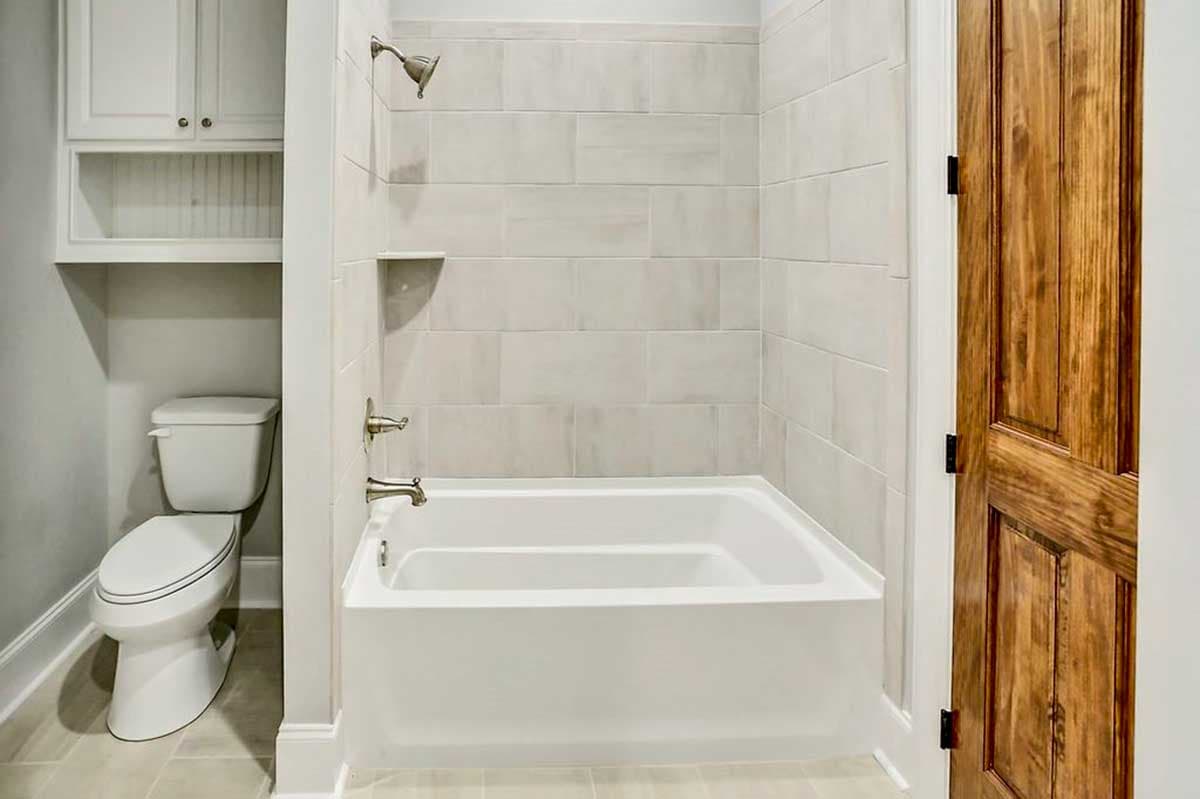

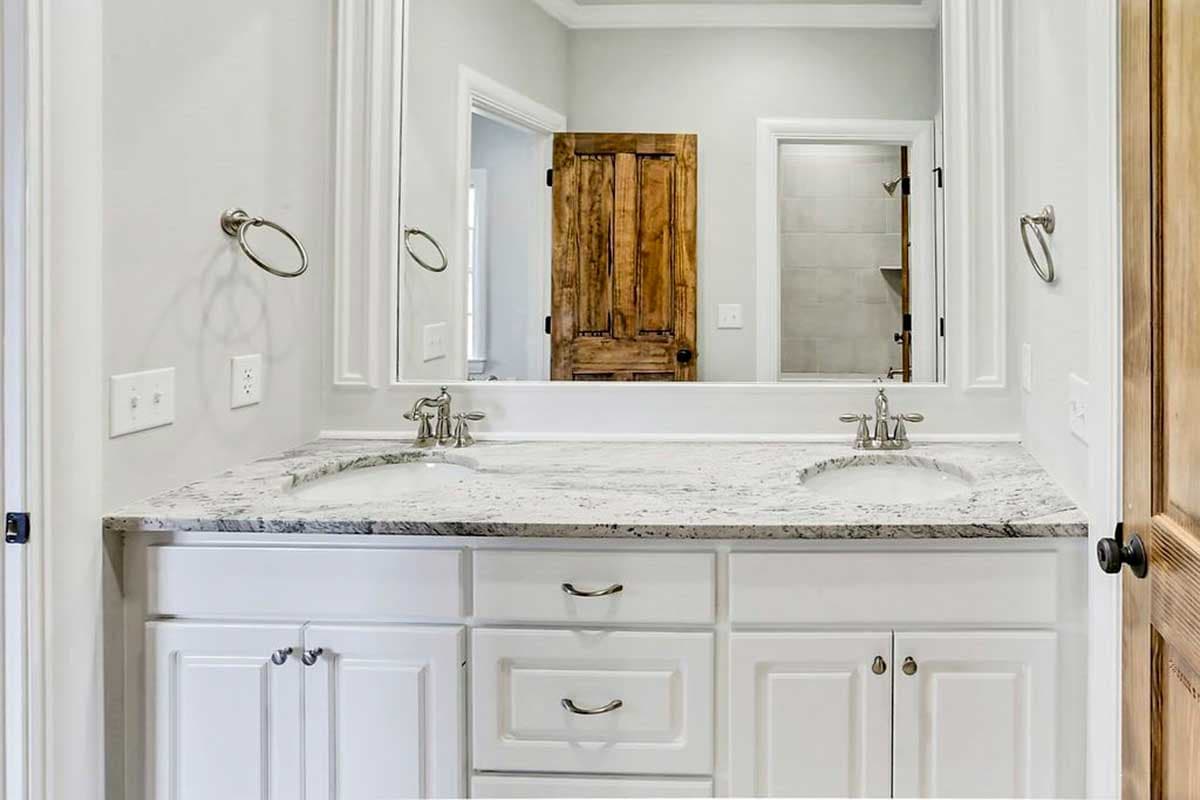

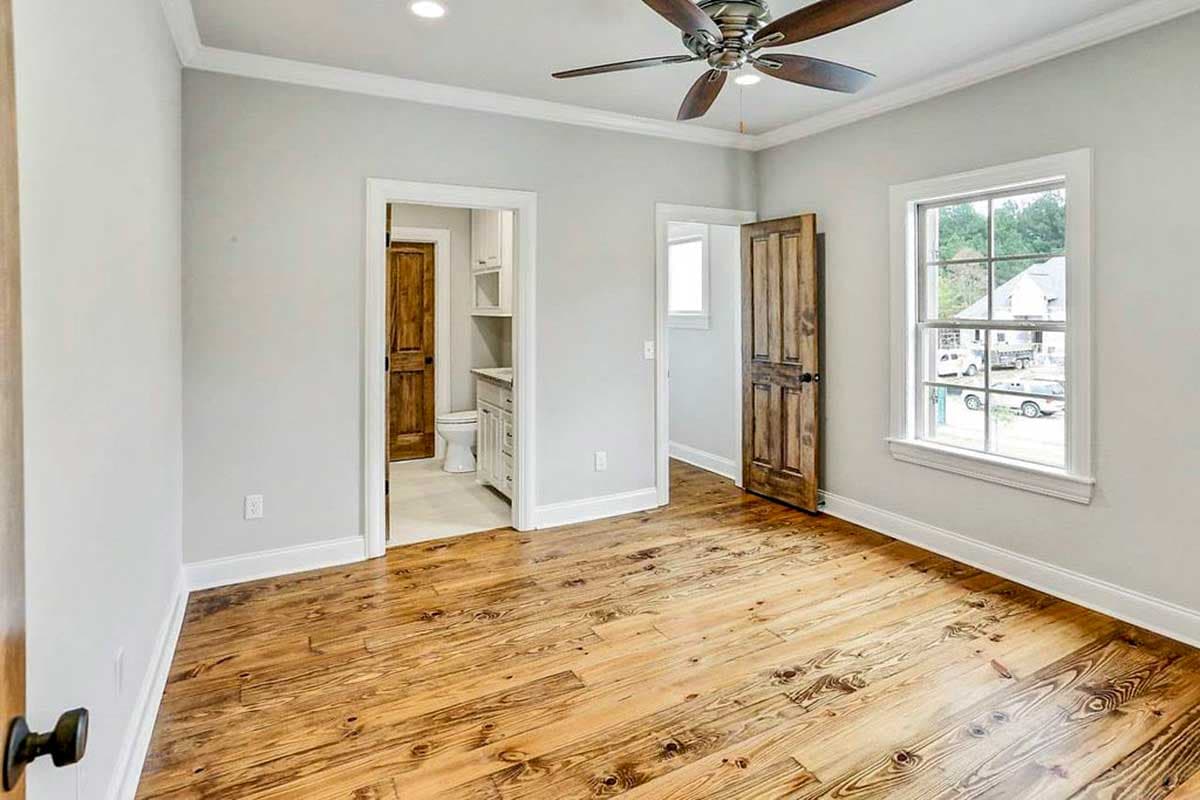

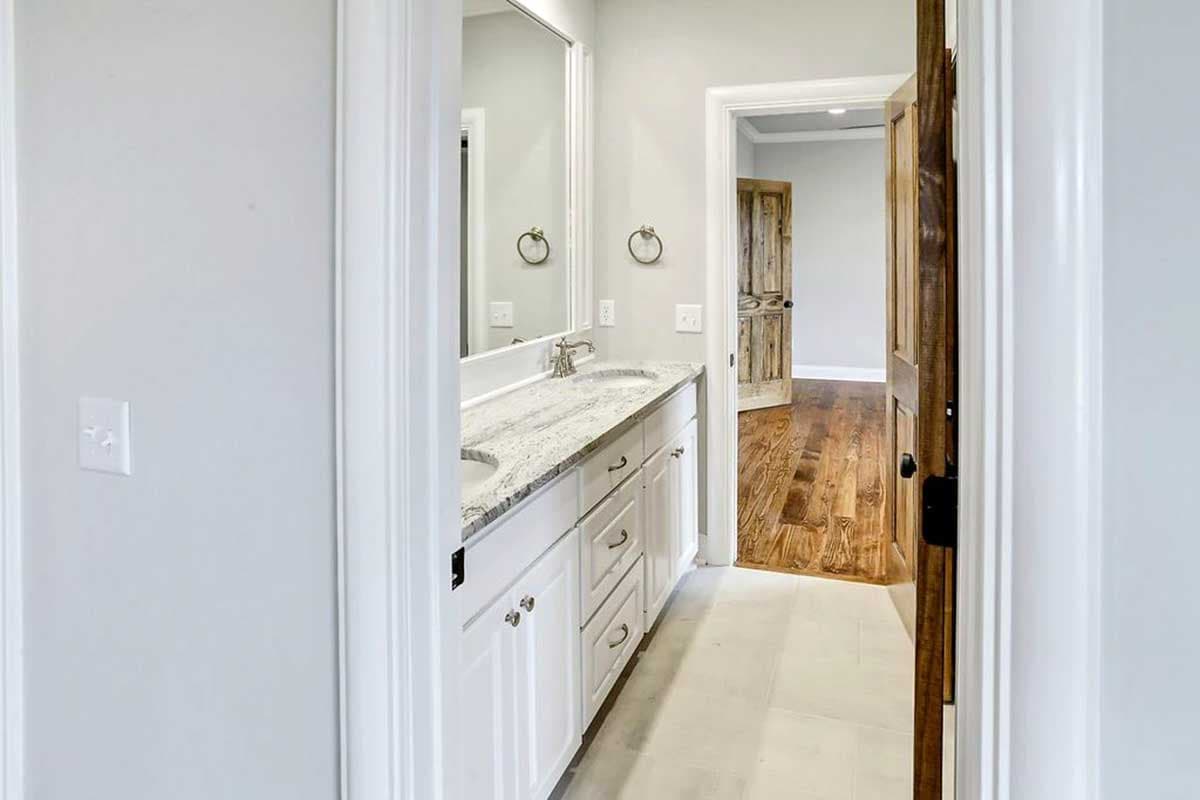

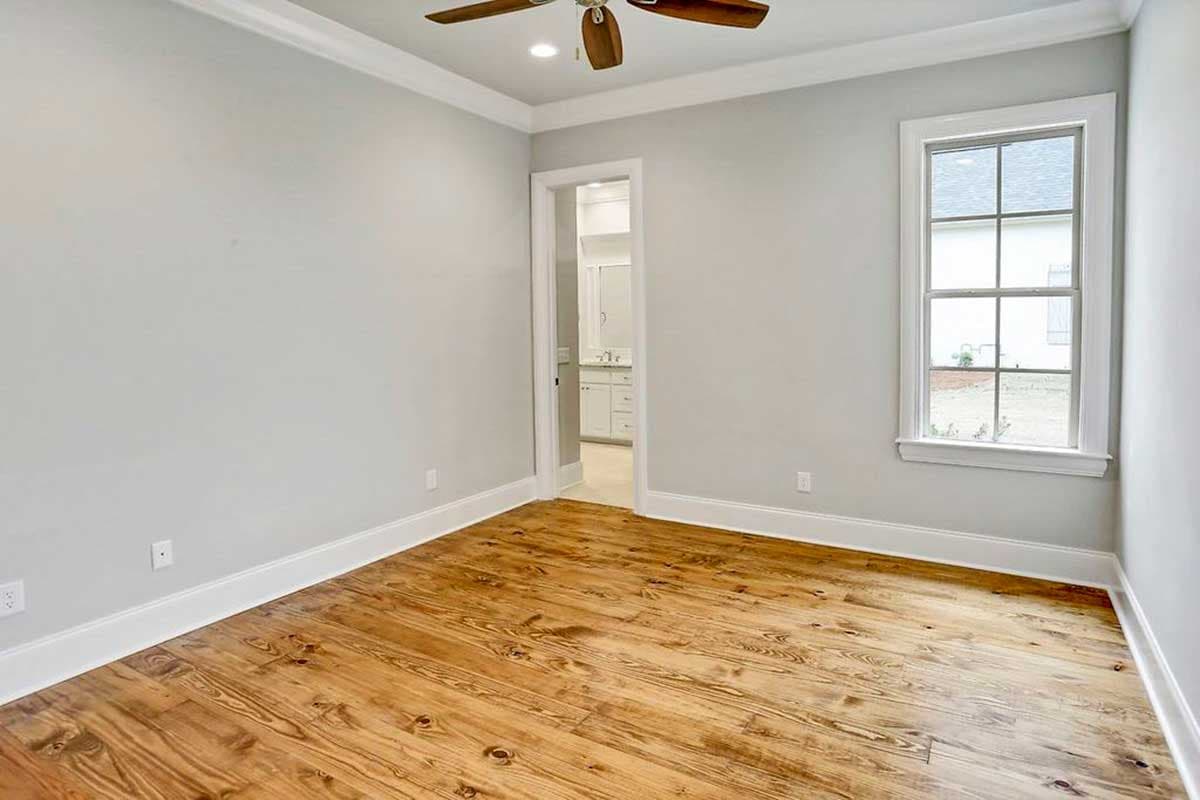

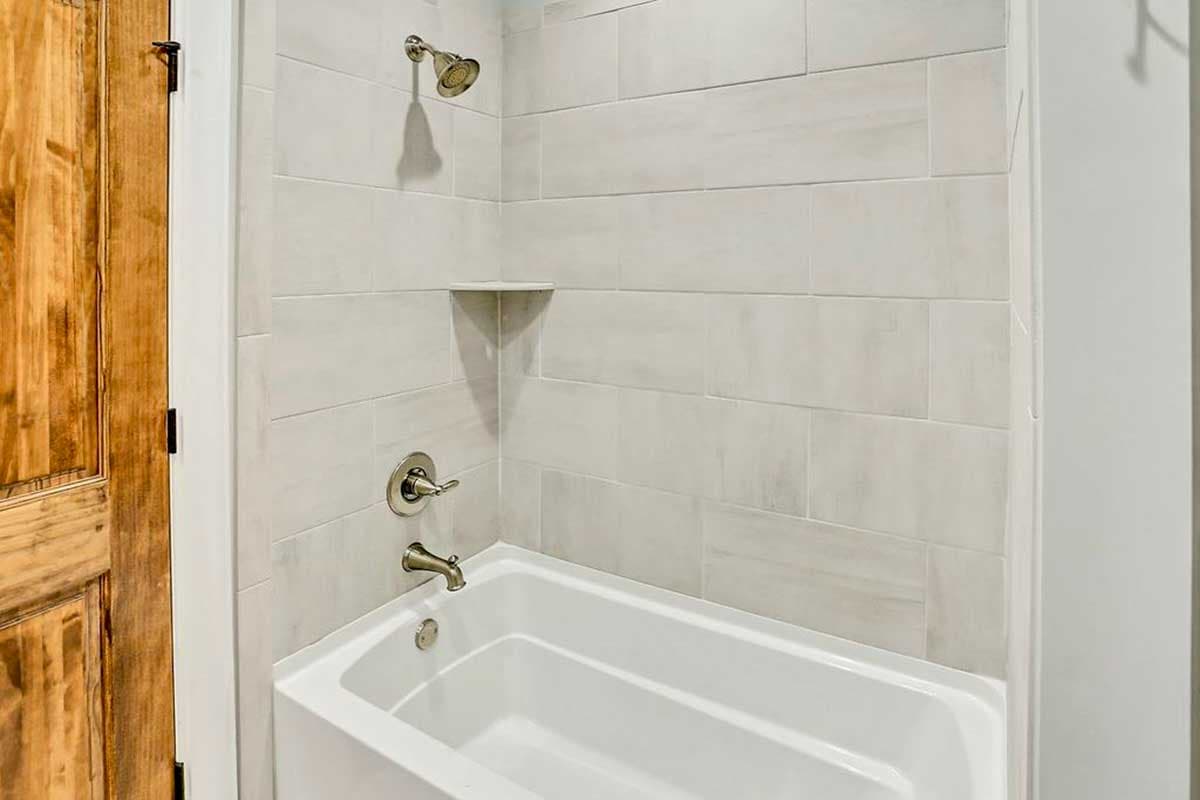

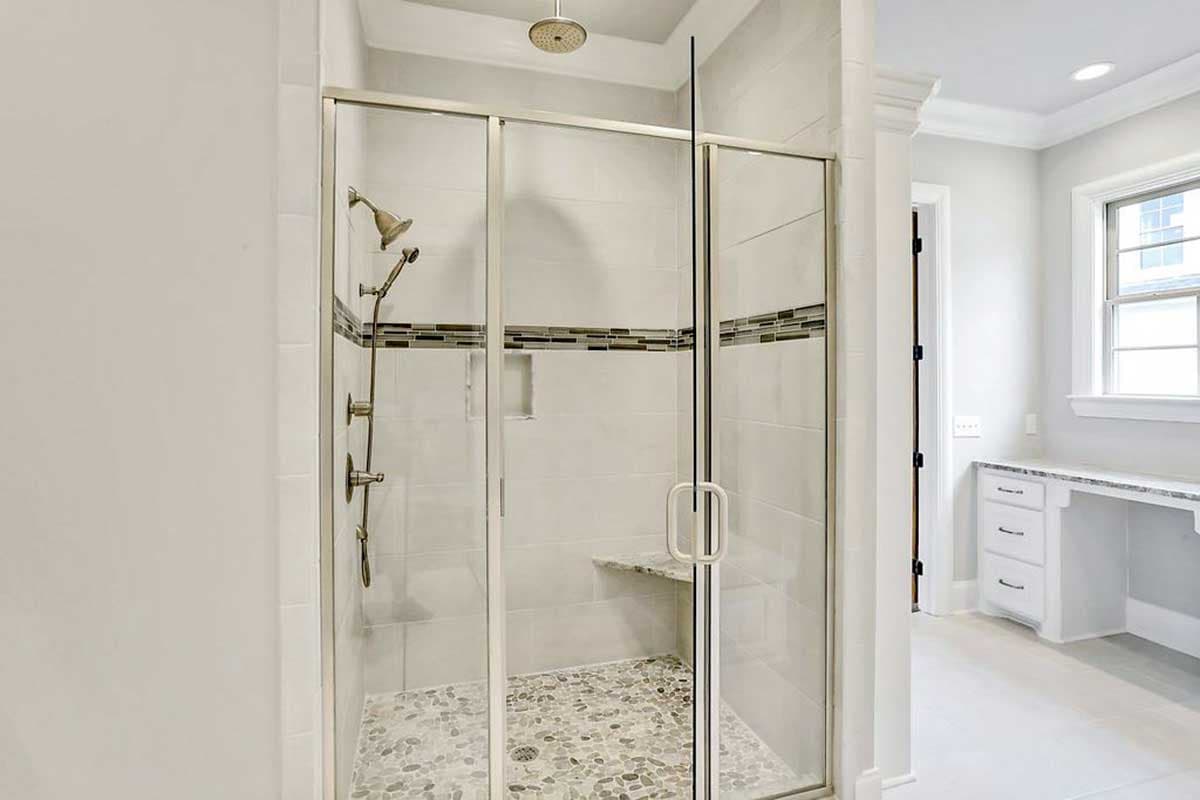

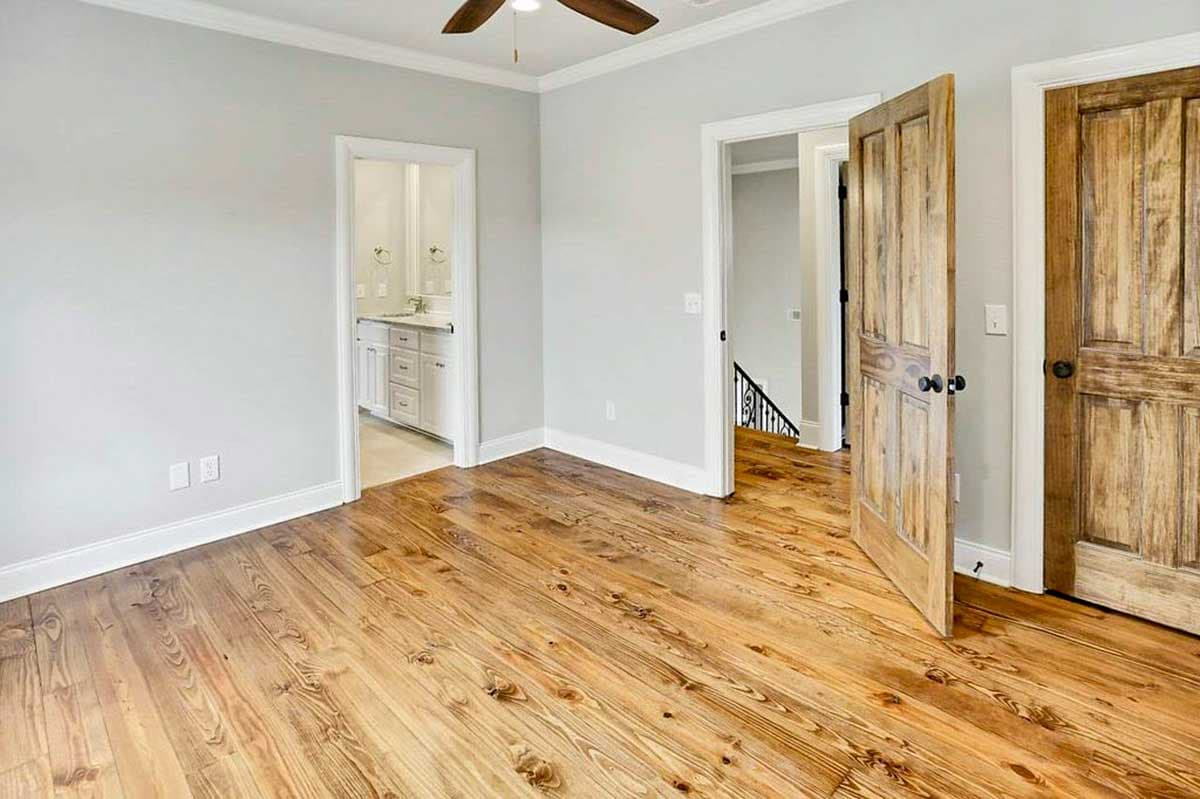

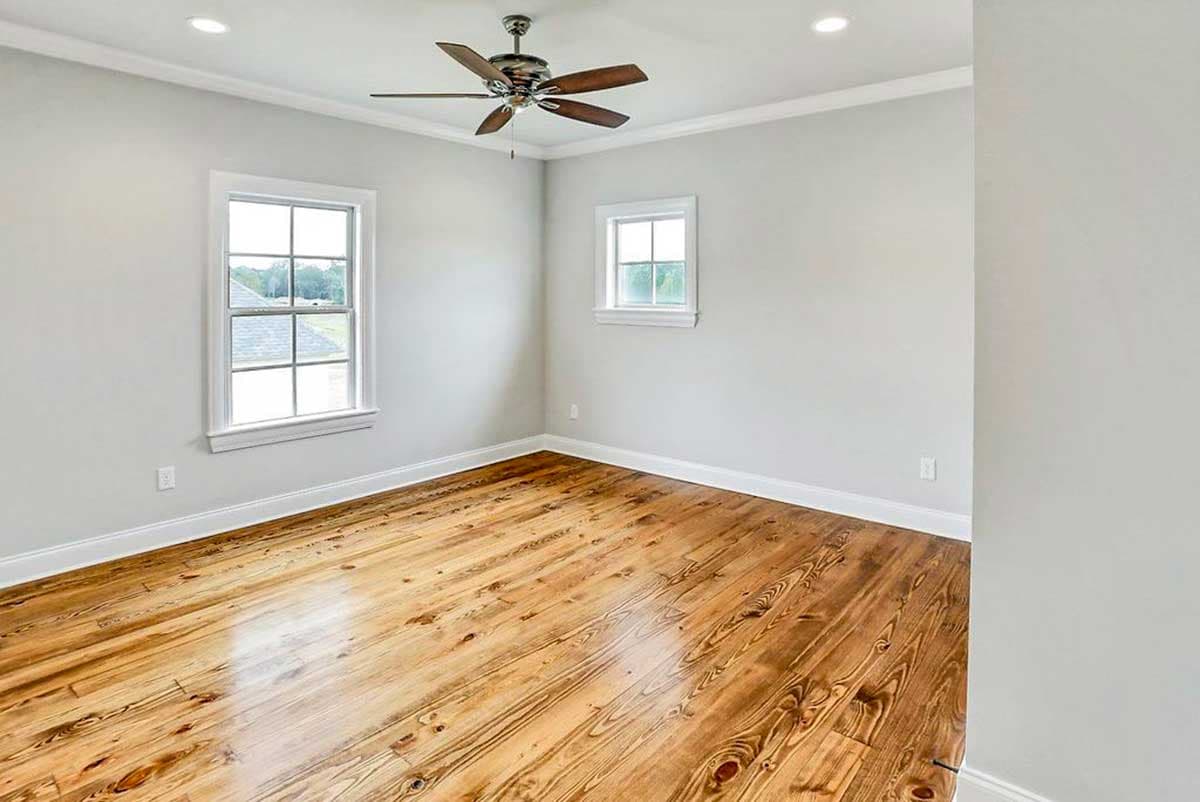

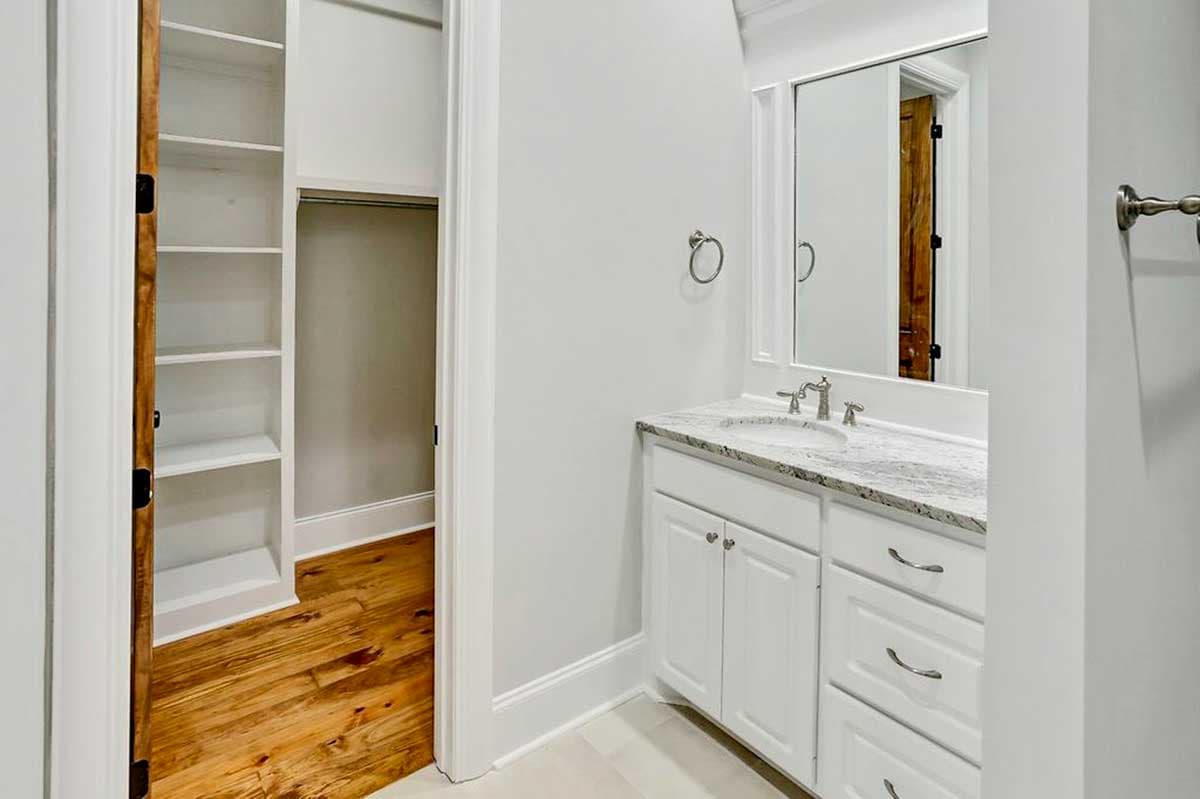

  • Three bedrooms are located upstairs, one with its own bathroom and the others sharing a Jack-and-Jill bath.
  • Related Plan: Get more room with house plan 510034WDY (3,865https://www.architecturaldesigns.com/510034wdy sq. ft.).
What's Included
This plan has 8 pages as follows:
  1. Coversheet Color Rendering
  2. First Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing
  3. Second Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

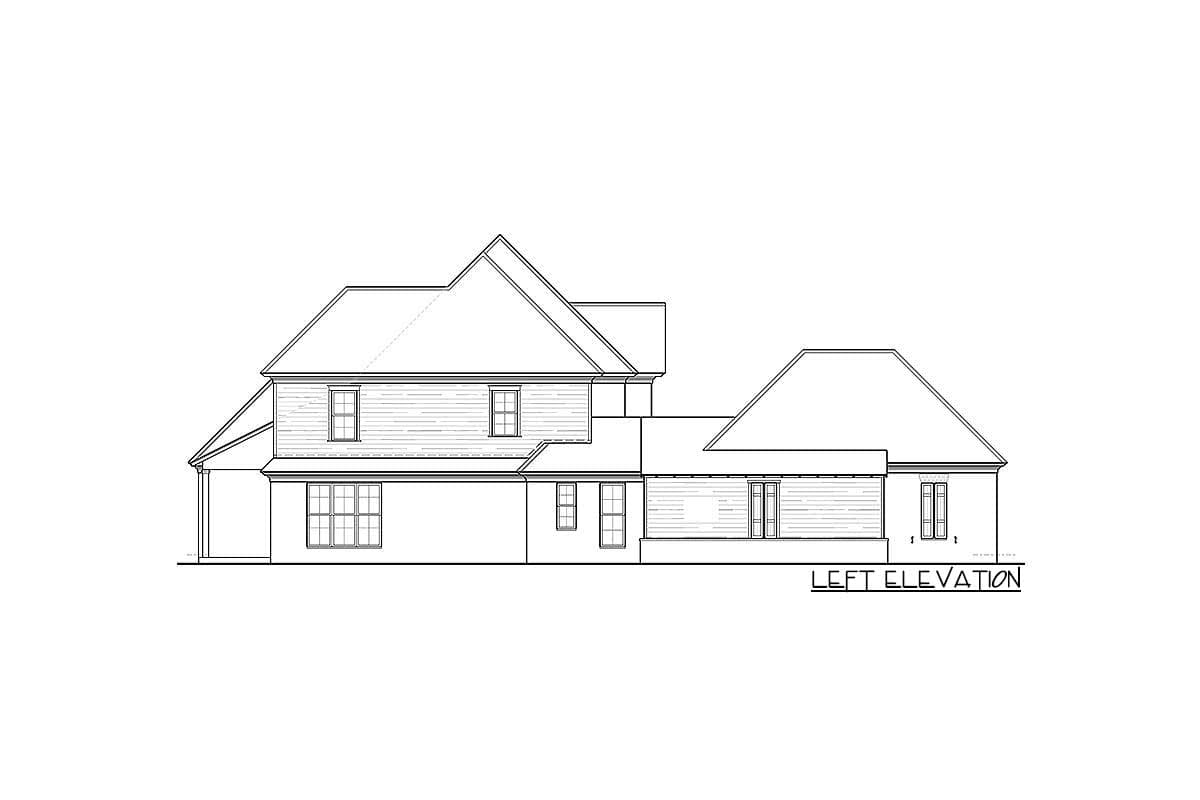

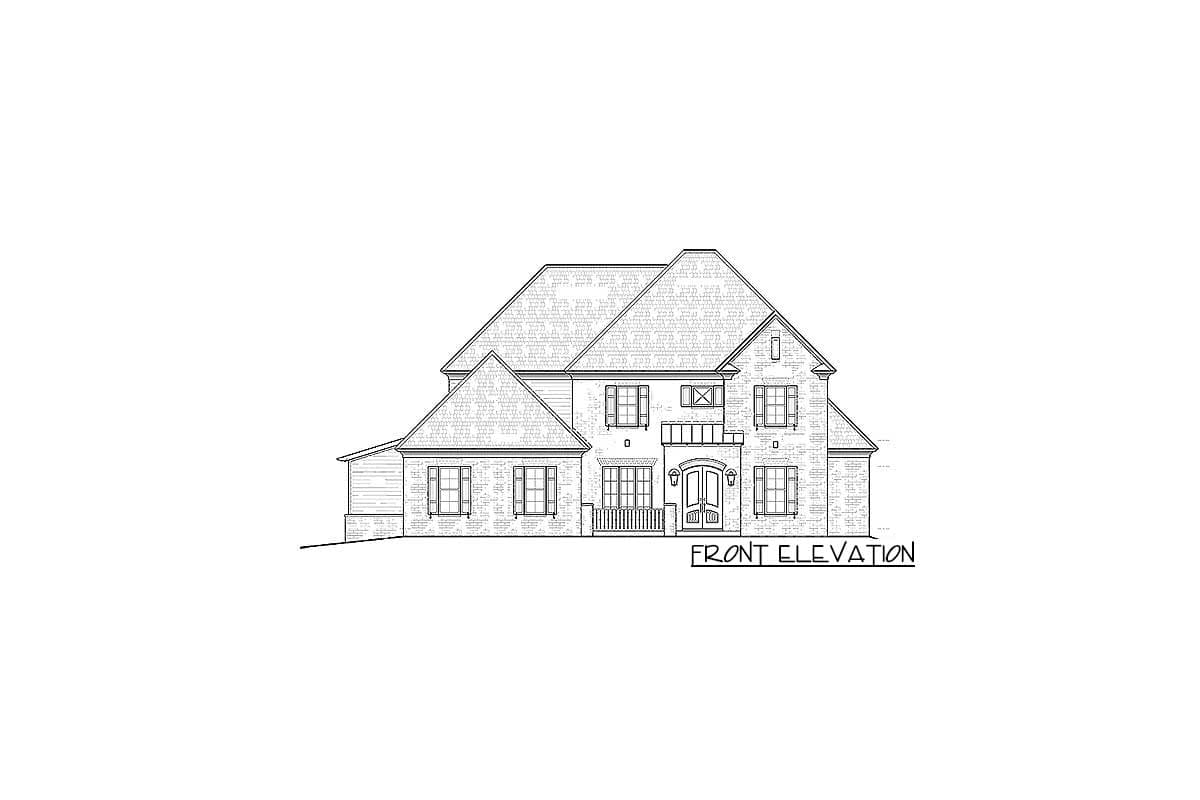

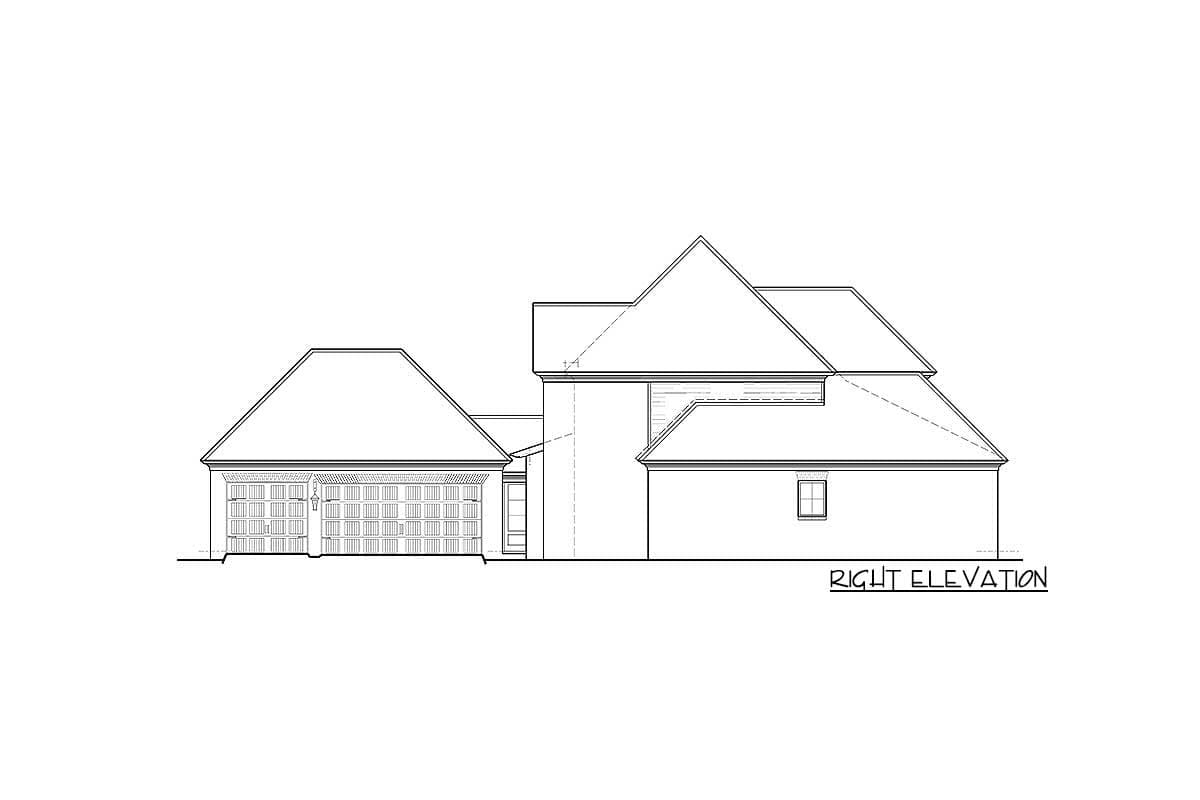

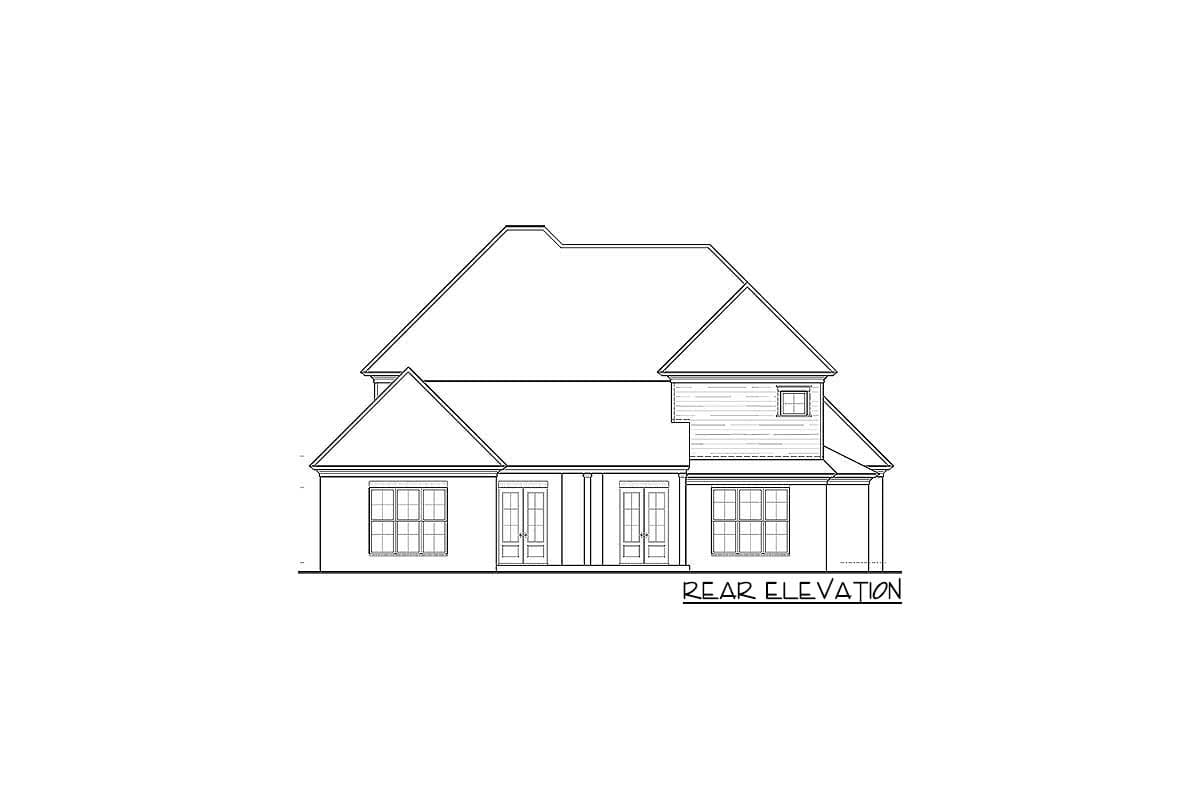

  4. All four Exterior Elevation, Roof Plan
  5. Building Section, Cornice Detail, Flashing Detail, Stair Detail, Switch Location Detail, Rafter Span Schedule
  6. First & Second Floor Electrical Plan and Schedules
  7. Slab Foundation
  8. Footing Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,413 sq. ft.

1st Floor

2,575 sq. ft.

2nd Floor

838 sq. ft.

Porch, Front

60 sq. ft.

Porch, Rear

248 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 3"

Depth

89' 0"

Max Ridge Height

35' 9"

Garage

Type

Attached

Area

771 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Stick
