Plan 66229WE
Southern Comfort
Heated S.F.
5,076
Beds
3
Baths
4.5
Stories
2
Cars
2
Floor Plan

Plan 66229WE

Basement
slide image 0
Main Level
slide image 1
2nd Floor
slide image 2

Plan 66229WE

1-800-854-7852

1-262-521-4596

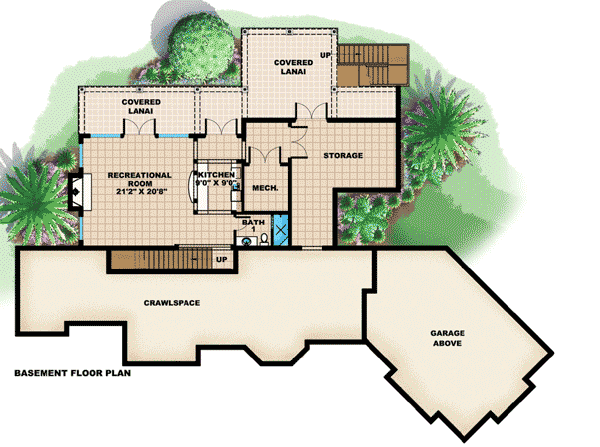

Basement
floor plan image Basement

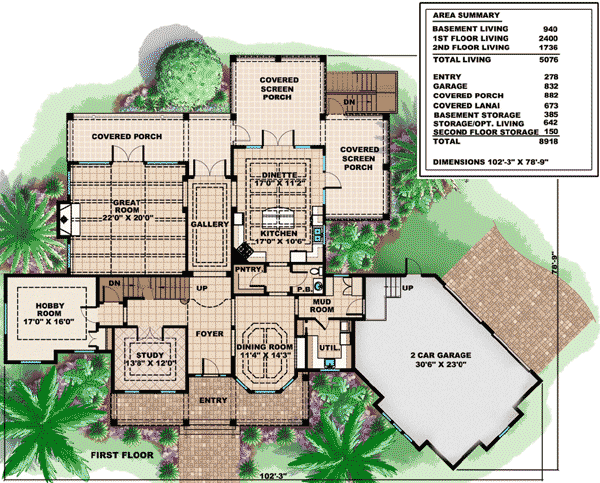

Main Level
floor plan image Main Level

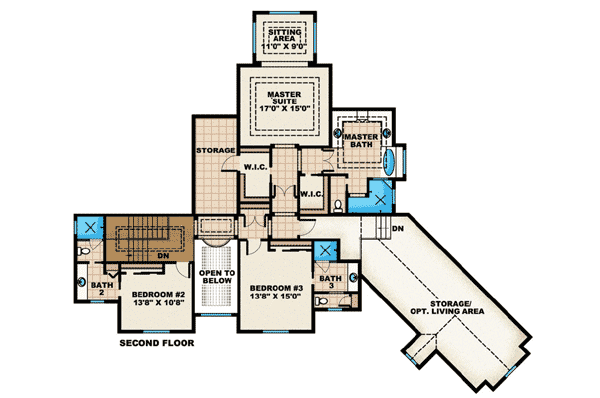

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A traditional home plan with captivating symmetry and a warm use of materials radiates southern comfort from curbside to back porch barbeques. This home has many unique features that make it one of a kind. Clapboard siding, stone, and cedar shingles blend beautifully in this classical estate. The shuttered windows and cozy front porch are warm and inviting. A two-car garage, accessed from the back of the home, reinforces the quiet sophistication.
  • Step inside the traditional foyer, which is open to the formal dining room. The study and hobby room, opposite the foyer, provide space for a multitude of activities. The entire family will enjoy time spent in the great room with a cathedral ceiling enhanced with rustic beams and warmed by a fireplace built from natural stone.
  • The kitchen and dinette are ample in size, perfect for informal meals and open to large covered porches that expand into additional spaces perfect for entertaining.
  • Upstairs you will find an impressive barrel ceiling above the two-story foyer at the top of the stairs. The back of the house encompasses the master suite, with a sunny sitting room, expansive closets, and storage areas. Up front are two private suites and an optional storage/living area. Possibilities for the basement include additional bedrooms, a second great room or a game room.
What's Included
Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,076 sq. ft.

Lower Level

940 sq. ft.

1st Floor

2,400 sq. ft.

2nd Floor

1,736 sq. ft.

Bonus

642 sq. ft.

Porch, Rear

882 sq. ft.

Entry

278 sq. ft.

Lanai

673 sq. ft.

Storage

535 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

102' 3"

Depth

78' 9"

Max Ridge Height

36' 10"

Garage

Type

Attached

Area

832 sq. ft.

Count

2 Cars

Entry Location

Rear, Courtyard

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Southern

Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Library/Study

Master Suite - 2nd Floor

Master Suite - Sitting Area

Plan Collections

Luxury

Sloping Lot

Square Footage Breakdown

Total Heated Area

5,076 sq. ft.

Lower Level

940 sq. ft.

1st Floor

2,400 sq. ft.

2nd Floor

1,736 sq. ft.

Bonus

642 sq. ft.

Porch, Rear

882 sq. ft.

Entry

278 sq. ft.

Lanai

673 sq. ft.

Storage

535 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

102' 3"

Depth

78' 9"

Max Ridge Height

36' 10"

Garage

Type

Attached

Area

832 sq. ft.

Count

2 Cars

Entry Location

Rear, Courtyard

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Southern

Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Library/Study

Master Suite - 2nd Floor

Master Suite - Sitting Area

Plan Collections

Luxury

Sloping Lot
