Plan 710157BTZ
Southern Country Home Plan with Optional Second Floor
Heated S.F.
2,054
Beds
3 - 4
Baths
3 - 4
Stories
1
Cars
2
Floor Plan

Plan 710157BTZ

Main Level
slide image 0
Bonus Level
slide image 1

Plan 710157BTZ

1-800-854-7852

1-262-521-4596

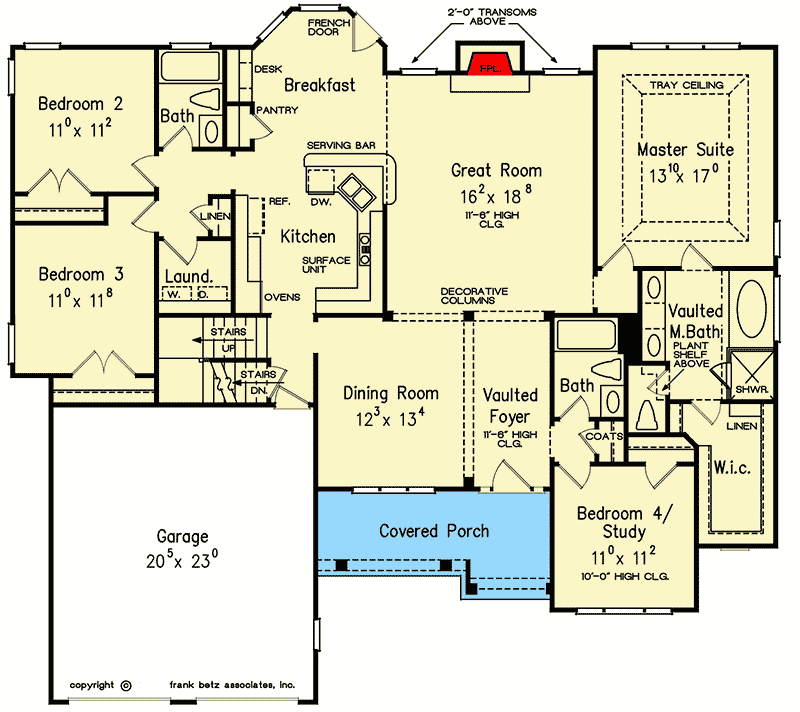

Main Level
floor plan image Main Level

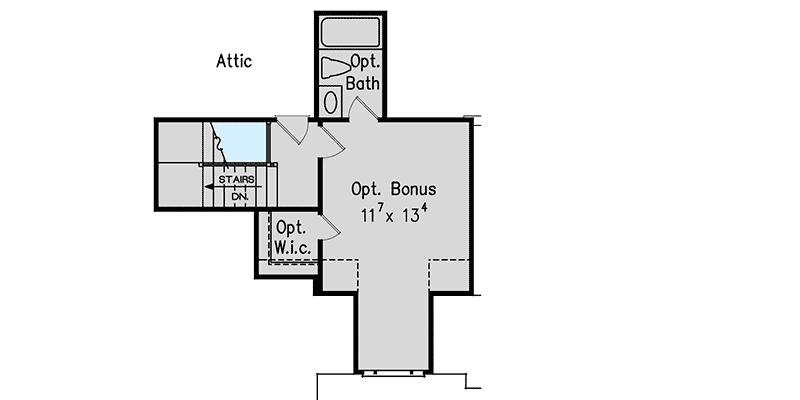

Bonus Level
floor plan image Bonus Level
Plan Details
  • A shed dormer is centered over the front porch on this timeless southern country home plan with side-entry garage.
  • A covered porch accesses a foyer with adjoining open formal dining area leading to the stunning great room, past decorative columns.
  • The master suite is partitioned to the right of the great room, and features a stylish tray ceiling and luscious vaulted bath behind a French door. A separate bedroom is hidden away with its own bath.
  • An ultra-functional kitchen lies to the left of the great room, with an open space adjoining the breakfast area to the latter.
  • The nook opens to the patio via a French door, and affords a panoramic outdoor view through a bayed window. Around a built-in desk and walk-in pantry are the laundry and two bedrooms with shared bath.
  • The staircase and interior access to the garage are located back through the kitchen.
  • Related Plan: Get an alternate exterior with house plan 710147BTZ.
What's Included

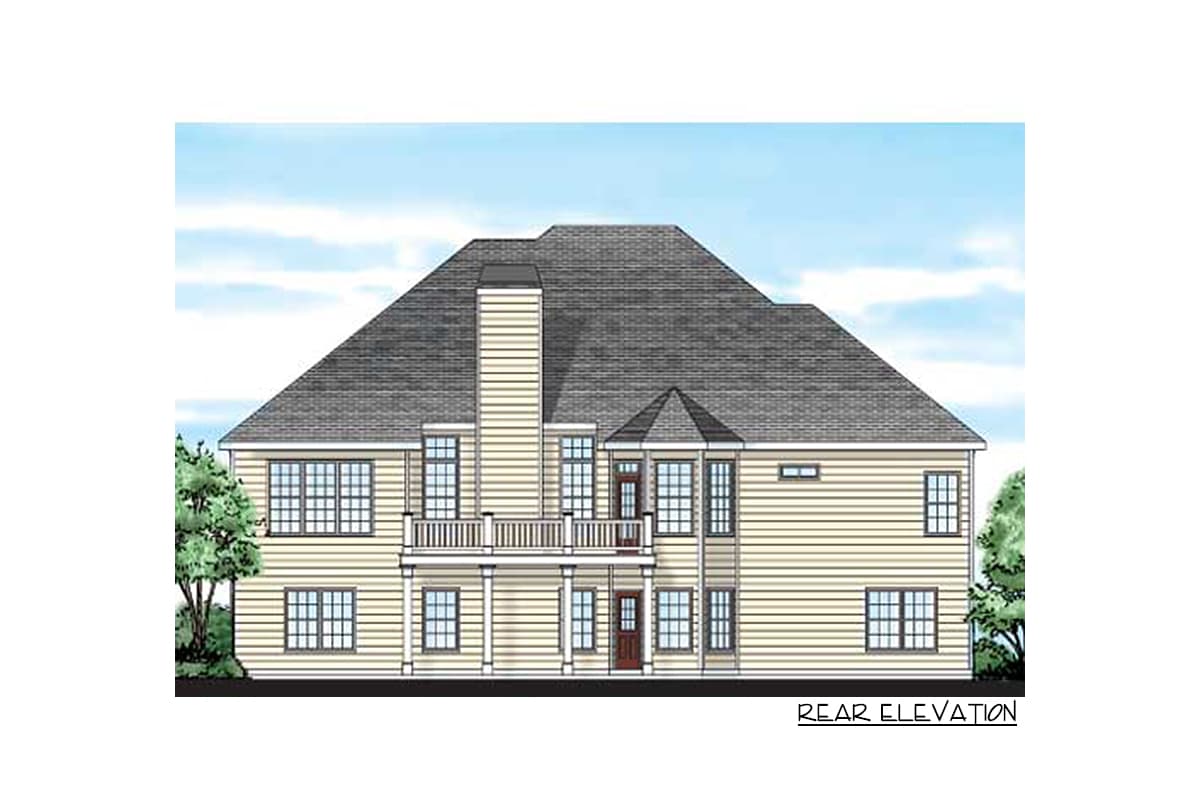

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,054 sq. ft.

1st Floor

2,054 sq. ft.

Basement Unfinished

2,054 sq. ft.

Bonus

306 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

54' 6"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

486 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Southern

Traditional

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor
