Plan 62142V

Southern Country Ranch Home Plan With Poolhouse

Heated S.F.

4,110

Beds

3

Baths

3.5

Stories

1

Cars

3

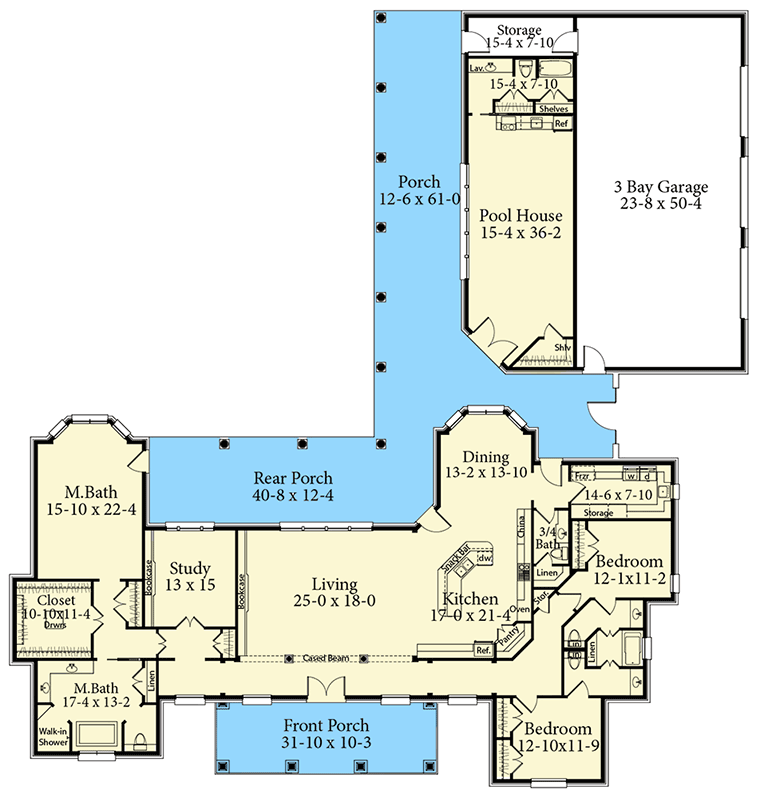

Floor Plan

Main Level

floor plan image Main Level

Plan Details

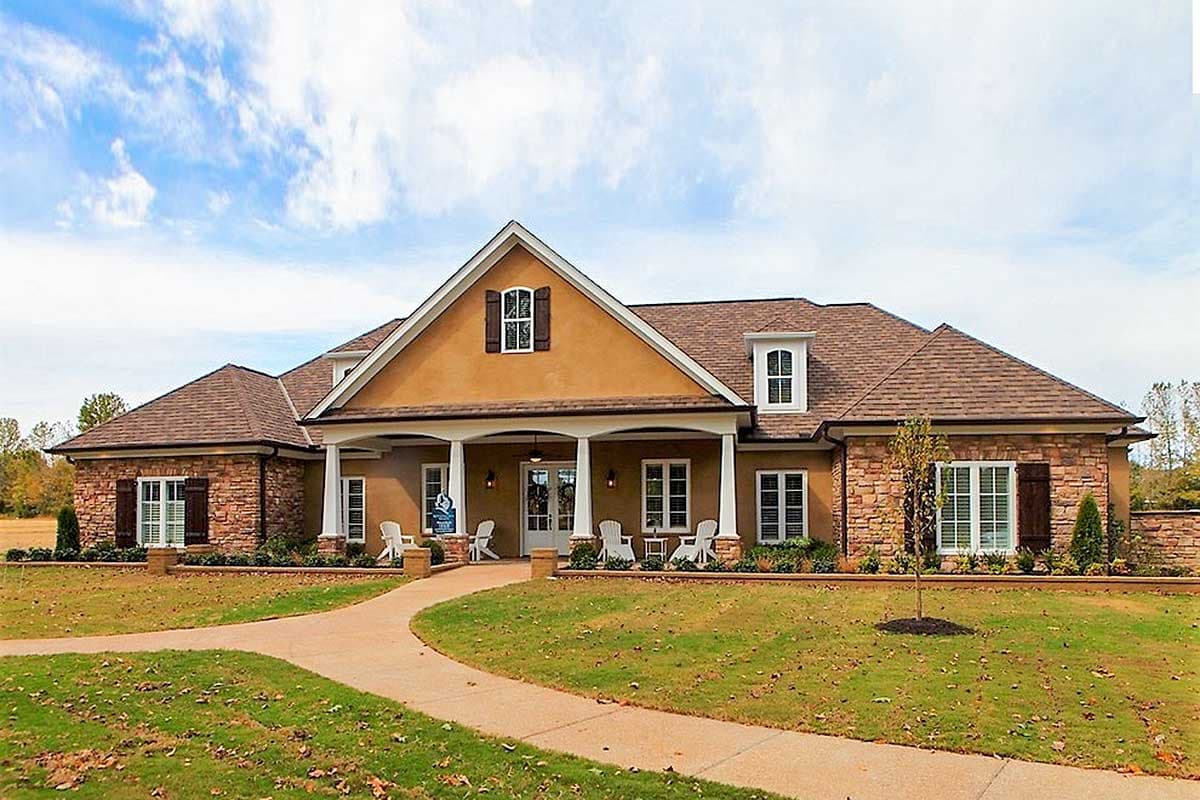

This beautiful Ranch house plan has a wide footprint and offers you a poolhouse behind the 3-car garage.

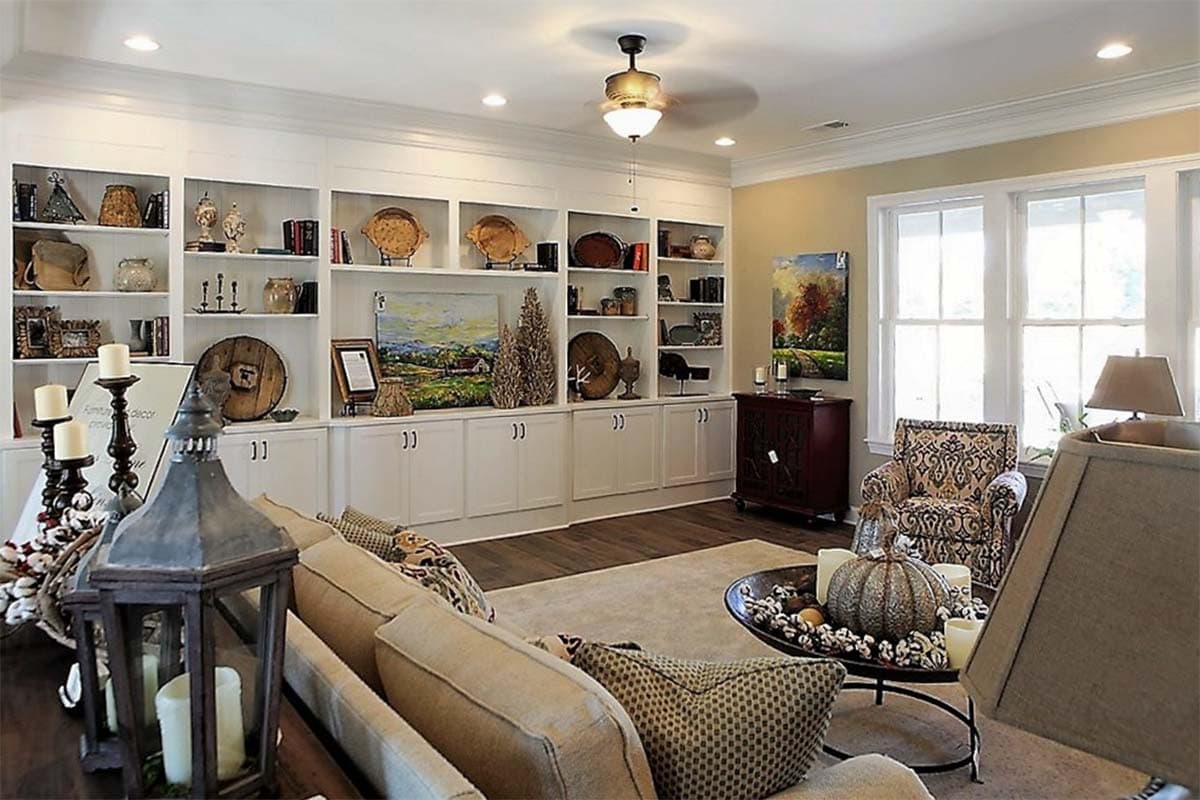

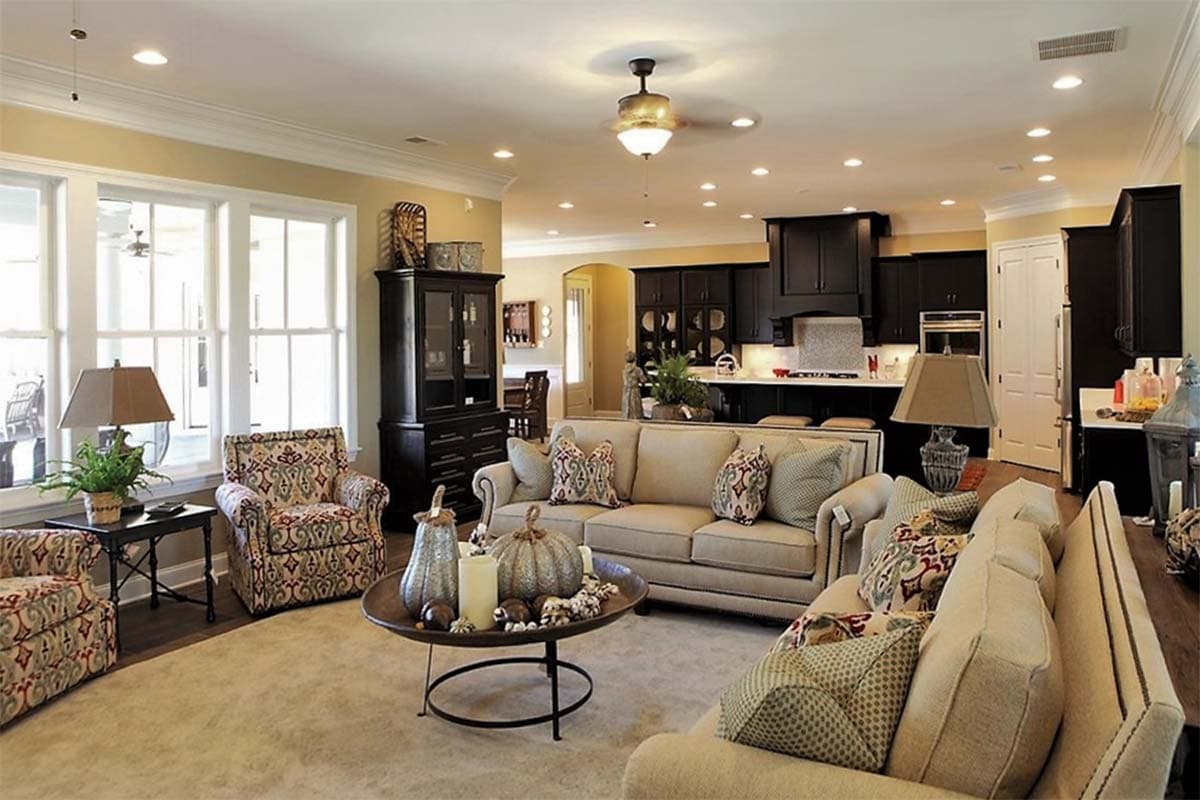

French doors welcome you to the entry hall which opens to the spacious great room with its wall of windows that overlook the enormous porch area in back.

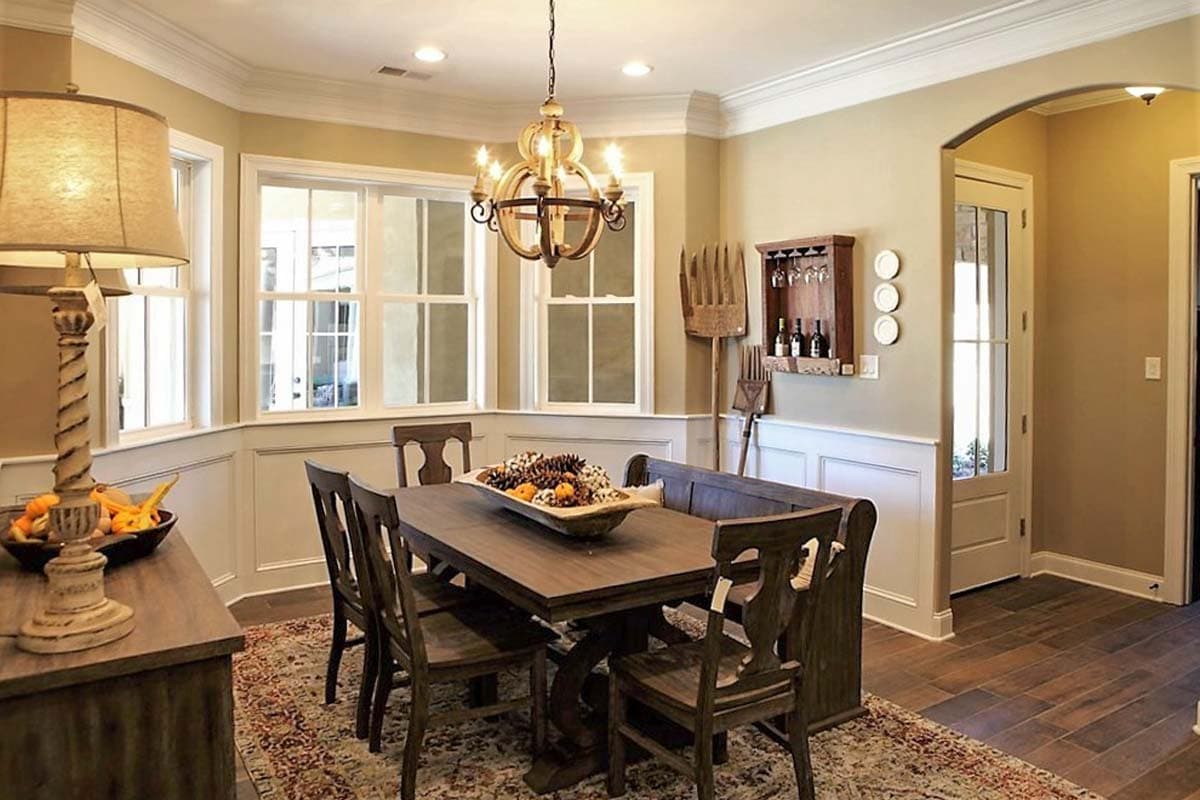

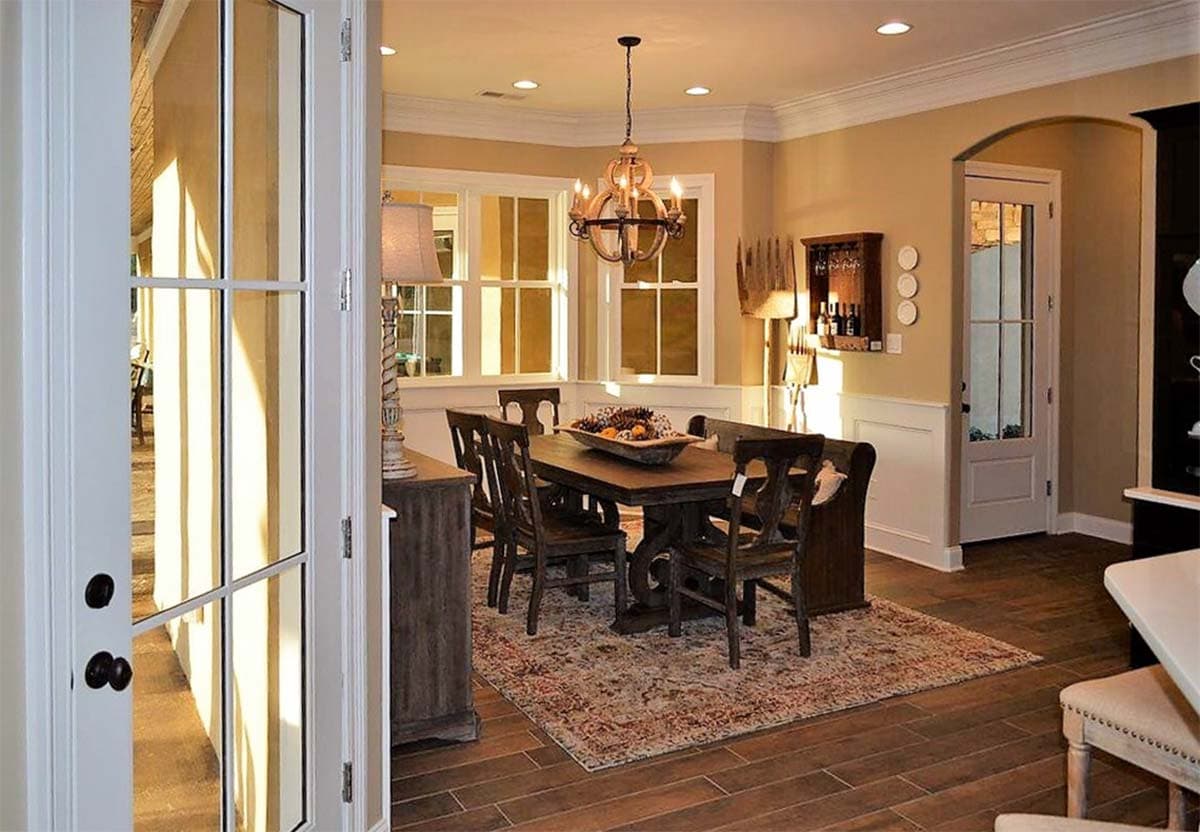

Dine in the large bayed dining area with its views of the spectacular pool house with a mini-kitchen.

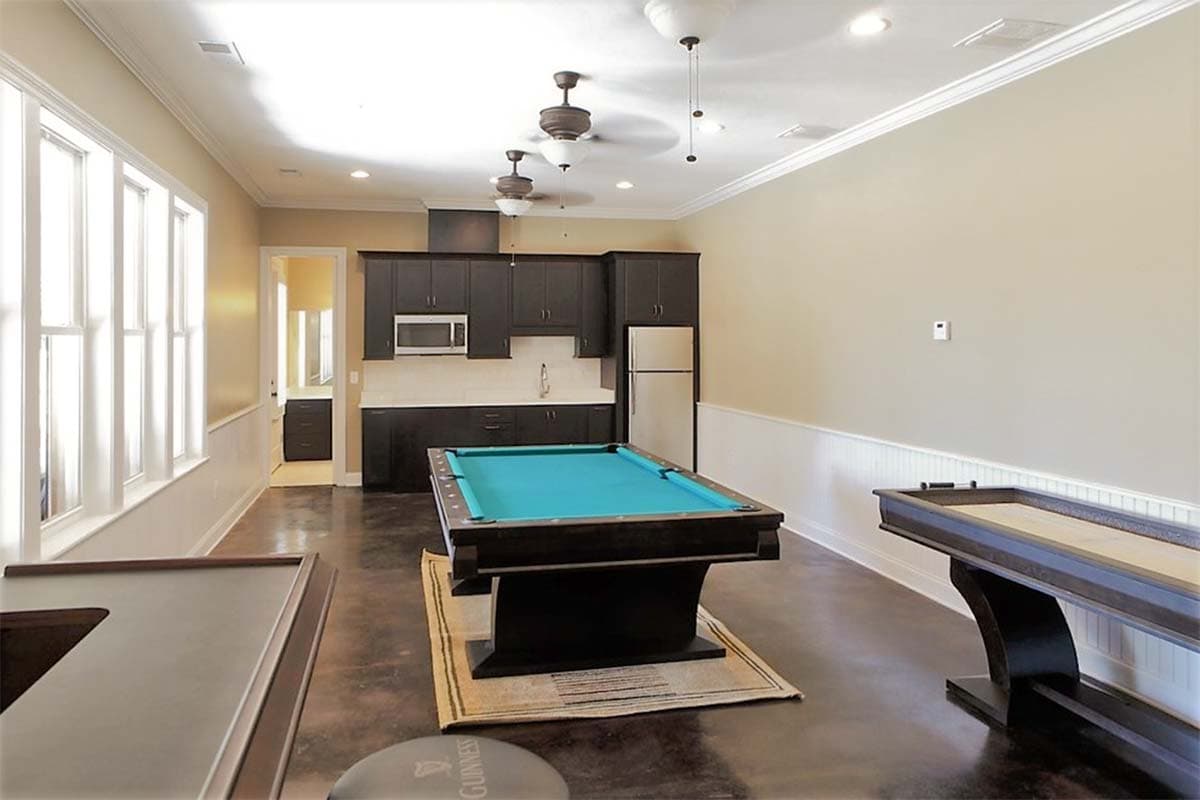

A wall of windows in the pool house brings in extra light and is a great entertaining space. This area could easily be converted to an in-law suite with minor modifications from your builder.

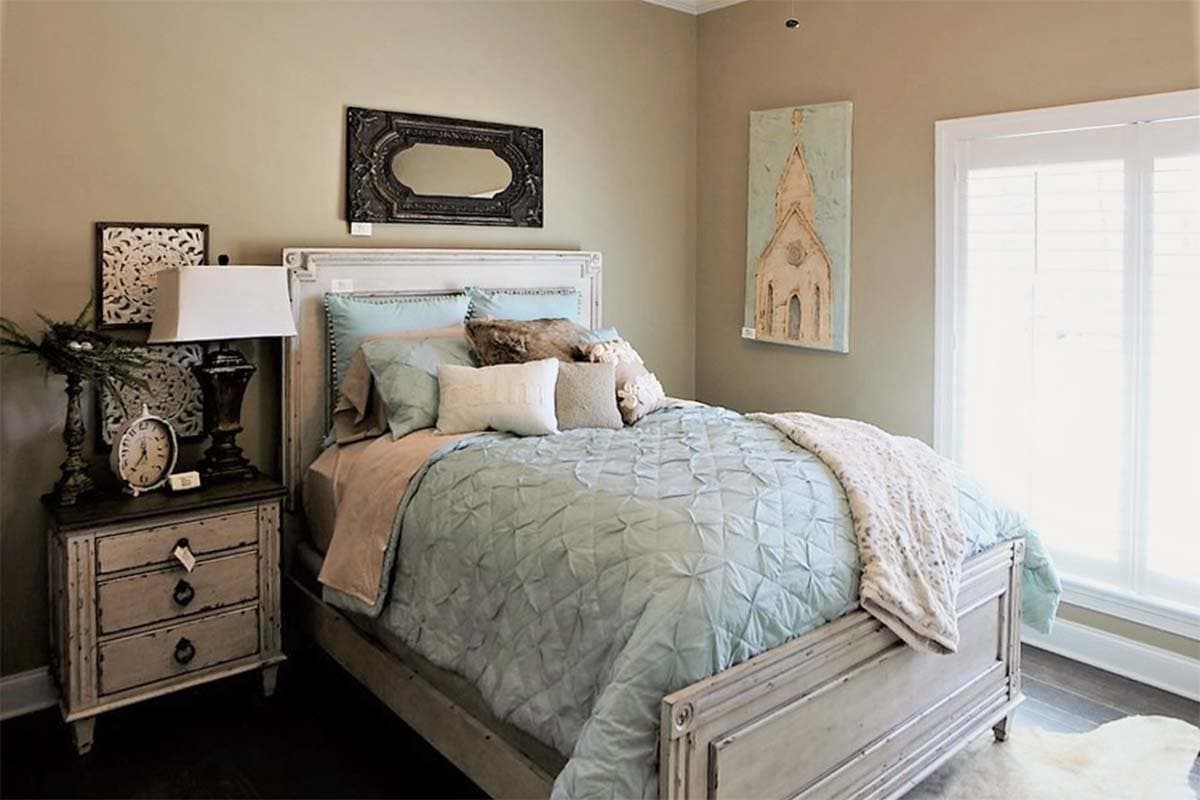

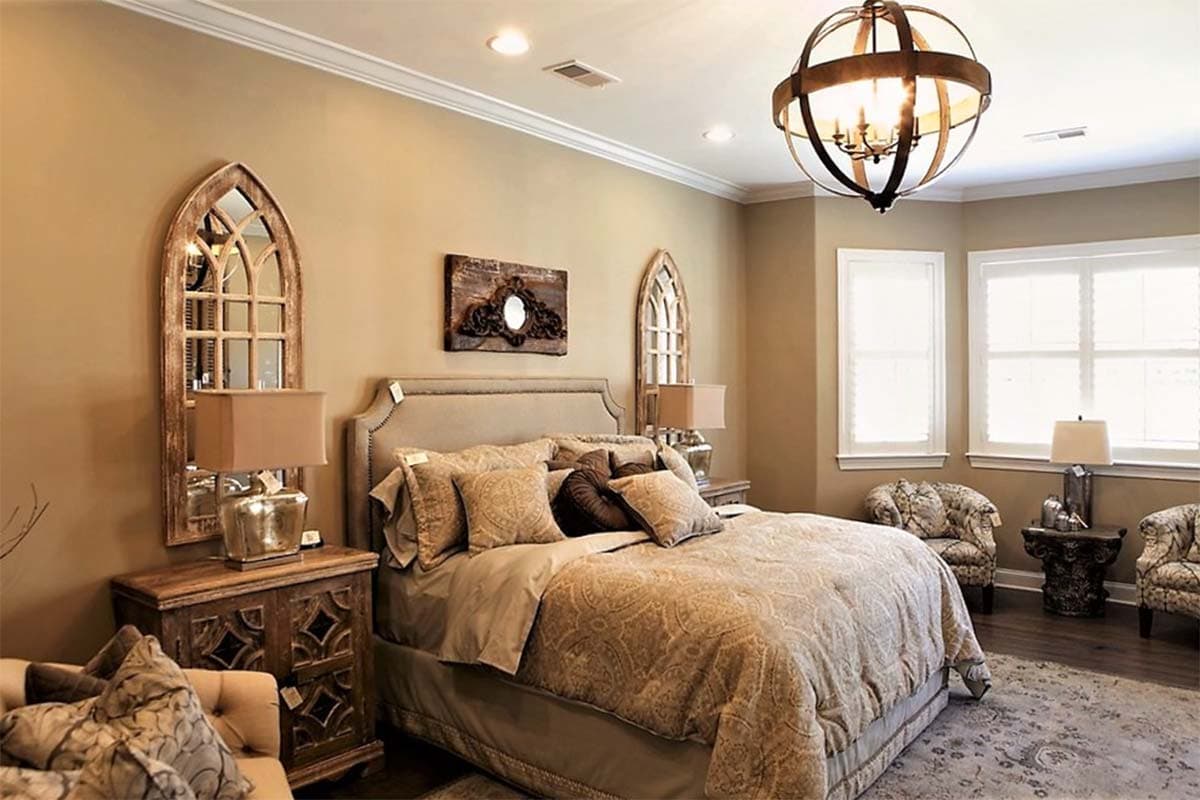

The family bedrooms are located across the home maximizing your privacy in the deluxe master suite with a bayed sitting area.
Related Plan: Get an alternate exterior in reverse layout with house plan 62134V.

What's Included

Covers sheet with construction notes

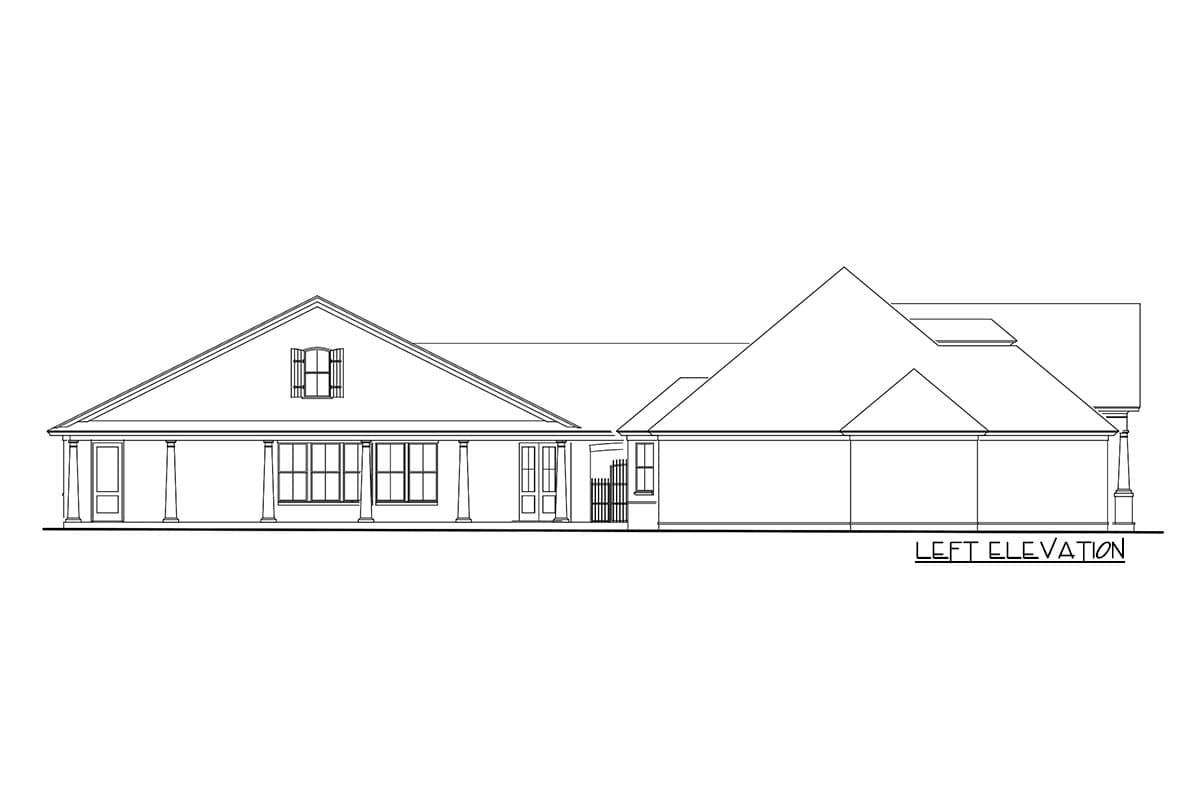

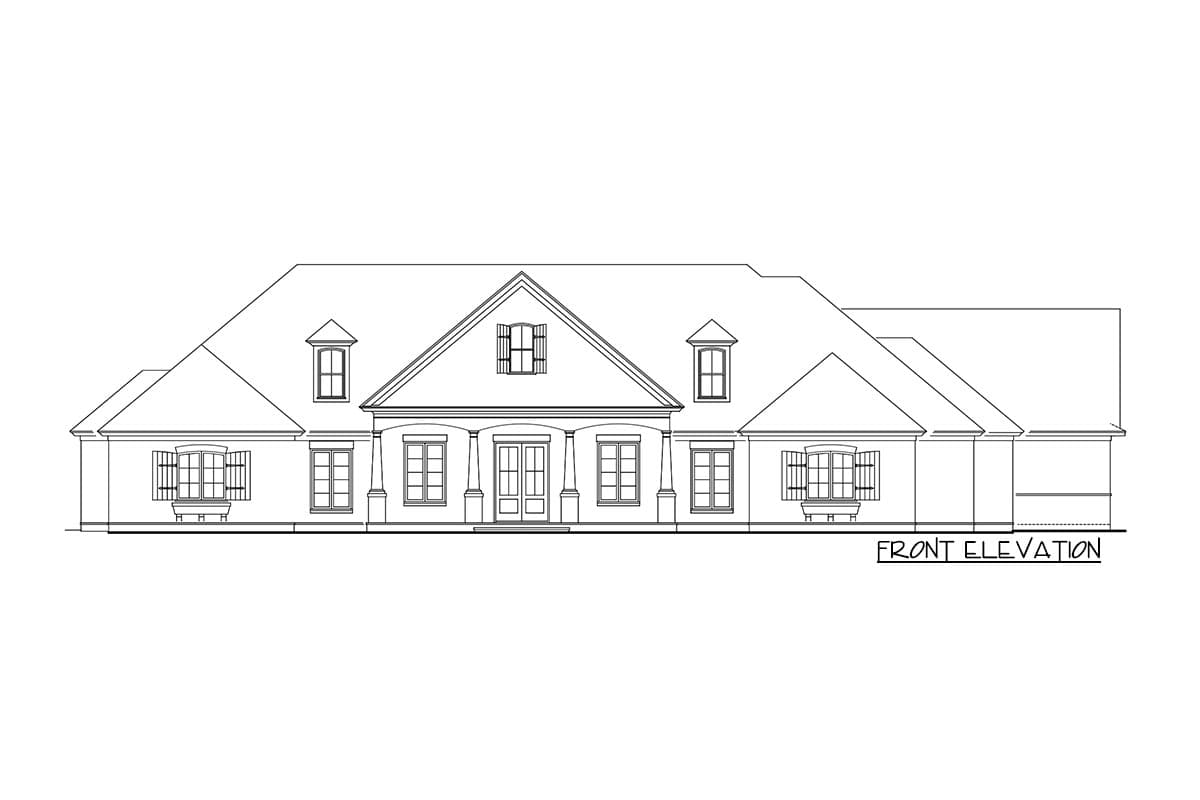

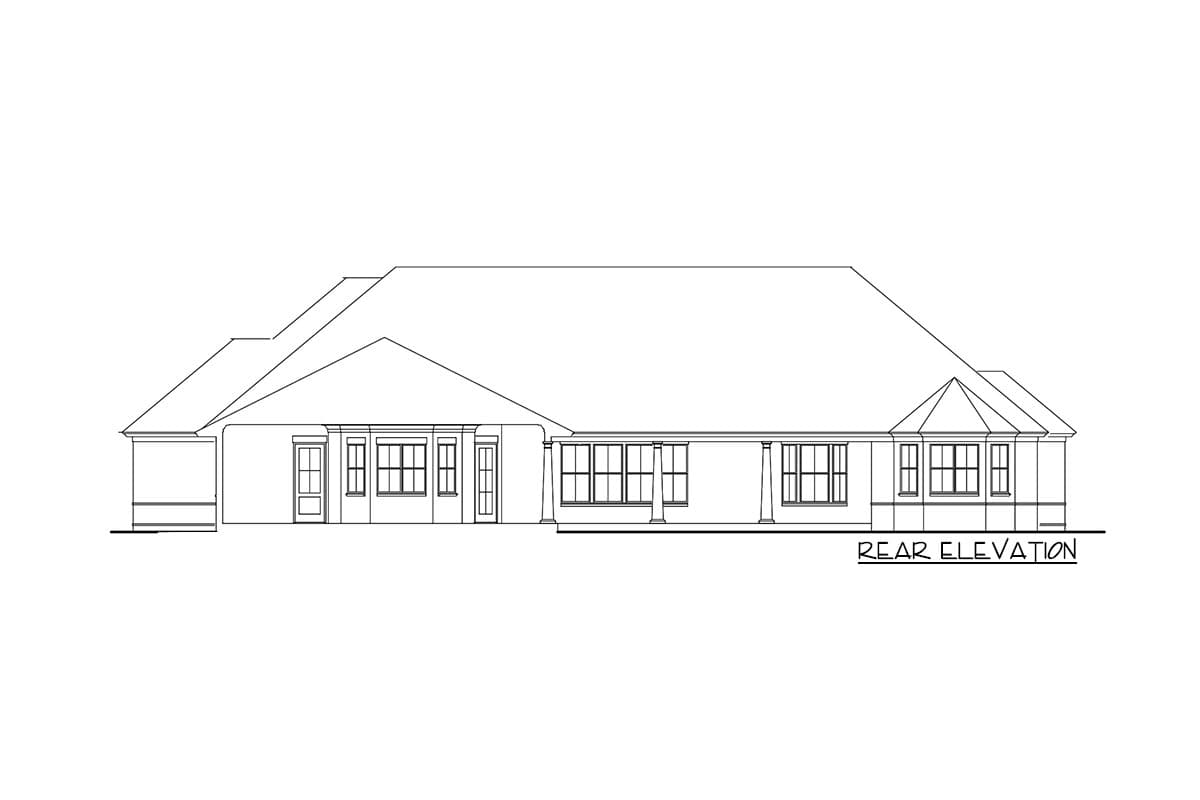

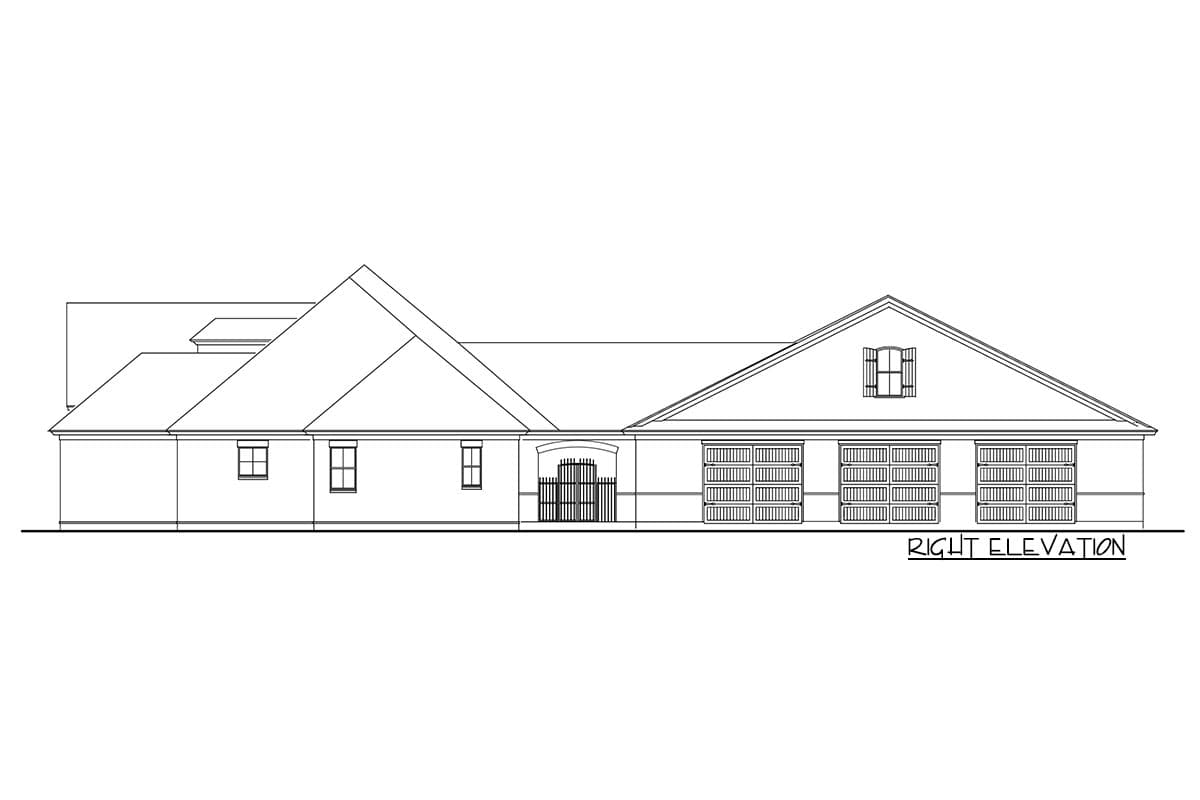

All elevations
Foundation
Fully dimensioned floor plan
Detail and section page
Cabinet elevations
Roof plan
Electrical plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,110 sq. ft.

1st Floor

4,110 sq. ft.

Porch, Combined

1,704 sq. ft.

Storage

107 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

105' 8"

Depth

111' 0"

Garage

Type

Attached

Area

1274 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch
