Southern Escape with Garage Option - 1094 Sq Ft
Heated S.F.
1,094
Beds
2
Baths
2
Stories
1
Floor Plan

Plan 3477VL

Main Level
slide image 0

Plan 3477VL

1-800-854-7852

1-262-521-4596

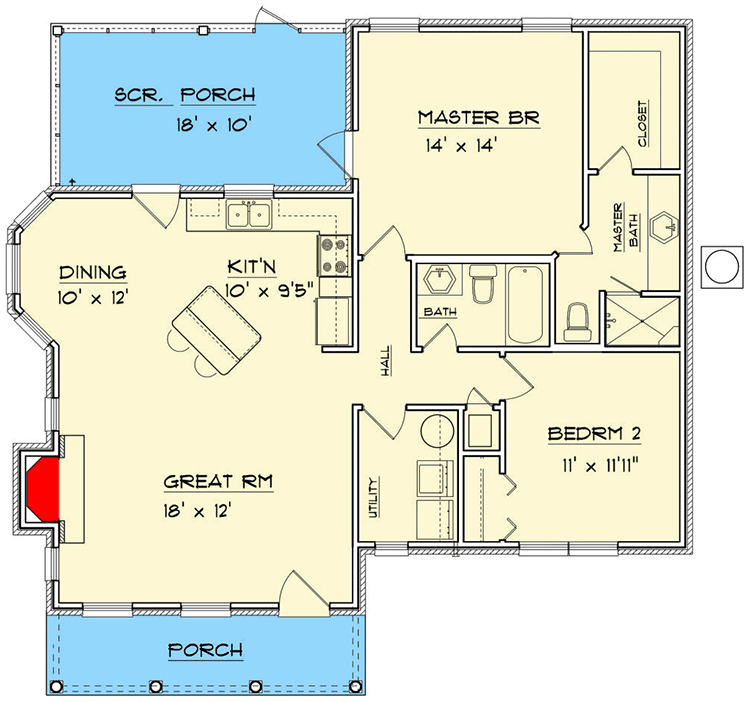

Main Level
floor plan image Main Level
Plan Details
  • Porches front and back give this tidy southern house plan extra room to spread out to.
  • Enjoy the open floor plan with the wide open great room, kitchen and dining room. The bay windows in the dining room make this a light-filled space.
  • The master bedroom has access to the screened porch and has a great walk-in closet.
  • Related Plan: Gain a 2-car garage and get an alternate elevation with house plan 3478VL.
What's Included

  • Front and Right Side Elevations
  • Rear and Left Side Elevations
  • Floor Plan
  • Cabinet Elevations/Cross Sections
  • Foundation Page
  • Foundation Details
  • Electrical Layout
  • Duct Layout

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,094 sq. ft.

1st Floor

1,094 sq. ft.

Porch, Front

90 sq. ft.

Porch, Rear

180 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

38' 0"

Depth

40' 0"

Max Ridge Height

17' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,094 sq. ft.

1st Floor

1,094 sq. ft.

Porch, Front

90 sq. ft.

Porch, Rear

180 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

38' 0"

Depth

40' 0"

Max Ridge Height

17' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
