Plan 59790ND
Southern Home Plan with Flex Room
Heated S.F.
2,675
Beds
3 - 4
Baths
3
Stories
1
Cars
2
Floor Plan

Plan 59790ND

Main Level
slide image 0

Plan 59790ND

1-800-854-7852

1-262-521-4596

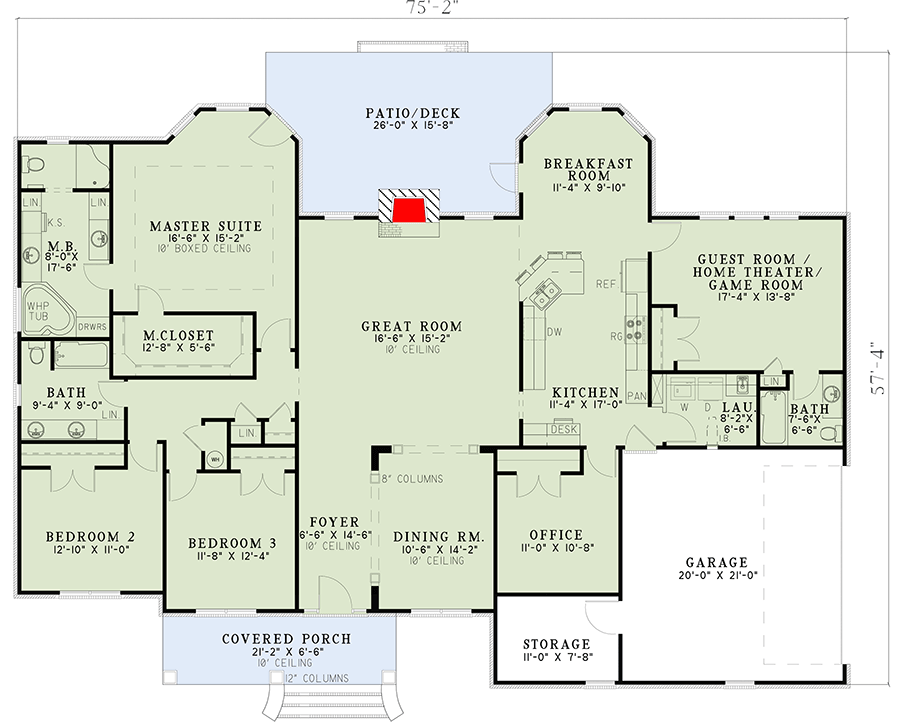

Main Level
floor plan image Main Level
Plan Details
  • This 2,675 square foot Home & Garden > House Plans > Ranch house plan gives you 3-4 Beds 3 Baths and a 664 square foot 2 Cars garage
  • Architectural Designs primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,675 sq. ft.

1st Floor

2,675 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

75' 2"

Depth

57' 4"

Max Ridge Height

23' 8"

Garage

Type

Attached

Area

664 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Special Features

Bedrooms - Clustered

Flex Room

Master Suite - 1st Floor
