Plan 83815JW
Southern House Plan with Open Layout
Heated S.F.
2,019
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 83815JW

Main Level
slide image 0

Plan 83815JW

1-800-854-7852

1-262-521-4596

Main Level

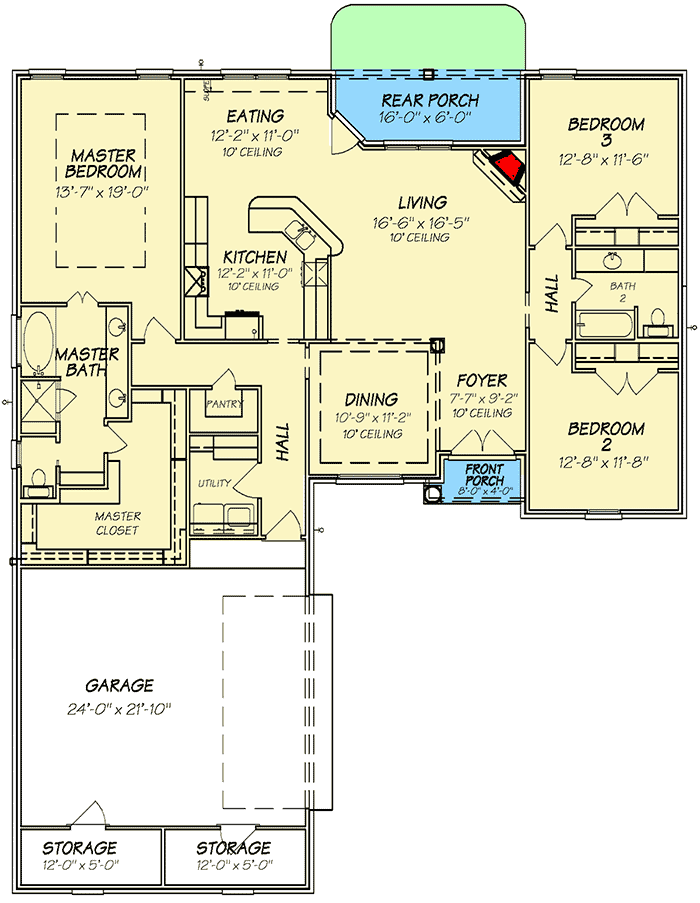

floor plan image Main Level
Plan Details
  • Beautiful sightlines start right at the front door of this one level Southern house plan, thanks to the open layout.
  • The formal dining room uses an interior column instead of walls that block views.
  • Dine informally at the peninsula eating bar or in the eating nook - your choice.
  • A quiet master suite is yours to enjoy, with the family bedrooms placed on the opposite side of the home.
  • The huge L-shaped master walk-in closet gives you a tremendous amount of storage space.
What's Included
  • Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
  • Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us
