Plan 86301HH
Southern Ranch House Plan
Heated S.F.
1,763
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 86301HH

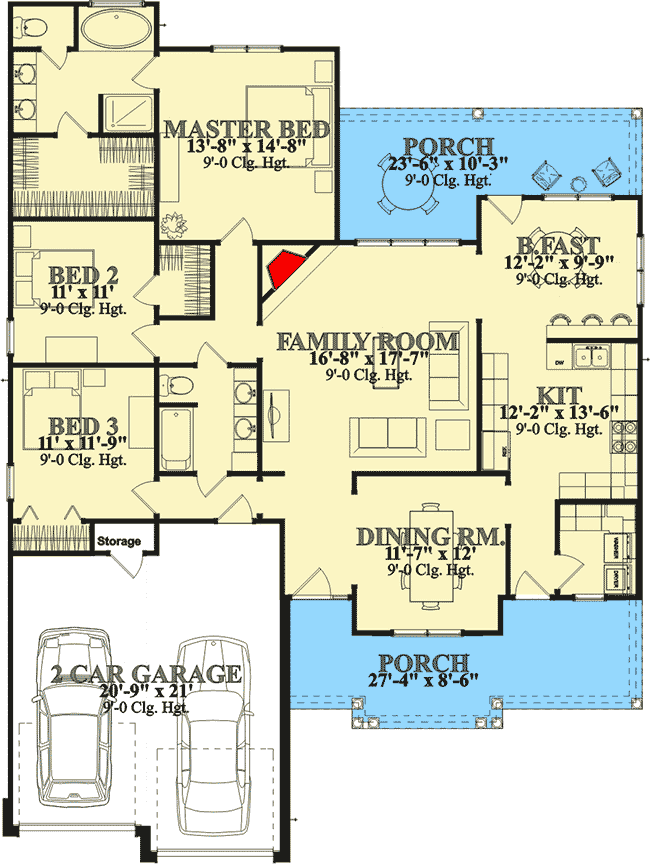

Main Level
slide image 0

Plan 86301HH

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

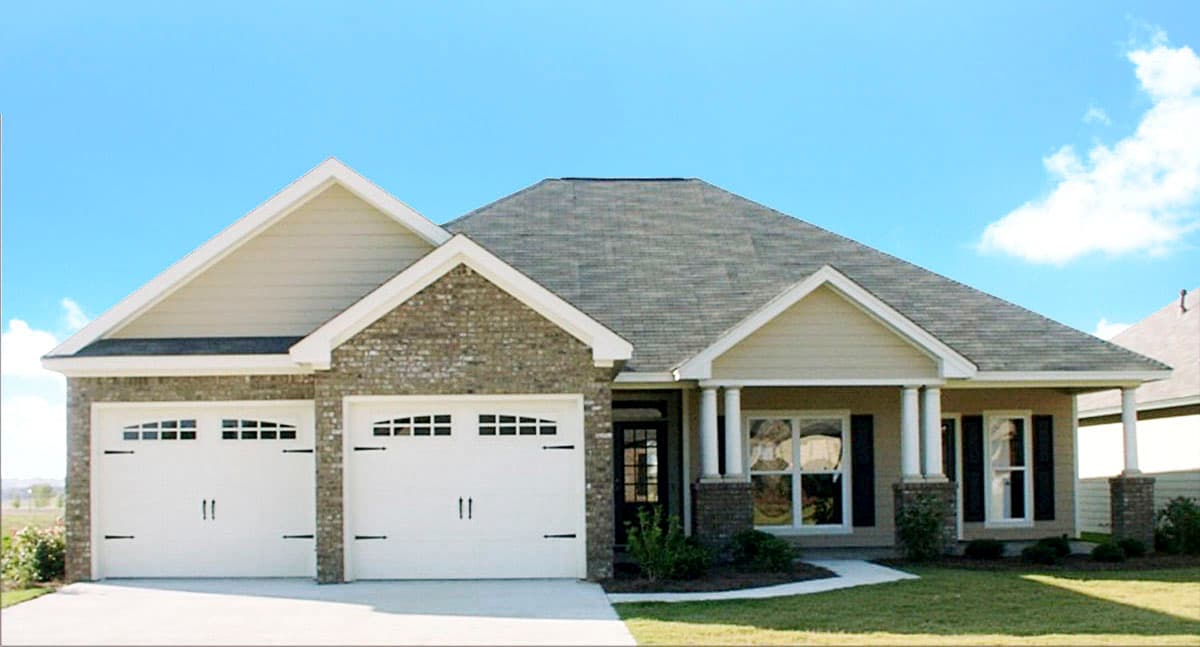

  • The elegant hip roof and shaded front porch help to keep this Southern ranch house plan cool and comfortable.
  • The floor plan is laid out to give you three bedrooms in a width less than 50' wide.
  • Dine in the formal dining room at the front or in the big breakfast nook in back that has windows on two walls.
  • The kitchen sink is positioned so you can see out to the rear covered porch.
  • A corner fireplace warms the large family room.
  • All the bedrooms are grouped on the left side of the home with the large master suite in back.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,763 sq. ft.

1st Floor

1,763 sq. ft.

Porch, Combined

414 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

49' 7"

Depth

66' 8"

Max Ridge Height

23' 4"

Garage

Type

Attached

Area

533 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Master Suite - 1st Floor
