Plan 62125V
Southern Ranch with 3 Clustered Bedrooms
Heated S.F.
1,609
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 62125V

Main Level
slide image 0

Plan 62125V

1-800-854-7852

1-262-521-4596

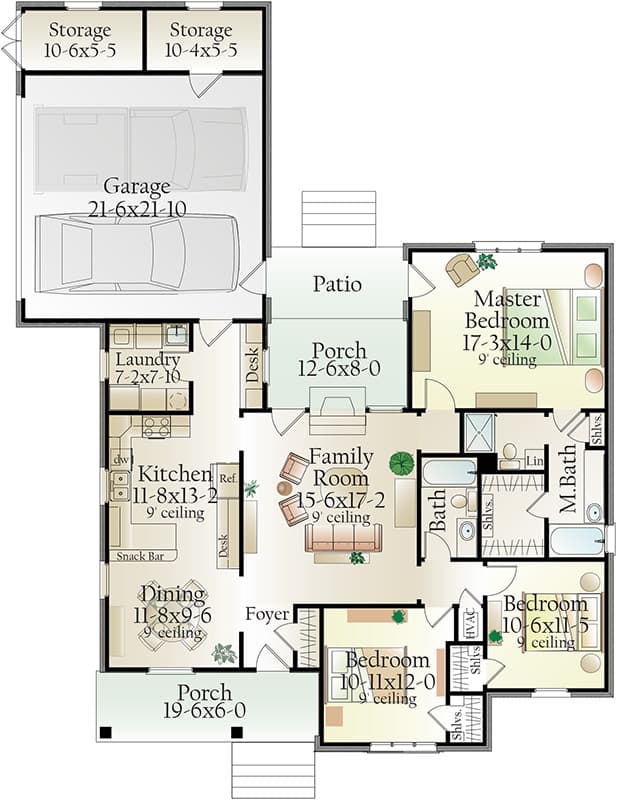

Main Level
floor plan image Main Level
Plan Details
  • This one-story southern ranch home plan has a brick exterior and an attractive hip roof.
  • All the bedrooms are clustered on the right side of the home, leaving the rest of the home open for gathering with friends and family.
  • The family room has a fireplace centered on the back wall and a door that takes you to the porch.
  • There's snack bar seating in the kitchen, which opens to the dining room for more formal meals.
  • The laundry room doubles as a mud room and is located by the garage entrance.
  • Related Plan: Get an alternate exterior with house plan 62109V.
What's Included
  • Covers sheet with construction notes
  • All elevations
  • Foundation
  • Fully dimensioned floor plan
  • Detail and section page
  • Cabinet elevations
  • Roof plan
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,609 sq. ft.

1st Floor

1,609 sq. ft.

Porch, Front

117 sq. ft.

Porch, Rear

101 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 6"

Depth

67' 1"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

660 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
