Plan 264031KMD

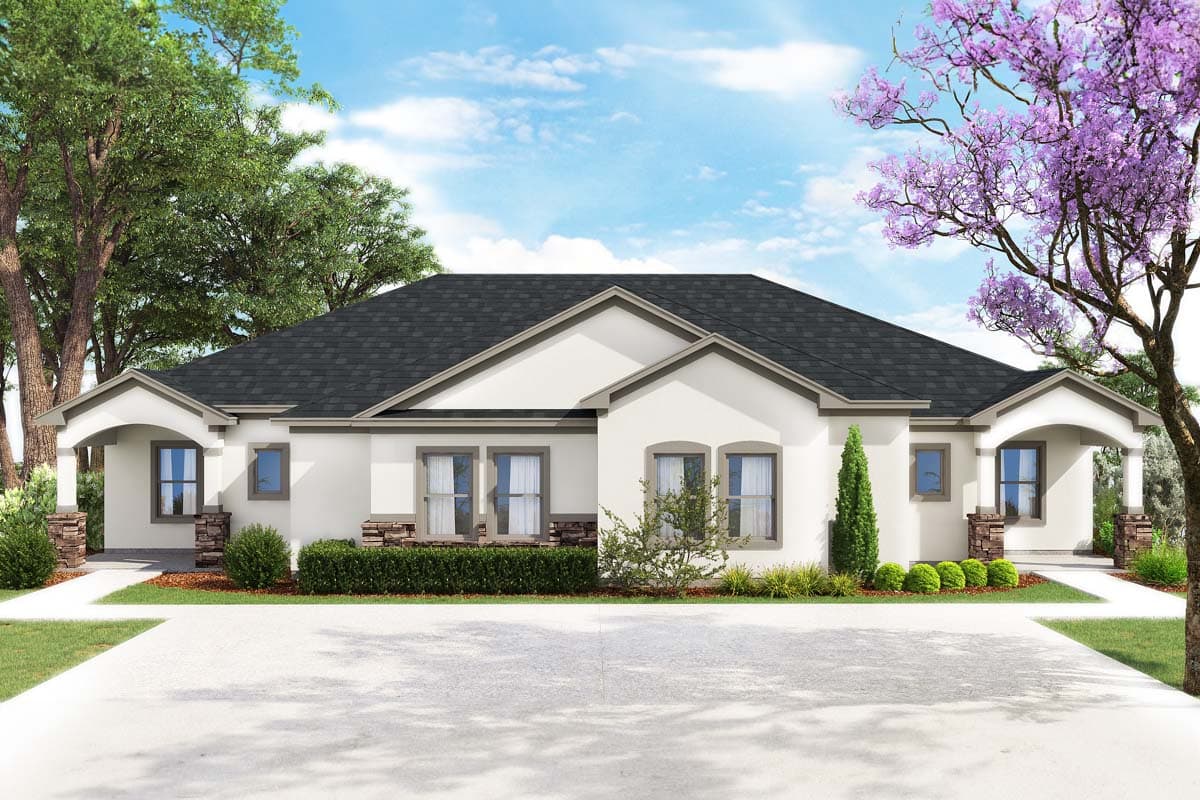

Southern-Style Duplex House Plan with 2 Bed 2 Bath Units - 1388 Sq Ft
Heated S.F.
2,776
Units
2
Width
Depth
Floor Plan

Plan 264031KMD

Main Level
slide image 0

Plan 264031KMD

1-800-854-7852

1-262-521-4596

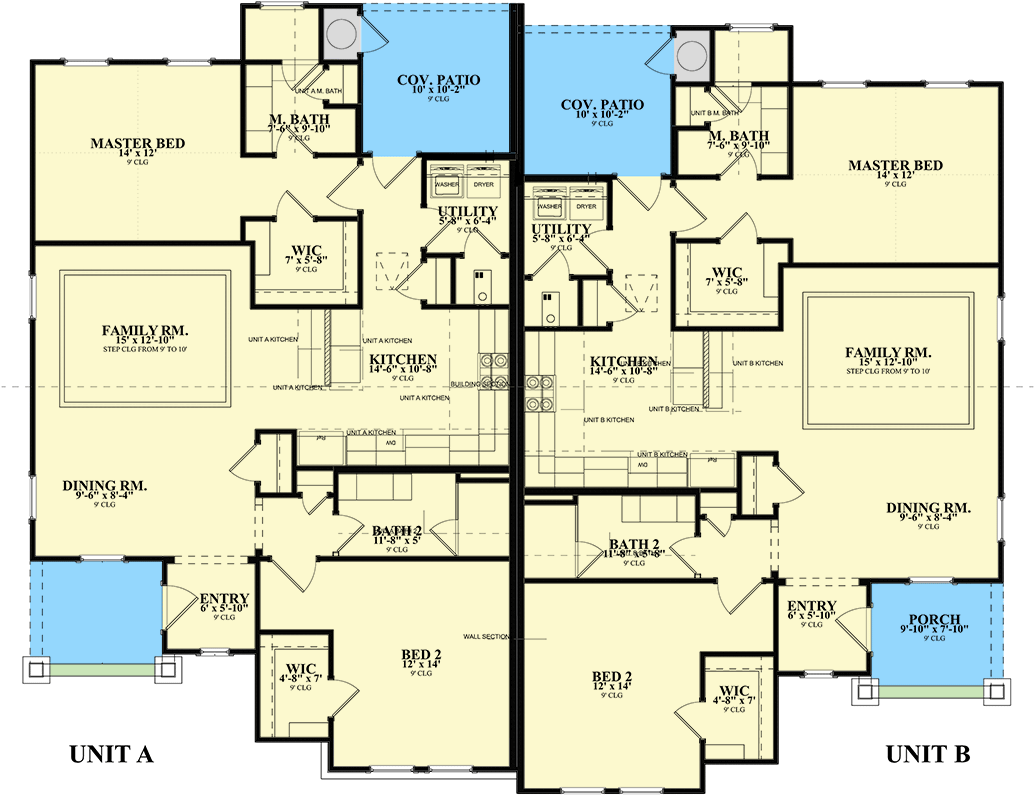

Main Level
floor plan image Main Level
Plan Details
  • This duplex house plan gives you matching 2 bed, 2 bath units each with 1,388 square feet of heated living space.
  • The center of the home is open concept with the family room having a 9' to 10' step ceiling open to the dining room and the kitchen.
  • A split layout has the master bedroom in back and Bed 2 in front. Laundry is located by the back patio.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes.
  • Our website offers a vast collection of multi-family house plans, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get smaller 1,159 square foot units with house plan 264030KMD.
Unit A
1,388Sq. Ft.
1388 Sq. Ft.
1st Floor
2Beds
2Full Baths
None
33' 2"width
53' 10"depth
15' 8"height
Unit B
1,388Sq. Ft.
2776 Sq. Ft.
1st Floor
2Beds
2Full Baths
None
33' 2"width
53' 10"depth
15' 9"height
What's Included

  • Foundation Plan: Includes the complete foundation with dimensions, plumbing locations for slabs and reference details for foundation construction.  Also includes any specific construction notes or requirements to ensure proper installation. Does not include Structural Engineering stamp due to regional specification and requirements per local conditions. Typically, structural requirements can be obtained by local lumber supplier for little or no cost.
  • Elevations: Exterior views from all four directions that includes dimensions, height dimensions including finished floor to highest point of the structure.  Also includes all special construction notes, finishes and applicable elements that need extra detail to convey the design intent to construct in the field correctly.
  • Floor Plan(s): Complete with dimensions of wall locations, windows, doors, cabinetry, and special construction elements. Notes including standard and special conditions tailored for the tradesmen in mind. We strive to give your contractor more dimensions than they need.
  • Roof Plan: Complete with overhang dimensions, plate heights which remove the guesswork of how the roof is properly constructed.  Also includes roof pitches, notes for special conditions, roof square footage which is a big help estimating roof materials and reducing job site waste.
  • Details: All relevant details including Cornice (eave) which are designed directly from each plan "we do not reuse details with each plan." we also include applicable enlarged details which need even more magnification in order to properly explain the design intent.
  • Interior Elevations: Inside views of the structure, including cabinetry, electrical and any applicable special construction that needs that extra level of detail.
  • Sections: Also known as a cut through the entire structure.  This explains in further detail how the structure is built and properly braced to ensure a safe home. Our practice also includes complete dimensions, notes, and any required special attention needed.
  • Electrical Plan: Complete with layout and location of lights, switches and plugs.  When we include wall plugs, we go beyond the code standards, which gives you more walls to choose to plug up your appliance.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,776 sq. ft.

1st Floor

2,776 sq. ft.

Porch, Front

80 sq. ft.

Porch, Rear

107 sq. ft.

Covered Patio

214 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

66' 4"

Depth

53' 10"

Max Ridge Height

15' 8"

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

European

Florida

Southern

Southwest

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
