Plan 623258DJ
Southwest House Plan with U-Shaped Kitchen and Master Suite with Private Deck
Heated S.F.
1,951
Beds
3
Baths
2.5
Stories
2
Cars
2
Tour
Floor Plan

Plan 623258DJ

Main Level
slide image 0

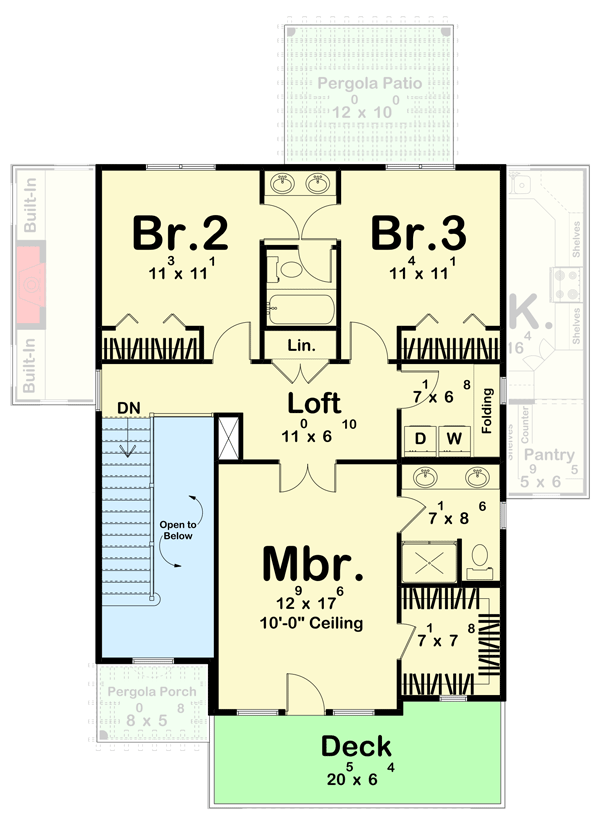

2nd Floor
slide image 1

Plan 623258DJ

1-800-854-7852

1-262-521-4596

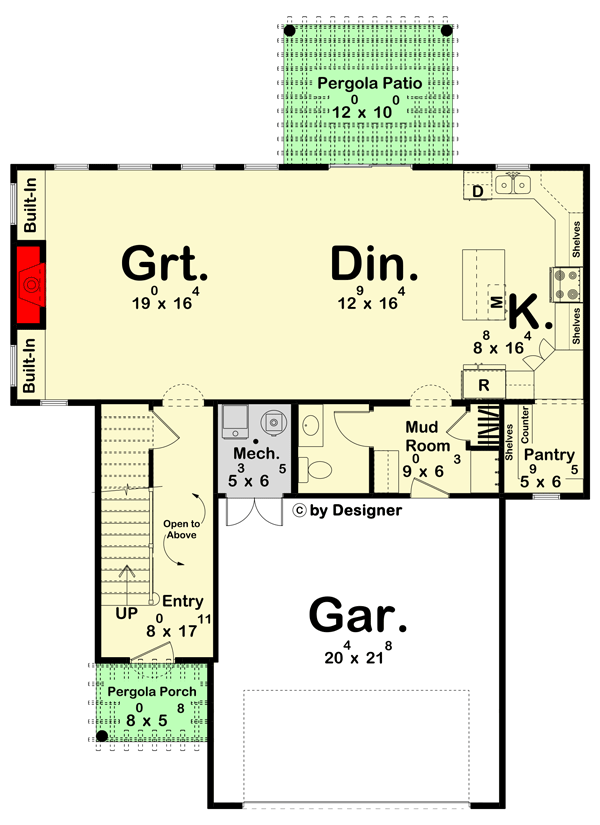

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • The Adobe-style home plan gives you 3 beds, 2.5 baths and 1,951 square feet of two-floor living. The main living area is spacious and seamlessly connects with the kitchen, dining area, and great room. The kitchen has a generous walk-in pantry and an open layout that allows you to interact with guests while cooking.
  • Sliding doors in the dining room take you to a 12' by 10' pergola giving you a great fresh air space to enjoy.
  • The upper level of the home has 3 bedrooms, including a grand master suite with a private deck. The master suite is spacious and has its own private bathroom, walk-in closet, and deck. The deck is a secluded outdoor retreat where you can enjoy your morning coffee or stargaze at night.
  • The home plan also has a 2-car garage and is decorated with Southwestern-style accents throughout.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,951 sq. ft.

1st Floor

998 sq. ft.

2nd Floor

953 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

41' 0"

Depth

55' 8"

Max Ridge Height

23' 9"

Garage

Type

Attached, Drive Under

Area

454 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Adobe

Southwest

Spanish

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,951 sq. ft.

1st Floor

998 sq. ft.

2nd Floor

953 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

41' 0"

Depth

55' 8"

Max Ridge Height

23' 9"

Garage

Type

Attached, Drive Under

Area

454 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Adobe

Southwest

Spanish

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Mudroom
