Plan 0846W
Southwestern Flourishes
Heated S.F.
2,000
Beds
2 - 3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 0846W

Main Level
slide image 0

Plan 0846W

1-800-854-7852

1-262-521-4596

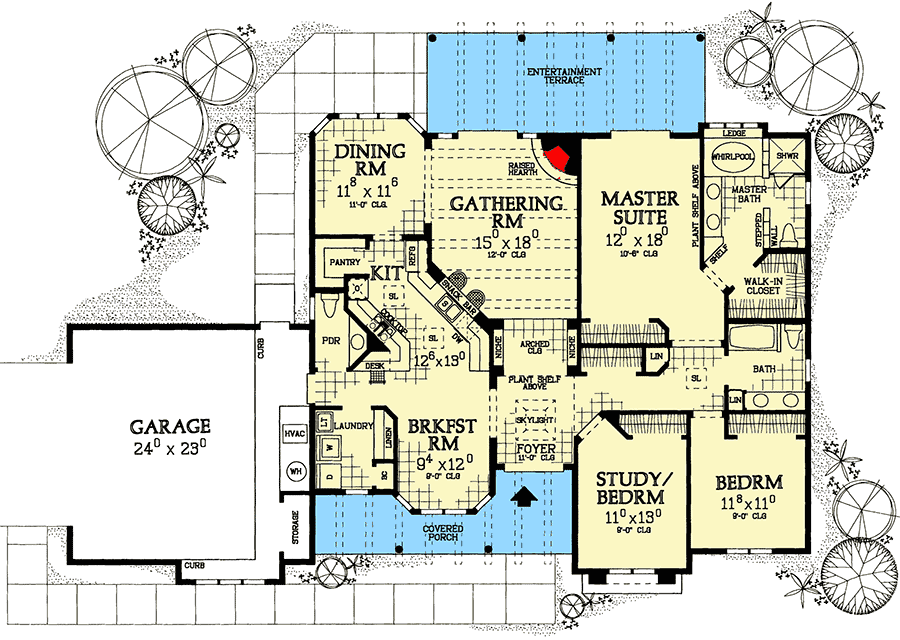

Main Level
floor plan image Main Level
Plan Details
  • With its touches of Santa Fe and the Southwest, this one-story stucco design will captivate you.
  • Crossing over the covered columned porch, you enter the foyer, where the skylight, set in an arched ceiling, bathes the area in natural light. This area leads you to the gathering room, which gains distinction from its raised-hearth corner fireplace and view of the entertainment terrace beyond.
  • The adjacent bayed-out dining room connects to the large kitchen and breakfast room, also bayed. Among the amenities here are a walk-in pantry and a snack bar opening to the gathering room.
  • In the bedroom wing, the rear-facing master suite features a walk-in closet and a luxurious bathroom with whirlpool tub, separate shower and his and her vanities. A second full bath is shared by the other bedrooms, one of which could also serve as a study.
What's Included
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,000 sq. ft.

1st Floor

2,000 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

75' 0"

Depth

55' 0"

Max Ridge Height

18' 0"

Garage

Type

Attached

Area

552 sq. ft.

Count

2 Cars

Roof Details

Framing Type

Stick

Architectural Style

Adobe

Southwest

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,000 sq. ft.

1st Floor

2,000 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

75' 0"

Depth

55' 0"

Max Ridge Height

18' 0"

Garage

Type

Attached

Area

552 sq. ft.

Count

2 Cars

Roof Details

Framing Type

Stick

Architectural Style

Adobe

Southwest

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
