Plan 666111RAF
Spacious 2-Story Contemporary House Plan with ADU above 4-Car Garage
Heated S.F.
6,767
Beds
7 - 8
Baths
7.5
Stories
2
Cars
4
Floor Plan

Plan 666111RAF

Main Level
slide image 0
2nd Floor
slide image 1

Plan 666111RAF

1-800-854-7852

1-262-521-4596

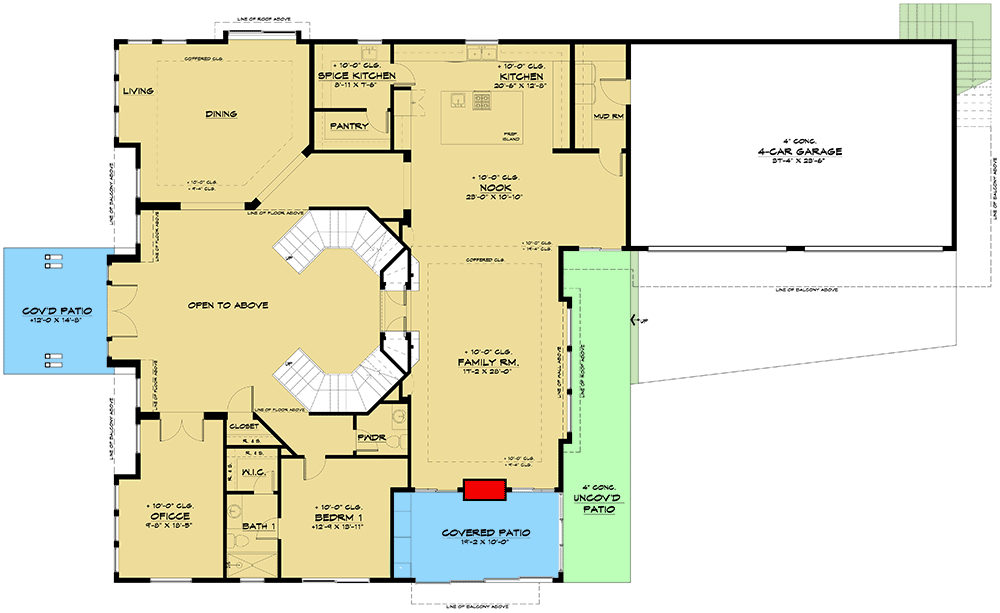

Main Level
floor plan image Main Level

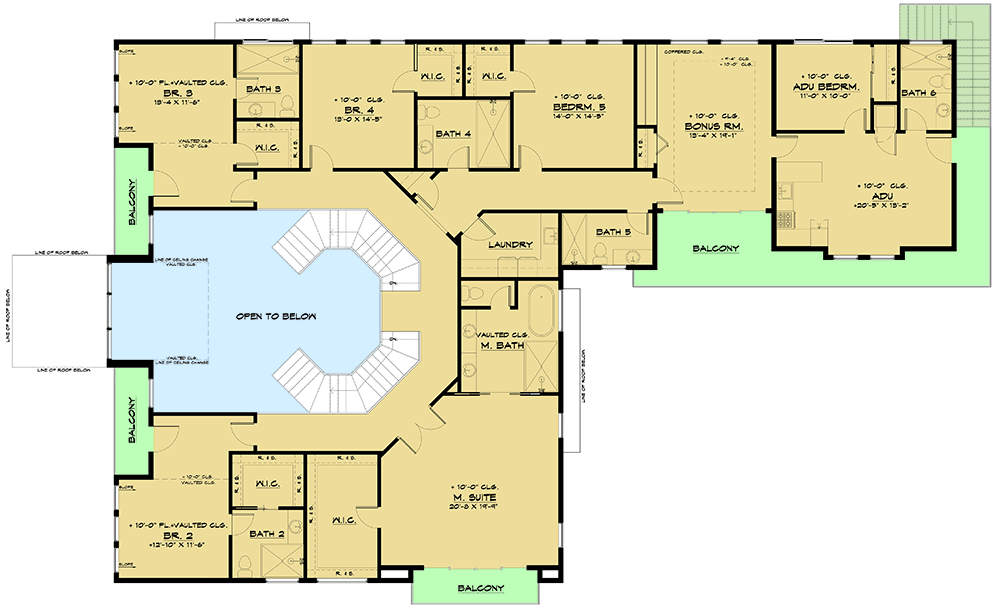

2nd Floor
floor plan image 2nd Floor
Plan Details

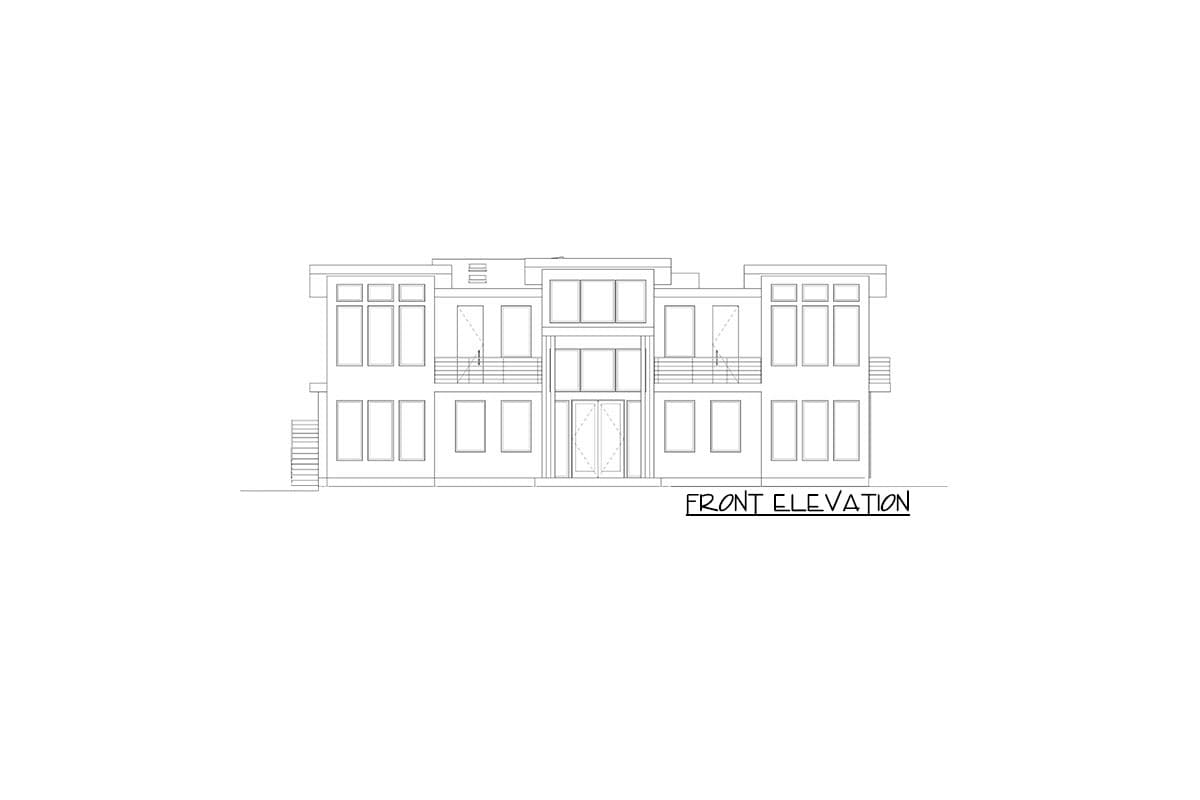

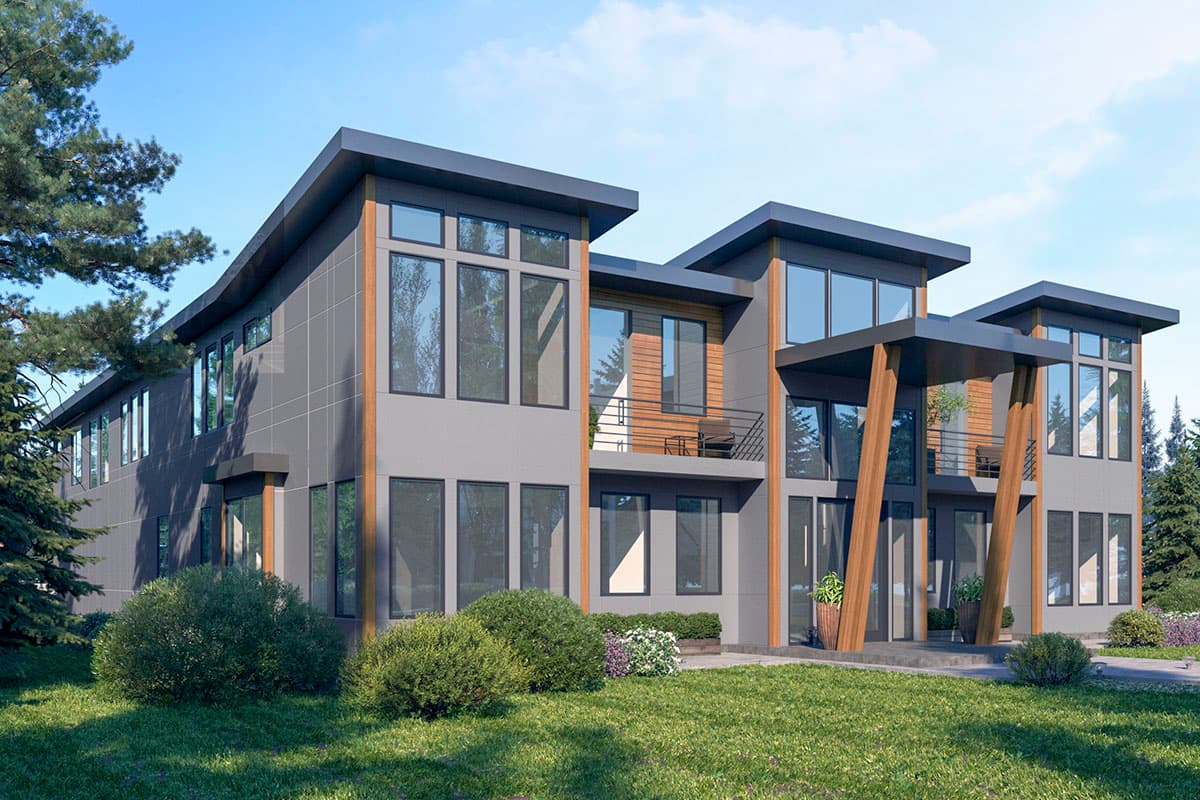

  • The symmetrical front elevation of this 2-story, contemporary house plan is packed with oversized windows, creating a light and airy interior space.
  • Enter through double doors to find a grand entryway with tall ceilings and a double-sided staircase. A home office and bedroom suite is located to the right of the foyer, across from the formal dining room.
  • Towards the back of the main level, the combined family room and kitchen offer a comfortable space for family and friends to gather, while a large cooktop island and spice kitchen provide plenty of workspace and storage.

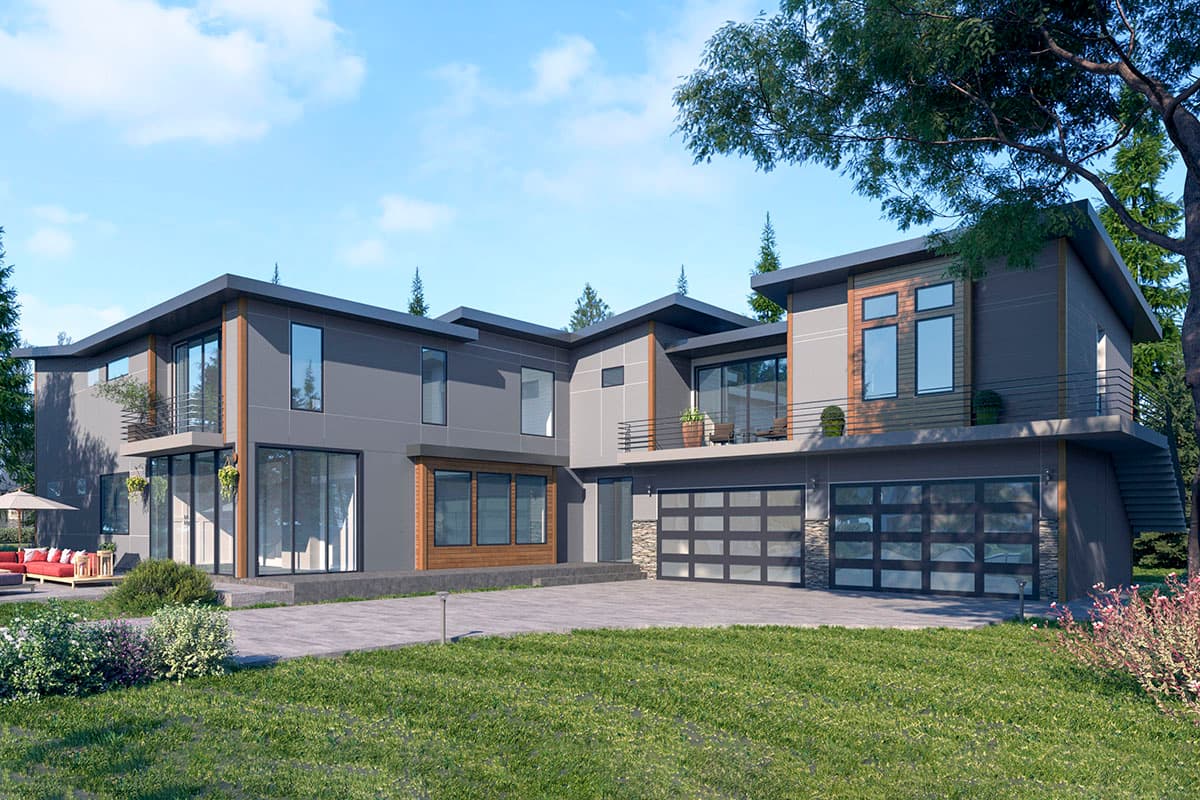

  • A 4-car garage attaches to the rear of the home, and enters into a mud / laundry room. A private external staircase leads to a 1-bedroom apartment above the garage; perfect for guests or in-laws.
  • Five additional bedroom suites and a bonus room are located upstairs, including the master suite that boasts a private balcony, walk-in closet, and 5-fixture ensuite.
What's Included
  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

6,767 sq. ft.

1st Floor

3,246 sq. ft.

2nd Floor

3,521 sq. ft.

Porch, Front

182 sq. ft.

Porch, Rear

202 sq. ft.

Balcony / Veranda

159 sq. ft.

Beds/Baths

Bedrooms

7 or 8

Full bathrooms

7

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

63' 0"

Depth

110' 0"

Max Ridge Height

27' 3"

Garage

Type

Attached

Area

877 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Framing Type

Truss

Architectural Style

Modern

Northwest

Special Features

Bonus Room

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Two Story Great Room

Plan Collections

Attached Apartments

Luxury
