Plan 36591TX

Spacious 5-Bed House Plan with Sport Court

Heated S.F.

7,685

Beds

Baths

5.5+

Stories

Cars

Floor Plan

Main Level

2nd Floor

Plan Details

A conical roof rests atop the circular front porch of this spacious house plan, which presents a castle-like appeal and beautiful architectural details inside and out. Double garages reside on either side of the home for the car aficionado.
Step inside to discover clean views into the sizable family room and dining area, where three sets of french doors invite you to spend time outdoors.

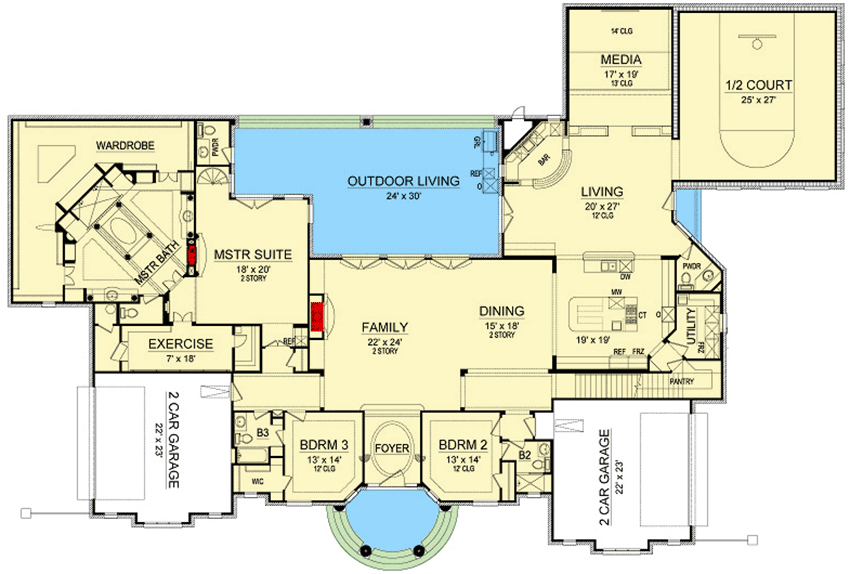

The attached kitchen boasts two islands, and the adjoining living area includes a bar, media room, and sport court; ideal for entertaining or relaxing with family.
The two-story ceiling in the master suite allows for a spiral staircase to lead to a second-level study, while the luxurious en suite provides a spa-like experience and massive, wrap-around closet. Two other bedrooms on the main level flank the foyer.

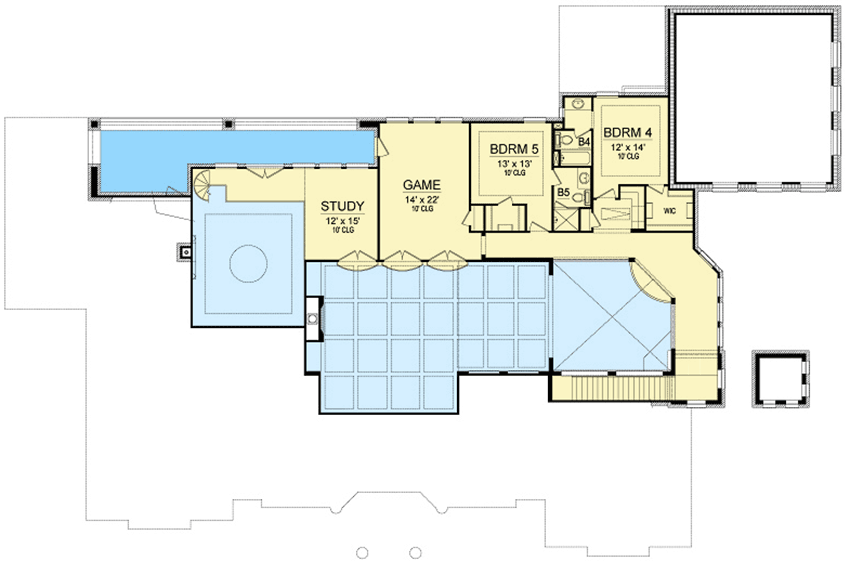

Both of the upstairs bedrooms have their own bath, and a generously-sized game room finishes the level, and features two Juliet balconies that overlook the family room below.

What's Included

Cover sheet
Foundation Plan - schematic only
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

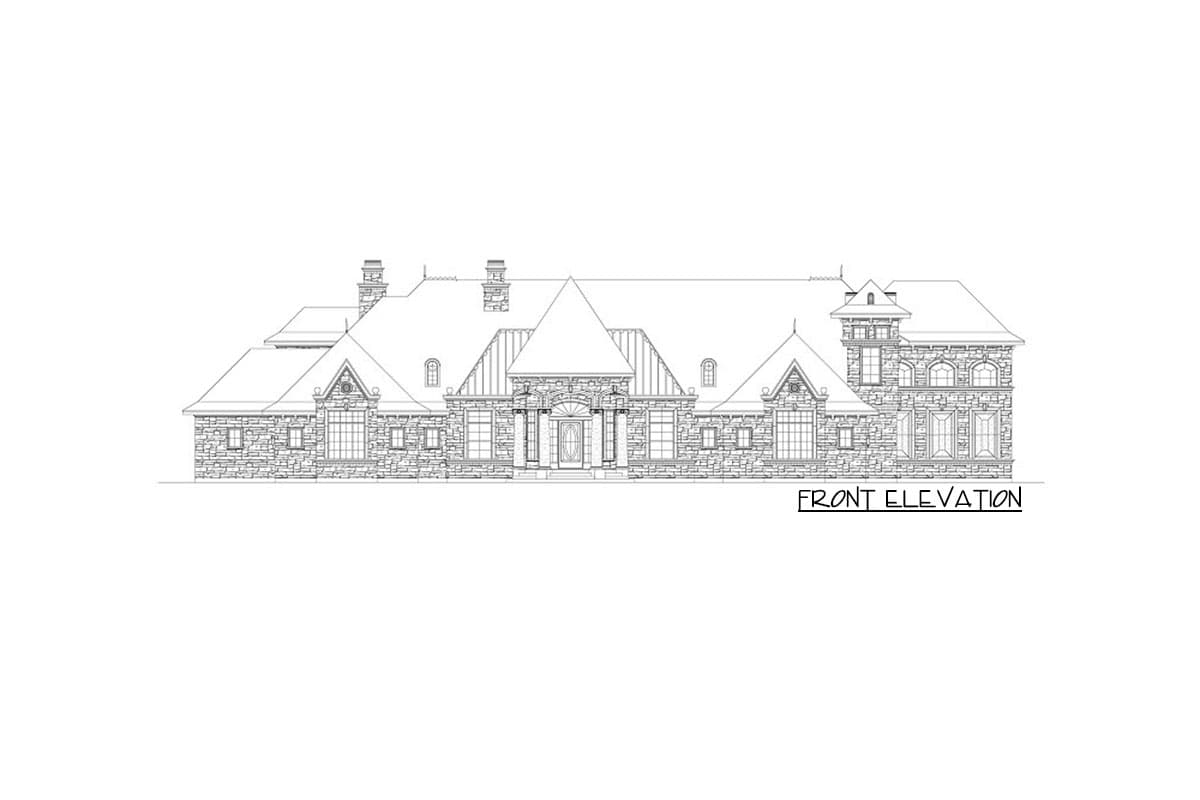

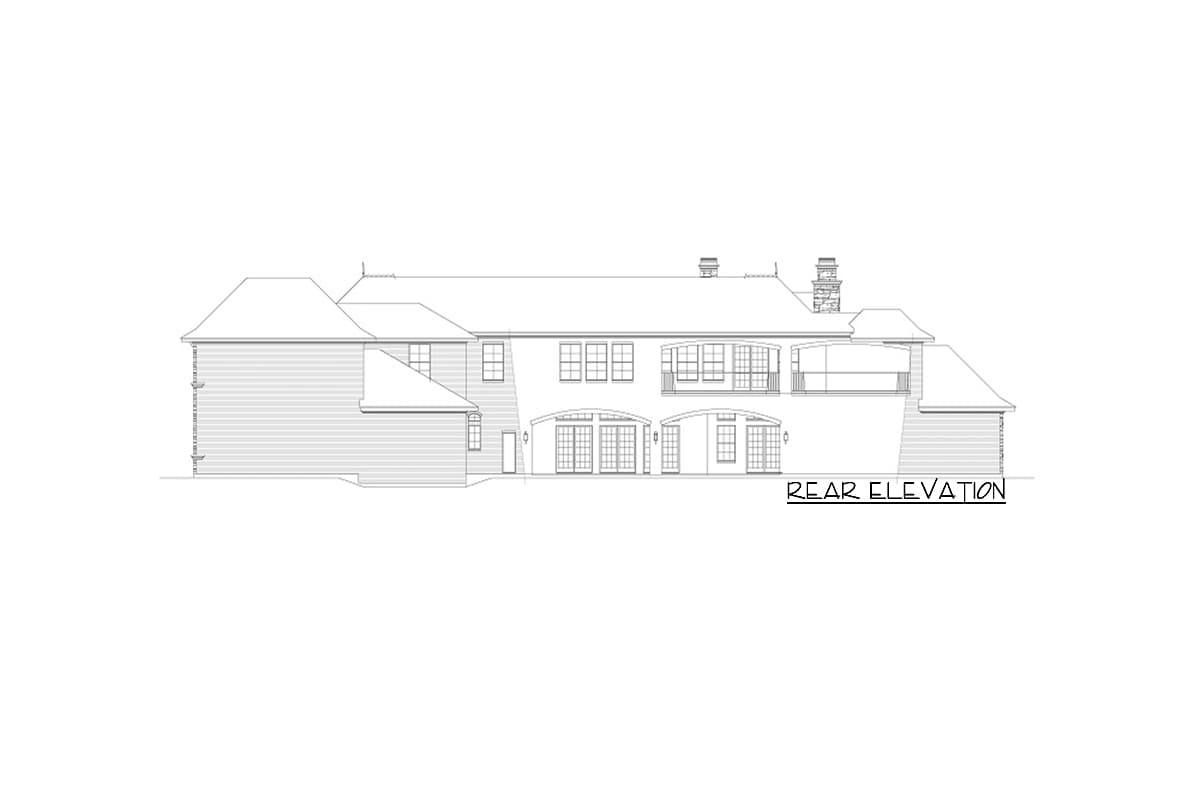

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

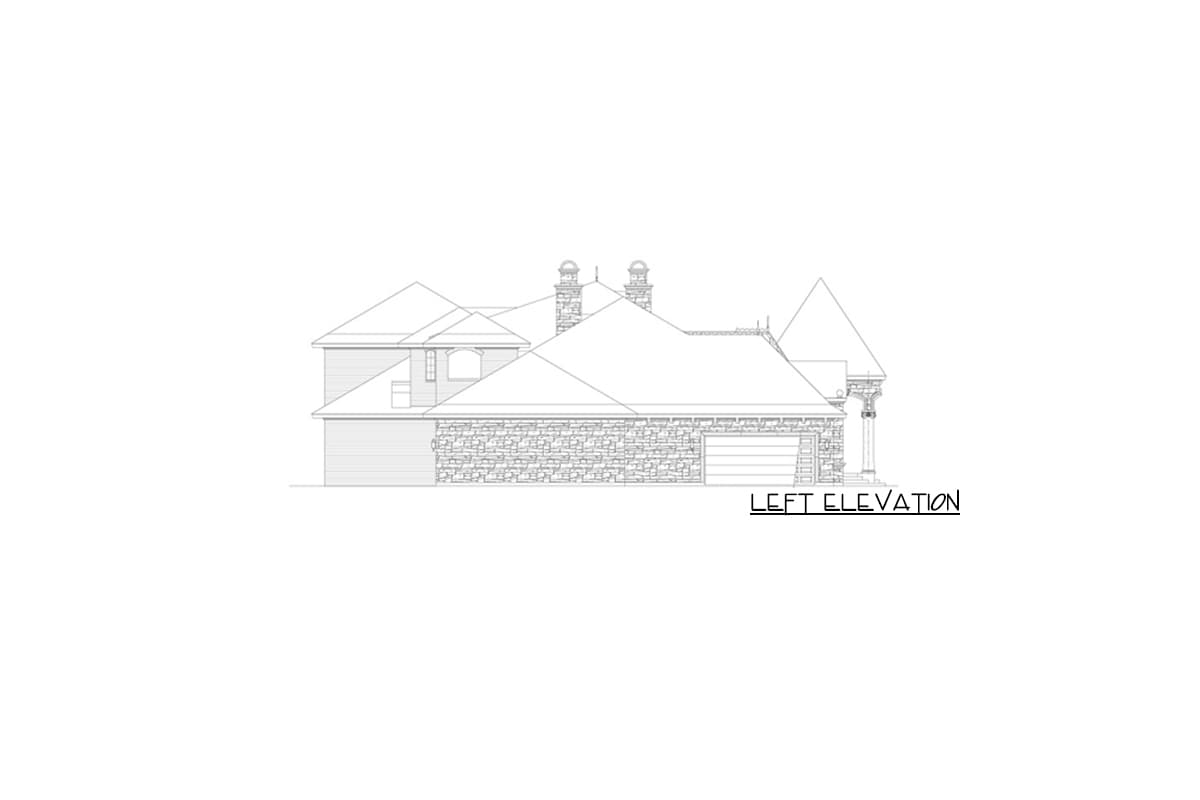

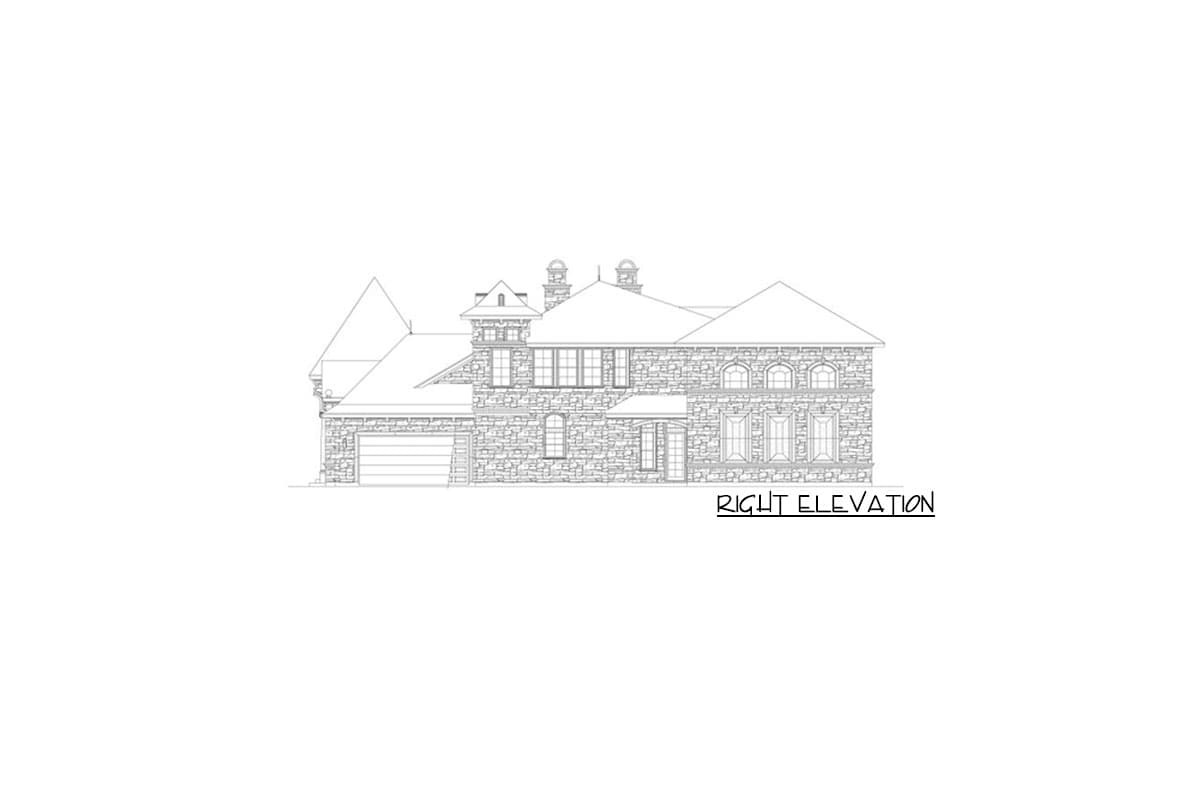

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
