Plan 69034AM

Spacious And Gracious House Plan with 3 Upstairs Bedrooms and a Loft - 2662 Sq Ft

Heated S.F.

2,662

Beds

Baths

2.5

Stories

Cars

Photos

Floor Plan

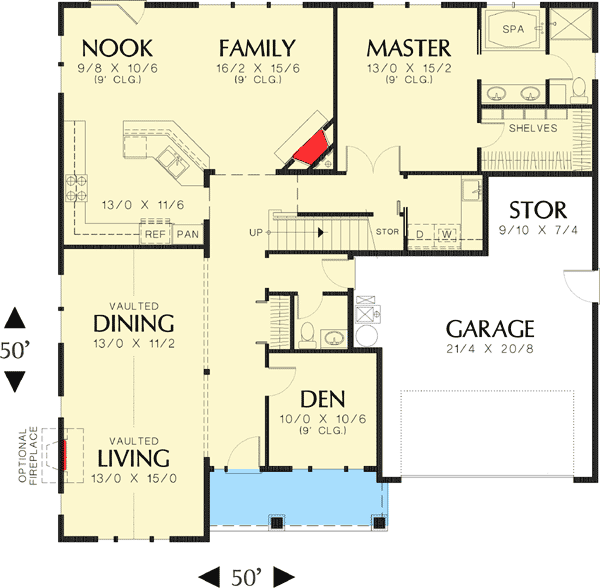

Main Level

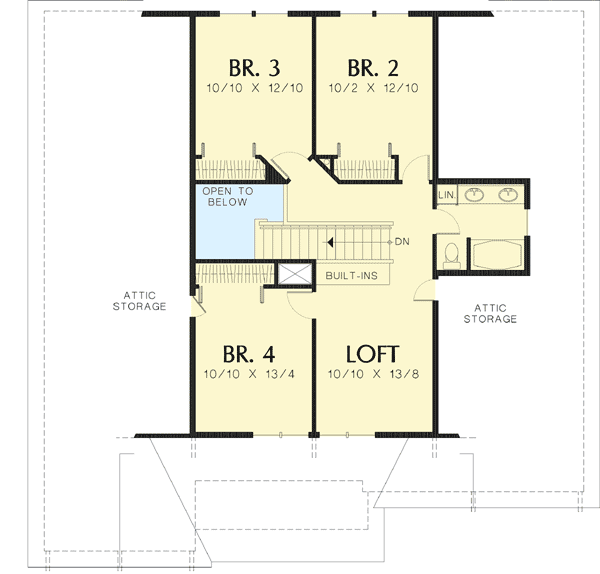

2nd Floor

Plan Details

Spacious and gracious, this four bedroom home offers a bounty of comfortable living spaces and functional amenities. The cozy nest is adaptable to the homeowners' specific lifestyle and needs. A den near the foyer can be furnished as a home office or as a quiet getaway. The loft at the top of the stairs has built-ins for books, games, or media equipment. There's room in the living room for an optional fireplace. A plethora of storage in the garage, under the staircase, and in the attic, corrals clutter.
The kitchen has a clear view across the sink peninsula and snack bar to the windows in the family room. Arranged for efficiency, the kitchen is well supplied with cabinets and countertop. Windows and an atrium door brighten the eating nook.
The first-floor master suite has a double-door entrance, a walk-in closet with built-in shelves, and a compartmentalized bath with a whirlpool tub and a shower. The laundry room is fully equipped with a sink, storage cabinets, and countertop.

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

House Plan 69034AM comes to life in North Carolina

Photos

What's Included

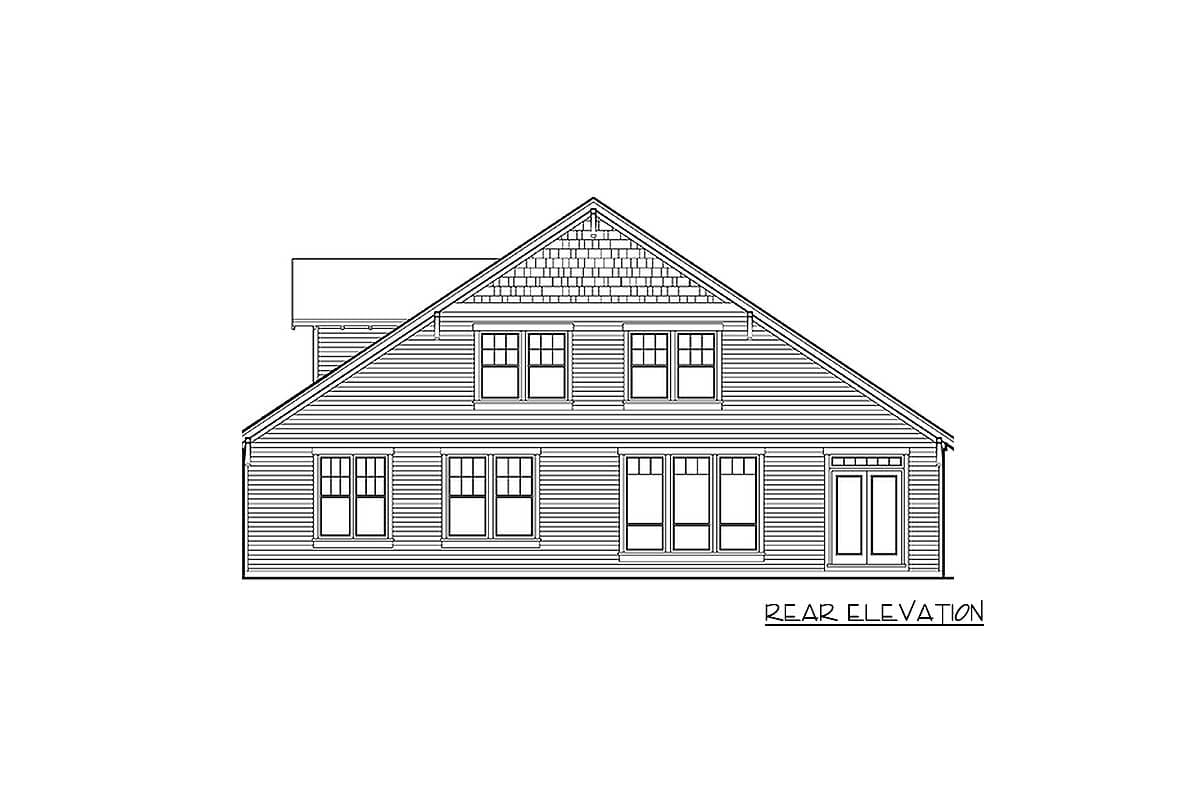

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
IMPORTANT NOTE: Sections and elevations depict the standard foundation only.
Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
