Plan 31006D

Spacious and Spectacular

Heated S.F.

3,882

Beds

5

Baths

3.5

Stories

2

Cars

2

Floor Plan

Main Level

floor plan image Main Level

2nd Floor

floor plan image 2nd Floor

Plan Details

This spectacular Mediterranean home plan offers a variety of formal and informal settings for the large family. The foyer allows a view of the rear covered patio.
Columns set off the formal living and dining rooms from the foyer.
The master is on main and has a sitting room with covered patio access. That bath has dual vanities and two walk-ins (5'4" x 9'4" and 3'10" x 10'2").
The family room is spacious and has access to the covered patio in back and has a fireplace flanked by built-ins.
The kitchen has loads of counter space and an island. It is a bright space with the bayed breakfast area casting natural light to the space.

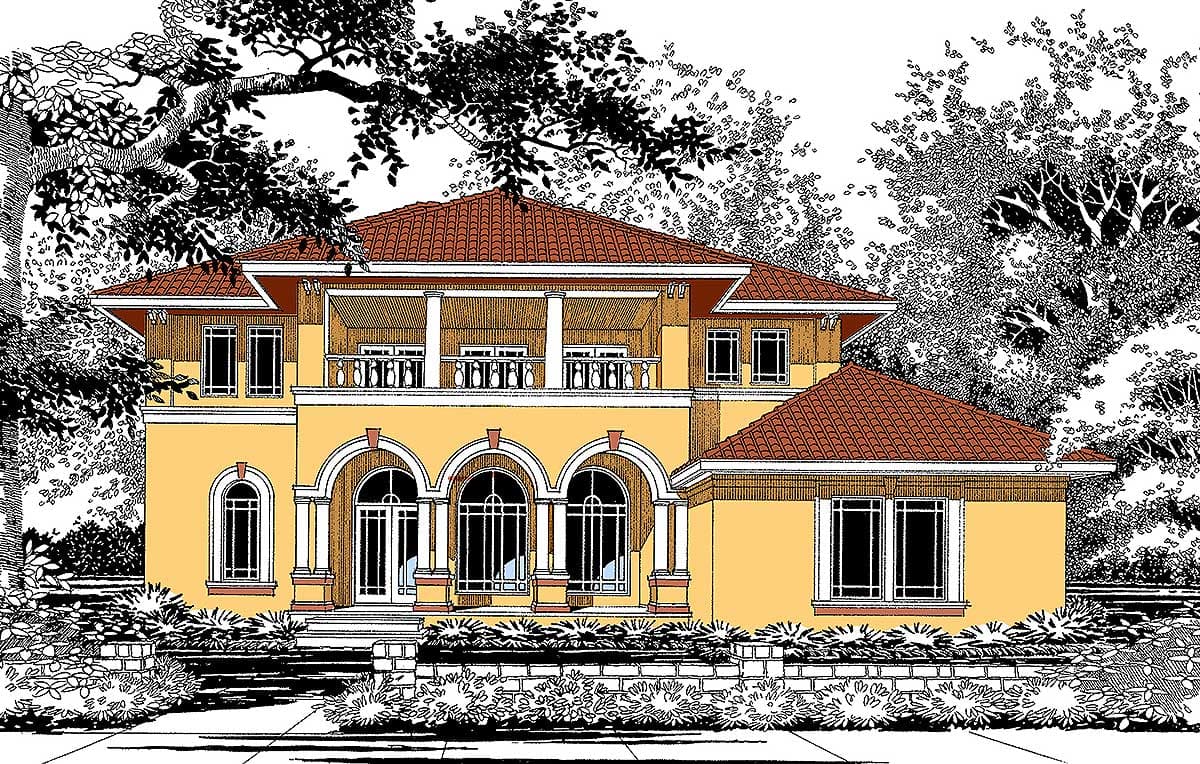

A covered porch off the second-floor game room tops the entry porch, which has three inviting arches.
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.

What's Included

Foundation plan
Fully dimensioned floor plan
Four elevations (front, rear, left & right)
Electrical plan
Building cross section
Roof framing
Ceiling framing
Cabinet elevations

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,882 sq. ft.

1st Floor

2,111 sq. ft.

2nd Floor

1,771 sq. ft.

Porch, Front

183 sq. ft.

Covered Patio

159 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

65' 0"

Depth

58' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

532 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor
